Overview

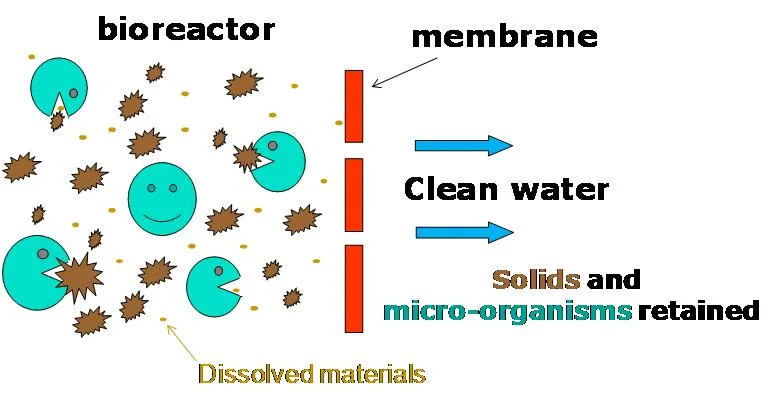

Membrane bioreactors (MBR) represent an advanced wastewater treatment technology that integrates membrane separation processes with biological treatment. Specifically, MBR systems combine membrane processes, such as microfiltration or ultrafiltration, with the activated sludge process, which serves as the core biological wastewater treatment mechanism. This hybrid approach has become widely adopted for both municipal and industrial wastewater treatment applications due to its efficiency and versatility. The integration allows for the effective separation of treated water from the biological biomass, resulting in a compact and high-performing treatment solution.

System Configurations

There are two basic membrane bioreactor configurations: the submerged membrane bioreactor and the side stream membrane bioreactor. In the submerged configuration, the membrane module is located directly inside the biological reactor. Here, the membrane is submerged in the wastewater, allowing for direct contact between the biomass and the membrane surface. This arrangement often simplifies the hydraulic layout and can reduce energy consumption associated with pumping large volumes of mixed liquor.

In contrast, the side stream membrane bioreactor positions the membrane outside the biological reactor. In this setup, the membrane acts as an additional step after the primary biological treatment phase. Mixed liquor is pumped from the biological reactor to the external membrane unit for filtration, after which the permeate is collected and the retentate may be returned to the reactor. This configuration allows for greater flexibility in membrane module selection and maintenance but may require higher energy input for pumping.

Operational Advantages

The primary advantage of membrane bioreactors is the high quality of the effluent produced. The membrane barrier effectively retains suspended solids, bacteria, and viruses, resulting in a clarified effluent that is highly suitable for water reuse. This makes MBR technology particularly valuable in regions facing water scarcity or where stringent discharge standards are required. The operational status of MBR systems is currently active and expanding, reflecting their growing role in modern water infrastructure. By merging biological degradation with physical separation, MBRs offer a robust solution for achieving consistent effluent quality across diverse wastewater streams.

History and development of MBR technology

The development of membrane bioreactor (MBR) technology represents a significant evolution in wastewater treatment, moving from experimental concepts to widely adopted municipal and industrial solutions. The foundational work began in the late 1960s, when Dorr-Oliver Inc. initiated early investigations into combining biological treatment with membrane filtration. During this initial phase, the technology was characterized by side stream configurations, where the membrane unit was located outside the biological reactor as an additional step after the activated sludge process.

These early side stream systems faced substantial operational challenges, primarily related to high energy consumption. Because the membrane was situated externally, the mixed liquor had to be pumped through the membrane module, requiring significant hydraulic pressure to overcome resistance. This configuration, while effective for separating solids from liquids, often suffered from membrane fouling and high operational costs, which limited its widespread adoption in the decades following its inception.

The 1989 Submerged Configuration Breakthrough

A pivotal shift in MBR technology occurred in 1989 with the introduction of the submerged membrane bioreactor configuration. This innovation fundamentally altered the energy dynamics of the system. By submerging the membrane, the need for high-pressure external pumping was significantly reduced, as the hydrostatic pressure of the wastewater itself helped drive the filtration process. This transition from high-energy side stream systems to lower-energy submerged systems marked a critical turning point, making MBR technology more economically viable for broader application.

Market Growth and Adoption (2006–2018)

Following the technical refinements of the submerged configuration, the market for membrane bioreactors experienced substantial growth. Projections from 2006 to 2018 indicated a steady increase in the adoption of MBR systems for both municipal and industrial wastewater treatment. The technology's ability to provide high-quality effluent with a smaller footprint compared to conventional activated sludge processes drove this expansion. The combination of microfiltration or ultrafiltration with biological treatment allowed for more efficient separation of biomass, leading to improved water quality and greater operational flexibility. As the technology matured, it became a standard option for facilities seeking to optimize space and energy usage in wastewater management.

What are the main types of membrane bioreactor configurations?

Membrane bioreactors (MBRs) are primarily categorized into two distinct configurations: submerged (internal) and side stream (external) systems. These configurations differ fundamentally in the placement of the membrane module relative to the biological reactor, which significantly impacts hydraulic dynamics, energy consumption, and operational maintenance. Understanding these differences is critical for selecting the appropriate technology for municipal or industrial wastewater treatment applications.

Submerged Membrane Bioreactor (iMBR)

In the submerged configuration, the membrane modules are located directly inside the biological reactor, immersed in the mixed liquor. This arrangement allows the mixed liquor to be pumped directly through the membranes, reducing the need for large external pumps. The primary driving force for filtration is often a combination of hydrostatic pressure and air scouring. Air is sparged beneath the membrane modules to create shear forces that help control fouling by sweeping the membrane surface. This aeration serves a dual purpose: it provides oxygen for the biological process and maintains membrane permeability. Submerged systems are generally considered more energy-efficient for large-scale municipal applications because the energy required for aeration often accounts for the majority of the total energy demand, effectively combining biological aeration and hydraulic driving force.

Side Stream Membrane Bioreactor (sMBR)

Mixed liquor is pumped from the reactor, through the membrane module, and then returned to the reactor or sent to the permeate tank. This setup typically requires higher transmembrane pressure to drive the flow through the membranes, often necessitating more robust pumping systems. Side stream systems are often preferred for industrial wastewater treatment where the mixed liquor may have higher solids content or specific hydraulic requirements. The external location allows for easier access for maintenance and cleaning, but the higher pumping energy can make them less energy-efficient for large volumes compared to submerged systems.

Feature Submerged (iMBR) Side Stream (sMBR)
Membrane Location Inside biological reactor Outside biological reactor
Energy Usage Generally lower; relies on aeration and hydrostatic pressure Generally higher; relies on pumping energy
Fouling Control Air scouring creates shear forces Higher transmembrane pressure, cross-flow velocity
Maintenance Modules may require lifting or removal from the tank Easier access for external modules
Typical Applications Municipal wastewater treatment Industrial wastewater treatment

The choice between submerged and side stream configurations depends on specific project requirements, including the scale of the treatment plant, the characteristics of the wastewater, and energy cost considerations. Submerged systems offer advantages in energy demand and fouling control through integrated aeration, making them a popular choice for municipal applications. Side stream systems provide flexibility and easier maintenance, which can be beneficial for industrial settings with variable flow rates or higher solids concentrations. The energy balance in MBRs is often described by the relationship between transmembrane pressure (Ptm​), flux (J), and resistance (R), where J=μRPtm​​, highlighting the importance of minimizing resistance through effective fouling control strategies.

How does membrane fouling affect MBR performance?

Membrane fouling is the primary operational challenge in membrane bioreactors, directly impacting hydraulic performance and energy efficiency. Fouling occurs when suspended solids, colloids, and soluble organic matter accumulate on or within the membrane surface. This accumulation manifests through two main mechanisms: pore blocking, where particles enter and obstruct the membrane pores, and cake layer formation, where a dense layer of solids builds up on the membrane surface. As the fouling layer thickens, the transmembrane pressure (TMP) increases to maintain a constant permeate flux. Elevated TMP leads to higher energy consumption, primarily for aeration and pumping, which can account for up to 60–70% of the total energy cost of an MBR system.

Fouling Control Strategies

Effective fouling management requires a combination of physical, hydraulic, and chemical controls. Air scouring is the most common physical method, where air bubbles are introduced below the membrane modules to create shear forces that dislodge the cake layer. This is particularly effective in submerged membrane bioreactors. Backwashing involves periodically reversing the permeate flow to flush the membrane surface. This can be done using permeate or external water and is often scheduled at fixed intervals or triggered by a specific TMP threshold.

Chemical cleaning is employed to remove more stubborn, reversible, and irreversible fouling agents. Sodium hypochlorite (NaOCl) is commonly used to oxidize organic matter and control biofilm growth, while citric acid is often applied to remove inorganic scaling, such as calcium carbonate. These cleanings are typically categorized as Clean-In-Place (CIP) or Clean-Out-of-Place (COOP), depending on whether the membranes remain in the reactor during the process.

Role of Mixed Liquor Suspended Solids (MLSS)

The concentration of mixed liquor suspended solids (MLSS) in the biological reactor significantly influences fouling rates. Higher MLSS concentrations allow for greater biomass retention, enabling smaller reactor volumes and higher treatment capacity. However, excessive MLSS increases the viscosity of the mixed liquor and the concentration of extracellular polymeric substances (EPS), which are sticky biopolymers secreted by bacteria. High EPS levels can accelerate cake layer formation and pore blocking. Therefore, optimizing MLSS concentration is a critical balance between maximizing biological treatment efficiency and minimizing the hydraulic resistance of the membrane module. Intermittent permeation, where the membrane operates in cycles of filtration and relaxation, also helps to allow the cake layer to relax and detach, further reducing fouling accumulation.

Biological performance and nutrient removal

Membrane bioreactors (MBRs) demonstrate superior biological performance compared to conventional activated sludge systems, primarily due to the decoupling of solids retention time (SRT) and hydraulic retention time (HRT). In conventional systems, SRT and HRT are often linked, limiting operational flexibility. In MBRs, the membrane barrier retains biomass independently of the flow rate, allowing for extended SRTs (often 15–30 days) while maintaining shorter HRTs (4–8 hours). This separation enhances the stability of the microbial community and improves the removal of organic matter.

Organic Matter Removal

The efficiency of organic removal in MBRs is typically measured by Chemical Oxygen Demand (COD) and Biochemical Oxygen Demand (BOD5) reduction. MBR systems achieve COD and BOD5 removal rates of 96–99%, significantly outperforming the approximately 95% removal rate observed in conventional activated sludge systems. The high biomass concentration in the aeration tank, enabled by the membrane's retention capability, ensures that even slowly degradable organic compounds are effectively metabolized. The resulting permeate quality is often comparable to tertiary treatment outputs, with low suspended solids and turbidity.

Nutrient Removal Mechanisms

Nitrogen removal in MBRs occurs through standard nitrification and denitrification processes. The extended SRT allows for the proliferation of nitrifying bacteria, such as Nitrosomonas and Nitrobacter, which convert ammonia to nitrite and then to nitrate. Denitrification follows, where heterotrophic bacteria reduce nitrate to nitrogen gas (N2) under anoxic conditions. Enhanced Biological Phosphorus Removal (EBPR) is also facilitated by the stable environment within the MBR, allowing polyphosphate-accumulating organisms (PAOs) to thrive and uptake phosphorus more efficiently than in conventional systems.

Anaerobic Membrane Bioreactors (AnMBR)

Anaerobic Membrane Bioreactors (AnMBR), introduced in the 1980s, combine anaerobic digestion with membrane filtration. This configuration is particularly effective for treating industrial wastewater with high organic loads. AnMBRs offer energy savings due to reduced aeration requirements and produce biogas (methane) as a byproduct. The membrane filtration step replaces the secondary clarifier, allowing for higher biomass concentrations and improved effluent quality, making AnMBRs a versatile option for both municipal and industrial applications.

Market framework and regional insights

The global market for membrane bioreactors is segmented by geography, reflecting regional variations in water stress and industrial growth. Market share data from 2016 indicates a significant concentration in the Asia-Pacific (APAC) region, which accounted for 41.90% of the global market. The Europe, Middle East, and Africa (EMEA) region held a 31.34% share, while the Americas represented 26.67% of the total market distribution.

Regional Drivers and Adoption

The adoption of MBR technology is heavily influenced by local environmental pressures and infrastructure needs. In the APAC region, rapid industrialization and urbanization have driven demand for efficient wastewater treatment solutions. Countries such as China and India are key markets, where the need to treat increasing volumes of municipal and industrial effluent has led to widespread MBR deployment. The submerged and side stream configurations are utilized to address space constraints and water quality requirements in these densely populated areas.

In the EMEA region, water scarcity is a primary driver for MBR adoption. Nations like Saudi Arabia rely on MBR systems to enhance water reuse and reduce dependency on desalination, particularly in arid climates. The technology’s ability to produce high-quality effluent makes it suitable for both municipal reuse and industrial applications. In the Americas, the United States represents a significant market, with MBRs being employed to upgrade existing activated sludge plants and meet stringent regulatory standards for nutrient removal and pathogen reduction.

Climate change further accelerates the global demand for MBRs by exacerbating water scarcity and altering precipitation patterns. The flexibility of MBR systems, which combine biological treatment with microfiltration or ultrafiltration, allows for consistent performance under varying hydraulic loads. This adaptability is crucial for regions experiencing fluctuating water availability, ensuring stable effluent quality for reuse in agriculture, industry, and potable supply. The market continues to evolve as these regional drivers shape investment and technological innovation in wastewater management.

Worked examples: Industrial and municipal applications

Membrane bioreactors are widely used for municipal and industrial wastewater treatment, with configurations including submerged and side stream systems. The submerged configuration places the membrane inside the biological reactor, while the side stream configuration locates the membrane outside as an additional step after biological treatment.

Industrial Applications

In Japan, membrane bioreactors treat alcohol stillage wastewater. This application demonstrates the technology's capacity to handle high organic loads typical of industrial effluents. The biological process reduces biochemical oxygen demand, while the membrane provides physical separation.

In the United States, membrane bioreactors process salad dressing and barbecue sauce wastewater. These industrial streams contain fats, oils, and suspended solids that challenge conventional activated sludge systems. The membrane barrier retains fine particulates and colloids, producing a clarified effluent suitable for reuse or discharge.

Municipal Applications and Water Reclamation

Membrane bioreactors serve general municipal wastewater treatment, combining biological degradation with microfiltration or ultrafiltration. The activated sludge process removes organic matter, while the membrane provides tertiary-level clarification. This dual mechanism produces high-quality effluent with reduced suspended solids and pathogen counts.

The technology is suitable for water reclamation in irrigation and urban waterways. The clarified effluent meets quality standards for agricultural irrigation, reducing freshwater demand. For urban waterways, the treated discharge improves aesthetic and ecological conditions, supporting recreational use and aquatic habitat restoration. The submerged membrane configuration offers compact footprint advantages, while the side stream configuration provides operational flexibility for variable flow rates.

What distinguishes MBR from conventional activated sludge?

Membrane bioreactors differ fundamentally from conventional activated sludge systems by replacing the secondary clarifier with a physical membrane barrier, typically microfiltration or ultrafiltration. This structural change allows for superior effluent quality and more compact design. In conventional systems, settling tanks separate biomass from treated water, requiring significant land area and precise hydraulic control. MBRs achieve this separation through membrane pores, enabling higher mixed liquor suspended solids concentrations and longer sludge retention times. The footprint of an MBR plant is generally smaller than that of a conventional activated sludge plant. This reduction in land requirement makes MBRs attractive for municipal and industrial wastewater treatment in space-constrained locations. The submerged membrane bioreactor configuration places the membrane inside the biological reactor, further minimizing space needs compared to side stream configurations where the membrane sits outside as an additional step. Sludge yield in MBRs can be lower due to extended sludge retention times, which enhance endogenous decay of biomass. This results in less excess sludge production compared to conventional systems. Oxygen transfer efficiency may also improve in MBRs, particularly in submerged configurations where aeration serves dual purposes: providing oxygen for biological processes and scouring the membrane surface to reduce fouling. Effluent quality from MBRs is typically higher than that from conventional activated sludge processes. The membrane barrier effectively removes suspended solids, bacteria, and some viruses, producing effluent suitable for reuse. This higher reuse potential is a key economic advantage, offsetting some of the higher initial investment and operational expenditures associated with MBRs. Economically, MBRs involve higher capital costs due to the membrane modules and associated infrastructure. Operational expenditures are also higher, driven by energy consumption for aeration and pumping, as well as membrane replacement costs. However, the smaller land requirement and enhanced effluent quality can justify these costs, particularly in urban areas where land is expensive and water reuse is valuable.

Technical Considerations

The choice between submerged and side stream MBR configurations depends on specific project requirements. Submerged MBRs are generally more energy-efficient for aeration, while side stream MBRs offer greater flexibility in membrane selection and maintenance. Both configurations require careful management of membrane fouling, which can impact performance and operational costs. In summary, MBRs offer distinct advantages over conventional activated sludge systems in terms of footprint, effluent quality, and sludge management. These benefits come with higher initial and operational costs, which must be weighed against the specific needs of the wastewater treatment project.
