Name: Matiri Project: Run-of-River Hydroelectric Scheme in New Zealand
Address: NZ

Overview

The Matiri Project is an operational run-of-river hydroelectric powerplant located in the South Island of New Zealand. This facility represents a key component of the region's renewable energy infrastructure, utilizing the natural flow of water from Lake Matiri and the adjacent Matiri River to generate electricity. The project is currently operated by Southern Generation, a major player in New Zealand's energy sector. The plant has an installed capacity of 4.6 MW, contributing to the national grid with a consistent, albeit modest, output characteristic of run-of-river schemes which rely on immediate water flow rather than large-scale reservoir storage.

Infrastructure and Operational Design

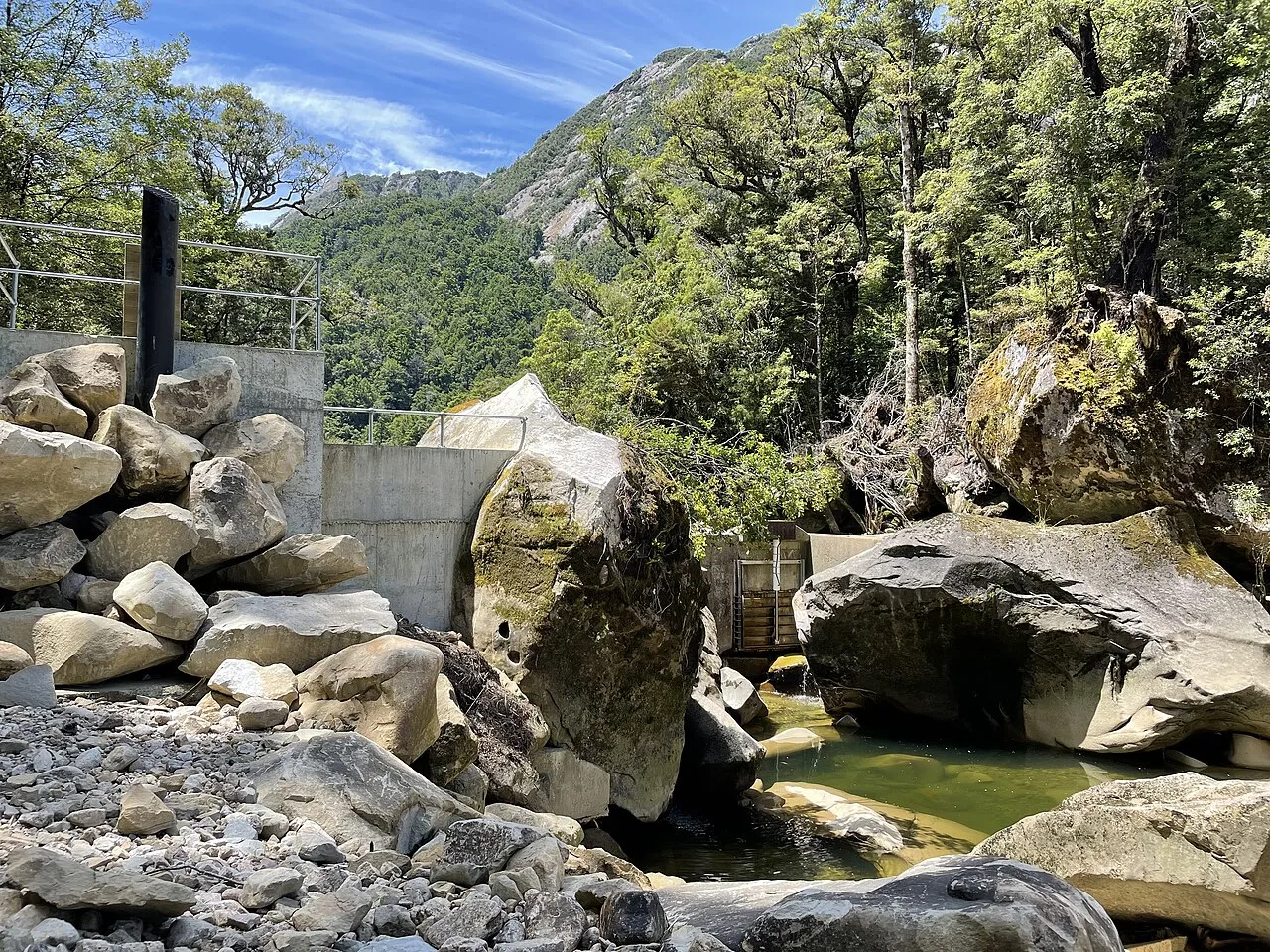

The engineering design of the Matiri Project centers on a specific hydraulic configuration optimized for the local topography. The system captures water through a series of intake weirs situated at Lake Matiri. These weirs serve as the primary collection points, drawing water from the lake's surface or near-surface layers depending on sediment and flow conditions. From the intake weirs, the water is conveyed to the power station via a dedicated buried pipeline. This pipeline extends for a length of 2.4 km, transporting the water under pressure to the turbine hall. The use of a buried pipeline is a common feature in such projects, helping to minimize evaporation losses and protect the conveyance system from surface weathering and debris.

The power station itself is situated at the end of this 2.4 km pipeline, where the potential energy of the water is converted into electrical energy. The run-of-river nature of the scheme means that the generation profile is directly linked to the hydrological conditions of the Matiri River and Lake Matiri. Unlike reservoir-based hydro plants that can store water for peak demand periods, the Matiri Project generates power as water flows through the system, making it a reliable but flow-dependent source of renewable energy. The project was commissioned in 2020, marking its entry into the operational phase of New Zealand's hydroelectric network. The facility continues to operate under the management of Southern Generation, leveraging the natural water resources of the South Island to support the country's energy mix.

Technical Infrastructure and Design

The Matiri Project operates as a run-of-river hydroelectric scheme, utilizing the natural flow of water from Lake Matiri and the Matiri River in the South Island of New Zealand. The infrastructure is designed to capture hydraulic energy without requiring a massive reservoir, relying instead on a series of intake weirs located at Lake Matiri. These weirs draw water from the lake and channel it into the conveyance system, which is critical for maintaining consistent flow rates to the turbine units.

Conveyance System

Water from the intake weirs is transported via a 2.4 km long buried pipeline. This pipeline connects the lake intakes to the power station, minimizing surface land use and exposure to environmental factors. The buried design helps protect the pipeline from external physical impacts and temperature fluctuations, ensuring efficient water conveyance over the distance. The pipeline's length of 2.4 km is a key parameter in the hydraulic head calculation, influencing the overall efficiency of the energy conversion process.

Power Station

The power station is the final component of the infrastructure, where the potential energy of the water is converted into electrical energy. The station houses the turbine and generator units that produce the plant's total capacity of 4.6 MW. The design of the power station is optimized for the run-of-river characteristics, allowing for flexible operation depending on the water availability from Lake Matiri and the Matiri River. The station is operated by Southern Generation, which manages the operational parameters to ensure consistent power output.

Technical Specification	Value
Project Type	Run-of-river hydroelectric scheme
Location	Lake Matiri and Matiri River, South Island, New Zealand
Intake Structure	Series of intake weirs at Lake Matiri
Pipeline Length	2.4 km
Pipeline Type	Buried pipeline
Total Capacity	4.6 MW
Operator	Southern Generation
Commissioning Year	2020

Development History and Ownership

The Matiri Project represents a significant addition to New Zealand's renewable energy portfolio, characterized by a development timeline spanning over a decade. The initiative traces its origins to 2008, when New Zealand Energy Limited first proposed the run-of-river hydroelectric scheme. This early stage involved identifying the potential of Lake Matiri and the Matiri River in the South Island to generate consistent power through a series of intake weirs and a buried pipeline infrastructure.

Progress on the project accelerated in 2014, marked by a strategic shift in ownership and development rights. Pioneer Energy purchased the development rights from New Zealand Energy Limited, bringing new momentum to the planning and engineering phases. This acquisition was crucial in advancing the project from concept to tangible infrastructure, setting the stage for physical construction to commence. Under Pioneer Energy's stewardship, the project moved through necessary regulatory approvals and site preparations required for a hydroelectric installation of this scale.

Construction of the Matiri Project officially began in 2018. This phase involved the installation of the 2.4 km long buried pipeline that transports water from the intake weirs at Lake Matiri to the power station. The engineering work focused on integrating the pipeline system with the existing river dynamics to ensure efficient water flow and minimal environmental disruption. The construction period was characterized by the deployment of specialized equipment to handle the terrain and the precise alignment of the pipeline to maintain optimal pressure for power generation.

Upon completion of the construction phase, the project was commissioned in 2020. At this stage, ownership of the Matiri Project was transferred to Southern Generation. Southern Generation is a partnership that operates the facility, managing the 4.6 MW capacity hydroelectric power plant. The transfer to Southern Generation marked the final step in the project's development history, transitioning the asset from a construction site to an operational energy source. The project now stands as a key component of Southern Generation's portfolio, contributing to the South Island's energy grid with its run-of-river technology.

Environmental and Community Opposition

The development of the Matiri Project encountered significant scrutiny regarding procedural transparency and ecological impact. A primary point of contention was the absence of nationwide notification for the project’s resource consents. Critics argued that a project of this scale, involving a 2.4 km buried pipeline and structures on public land, warranted broader public awareness than the standard local notification process provided. This procedural aspect fueled concerns that the decision-making process did not fully account for the wider regional implications of altering the hydrological dynamics of Lake Matiri and the Matiri River.

Ecological and Recreational Concerns

Environmental groups and local recreational users, particularly kayakers, voiced strong opposition to the scheme. Kayakers highlighted the potential disruption to the river’s flow and accessibility, which are critical for maintaining the recreational value of the Matiri River. The introduction of intake weirs and the diversion of water through a long-distance pipeline were seen as intrusive modifications to a relatively natural waterway. These changes raised fears about the degradation of the river’s character and the potential for reduced water levels in certain sections, impacting both wildlife habitats and human enjoyment of the landscape.

Forest and Bird, a prominent New Zealand conservation organization, also weighed in on the project. Their perspective focused on the ecological integrity of the area. The organization expressed concern over the concession granted to the Department of Conservation, which allowed for the construction of structures on public land. This concession was viewed by some as a precedent that could weaken the protective status of conservation lands, potentially opening the door for further infrastructure developments in sensitive areas. Forest and Bird emphasized the need for rigorous environmental assessments to ensure that the benefits of the 4.6 MW hydroelectric output did not come at an unsustainable cost to the local biodiversity.

Department of Conservation’s Role

The Department of Conservation’s decision to concede the use of public land for the project’s infrastructure was a focal point of the debate. The department’s involvement was necessary due to the location of the intake weirs and the pipeline route, which traversed conservation areas. Critics questioned whether the department had sufficiently balanced the national interest in renewable energy generation against the preservation of the South Island’s natural heritage. The concession was seen by opponents as a compromise that favored the operator, Southern Generation, potentially at the expense of long-term ecological stability. This dynamic highlighted the complex interplay between energy infrastructure development and land management policies in New Zealand’s conservation framework.

Construction Challenges and Delays

The development of the Matiri Project, a run-of-river hydroelectric scheme in New Zealand's South Island, was characterized by significant logistical and geological hurdles that extended the timeline to its final commissioning in December 2020. The project, operated by Southern Generation, required the construction of a 2.4 km long buried pipeline to transport water from a series of intake weirs at Lake Matiri to the power station. This specific infrastructure component was central to the construction challenges, as the pipeline route traversed varied terrain susceptible to geological instability.

Geological Instability and the Slip

A primary factor in the project's delays was a significant slip, or landslide, which impacted the construction zone. In the South Island's topography, such geological events are not uncommon but can severely disrupt the critical path of hydroelectric projects. The slip likely affected the alignment or stability of the 2.4 km pipeline route, necessitating additional engineering assessments and remedial works. These geological uncertainties required careful management to ensure the integrity of the buried pipeline, which is essential for conveying water from Lake Matiri to the turbine hall. The need to address this slip added time to the construction phase, as engineers had to evaluate the extent of the ground movement and implement solutions to secure the pipeline infrastructure.

Pandemic-Induced Delays

Compounding the geological challenges was the global COVID-19 pandemic, which introduced widespread disruptions to the energy infrastructure sector. The pandemic affected supply chains, labor availability, and on-site work schedules for the Matiri Project. As with many infrastructure developments in New Zealand during this period, the project faced interruptions due to lockdowns, health and safety protocols, and potential shortages of materials or specialized labor. These external factors further extended the timeline, pushing the final commissioning date to December 2020. The combination of the slip and the pandemic created a complex operational environment for Southern Generation, requiring adaptive management to keep the project moving toward completion.

Despite these delays, the Matiri Project was successfully commissioned in December 2020, adding 4.6 MW of capacity to New Zealand's hydroelectric network. The project's completion marked the resolution of both the geological and pandemic-related challenges, establishing a new source of renewable energy in the South Island. The 2.4 km pipeline and the intake weirs at Lake Matiri now function as key components of this operational facility, contributing to the region's energy mix.

Why it matters

The Matiri Project represents a significant addition to New Zealand’s renewable energy infrastructure, particularly within the South Island’s grid. As a run-of-river hydroelectric scheme, it exemplifies the continued relevance of small-to-medium scale hydro projects in diversifying the national energy mix. With a capacity of 4.6 MW, the project contributes to the operational stability of the Southern Generation network, providing a consistent power source that complements larger hydroelectric dams and variable renewable sources such as wind and solar PV.

The engineering design of the Matiri Project highlights the logistical complexity inherent in modern hydroelectric development. The scheme utilizes a series of intake weirs at Lake Matiri, channeling water through a 2.4 km long buried pipeline to the power station. This specific configuration allows for efficient water management and minimizes surface disruption, a critical consideration in the ecologically sensitive landscapes of the South Island. The burial of the pipeline not only protects the infrastructure from environmental factors but also reduces the visual impact on the surrounding terrain, balancing energy production with landscape preservation.

Commissioned in 2020, the Matiri Project underscores the ongoing investment in New Zealand’s hydroelectric capabilities. Its operational status reflects the successful navigation of environmental and logistical challenges that often delay or complicate such projects. The integration of the Matiri River and Lake Matiri into the power generation process demonstrates a strategic use of local water resources, enhancing the resilience of the regional grid. This project serves as a model for how smaller hydroelectric schemes can effectively contribute to national energy goals while maintaining ecological balance.

How does run-of-river hydroelectricity work?

Run-of-river hydroelectricity represents a distinct operational model within the broader category of hydro power generation, characterized by its reliance on the natural, continuous flow of a water body rather than the massive storage capacity of a traditional reservoir. Unlike large dam-based schemes that store significant volumes of water to regulate output over weeks or months, run-of-river systems harness the kinetic energy of water as it moves through its natural channel. This approach minimizes the surface area of water exposed to the air, thereby reducing evaporation losses and altering the local ecology to a lesser degree than large impoundments, although it still requires infrastructure to direct the flow. The Matiri Project in New Zealand serves as a practical example of this technology, utilizing the natural gradient and flow of the Matiri River and Lake Matiri to generate electricity with a capacity of 4.6 MW, operated by Southern Generation since its commissioning in 2020.

Infrastructure: Intake Weirs and Pipelines

The core infrastructure of a run-of-river scheme involves capturing water at a specific elevation and conveying it to a powerhouse located at a lower elevation. At the Matiri Project, this process begins with a series of intake weirs situated at Lake Matiri. These weirs act as barriers that divert a portion of the lake’s water into the system without completely blocking the river’s natural course. The water is then channeled through a 2.4 km long buried pipeline. This pipeline is critical to the system’s efficiency; by burying the conduit, the project protects the water from temperature fluctuations and sediment accumulation, ensuring a consistent flow to the turbines. The length of the pipeline determines the "head," or the vertical distance the water falls, which, combined with the flow rate, dictates the power output. The buried nature of the pipeline at Matiri also helps to integrate the infrastructure into the South Island’s landscape, reducing visual impact compared to above-ground penstocks.

Contrast with Storage-Based Schemes

The distinction between run-of-river and storage-based hydroelectricity lies primarily in flexibility and environmental footprint. Storage schemes, such as those found in the Three Gorges Dam or Itaipu, create vast reservoirs that can store energy for long periods, allowing operators to adjust power output based on demand peaks. In contrast, run-of-river projects like Matiri are more dependent on the immediate availability of water. If the river flow decreases due to seasonal variations or drought, the power output may fluctuate accordingly. However, this model offers advantages in terms of construction speed and cost, as it requires less earthmoving and concrete than large dam structures. The Matiri Project’s 4.6 MW capacity reflects a balanced approach, providing a steady contribution to the New Zealand grid while leveraging the natural hydrology of the Matiri River. This method is particularly suited to regions with consistent rainfall and significant topographical gradients, such as the South Island of New Zealand, where the natural flow can be effectively harnessed without the need for massive water storage.

What are the key environmental considerations for small hydro projects?

Small hydroelectric developments, such as the Matiri Project, often sit at the intersection of renewable energy generation and terrestrial conservation. While the project utilizes water from Lake Matiri and the Matiri River in New Zealand’s South Island, the environmental footprint of run-of-river schemes is a subject of ongoing assessment by regulatory bodies and conservation groups. The Department of Conservation plays a central role in evaluating these impacts, focusing on how infrastructure interacts with local ecosystems. Organizations like Forest and Bird frequently contribute to these debates, assessing whether the conservation gains from reduced carbon emissions outweigh the localized ecological disturbances caused by weirs and pipelines.

Ecological Impact of Run-of-River Infrastructure

Run-of-river hydroelectricity is often marketed as a low-impact alternative to large reservoir dams. These structures can alter local hydrology and affect aquatic species. Intake weirs may influence fish migration patterns or sediment flow, while the extraction of water for the pipeline can reduce downstream flow volumes during peak generation periods. Conservation assessments typically examine these factors to determine if the hydrological changes are significant enough to threaten native biodiversity in the Matiri River catchment.

Conservation Gains and Regulatory Assessment

The Department of Conservation evaluates projects like Matiri by weighing environmental costs against broader conservation benefits. In New Zealand, small hydro is often seen as a key component of the renewable energy mix, helping to reduce reliance on thermal power and lowering greenhouse gas emissions. Forest and Bird and other environmental organizations assess whether these gains justify the local ecological footprint. Their analyses often focus on habitat fragmentation, water quality, and the long-term sustainability of water abstraction. The operational status of the Matiri Project, commissioned in 2020, reflects a balance struck between these environmental considerations and the need for a 4.6 MW capacity addition to the regional grid. Ongoing monitoring ensures that the project’s environmental management plans are effectively mitigating impacts on the Lake Matiri and Matiri River ecosystems.
