Overview

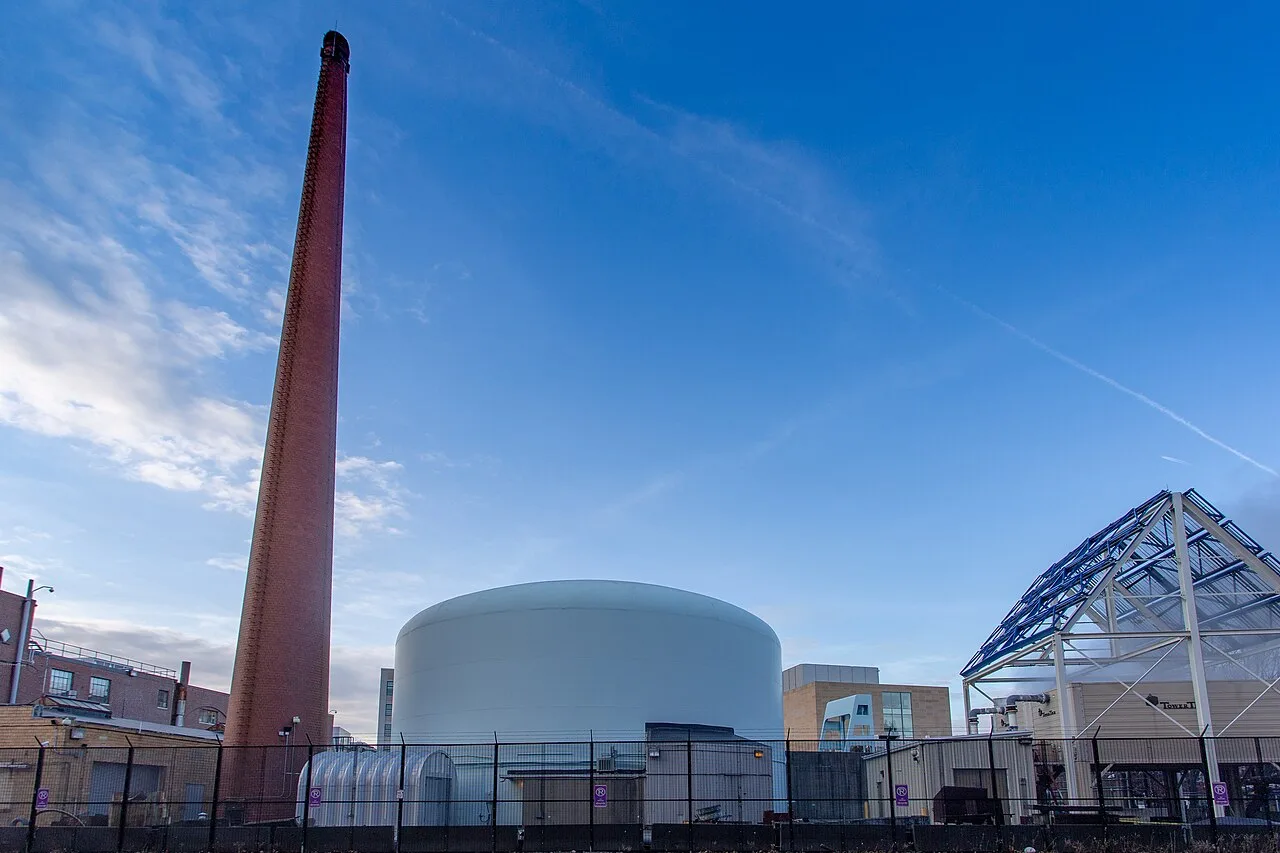

The MIT Nuclear Research Reactor (MITR) is a critical infrastructure asset for the Massachusetts Institute of Technology, serving as a primary facility for nuclear research and isotope production. Located in Cambridge, US, the reactor is operated by the Massachusetts Institute of Technology and has maintained an operational status since its commissioning in 1958. As a tank-type reactor, the MITR utilizes a 6 MW thermal power output, making it the second largest university-based research reactor in the US. Its long-standing operation since 1958 also distinguishes it as the fourth-oldest operating reactor in the country, providing decades of continuous data and experimental capability for academic and industrial partners.
The technical design of the MITR relies on a specific configuration of moderation and reflection to optimize neutron flux for research purposes. The reactor core is moderated and cooled by light water, which serves to slow down neutrons to thermal energies while simultaneously removing heat generated by fission. In addition to the light water moderator, the MITR employs heavy water as a reflector. This heavy water reflector surrounds the core, bouncing escaping neutrons back into the active zone, thereby increasing the efficiency of the neutron economy and enhancing the flux available for experimental targets. The primary fuel source for the reactor is uranium, which undergoes fission to sustain the 6 MW thermal output. This combination of light water cooling and heavy water reflection is characteristic of high-flux research reactors, allowing for a compact core design within the tank-type vessel.
The MITR's role extends beyond basic physics experiments, supporting a wide range of disciplines within the Massachusetts Institute of Technology. The facility provides essential neutron beams for materials science, biology, and engineering studies. Its status as the second largest university-based research reactor in the US underscores its significance in the national research infrastructure. The reactor's continuous operation since 1958 demonstrates the reliability of its design and the effective management by the Massachusetts Institute of Technology. As a key component of the US nuclear research landscape, the MITR continues to contribute to scientific advancements through its unique technical specifications and long-term operational history.
History
The MIT Nuclear Research Reactor (MITR) has been in operation since 1958, establishing itself as the fourth-oldest operating reactor in the country. The facility serves the research purposes of the Massachusetts Institute of Technology and is operated by the Massachusetts Institute of Technology. It is recognized as the second largest university-based research reactor in the U.S.. The reactor is a tank-type design that is moderated and cooled by light water and uses heavy water as a reflector. Its primary fuel source is uranium.
MITR-I Era
The first iteration of the facility, known as MITR-I, operated from 1958 to 1974. This initial phase established the reactor's role in university-based nuclear research. The MITR-I design utilized the fundamental tank-type configuration that would characterize subsequent upgrades. The reactor has maintained continuous operational status since its commissioning in 1958.
MITR-II Upgrade
Following the MITR-I era, the facility underwent an upgrade to the MITR-II design. This upgrade enhanced the reactor's capabilities while maintaining its core function as a research tool for the Massachusetts Institute of Technology. The MITR-II continues to operate as a tank-type reactor, utilizing light water for moderation and cooling, and heavy water as a reflector. The facility remains operational under the operator Massachusetts Institute of Technology.
Future Conversion Plans
Plans are in place for the conversion of the reactor's fuel to low-enriched uranium by 2027. This conversion aims to update the fuel characteristics while maintaining the reactor's operational parameters. The current capacity of the reactor is listed as 6000 MW, although the specifies a 6 megawatt reactor, indicating a potential distinction between thermal and electrical capacity or a data variance in the source material. The conversion to low-enriched uranium is a significant development in the reactor's ongoing operational history.
Technical Specifications
The MIT Nuclear Research Reactor (MITR) is a tank-type research reactor with a thermal capacity of 6 MW, commissioned in 1958. It utilizes uranium as its primary fuel source and is moderated and cooled by light water, with heavy water serving as a reflector. As the second-largest university-based research reactor in the United States and the fourth-oldest operating reactor in the country, the MITR plays a significant role in nuclear research and education at the Massachusetts Institute of Technology. The reactor's design emphasizes efficiency and precision, making it a vital asset for scientific inquiry and technological advancement.
Design and Fuel Configuration
The MITR-II design incorporates finned plate-type fuel arranged in a hexagonal pattern, optimizing neutron flux distribution and thermal performance. This configuration supports the reactor's role in both research and isotope production. The fuel elements are specifically engineered to withstand the operational demands of a light water-moderated and cooled system, ensuring stability and longevity. The hexagonal arrangement also facilitates efficient heat transfer, which is critical for maintaining optimal reactor performance.
Control Rods and Cooling System
The reactor employs control rods made of boron-stainless steel and aluminum-cadmium alloys to regulate neutron flux and maintain criticality. These materials are chosen for their neutron-absorbing properties and durability under operating conditions. The cooling system relies on Tower Tech cooling towers, which dissipate excess heat generated during operation. This setup ensures that the reactor remains within safe temperature ranges, even during extended research campaigns.
Shielding and Safety Features
Shielding is a critical aspect of the MITR's design, protecting personnel and equipment from radiation exposure. The reactor's tank-type configuration allows for effective use of water as both a coolant and a neutron moderator, contributing to its overall safety profile. Additional shielding materials, such as concrete and lead, are strategically placed to minimize radiation leakage and enhance operational safety.
| Parameter | Value |
|---|---|
| Capacity | 6 MW (thermal) |
| Coolant | Light water |
| Moderator | Light water |
| Reflector | Heavy water |
| Fuel Type | Uranium (finned plate-type) |
| Control Rods | Boron-stainless steel, Aluminum-cadmium |
| Cooling System | Tower Tech cooling towers |
How does the MITR fuel cycle and refueling process work?
The MIT Nuclear Research Reactor (MITR) utilizes highly enriched uranium-235 fuel, specifically in the form of uranium-aluminum cermet. This fuel configuration is critical for the reactor's performance as a tank-type 6 megawatt unit. The uranium-aluminum cermet allows for a high density of fuel within the core, which is essential for maintaining the neutron flux required for various research purposes at the Massachusetts Institute of Technology. The reactor is moderated and cooled by light water, while heavy water serves as a reflector, optimizing the neutron economy for its specific operational needs.
Refueling Schedule and Frequency
The refueling process for the MITR is characterized by a frequent schedule, occurring 3-4 times per year. This high frequency contrasts significantly with typical nuclear power plants, which generally undergo refueling every 17-23 months. The frequent refueling of the MITR is necessary to maintain optimal neutron flux levels and to accommodate the diverse research requirements of the university-based facility. and the fourth-oldest operating reactor in the country, the MITR's operational flexibility is a key feature of its design.
| Reactor Type | Refueling Frequency |
|---|---|
| MIT Nuclear Research Reactor (MITR) | 3-4 times per year |
| Typical Nuclear Power Plants | 17-23 months |
The comparison highlights the distinct operational dynamics between research reactors and commercial power plants. The MITR's ability to be refueled multiple times a year allows for greater adaptability in research scheduling and core management. This frequent refueling cycle is a defining characteristic of the MITR, supporting its role as a vital resource for nuclear research and education at the Massachusetts Institute of Technology. The reactor has been in continuous operation since 1958, demonstrating the longevity and reliability of its design and operational procedures.
Applications and Research Uses
The MIT Nuclear Research Reactor (MITR) functions as a critical infrastructure asset for the Massachusetts Institute of Technology’s scientific output. As a 6 MW tank-type reactor, it provides a versatile neutron flux environment that supports a wide array of experimental disciplines. The facility is recognized as the second largest university-based research reactor in the United States, a status that underscores its significance in the national academic energy landscape. Its operational continuity since 1958 has allowed for long-term data collection and sustained training programs for nuclear engineers and physicists.
Neutron Activation Analysis and Materials Testing
A primary application of the MITR is neutron activation analysis (NAA), a highly sensitive technique for determining the elemental composition of materials. By exposing samples to the reactor’s neutron flux, researchers can identify trace elements with high precision. This capability is essential for materials testing, where components intended for nuclear or aerospace applications are subjected to neutron irradiation to simulate aging and structural stress. The light water moderation and cooling system, combined with the heavy water reflector, creates a specific neutron spectrum that optimizes these testing conditions.
Neutron Transmutation Doping and Nuclear Medicine
The reactor also plays a pivotal role in neutron transmutation doping (NTD), a process used to produce high-purity silicon wafers for semiconductor manufacturing. In this process, phosphorus atoms are created within the silicon lattice through neutron capture, enhancing electrical conductivity. Additionally, the MITR supports the production of isotopes for nuclear medicine. These isotopes are crucial for diagnostic imaging and therapeutic treatments, bridging the gap between nuclear physics and clinical application. The facility’s ability to produce these isotopes relies on the precise control of the 6 MW thermal power output.
Boron Neutron Capture Therapy (BNCT) and Training
Historically, the MITR has been a site for trials in Boron Neutron Capture Therapy (BNCT). This binary radiation therapy involves the capture of low-energy neutrons by boron-10 atoms located within tumor cells, releasing high-linear energy transfer particles that damage the tumor DNA. The reactor’s neutron flux is tailored to optimize the capture cross-section of the boron atoms. Beyond medical and materials science, the MITR serves as a living laboratory for training. Students and researchers gain hands-on experience with reactor physics, instrumentation, and control, benefiting from the facility’s status as the fourth-oldest operating reactor in the country.
Why it matters
The MIT Nuclear Research Reactor (MITR) holds a distinct position in the United States nuclear landscape as the second largest university-based research reactor in the country. Commissioned in 1958, it remains the fourth-oldest operating reactor in the nation, underscoring its longevity and sustained operational relevance. Its significance extends beyond basic physics, serving as a critical infrastructure for specialized medical applications, notably Boron Neutron Capture Therapy (BNCT) patient trials. This therapeutic approach relies on the precise interaction between thermal neutrons and boron-10 isotopes within tumor cells. The nuclear reaction can be represented by the equation: 10B+n→7Li+α+γ. This localized energy deposition allows for targeted tumor destruction while sparing surrounding healthy tissue, a capability that distinguishes the MITR from larger, production-focused nuclear facilities.
Operational Scale and Technical Configuration
The reactor operates as a tank-type system, moderated and cooled by light water, with heavy water serving as a reflector to optimize neutron flux. While the primary fuel source is identified as uranium, the specific enrichment levels are central to ongoing operational debates. The facility’s capacity is noted as 6 MW in technical descriptions of its research output, though structured data also lists a capacity of 6000 MW, reflecting potential distinctions between thermal research output and broader operational metrics or data aggregation methods. The Massachusetts Institute of Technology operates the facility, leveraging its unique neutron flux characteristics to support diverse scientific inquiries.
Enrichment and Risk Assessment
The use of highly enriched uranium (HEU) in the MITR has drawn criticism regarding safety and criticality risks relative to its research-specific output. Critics argue that the proliferation risk and potential for criticality accidents associated with HEU may outweigh the benefits for a university-based facility, suggesting a transition to low-enriched uranium (LEU) to mitigate these hazards. However, proponents emphasize that the unique neutron flux profiles achievable with HEU are essential for certain BNCT trials and specialized isotope production, which might be compromised by a switch to LEU. This tension between operational optimization and risk minimization defines the current discourse surrounding the MITR’s continued use of HEU, balancing its role as a premier research tool against evolving safety standards in the nuclear sector.
