Name: Los Esclavos Dam: Hydroelectric Infrastructure in Guatemala
Address: GT

Overview

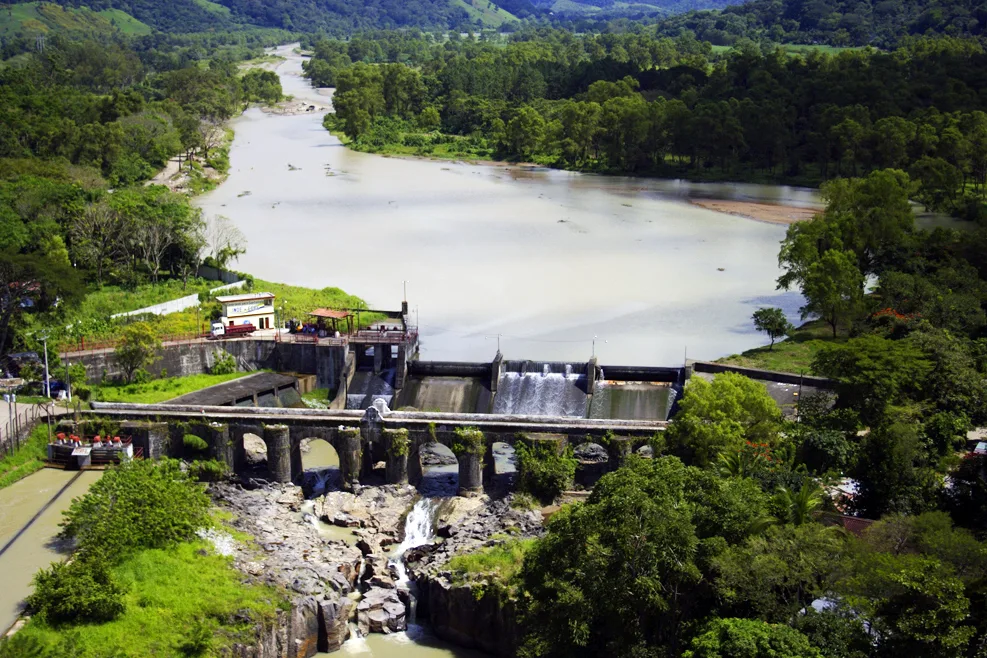

The Los Esclavos Dam functions as a critical component of Guatemala's energy infrastructure, operating as a reinforced concrete gravity dam and associated hydroelectric power plant. Located in the town of Los Esclavos within the municipality of Cuilapa, Santa Rosa, the facility spans the Los Esclavos River, leveraging the natural water flow to generate electricity for the regional grid. The project became operational in 1966, marking a significant milestone in the development of the country's hydroelectric capacity during the mid-20th century. With an installed capacity of 14 MW, the plant serves as a reliable source of renewable energy, contributing to the power supply of the surrounding areas in the Santa Rosa department.

As a gravity dam, the Los Esclavos structure relies on its own weight to resist the horizontal force of the water, a design choice that ensures stability and longevity in the local geological context. The use of reinforced concrete allows the dam to withstand varying hydraulic pressures and seismic activities common to the region. This engineering approach is typical for medium-sized hydroelectric projects in Central America, where the topography and river flow characteristics favor gravity dams over arch or embankment alternatives. The dam's strategic placement on the Los Esclavos River optimizes the head and flow rate necessary to drive the turbines efficiently, ensuring consistent power generation.

The operational status of the Los Esclavos Dam remains active, continuing to deliver 14 MW of power to the grid. This continuous operation since 1966 highlights the durability of the infrastructure and the effective maintenance practices employed by the operators. The plant's contribution to the energy mix in Guatemala underscores the importance of hydroelectric power in the nation's efforts to diversify its energy sources and reduce reliance on fossil fuels. The Los Esclavos Dam stands as a testament to the enduring value of well-engineered hydroelectric facilities in supporting regional development and energy security.

Engineering and Technical Specifications

The Los Esclavos Dam is a reinforced concrete gravity structure designed to harness the hydraulic potential of the Los Esclavos River. Located in the town of Los Esclavos, within the municipality of Cuilapa in the Santa Rosa department of Guatemala, the facility operates as a run-of-river hydroelectric power plant. The engineering design focuses on capturing water flow through a defined channel and pressure pipe system to drive turbines, generating a total installed capacity of 14 MW.

Hydraulic and Structural Parameters

The dam's hydraulic performance is defined by specific geometric and flow characteristics. The reservoir created by the gravity dam has a capacity of 225,000 m3. Water is conveyed from the reservoir to the power house via a channel with a length of 1.33 km. Following the channel, the water enters a pressure pipe that is 175 m long, which delivers the flow to the turbine units under significant head.

The net level declination, or effective head, for the installation is 108 m. The designed flow rate for the system is 7.68 m3/s per unit. These parameters determine the plant's output efficiency and operational flexibility. The reinforced concrete construction provides the necessary structural integrity to withstand the hydrostatic pressure of the reservoir and the dynamic loads of the flowing water.

Parameter	Value
Dam Type	Reinforced Concrete Gravity
Installed Capacity	14 MW
Reservoir Capacity	225,000 m3
Channel Length	1.33 km
Pressure Pipe Length	175 m
Net Level Declination	108 m
Designed Flow per Unit	7.68 m3/s
Commissioning Year	1966

Power Generation and Turbines

The Los Esclavos Dam functions as a key hydroelectric asset within Guatemala's energy infrastructure, specifically designed to harness the hydraulic potential of the Los Esclavos River. This structural design provides the necessary stability to manage water flow and maintain the head required for power generation in the region. The plant became operational in 1966, marking a significant milestone in the development of hydroelectric capacity in the Santa Rosa department. Since its commissioning, the facility has continued to contribute to the local and national grid, utilizing water as its primary energy source.

Turbine Configuration and Capacity

The power generation capabilities of the Los Esclavos Dam are defined by its installed turbine units and total capacity. The facility features a total installed capacity of 14 MW. This output is generated through two primary turbine units, each rated at 7 MW. The turbines employed in this configuration are Francis turbines, a type of reaction turbine widely used in hydroelectric power plants for their efficiency across a range of heads and flow rates. The use of two 7 MW units allows for operational flexibility, enabling the plant to adjust output based on water availability and grid demand. The combined output of these two units results in the plant's total capacity of 14 MW, which is a substantial contribution for a run-of-the-river or small reservoir-based hydroelectric project in the region.

The selection of Francis turbines is consistent with the operational parameters of gravity dams of this scale. These turbines are known for their robust design and ability to handle varying flow conditions, which is essential for maintaining consistent power output. The Los Esclavos River provides the necessary water flow to drive these turbines, converting the potential energy of the water into mechanical energy, which is then transformed into electrical energy. The operational status of the plant remains active, indicating that the turbine units and associated mechanical systems have been maintained effectively since the plant's inception in 1966. The continued operation of these turbines underscores the durability of the initial engineering decisions made during the project's development phase.

The integration of the dam and the power plant creates a cohesive energy infrastructure system. The reinforced concrete gravity structure not only holds back the water to create the necessary head but also houses the mechanical components required for power generation. The proximity of the power plant to the dam structure minimizes transmission losses within the facility and allows for efficient water conveyance to the turbine units. This integrated design is typical for hydroelectric projects of this magnitude, where space and topographical constraints necessitate a compact layout. The Los Esclavos Dam exemplifies this approach, combining structural engineering and mechanical power generation in a single, efficient facility.

Operational History and Performance

The Los Esclavos Dam has maintained a continuous operational status since its initial commissioning in 1966. As a reinforced concrete gravity structure spanning the Los Esclavos River in Cuilapa, Santa Rosa, Guatemala, the facility has served as a consistent source of hydroelectric power for the region. The plant’s operational history is characterized by steady energy output, leveraging the water resources of the Los Esclavos River to drive its 14 MW capacity. Since becoming operational in 1966, the dam has functioned as a key component of the local energy infrastructure, providing reliable generation without significant interruptions noted in the primary records.

Energy Generation Performance

Performance data for the Los Esclavos Dam highlights a substantial cumulative energy output over its first four decades of operation. Between 1966 and 2006, the power plant generated a total of 1947.05 GWh of electricity. This figure represents the aggregate production over a 40-year period, underscoring the dam's role in contributing to the regional grid stability. The average annual generation during this timeframe was recorded at 48.68 GWh. This average provides a benchmark for the facility's typical yearly output, reflecting the consistent flow conditions of the Los Esclavos River and the efficiency of the hydroelectric systems installed. The generation metrics from 1966 to 2006 demonstrate the plant's capacity to deliver consistent power, with the 14 MW installed capacity effectively utilized to produce nearly 50 GWh annually on average. These performance indicators are critical for understanding the long-term reliability of the Los Esclavos hydroelectric project in Guatemala's energy mix.

Why it matters

The Los Esclavos Dam represents a foundational element within the hydroelectric infrastructure of Guatemala, specifically serving the energy needs of the Santa Rosa department. As a reinforced concrete gravity dam spanning the Los Esclavos River in the town of Los Esclavos, Cuilapa, the facility has maintained operational status since its commissioning in 1966. With an installed capacity of 14 MW, the plant provides a consistent base-load power supply that contributes to the regional grid stability in central Guatemala. Its continued operation for over five decades highlights the durability of its engineering design and the strategic importance of riverine resources in the Cuilapa municipality.

Regional Energy Contribution

Within the context of the Santa Rosa department, the Los Esclavos power plant plays a critical role in local energy security. The 14 MW output serves as a key input for the broader Guatemalan electricity network, helping to balance supply and demand in a region that relies heavily on hydroelectric generation. The dam’s location on the Los Esclavos River allows for the efficient harnessing of water flow, converting potential energy into electrical power that supports both residential and industrial consumers in the surrounding areas. This infrastructure underscores the historical development of Guatemala’s energy sector, where early 20th-century and mid-century projects laid the groundwork for modern grid reliability.

Engineering and Operational Longevity

The structural integrity of the Los Esclavos Dam is evidenced by its sustained operation since 1966. As a gravity dam, its design relies on its own weight to resist the horizontal force of the water, a proven method for the topography of the Cuilapa region. The facility’s ability to remain operational for more than half a century reflects effective maintenance practices and the robustness of reinforced concrete construction in the Guatemalan highlands. This longevity ensures that the 14 MW capacity continues to be a reliable component of the national energy mix, contributing to the overall resilience of Guatemala’s power infrastructure. The dam stands as a testament to the strategic planning of mid-20th-century energy development in Central America, providing enduring value to the local economy and energy grid.

How does the Los Esclavos hydroelectric system work?

The Los Esclavos hydroelectric system operates on the principles of a run-of-the-river or reservoir-based gravity dam configuration, utilizing the potential energy stored in the water of the Los Esclavos River to generate electrical power. As a reinforced concrete gravity dam, the structure relies on its massive weight to resist the horizontal force of the water, creating a head of water that drives the hydroelectric generation process. The facility, which became operational in 1966, is situated in the town of Los Esclavos within the municipality of Cuilapa in the Santa Rosa department of Guatemala.

Water Intake and Conveyance

The generation process begins at the dam structure itself, where water from the Los Esclavos River is held back to create a reservoir or a controlled flow regime. The water is drawn from the upstream side of the dam through an intake structure. This intake is typically equipped with screens and gates to regulate the flow and filter out large debris such as branches, leaves, and sediment, which could damage the downstream turbine components. The specific design of the intake ensures that the water enters the conveyance system with minimal turbulence, maintaining efficient flow characteristics.

From the intake, the water is transported through a channel or penstock system. In many gravity dam configurations, the penstock is a large-diameter pipe or a concrete-lined tunnel that channels the water from the reservoir to the powerhouse. The pressure pipe plays a critical role in converting the potential energy of the elevated water into kinetic energy. As the water travels down the slope of the terrain from the dam to the powerhouse, gravity accelerates the flow, increasing the pressure within the pipe. The length and diameter of the pressure pipe are engineered to balance the velocity of the water and the friction losses, ensuring that maximum energy is delivered to the turbine blades.

Turbine Operation and Power Generation

At the end of the pressure pipe, the high-velocity water enters the powerhouse, where it strikes the blades of the hydroelectric turbine. The type of turbine used in the Los Esclavos plant is selected based on the head (vertical distance) and the flow rate of the water. For a 14 MW capacity plant, the turbine is likely a Francis or Pelton wheel, depending on the specific hydraulic head available at the site. The force of the water causes the turbine runner to rotate, converting the kinetic energy of the water into mechanical energy.

The rotating turbine shaft is connected to a generator. As the turbine spins, it drives the rotor of the generator within a magnetic field, inducing an electrical current through electromagnetic induction. This mechanical-to-electrical energy conversion produces alternating current (AC) power, which is then stepped up in voltage by transformers for efficient transmission to the local grid. The Los Esclavos Dam, with its 14 MW installed capacity, contributes to the regional energy supply in the Santa Rosa department, providing a reliable source of renewable energy derived from the continuous flow of the Los Esclavos River.

Tailrace and Water Return

After passing through the turbine, the water exits the powerhouse through a draft tube and enters the tailrace channel. The tailrace carries the spent water back into the Los Esclavos River downstream of the dam. The design of the tailrace ensures that the water is discharged smoothly, minimizing turbulence and erosion of the riverbed. The efficiency of the entire system depends on the effective management of the water flow from the intake, through the pressure pipe, across the turbine, and out through the tailrace, ensuring that the maximum amount of potential energy is converted into electrical output. The operational status of the plant remains active, continuing to harness the hydraulic power of the region since its commissioning in 1966.

What are the key features of the Los Esclavos Dam?

The Los Esclavos Dam functions as a reinforced concrete gravity dam and integrated hydroelectric power plant, situated along the Los Esclavos River in the town of Los Esclavos, Cuilapa, Santa Rosa, Guatemala. The facility became operational in 1966, establishing a long-standing energy infrastructure asset in the region. The structural design relies on gravity principles, utilizing the weight of the concrete structure to resist the horizontal force of the water. This construction method is typical for dams of this scale, providing stability and durability over decades of service. The power plant generates 14 MW of electrical capacity, contributing to the local and regional energy supply. The facility remains operational, indicating consistent maintenance and functional integrity since its commissioning. The location in Santa Rosa places the dam within a key agricultural and residential zone in Guatemala, where water management and power generation are closely linked. The Los Esclavos River serves as the primary water source, channeling flow through the dam structure to drive turbines for electricity production. The reinforced concrete construction ensures resilience against environmental stresses, including seasonal variations in water volume and potential seismic activity common to the region. The dam’s operational status since 1966 reflects its role as a stable component of Guatemala’s hydroelectric portfolio. The facility does not rely on external fuel sources, depending instead on the continuous flow of water to maintain power output. This characteristic aligns with the broader category of run-of-river or reservoir-based hydroelectric systems, depending on the specific storage capacity of the Los Esclavos River at the dam site. The 14 MW capacity positions the plant as a medium-scale contributor to the national grid, suitable for local distribution and regional transmission. The dam’s design and operation prioritize efficiency and reliability, essential for maintaining consistent power delivery to the town of Los Esclavos and surrounding areas. The facility’s longevity underscores the effectiveness of its initial engineering and subsequent maintenance practices. The Los Esclavos Dam exemplifies the integration of civil engineering and energy production, serving dual purposes of water management and electricity generation. Its continued operation highlights the importance of hydroelectric infrastructure in Guatemala’s energy landscape. The dam’s structural integrity and operational efficiency remain central to its function, ensuring sustained power output and water flow regulation. The facility’s role in the local economy and energy security is significant, providing a renewable energy source that complements other power generation methods in the country.
