Overview

The Kleine Kinzig Dam is an operational hydroelectric powerplant located in Reinerzau, near the town of Freudenstadt in the Black Forest region of Germany. Situated within the federal state of Baden-Württemberg, the facility was commissioned in 1984 and continues to serve multiple critical infrastructure functions for the surrounding area. The dam impounds the Kleine Kinzig river, creating a reservoir that plays a central role in regional water management and energy production. It is owned and operated by the Zweckverband Kleine Kinzig, also known as the Kleine Kinzig Special Purpose Association, which coordinates the integrated use of the water resource for municipal and industrial needs.

The primary functions of the Kleine Kinzig Dam are multifaceted, combining hydraulic engineering with renewable energy generation. A key role of the facility is the supply of drinking water to local communities and municipalities in the Black Forest. By regulating the flow of the Kleine Kinzig river, the dam ensures a consistent and reliable water source, which is essential for both domestic consumption and agricultural use in the region. This water management capability is particularly important in an area where seasonal variations can significantly impact water availability.

In addition to water supply, the dam provides essential flood protection and drought mitigation. During periods of heavy rainfall or snowmelt, the reservoir can absorb excess water, reducing the risk of downstream flooding in the Kleine Kinzig valley. Conversely, during dry spells, the stored water is released to maintain base flow in the river, supporting ecosystems and ensuring that water users downstream have access to sufficient quantities. This dual function of flood and drought protection enhances the resilience of the local hydrological system.

As a hydropower facility, the Kleine Kinzig Dam contributes to the regional energy mix by generating electricity from the flow of the Kleine Kinzig river. The hydroelectric powerplant utilizes the potential energy of the impounded water to drive turbines, producing renewable energy that feeds into the local grid. This integration of power generation with water supply and flood control exemplifies the efficient use of natural resources in the Black Forest, where land and water management are critical for sustaining both the environment and the economy. The operational status of the dam remains active, continuing to deliver these vital services since its commissioning in 1984.

Engineering Design and Construction Materials

The Kleine Kinzig Dam is a significant hydraulic structure located in Reinerzau near Freudenstadt in the Black Forest of Baden-Württemberg. Commissioned in 1984, the dam serves multiple functions including drinking water supply, flood protection, drought protection, and hydropower generation. The structure impounds the Kleine Kinzig river and is operated by the Zweckverband Kleine Kinzig (Kleine Kinzig Special Purpose Association).

Structural Dimensions and Geometry

The dam exhibits substantial geometric proportions designed to manage the Kleine Kinzig river’s flow and storage capacity. The structure spans a length of 3 km and achieves a width of 450 m. The reservoir depth reaches 60 m, providing significant volumetric capacity for water storage and energy generation. These dimensions reflect the engineering requirements for effective flood mitigation and consistent hydropower output in the Black Forest terrain.

Parameter Value
Length 3 km
Width 450 m
Depth 60 m

Construction Materials and Sealing

The dam’s construction utilizes locally sourced and engineered materials to ensure durability and hydraulic efficiency. Granite and bunter sandstone form the primary structural components, providing robust load-bearing capacity and resistance to environmental weathering. These materials are characteristic of Black Forest geology, offering natural compatibility with the surrounding landscape and hydrological conditions.

Asphalt concrete sealing is employed to create a watertight barrier within the dam structure. This sealing method ensures minimal seepage and maintains the integrity of the reservoir under varying hydraulic pressures. The combination of granite, bunter sandstone, and asphalt concrete reflects a balanced approach to structural strength and hydraulic performance, supporting the dam’s operational status since its 1984 commissioning.

How does the Kleine Kinzig Dam manage water overflow and storage?

The Kleine Kinzig Dam integrates multiple hydrological functions, balancing power generation with critical water management for the surrounding region in the Black Forest. The facility, operated by the Zweckverband Kleine Kinzig, manages the Kleine Kinzig river to provide drinking water, flood protection, and drought mitigation. Its operational design relies on a combination of a primary dam structure and a secondary forebay system to regulate flow and storage volumes effectively.

Overflow Protection and Spillway Design

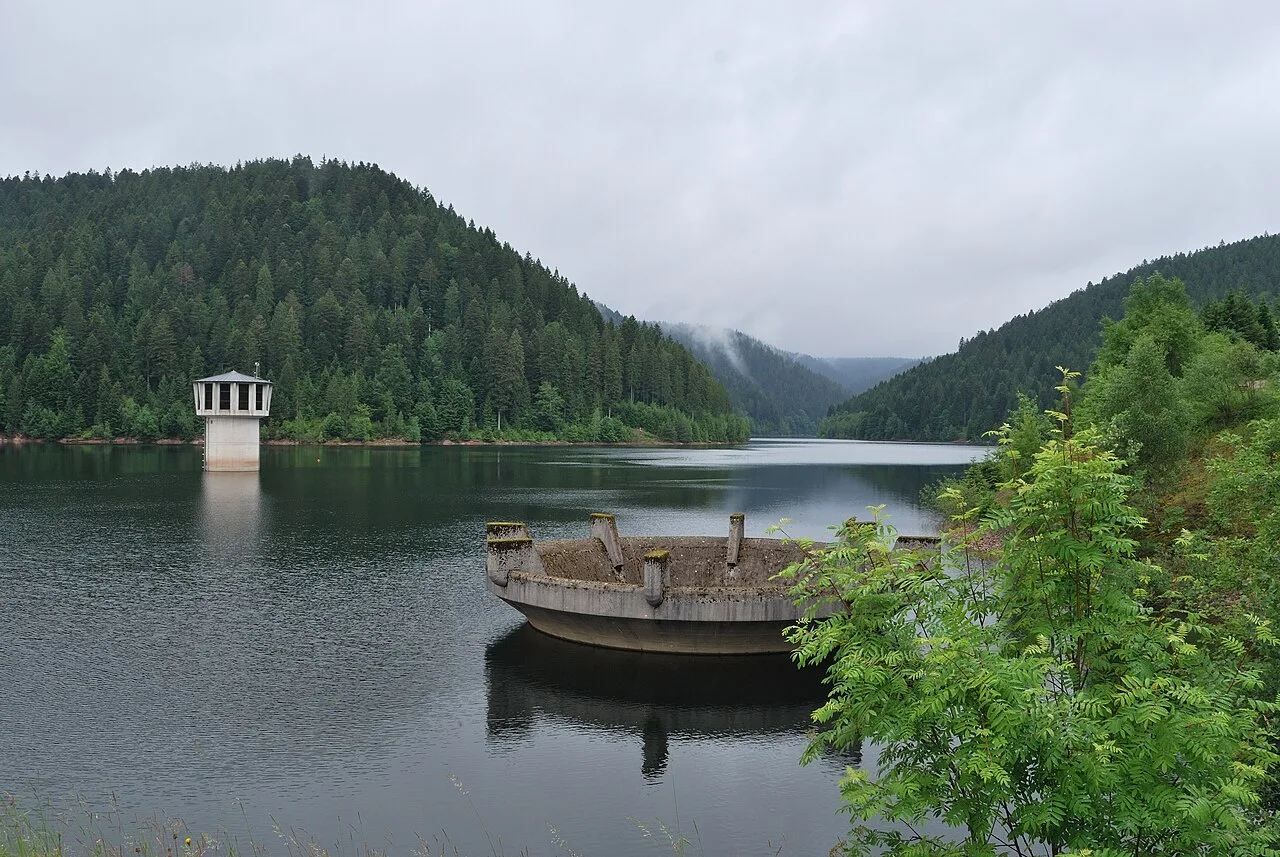

Water overflow is managed through a specialized tower equipped with a circular spillway and an accompanying gallery. This structural configuration allows for controlled release of excess water, preventing hydraulic pressure buildup during high-flow periods. The circular spillway design is a key engineering feature that facilitates efficient water discharge while maintaining the structural integrity of the dam body. The gallery within the tower provides access for maintenance and monitoring of the spillway mechanisms, ensuring reliable operation during flood events.

Reservoir Capacity and Forebay System

The reservoir associated with the Kleine Kinzig Dam has an annual storage capacity ranging from 3 to 8 million cubic meters. This variable capacity allows the operator to adjust water levels based on seasonal demand, balancing the needs for drinking water supply, hydropower generation, and flood control. The lower end of this range typically corresponds to periods of high consumption or drought, while the upper end reflects maximum storage during wet seasons or flood protection protocols.

Downstream or adjacent to the main impoundment, the system includes a forebay regulated by a 15-meter-high earth and rock dam. This secondary structure plays a crucial role in stabilizing water levels before the water enters the power generation units or is released into the river channel. The earth and rock construction provides flexibility and durability, suitable for the geological conditions of the Reinerzau area near Freudenstadt. Together, the main dam and the forebay create a multi-stage water management system that enhances the reliability of the hydropower output and the consistency of the drinking water supply for the region.

Hydroelectric Power Generation at Kleine Kinzig

The Kleine Kinzig Dam incorporates a hydroelectric power generation facility that contributes to the multi-functional utility of the infrastructure project. Commissioned in 1984, the plant is operated by the Zweckverband Kleine Kinzig, the special purpose association responsible for the overall management of the reservoir and its downstream effects. The primary function of the dam remains the impoundment of the Kleine Kinzig river to secure drinking water supplies for the region near Freudenstadt in the Black Forest. However, the integration of hydropower allows the operator to derive additional economic and energetic value from the stored water volume.

The installed capacity of the hydroelectric plant is rated at 580 kW. This output classifies the facility as a micro-hydro power station. In the context of regional energy production, a 580 kW capacity provides a steady, albeit modest, contribution to the local grid. Unlike large-scale hydroelectric dams that may produce hundreds of megawatts, the Kleine Kinzig plant prioritizes water storage reliability over maximum energy extraction. The turbine systems are designed to handle the flow variations characteristic of the Kleine Kinzig river, ensuring that power generation does not significantly compromise the primary objectives of flood protection and drought mitigation.

Integration with Water Management Goals

The operation of the 580 kW power plant is closely tied to the broader water management strategies of the Zweckverband Kleine Kinzig. The dam serves multiple critical functions: it supplies drinking water, provides flood protection for downstream areas, and offers drought protection by storing water during wet periods. The hydroelectric generation acts as a complementary use of the resource. Water released for power generation can simultaneously contribute to maintaining minimum ecological flow rates or preparing for downstream flood control needs.

This integrated approach ensures that the energy produced is not merely a byproduct but a functional component of the reservoir's operational logic. The Zweckverband Kleine Kinzig manages the balance between retaining water for drinking supply and releasing it for power generation based on seasonal demand and hydrological conditions. The 1984 commissioning of the dam marked the beginning of this multi-purpose utilization, establishing a model where infrastructure serves both civic water security and renewable energy production. The micro-hydro output supports the financial sustainability of the special purpose association, helping to offset the operational and maintenance costs of the dam structure and the water treatment facilities.

Construction Timeline and Commissioning History

The Kleine Kinzig Dam project represents a significant infrastructure development in the Black Forest region of Baden-Württemberg, Germany. The construction timeline and commissioning history are well-documented, reflecting the systematic approach taken by the Zweckverband Kleine Kinzig (Kleine Kinzig Special Purpose Association) to deliver a multi-functional hydropower and water management facility.

Construction and Initial Phases

Construction of the Kleine Kinzig Dam commenced in May 1981. This phase involved the preparation of the site near Reinerzau, close to the town of Freudenstadt. The engineering works focused on building the dam structure capable of impounding the Kleine Kinzig river. The physical construction of the dam was completed in October 1982, marking a major milestone in the project's timeline.

Impoundment and Commissioning

Following the completion of the dam structure, the initial impoundment of the Kleine Kinzig river began on 13 December 1982. This process continued until June 1984, during which the reservoir was gradually filled to its operational levels. The dam was officially commissioned in 1984, entering operational status under the management of the Zweckverband Kleine Kinzig.

Year / Date Event
May 1981 Construction start
October 1982 Construction completion
13 December 1982 to June 1984 Initial impoundment
1984 Commissioning

The successful commissioning in 1984 enabled the dam to begin its multifaceted role in the region. The facility provides drinking water supply, flood protection, drought protection, and power generation through hydropower. The operational status of the Kleine Kinzig Dam has been maintained since its commissioning, serving the needs of the Baden-Württemberg state and the surrounding communities in the Black Forest.

Significance

The Kleine Kinzig Dam serves as a critical multi-functional infrastructure asset within the state of Baden-Württemberg, Germany. Located in Reinerzau near Freudenstadt in the Black Forest region, the facility has been operational since its commissioning in 1984. The dam is managed by the Zweckverband Kleine Kinzig, also known as the Kleine Kinzig Special Purpose Association, which coordinates the resource management for the local area. Its primary function is the impoundment of the Kleine Kinzig river, creating a reservoir that supports several key regional needs.

Drinking water supply is a central role of the dam for the surrounding communities in the Black Forest. The stored water provides a reliable source of potable water for local populations, ensuring consistency in supply even during periods of variable rainfall. In addition to water supply, the dam plays a significant role in flood protection. By regulating the flow of the Kleine Kinzig river, the structure mitigates the risk of downstream flooding, which is particularly important in the topographically diverse terrain of the Black Forest. The reservoir also offers drought protection, maintaining water levels during dry spells to support both municipal use and local ecosystems.

Beyond water management, the Kleine Kinzig Dam contributes to the regional energy mix through hydropower generation. As a hydroelectric powerplant, it converts the potential energy of the impounded water into electricity, adding a variable renewable energy source to the local grid. This dual-purpose design—combining water resource management with power generation—maximizes the utility of the infrastructure investment. The operational status of the dam remains active, continuing to serve the needs of Baden-Württemberg decades after its initial commissioning.

Distinction from the Kinzig Dam in Hesse

Clarity regarding the geographical and operational context of the Kleine Kinzig Dam is essential, particularly to distinguish it from the Kinzig Dam located in Steinau, Hesse. These two structures are often confused due to the similarity in their names, but they serve different rivers and regions within Germany. The Kleine Kinzig Dam is situated in the Black Forest of Baden-Württemberg and impounds the Kleine Kinzig river. In contrast, the Kinzig Dam in Hesse is located in the state of Hesse and manages the Kinzig river in the Steinau area.

This distinction is important for researchers, engineers, and analysts who may be examining regional water management strategies or hydropower infrastructure in Germany. The Kleine Kinzig Dam is specifically associated with the Zweckverband Kleine Kinzig and the Black Forest region, while the Kinzig Dam in Hesse has its own distinct operational history and geographical context. Confusing these two facilities can lead to inaccuracies in data analysis, particularly when comparing hydrological data or assessing the impact of regional climate patterns on water resources. Therefore, precise identification of the Kleine Kinzig Dam in Reinerzau, Baden-Württemberg, is crucial for accurate reference and study.

What distinguishes the Kleine Kinzig Dam from other Black Forest reservoirs?

The Kleine Kinzig Dam, commissioned in 1984 in Reinerzau near Freudenstadt in the German state of Baden-Württemberg, represents a distinct model of hydraulic engineering within the Black Forest region. Unlike many regional hydroelectric installations that prioritize energy output above all else, this facility is characterized by its integrated multi-purpose utility. The dam impounds the Kleine Kinzig river to simultaneously supply drinking water, provide flood protection, offer drought protection, and generate power using hydropower. This balanced approach distinguishes it from single-purpose reservoirs where hydropower generation might dominate at the expense of local water security or ecological flow maintenance.

Multi-Purpose Utility and Regional Impact

The operational philosophy of the Kleine Kinzig Dam emphasizes the synergy between energy production and civil utility. The facility is managed by the Zweckverband Kleine Kinzig, also known as the Kleine Kinzig Special Purpose Association, which oversees the balance between these competing demands. In the Black Forest, where topography varies significantly and water resources are critical for both industry and municipalities, the ability to secure a reliable drinking water supply while mitigating flood risks is a significant engineering achievement. The dam's role in drought protection further underscores its importance to the local hydrological stability, ensuring that water availability remains consistent even during periods of low precipitation. This multi-faceted approach ensures that the reservoir serves the broader community needs rather than functioning solely as an energy asset.

Engineering Characteristics

While specific technical details regarding the dam's construction materials, such as the use of bituminous core rockfill technology, are often highlighted in comparative analyses of Black Forest reservoirs, the foundational records confirm its establishment in 1984 and its ongoing operational status. The integration of hydropower generation within a structure primarily designed for water management and flood control requires precise engineering to handle variable water levels and flow rates. The Kleine Kinzig Dam exemplifies this by maintaining efficiency in power generation while adapting to the fluctuating demands of drinking water extraction and flood mitigation. This adaptability is a key feature that sets it apart from more rigid, single-function dams in the region, demonstrating a sophisticated approach to resource management in the Black Forest landscape.

Geographical Context and Location

The Kleine Kinzig Dam is situated within the Black Forest region of Germany, specifically located in the settlement of Reinerzau. This location is in close proximity to the town of Freudenstadt, placing the infrastructure within the broader administrative boundaries of the state of Baden-Württemberg. The dam serves as a critical hydraulic structure in this part of the Black Forest, managing the flow of the Kleine Kinzig river. The geographical setting is characterized by the topography typical of the Black Forest, which influences both the construction and operational dynamics of the hydropower facility. The dam's position in Reinerzau allows it to effectively impound the Kleine Kinzig river, creating a reservoir that is essential for its multi-purpose functions. These functions include drinking water supply, flood protection, drought protection, and power generation, all of which are supported by the specific hydrological conditions of the region.

Administrative and Regional Context

Administratively, the Kleine Kinzig Dam falls under the jurisdiction of the state of Baden-Württemberg. Within this state, the dam is associated with the municipality of Alpirsbach, which serves as the local administrative region for the facility. The operator of the dam is the Zweckverband Kleine Kinzig, also known as the Kleine Kinzig Special Purpose Association. This association manages the dam and its associated infrastructure, ensuring that the various services provided by the facility are maintained effectively. The involvement of a special purpose association indicates a collaborative approach to managing the water resources and hydropower generation in the region. The dam's operational status is currently active, having been commissioned in 1984. This long-standing operation highlights the importance of the facility to the local and regional infrastructure of Baden-Württemberg. The geographical and administrative context of the Kleine Kinzig Dam underscores its role as a key piece of energy and water infrastructure in the Black Forest region of Germany.
