Name: Karcham Wangtoo Hydroelectric Plant
Address: IN

Overview

The Karcham Wangtoo Hydroelectric Plant is a major run-of-the-river hydroelectric power station located in India. Situated on the Sutlej River within the Kinnaur district of the state of Himachal Pradesh, the facility serves as a significant component of the region's energy infrastructure. The plant has an installed capacity of 1,091 megawatts (1,463,000 hp), making it one of the substantial hydroelectric installations in the Indian grid. It is currently operational and is operated by JSW Energy. The station was commissioned in 2011, marking a key development in the utilization of the Sutlej River's hydroelectric potential in the Himalayan foothills.

History and Development

The Karcham Wangtoo Hydroelectric Plant project originated in 1993, marked by a memorandum of understanding initiated by the Jaypee Group. This early agreement established the foundational framework for developing the run-of-the-river hydroelectric facility on the Sutlej River in the Kinnaur district of Himachal Pradesh, India. The project remained in the planning and preliminary stages for several years before significant construction activities commenced.

Construction and Commissioning

Construction of the power station officially began in 2005. The development involved substantial engineering efforts to harness the water flow of the Sutlej River for electricity generation. The project progressed through various phases of civil and mechanical work, leading to the initial operational status of the plant. The first units were commissioned in 2011, marking the entry of the Karcham Wangtoo facility into the Indian energy grid. This commissioning date aligns with the project's timeline from its 1993 inception, reflecting a development period of approximately sixteen years from the initial memorandum of understanding to operational status.

Ownership Transition

Following its commissioning, the ownership structure of the plant underwent a significant change. In 2015, the Jaypee Group sold the Karcham Wangtoo Hydroelectric Plant to the JSW Group. This transaction transferred operational control to JSW Energy, which currently operates the facility. The sale represented a strategic move in the energy sector, integrating the 1,091 MW capacity plant into the JSW Energy portfolio. The transition occurred four years after the plant's initial commissioning, ensuring continuity in the operation of the run-of-the-river hydroelectric station on the Sutlej River. The plant remains operational under JSW Energy's management, contributing to the energy infrastructure of Himachal Pradesh and the broader Indian grid. The historical progression from the 1993 memorandum to the 2015 sale highlights the long-term nature of major hydroelectric developments in the region.

Technical Specifications and Infrastructure

The Karcham Wangtoo Hydroelectric Plant operates as a run-of-the-river hydroelectric power station, leveraging the natural flow of the Sutlej River to generate electricity without requiring a massive reservoir storage capacity typical of storage schemes. This operational model is supported by specific civil and electromechanical infrastructure designed to maximize energy extraction from the river's gradient. The facility is situated in the Kinnaur district of Himachal Pradesh, India, where the topography provides a significant hydraulic advantage for power generation.

Civil Infrastructure and Hydraulics

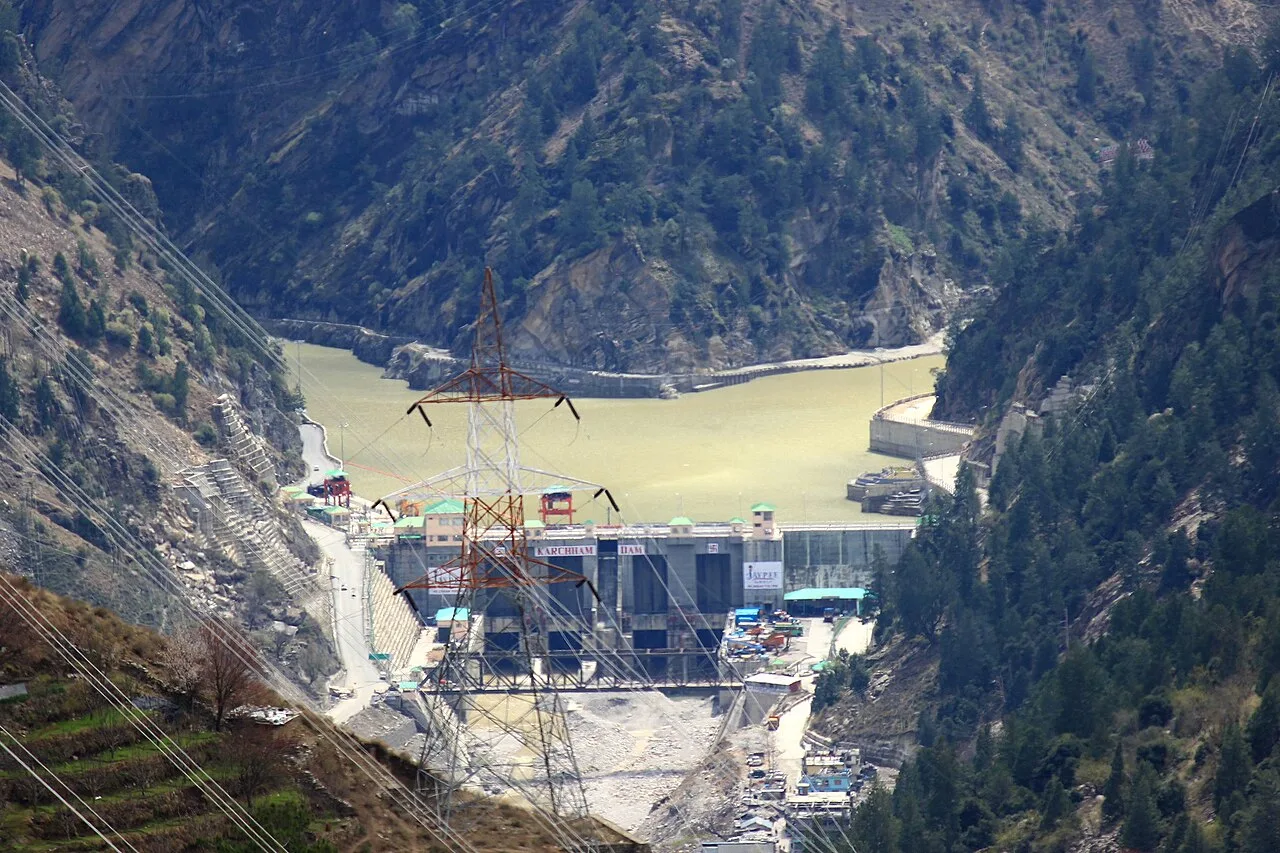

The plant's hydraulic structure is defined by a 98 m high dam that regulates the inflow from the Sutlej River. This structure works in conjunction with an extensive underground conveyance system, most notably a 17.2 km long headrace tunnel. This tunnel transports water from the intake point to the powerhouse, maintaining pressure and flow efficiency over the distance. The system utilizes a gross hydraulic head of 298 m, which is the vertical distance the water falls from the intake to the turbine level, providing the potential energy necessary for rotation. These civil works are critical to maintaining the continuous flow required for the run-of-the-river operation, ensuring that the water is directed efficiently to the generating units.

Parameter	Value
Plant Type	Run-of-the-river
Location	Kinnaur district, Himachal Pradesh
River	Sutlej River
Dam Height	98 m
Headrace Tunnel Length	17.2 km
Gross Hydraulic Head	298 m
Total Installed Capacity	1,091 MW

Electromechanical Equipment

The generating capacity of the Karcham Wangtoo plant is delivered through four Francis turbine-generator sets. Each unit is rated at 250 MW, contributing to the plant's total installed capacity of 1,091 MW. Francis turbines are chosen for their efficiency in medium-head applications, making them suitable for the 298 m gross head available at this site. The operator, JSW Energy, manages these units to ensure optimal performance and reliability. The configuration of four 250 MW units allows for flexible operation, enabling the plant to adjust output based on river flow variations and grid demand. This setup ensures that the plant can maintain a consistent power output, contributing significantly to the energy mix of the region.

How does the run-of-river system work at Karcham Wangtoo?

The Karcham Wangtoo Hydroelectric Plant operates as a run-of-the-river facility, a design that leverages the natural flow of the Sutlej River rather than relying on a massive reservoir for long-term storage. This operational model is central to the plant’s ability to generate its 1,091 MW capacity efficiently. The system functions by diverting a significant portion of the river’s flow through a headworks structure, which channels the water into a long penstock that leads to the powerhouse. This diversion allows the water to gain potential energy, which is then converted into electricity as it spins the turbine generators.

Water Diversion and Spillway Mechanism

A critical component of this diversion process is the spillway, which manages the volume of water entering the system and those bypassing the turbines. According to the technical description of the plant, the spillway is equipped with six radial gates. These gates play a vital role in regulating the flow. During periods of high discharge, such as monsoon seasons or snowmelt, the radial gates can be adjusted to allow excess water to pass over the weir and back into the riverbed, preventing overflow and maintaining structural integrity. Conversely, during lower flow periods, the gates help direct more water into the intake for power generation. This precise control ensures that the run-of-the-river system can adapt to the variable nature of the Sutlej River’s flow.

Tailrace Tunnel and Water Return

After the water passes through the turbines in the powerhouse, it does not immediately rejoin the main river channel at the exact point of diversion. Instead, it is channeled through a tailrace tunnel. This tunnel serves to return the water to the Sutlej River downstream from the powerhouse. The use of a tailrace tunnel is typical in run-of-the-river projects located in hilly or mountainous terrain, such as the Kinnaur district of Himachal Pradesh. It allows for a more compact layout and helps manage the hydraulic gradient, ensuring that the water exits the system with minimal energy loss. The return of water to the Sutlej completes the cycle, maintaining the river’s ecological flow while harnessing its kinetic energy for power generation.

Regional Energy Context and Connectivity

The Karcham Wangtoo Hydroelectric Plant functions as a critical node within the broader hydroelectric development strategy of the Sutlej River basin in Himachal Pradesh, India. As a run-of-the-river facility with an installed capacity of 1,091 MW, it contributes significantly to the regional grid stability and energy output of the state. The plant is operated by JSW Energy and has been operational since its commissioning in 2011. Its positioning on the Sutlej River places it within a strategic cascade of hydroelectric stations that maximize the potential of the river’s flow and head difference.

Positioning in the Sutlej Cascade

The Sutlej River, one of the major tributaries of the Indus system, hosts several large-scale hydroelectric projects. The Karcham Wangtoo plant is situated downstream of the Baspa II Hydroelectric Plant and upstream of the Nathpa Jhakri Hydroelectric Plant. This arrangement allows for coordinated water management and power generation across the three facilities. The Baspa II plant, with a capacity of 300 MW, feeds into the Sutlej system, while the larger Nathpa Jhakri plant, with a capacity of 1,500 MW, utilizes the remaining head further downstream. This cascade effect enhances the overall efficiency of water usage and power generation in the region.

Regional Comparison of Hydroelectric Plants

Hydroelectric Plant	Capacity (MW)	River	Operator	Commissioned
Karcham Wangtoo	1,091	Sutlej	JSW Energy	2011
Baspa II	300	Baspa (tributary of Sutlej)	[?]	[?]
Nathpa Jhakri	1,500	Sutlej	[?]	[?]

The comparison table above highlights the relative scale of the Karcham Wangtoo plant within the Sutlej cascade. While it is smaller than the Nathpa Jhakri plant, it is significantly larger than the Baspa II plant. The specific operators and commissioning dates for the Baspa II and Nathpa Jhakri plants are not provided in the current grounding snippets, but their capacities are well-documented. The Karcham Wangtoo plant, with its 1,091 MW capacity, serves as a substantial contributor to the regional energy mix, bridging the gap between the smaller upstream and larger downstream facilities.

The integration of these plants into the regional grid enhances the reliability of power supply to Himachal Pradesh and surrounding states. The coordinated operation of the Sutlej cascade allows for optimized water usage, particularly during seasonal variations in river flow. This strategic positioning underscores the importance of the Karcham Wangtoo plant in the broader context of India’s hydroelectric infrastructure.

Why it matters

The Karcham Wangtoo Hydroelectric Plant stands as a pivotal asset within India’s hydropower infrastructure, particularly in the challenging terrain of the Himalayas. With an installed capacity of 1,091 MW, it represents one of the largest run-of-the-river hydroelectric projects in the region, contributing significantly to the energy mix of the northern states. Its operational status, maintained by JSW Energy since its commissioning in 2011, ensures a consistent power supply that is critical for both local consumption and transmission to neighboring grids. The plant’s location on the Sutlej River in the Kinnaur district of Himachal Pradesh allows it to harness the natural flow of one of the major tributaries of the Indus River, making it a strategic component in the broader context of India’s renewable energy portfolio.

Regional Grid Stability and Energy Security

In the context of the regional grid, the Karcham Wangtoo Hydroelectric Plant plays a vital role in enhancing grid stability and reliability. The Himalayan region, while rich in hydro resources, often faces challenges related to seasonal variability and transmission losses. By providing a steady output of 1,091 MW, the plant helps mitigate these issues, offering a reliable baseload power source that complements other forms of renewable energy, such as solar and wind, which can be more intermittent. This reliability is crucial for supporting the growing energy demands of Himachal Pradesh and facilitating power exports to other parts of northern India, including Punjab and Haryana.

The plant’s run-of-the-river design further enhances its contribution to grid stability. Unlike large reservoir-based hydroelectric plants, which can experience significant fluctuations in output depending on storage levels, run-of-the-river systems like Karcham Wangtoo provide a more consistent power generation profile. This consistency is particularly valuable in a region where energy demand can spike during peak seasons, such as summer months when air conditioning usage increases. By maintaining a steady flow of electricity, the plant supports the overall resilience of the regional power grid, reducing the likelihood of blackouts and voltage fluctuations.

Economic and Strategic Importance

Beyond its technical contributions, the Karcham Wangtoo Hydroelectric Plant holds significant economic and strategic importance for India. As a major hydropower project in the Himalayas, it exemplifies the country’s efforts to diversify its energy sources and reduce dependence on fossil fuels. The plant’s capacity of 1,091 MW represents a substantial investment in renewable energy infrastructure, contributing to India’s broader goals of achieving energy security and sustainability. The project has also stimulated local economic activity in the Kinnaur district, creating jobs and fostering development in a region that has historically been characterized by its rugged terrain and relative isolation.

The strategic location of the plant on the Sutlej River also underscores its importance in the context of regional water resource management. The Sutlej is a critical waterway for agriculture, industry, and domestic use in northern India, and the hydroelectric plant’s operation is closely tied to the efficient utilization of these water resources. By integrating power generation with water management, the Karcham Wangtoo project demonstrates a holistic approach to resource utilization, balancing energy production with the needs of downstream communities and ecosystems.

In summary, the Karcham Wangtoo Hydroelectric Plant is not just a source of electricity but a key enabler of regional stability, economic growth, and energy security in the Himalayan region. Its 1,091 MW capacity, operated by JSW Energy, provides a reliable and sustainable power supply that supports the growing energy demands of Himachal Pradesh and beyond. As India continues to expand its hydropower infrastructure, projects like Karcham Wangtoo will remain essential in shaping the country’s energy landscape and driving progress toward a more resilient and sustainable future.
