Ince Power Station: Demolished Coal and Oil Infrastructure in Cheshire

Overview

Ince Power Station refers to two distinct, now-demolished power generating facilities located near Ellesmere Port in Cheshire, North West England. Situated at coordinates 53.2782° N, 2.8083° W, the complex played a significant role in the regional energy infrastructure of the United Kingdom before its eventual decommissioning. The entity is characterized by its mixed fuel sources, utilizing both coal and oil, including the specialized fuel known as orimulsion, across its two main operational phases. The total installed capacity of the station was 240 MW, and it was operated by the Central Electricity Authority. The first unit, Ince A, was commissioned in 1957, marking the beginning of the site's long operational history.

Distinction Between Ince A and Ince B

The Ince Power Station complex is historically divided into two primary stations: Ince A and Ince B. Ince A was the earlier installation, primarily fueled by coal. It began operations in 1957 under the management of the Central Electricity Authority. This initial phase established the site as a key coal-fired power generation hub in Cheshire. The station contributed to the national grid with a portion of the total 240 MW capacity attributed to the combined complex.

Ince B represented the second phase of development at the site. Unlike Ince A, Ince B was designed to utilize oil and orimulsion as its primary fuel sources. Orimulsion is a heavy fuel oil emulsion, often used in power generation for its efficiency and cost-effectiveness. The distinction between the two stations highlights the evolving fuel strategies employed by the Central Electricity Authority to maintain energy output. The demolition of both stations marks the end of an era for this mixed-fuel power generation facility in North West England. The site's operational status is now listed as decommissioned, reflecting the transition away from its original energy infrastructure.

Ince A: Construction and Engineering

The first of these, Ince A, was commissioned in 1957 and operated under the Central Electricity Authority. The station had an installed capacity of 240 MW and was fueled by a mixed energy source. The site was ultimately decommissioned and demolished. The following details concern the construction and engineering specifications of the Ince A facility.

Site Preparation and Foundations

The construction of Ince A required significant earthworks on an 83-acre plot of land. Engineers removed 14 ft of topsoil to expose the underlying geology, which provided a stable base for the heavy industrial structures. The foundations were laid on sandstone, a choice that offered durability and load-bearing capacity suitable for the power station's machinery and structural frame. This extensive site preparation ensured that the ground could support the weight of the steel structure and the thermal dynamics of the plant.

Building Materials and Dimensions

The main building of Ince A was constructed using a steel frame, which totaled 3800 tonnes of steel. This framework supported the exterior cladding, which was made of cellactite. The roof was covered with asbestos cement, a common material for industrial buildings of that era due to its fire resistance and durability. The floors were finished with quarry tile, providing a robust surface for the heavy equipment and foot traffic within the station. The building measured 350 ft in length and 232 ft in width, creating a large footprint that housed the generators, boilers, and auxiliary systems.

Chimneys and Administration Block

The station featured prominent chimneys that stood 300 ft high. Each chimney had a diameter of 16 ft, designed to efficiently disperse exhaust gases from the combustion process. These structures were key visual elements of the plant's skyline. The administration block provided office space for the staff managing the daily operations of the station. While specific architectural details of the administration block are less documented, it served as the functional heart of the management side of the power station, complementing the industrial scale of the main turbine hall and boiler house.

Ince A: Operations and Fuel Supply

Commissioning and Early Operations

The Ince A unit began its operational life with commissioning dates spanning 1954 to 1956. The station was officially opened by Lord Citrine in 1957, marking its integration into the regional grid managed by the Central Electricity Authority. The facility was designed with a total installed capacity of 240 MW, achieved through the installation of 60-MW turbo alternators. These generators formed the core of the station's output, providing a steady baseload power supply for the North West region during the mid-20th century. The operational framework was established under the oversight of the Central Electricity Authority, which coordinated the expansion and maintenance of the coal-fired infrastructure in the area.

Technical Specifications and Fuel Supply

The technical configuration of Ince A relied on robust boiler systems capable of handling significant thermal loads. The boilers were rated at 550,000 lb/hour with a steam temperature of 480 °C. This high-temperature steam drove the turbo alternators, converting thermal energy into electrical power. The generated electricity underwent voltage transformation, stepping up from 12.8 kV to 132 kV for efficient transmission across the grid. This transformation process minimized line losses and ensured stable delivery to downstream substations. The fuel supply for the station was primarily coal sourced from the East Midlands. This logistical chain required consistent rail or barge transport to maintain the steady feed rate necessary for the 550,000 lb/hour boiler throughput. The reliance on East Midlands coal linked the Cheshire facility to broader UK mining regions, creating a supply dependency that influenced operational scheduling and cost structures. Water for the cooling and steam generation processes was drawn from the River Dee. This water was transported to the station via an 8-mile pipeline, ensuring a reliable source for the thermal cycles. The pipeline infrastructure was critical for maintaining the 480 °C steam parameters and supporting the continuous operation of the 60-MW units. The integration of the River Dee water supply and East Midlands coal created a dual-resource dependency that defined the station's operational logistics.

Cooling Infrastructure

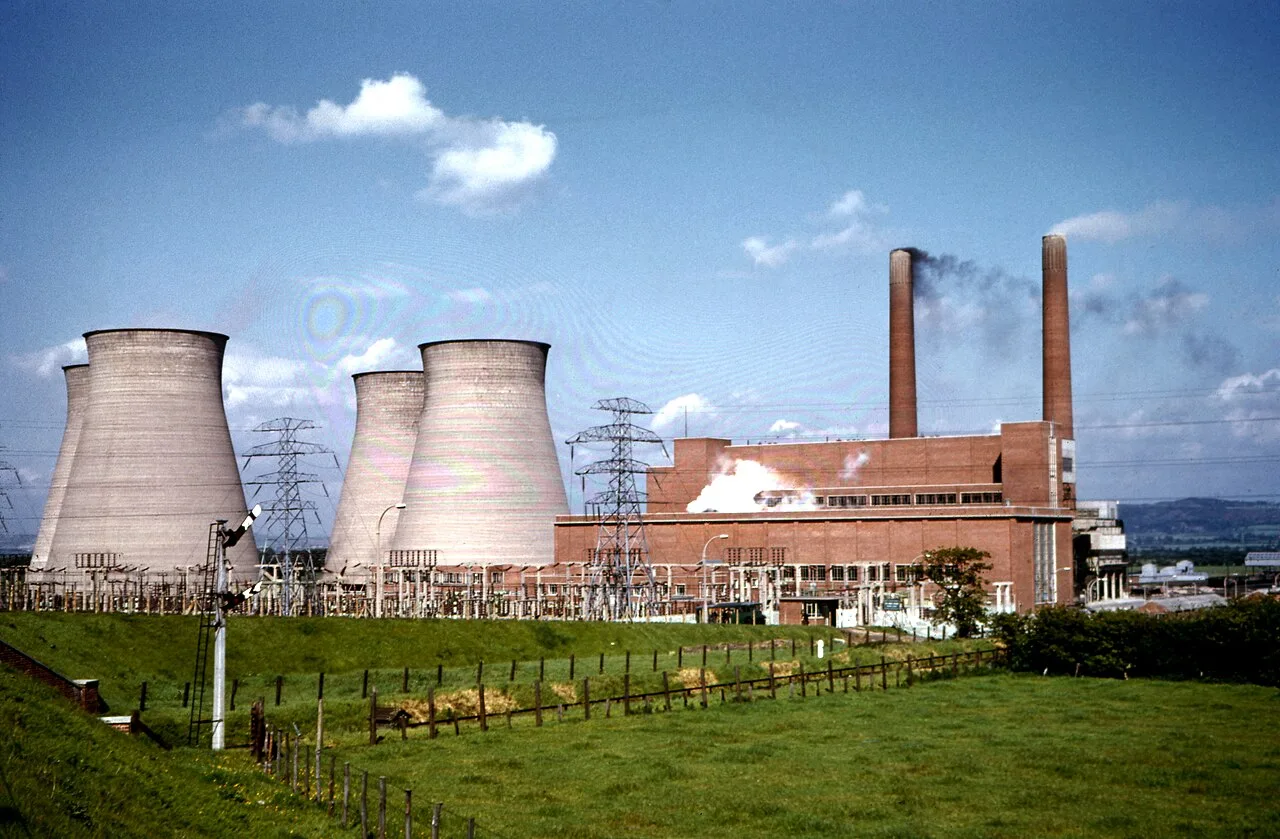

The cooling system at Ince A featured prominent cooling towers that were integral to the station's thermal management. These towers stood 250 ft tall with a base diameter of 205 ft. They were designed to handle a flow rate of 2.75 million gallons/hour, dissipating the waste heat generated by the 240 MW capacity. The large volume of water circulated through the towers allowed for efficient condensation of the steam after it passed through the turbo alternators. This cooling capacity was essential for maintaining the 480 °C steam temperature and ensuring the 550,000 lb/hour boiler output remained stable. The 2.75 million gallons/hour flow rate reflected the significant thermal load of the 60-MW units, requiring substantial evaporation to reject heat into the atmosphere. The 250 ft height of the towers facilitated natural draft cooling, reducing the need for mechanical fans and lowering operational energy consumption. The 205 ft base provided a wide footprint for water distribution and evaporation, optimizing the heat exchange process. This cooling infrastructure was a visible landmark of the Ince site, symbolizing the scale of the 240 MW generation capability. The design of the towers and the 8-mile water pipeline from the River Dee worked in tandem to support the station's continuous operation under the Central Electricity Authority. The combination of high-capacity boilers, efficient voltage transformation, and robust cooling systems defined the technical profile of Ince A during its operational years.

Ince B: Development and Delays

The site is historically significant as a major coal-fired generation hub operated by the Central Electricity Authority. While the original Ince A station was commissioned in 1957 with a capacity of 240 MW, the subsequent development of Ince B represents a distinct era of UK energy infrastructure planning, characterized by strategic shifts in fuel preference and significant operational challenges.

Context of the Dash for Oil

The development of Ince B occurred during the period known as the "Dash for Oil," a strategic initiative by the Central Electricity Generating Board to diversify the UK's fuel mix away from domestic coal. This policy aimed to leverage cheaper imported oil to reduce generation costs and modernize the grid. However, the project faced immediate headwinds as global oil prices fluctuated, complicating the economic rationale for new oil-fired capacity in a region traditionally dependent on coal supplies from the North West England mining districts.

Construction Challenges and Delays

The construction of Ince B was plagued by technical and logistical setbacks that significantly delayed its entry into the grid. Engineering reports from the era highlight critical rotor faults in the turbine generators, which required extensive rework and testing. Additionally, the project suffered from low productivity rates among the workforce, a common issue in the UK construction sector during the 1970s. These internal delays were compounded by external infrastructure inadequacies; the existing transmission network in Cheshire was initially deemed insufficient to handle the full output of the new station, necessitating costly upgrades to integrate Ince B effectively into the national grid.

Operational Impact and the Miners' Strike

Ince B did not begin full commercial operation until 1984, years behind initial projections. Its delayed start coincided with the 1984–1985 miners' strike, a pivotal event in British industrial history. The strike severely disrupted coal supplies to other power stations, inadvertently increasing the strategic value of Ince B's oil-fired capacity. Despite the political and economic turbulence, the station remained a critical asset for the Central Electricity Authority, providing essential baseload power to the North West region until its eventual decommissioning. The site's history reflects the complex interplay between fuel policy, engineering execution, and national economic shifts.

Ince B: Technical Specifications and Modifications

Ince B was a large coal-fired power station located near Ellesmere Port in Cheshire, North West England. The facility occupied a 125-acre site and featured substantial infrastructure designed to handle high-capacity generation. The boiler house measured 102.5 m by 49.5 m, while the turbine hall spanned 123 m by 60 m. These dimensions reflected the scale of the plant’s thermal and mechanical components, which were central to its operational efficiency.

Boiler and Generator Specifications

The plant’s boilers were rated at 447 kg/s with a pressure of 158.58 bar and a temperature of 538 °C. These specifications enabled the plant to achieve high thermal efficiency, a key factor in its design. The generators included 500-MW Parsons units, which were among the largest of their time. Additionally, the plant incorporated 25-MW Avon gas turbines, providing supplementary power and flexibility in output.

Modifications and Fuel Supply

In 1993, Unit 5 of Ince B was converted to burn orimulsion, a heavy fuel oil emulsion. This modification allowed the plant to diversify its fuel sources and adapt to changing market conditions. The plant’s fuel supply was supported by a pipeline from Shell's Stanlow Oil Refinery and a berth on the Manchester Ship Canal. These infrastructure elements ensured a steady flow of fuel to the plant, enhancing its operational reliability.

Chimney and Cooling Tower

Ince B featured a 152.5 m tall chimney with a diameter of 12.5 m, which played a crucial role in exhaust gas dispersion. The plant also included a cooling tower that stood 116.7 m tall, facilitating the condensation of steam in the turbine cycle. These structures were integral to the plant’s thermal management and environmental impact mitigation.

Control Systems

The plant utilized GEC 2050 computers for its control systems, which provided advanced monitoring and automation capabilities. These systems helped optimize the plant’s performance and maintain operational stability. The integration of such technology was a significant advancement in power station management during the period.

Closure and Demolition Timeline

Ince Power Station, located near Ellesmere Port in Cheshire, North West England, operated as a significant coal-fired energy infrastructure asset under the Central Electricity Authority. With a total capacity of 240 MW, the facility comprised two distinct operational phases, commonly referred to as Ince A and Ince B. The decommissioning process was not a singular event but a chronological sequence spanning over a decade, reflecting the shifting energy landscape in the United Kingdom during the late 20th century. The primary fuel source for the station was mixed coal, which fed the boilers to generate electricity for the regional grid.

Operational Cessation

The operational life of Ince A concluded in the mid-1980s. This initial closure marked the first phase of the station's winding down, reducing the overall output of the site. Following the retirement of Ince A, the remaining units, designated as Ince B, continued to provide power to the grid for another decade. The cessation of operations for Ince B occurred in March 1997. This date marked the end of active electricity generation at the site, transitioning the facility from an operational asset to a decommissioned industrial site awaiting physical dismantling. The gap between the closure of Ince A and Ince B highlights the staggered approach taken by the Central Electricity Authority in managing the station's lifecycle.

Demolition Events

Following the final shutdown in March 1997, the physical demolition of the Ince Power Station structures proceeded in distinct stages. The most prominent feature of the skyline, the Ince B chimney, was demolished on 28 April 1999. This event was a significant visual marker of the station's disappearance from the Cheshire landscape. Subsequently, the cooling towers were demolished on 5 December 1999. These demolition dates are critical for understanding the timeline of the site's clearance. The removal of these large-scale structures required careful planning and execution, typical of major power plant decommissioning projects. The timeline below summarizes the key dates of closure and demolition for the Ince Power Station.

The complete demolition of the Ince Power Station structures by the end of 1999 marked the final physical end of the facility. The site, which had been a dominant feature of the Ellesmere Port area since its commissioning in 1957, was cleared, leaving the land available for future development or reuse. The decommissioning process serves as a case study in the lifecycle of mid-20th-century coal power infrastructure in the United Kingdom.

Why it matters

Ince Power Station holds a distinct place in the history of UK energy infrastructure, illustrating the rapid technological and strategic shifts that characterized British power generation throughout the 20th century. Located near Ellesmere Port in Cheshire, North West England, the site hosted two distinct stations that collectively served as a microcosm of national fuel policy evolution. The facility’s operational history spans from traditional coal-fired generation to high-efficiency oil combustion, and finally to the experimental use of orimulsion, reflecting broader changes in the energy landscape.

Strategic Support for Nuclear Enrichment

The first station, Ince A, played a critical, specialized role in the post-war energy and nuclear sectors. It was strategically positioned to support the nearby Capenhurst uranium enrichment plant. This proximity was not merely logistical but essential for the reliability required by the nuclear industry. Ince A provided the necessary electrical power to sustain the enrichment processes at Capenhurst, linking thermal power generation directly to the atomic energy supply chain. This integration highlighted the interdependence of different energy sectors during the mid-20th century, where coal-fired thermal plants underpinned the emerging nuclear infrastructure. The station’s commissioning in 1957 marked the beginning of this specialized support role, operated by the Central Electricity Authority.

The 'Dash for Oil' and Thermal Efficiency

The second station, Ince B, emerged during the 'Dash for Oil' era, a period marked by the UK’s strategic pivot toward oil-fired generation to reduce reliance on domestic coal. Ince B became notable for its technical performance, particularly its thermal efficiency. In 1984, the station achieved a high thermal efficiency record, demonstrating the potential of advanced oil-fired technology to compete with traditional coal plants. This achievement underscored the engineering advancements made during the oil-dominated period of British power generation. The station’s ability to convert fuel into electricity with high efficiency made it a benchmark for other oil-fired stations during that era.

Fuel Strategy Evolution

The site’s history also reflects the volatility of fuel strategies. After its initial oil-fired operation, Ince B adapted to market conditions by switching to orimulsion, a heavy fuel blend. This transition highlighted the flexibility required in power generation to accommodate changing fuel prices and availability. The move to orimulsion represented a later phase in the station’s life, showcasing how UK power plants had to innovate and adapt to new fuel sources to remain economically viable. The eventual decommissioning of both stations marks the end of an era for this specific site, but their legacy remains in the lessons learned about fuel diversity and technological adaptation in the UK energy sector.

What distinguishes Ince A from Ince B?

While both were operated by the Central Electricity Authority and are now decommissioned, they differed significantly in fuel strategy, construction timeline, and engineering design.

Fuel Strategy and Construction Eras

Ince A was commissioned in 1957, representing the mid-20th-century reliance on coal. In contrast, Ince B was developed later, spanning the 1960s through the 1980s. Ince B was specifically designed to handle mixed fuels, notably orimulsion, a heavy oil emulsion. This shift reflected changing energy economics and the need for flexible fuel sources compared to the more static coal infrastructure of Ince A.

Technological and Structural Differences

The two stations employed different technological suppliers. Ince A utilized generators from Fraser & Chalmers, while Ince B featured Parsons generators. Structurally, Ince A was characterized by two chimneys and multiple cooling towers. Ince B, however, was distinguished by a single large chimney and a single cooling tower, reflecting different engineering approaches to heat dissipation and exhaust management.

These differences highlight the evolution of power generation technology in the region, moving from standardized coal-fired designs to more complex, fuel-flexible systems.
