In situ resource utilization

Overview

In space exploration, in situ resource utilization (ISRU) is defined as the practice of collecting, processing, storing, and using materials found or manufactured on other astronomical objects to replace materials that would otherwise be transported from Earth (NASA). This concept is central to reducing the logistical burden of space missions, primarily by minimizing the launch mass required for long-duration expeditions and permanent settlements. By leveraging local resources, mission architectures can significantly lower the cost per kilogram delivered to the destination, as the alternative—bringing all necessary consumables from Earth—exponential increases in fuel requirements due to the rocket equation.

Core Materials and Applications

The scope of ISRU encompasses a variety of materials depending on the target celestial body. Water is one of the most critical resources, often extracted from lunar regolith or polar ice deposits. Once processed, water can be split into hydrogen and oxygen, serving as both life-support consumables and rocket propellants. Regolith, the layer of loose, heterogeneous material covering solid rock, is another primary resource. It can be processed for oxygen extraction or used directly as a construction material for habitats and radiation shielding.

Metals and other minerals are also targeted for extraction to support manufacturing and infrastructure development. The utilization of these local resources allows for the production of fuel, air, and building blocks on-site, thereby reducing the dependency on resupply missions from Earth. The operational status of many ISRU technologies remains proposed or in early demonstration phases, with various missions aiming to validate these processes in actual space environments. The integration of ISRU into mission planning is essential for sustainable exploration, enabling longer stays and more efficient use of launch vehicles.

How does ISRU reduce the cost of space exploration?

In situ resource utilization (ISRU) fundamentally alters the economic equation of space exploration by shifting the burden of material acquisition from Earth to the destination. The primary cost driver in spaceflight is the mass launched from Earth, where every kilogram requires significant propellant and structural support. By collecting, processing, and storing materials found on other astronomical objects, missions can replace materials that would otherwise be brought from Earth, thereby minimizing the initial payload. This practice enables affordable extraterrestrial operations by leveraging local resources to sustain infrastructure, produce fuel, and manufacture components.

Logistical Rationale and Mass Reduction

The logistical advantage of ISRU stems from the exponential nature of the rocket equation. The cost to lift mass from Earth’s gravity well is substantially higher than the cost to move mass within a destination’s gravity well or in microgravity. By utilizing local materials, missions reduce the dependency on Earth-based supply chains. For example, if water ice is extracted from the lunar regolith or Martian soil, it can be split into hydrogen and oxygen for propulsion or life support. This reduces the need to launch heavy tanks of oxidizer and fuel from Earth. The economic rationale is clear: reducing the payload mass directly reduces launch costs, which are often the largest single expense in a space mission.

Trade-offs: Equipment Mass vs. Payload Mass

Implementing ISRU introduces a critical trade-off between the mass of the processing equipment and the mass of the payload it replaces. The equipment required for extraction, processing, and storage adds to the initial launch mass. However, if the volume of resources utilized over the mission’s lifetime exceeds the mass of the equipment, the net mass savings become significant. This trade-off is particularly favorable for long-duration missions or permanent bases, where the cumulative mass of imported materials would be enormous. The decision to employ ISRU depends on the abundance and accessibility of local resources, the efficiency of the processing technology, and the duration of the mission. If the equipment is too heavy or inefficient, the logistical complexity may outweigh the mass savings. Therefore, careful analysis of the mass balance is essential to determine the economic viability of ISRU for specific missions.

Water and Rocket Propellant Production

Water is the most critical resource for ISRU due to its dual role as a life-support medium and a primary feedstock for rocket propellants. Extraction methods vary by celestial body, targeting subsurface ice deposits, permafrost layers, water vapor in the atmosphere (WAVAR), and potential aquifers. Once extracted, water undergoes electrolysis to separate hydrogen and oxygen, the two most common cryogenic propellants. This process splits water molecules using electrical energy, yielding high specific impulse fuels suitable for both ascent and descent stages.

Electrolysis and Hydrogen Peroxide

Standard electrolysis produces hydrogen (H2​) and oxygen (O2​) gases. This compound serves as a versatile oxidizer and fuel, particularly for smaller thrusters or backup propulsion systems. The production of hydrogen peroxide often involves catalytic decomposition or electrochemical synthesis, offering a denser energy storage solution compared to separate cryogenic tanks.

The Sabatier Process for Mars

On Mars, the atmosphere is composed primarily of carbon dioxide, making it an ideal source for methane production via the Sabatier process. This process is crucial for Mars missions, as methane-oxygen pairs offer higher efficiency than traditional hypergolic fuels. The reaction typically requires temperatures around 400 °C to optimize the yield of methane, utilizing catalysts such as nickel or ruthenium. The water byproduct can be recycled back into the electrolysis loop, creating a closed-loop system that maximizes resource efficiency.

High-Temperature Processing

For more complex extraction scenarios, such as mining lunar regolith or processing Martian permafrost, higher thermal energies are often required. Some advanced ISRU concepts utilize temperatures up to 2,500 °C to drive off volatiles or reduce metal oxides. These extreme heat sources can be generated by nuclear reactors, concentrated solar power, or resistive heating elements. The high-temperature environment facilitates the separation of water from hydrated minerals, ensuring a steady supply of feedstock for downstream propellant production. This thermal processing is essential for converting solid water sources into usable gas or liquid forms.

Metals, Building Materials, and Solar Cells

In situ resource utilization extends beyond fuel production to encompass the extraction of structural metals and the fabrication of building materials directly from regolith. This approach significantly reduces the mass penalty of launching construction supplies from Earth, enabling the deployment of habitats, landing pads, and power infrastructure on the Moon and Mars.

Metal Extraction

Regolith contains significant quantities of aluminum, iron, and magnesium, which are critical for structural integrity and energy storage systems. Aluminum is often extracted via the Hall-Héroult process, requiring electrolysis of alumina dissolved in molten cryolite. The fundamental reaction for aluminum production can be represented as:

2Al₂O₃ + 3C → 4Al + 3CO₂

Iron is frequently reduced using hydrogen or carbon monoxide, yielding metallic iron and water or carbon dioxide byproducts. Magnesium extraction typically involves the Pidgeon process or electrolysis of magnesium chloride. These metals serve as the backbone for habitat frames, radiation shielding, and battery components for energy storage arrays.

Building Materials and Solar Cells

Construction materials are fabricated using local basalt, fiberglass, and epoxy mixes. Basalt fibers can be spun into high-strength composites, while sintered regolith or basalt concrete provides thermal stability and radiation protection. Solar cells are also produced in situ by extracting silicon, aluminum, and glass from lunar soil. Silicon is purified from silica-rich regolith to form photovoltaic cells, while aluminum provides conductive backing and structural support. Glass derived from the soil serves as protective coverings for the photovoltaic arrays.

ISRU Locations: Moon, Mars, and Beyond

The Moon presents distinct resource opportunities, primarily anorthite in the highlands and water ice at the poles. Extracting oxygen from lunar regolith requires high-temperature processing, often reaching 900 °C, to release bound volatiles. These resources reduce the mass penalty of launching from Earth's gravity well. Mars offers a thin but abundant atmosphere, primarily carbon dioxide, which can be processed for oxygen and methane fuel. Hematite deposits, notably in the Terra Meridiani region, provide additional iron and oxygen sources. The availability of these materials supports long-duration surface missions and return trajectories.

Outer Solar System and Asteroids

Bodies such as Phobos and Deimos offer strategic locations due to their low gravitational binding energy. Ceres, a dwarf planet in the asteroid belt, features a surface gravity of 0.028 g and an escape velocity of 510 m/s. These low-energy environments significantly reduce the delta-v required to launch payloads into transfer orbits. Asteroids contain diverse mineralogical compositions, including water ice and metals, making them targets for early ISRU implementation. The low gravity facilitates the extraction and storage of resources with minimal energy input compared to larger planetary bodies.

Delta-v Advantages

Utilizing local resources reduces the effective payload mass launched from Earth. The Tsiolkovsky rocket equation, Δv=ve​ln(mf​m0​​), illustrates how reducing the initial mass m0​ or increasing the exhaust velocity ve​ improves mission efficiency. By processing materials on-site, missions can leverage the lower escape velocities of bodies like Ceres or Mars. This strategy minimizes the propellant mass required for interplanetary transfers, enabling more complex mission architectures and reducing launch costs. ISRU thus transforms astronomical objects from mere destinations into functional fueling stations.

History and Technology Demonstrators

Efforts to formalize in situ resource utilization (ISRU) strategies gained significant traction in the early 2000s. A pivotal moment occurred in 2004 with the release of a NASA roadmap that outlined the integration of ISRU into future space exploration architectures. This strategic planning followed the cancellation of the 2001 Mars Surveyor mission, which had carried early ISRU experiments but was lost before full deployment and data collection could be completed.

Preparation for lunar and Martian ISRU also involved extensive ground-based testing. In 2005, contracts were awarded for the production of regolith simulants to mimic extraterrestrial soil properties. A total of 16 tonnes of these simulants were produced to support thermal, mechanical, and chemical processing tests for future hardware.

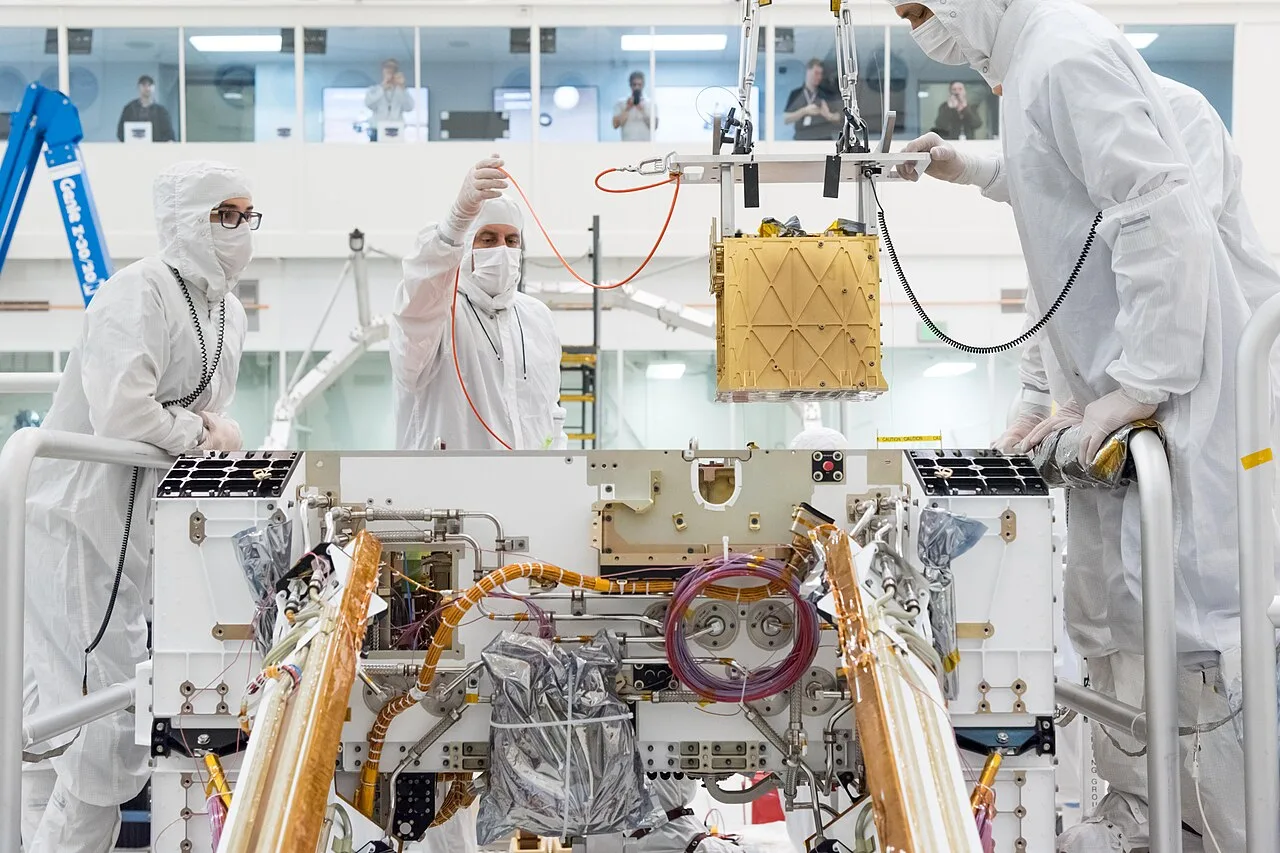

Subsequent missions faced various outcomes. The 2018 Resource Prospector mission, designed to map water ice in the lunar south pole, was eventually scrapped, highlighting the financial and technical risks associated with ISRU precursors. In contrast, the 2021 MOXIE experiment on Mars achieved a major milestone by successfully producing oxygen from the Martian atmosphere. The device generated 5.37 grams of O2, validating the electrolysis process for carbon dioxide-rich environments.

What are the main challenges of ISRU implementation?

The implementation of in situ resource utilization (ISRU) faces significant technical hurdles inherent to extraterrestrial environments. Extreme temperature fluctuations and persistent vacuum conditions complicate the collection and processing of materials, demanding robust thermal management and pressure containment systems. These environmental stressors necessitate a high degree of automation, as the distance from Earth often limits real-time human intervention, requiring machinery to operate with minimal maintenance over extended periods.

Material and Catalyst Deficiencies

A critical challenge lies in the specific chemical composition of extraterrestrial regolith and atmospheres. For instance, Mars presents unique difficulties regarding catalyst availability. The lack of certain essential catalysts, such as wustite, can hinder efficient chemical processing, particularly in the production of propellants. This scarcity forces engineers to either transport specialized catalysts from Earth—adding to launch mass—or develop synthetic alternatives that can withstand the harsh Martian environment.

Fabrication Complexity

The fabrication procedures required for ISRU are inherently complex. Processing raw materials into usable forms, such as water, oxygen, or metal alloys, involves multi-stage extraction and refinement. Each step must be optimized for energy efficiency and reliability, often requiring the integration of solar power, nuclear reactors, or chemical energy storage. The interplay between these systems increases the overall system complexity, making fault tolerance a critical design parameter.

SpaceX Mars Propellant Plant

As of 2023, SpaceX has proposed a Mars propellant plant to demonstrate ISRU capabilities. This facility aims to produce methane and oxygen propellants using the Sabatier reaction, which combines hydrogen from Earth with carbon dioxide from the Martian atmosphere. While the concept is well-established, the operational status remains proposed, with significant engineering challenges related to scaling the plant for continuous operation and ensuring the reliability of the heat exchangers and compressors in the Martian environment. The success of this plant is crucial for reducing the launch mass required for crewed missions to Mars, as it allows for the production of return fuel on-site.
