Overview

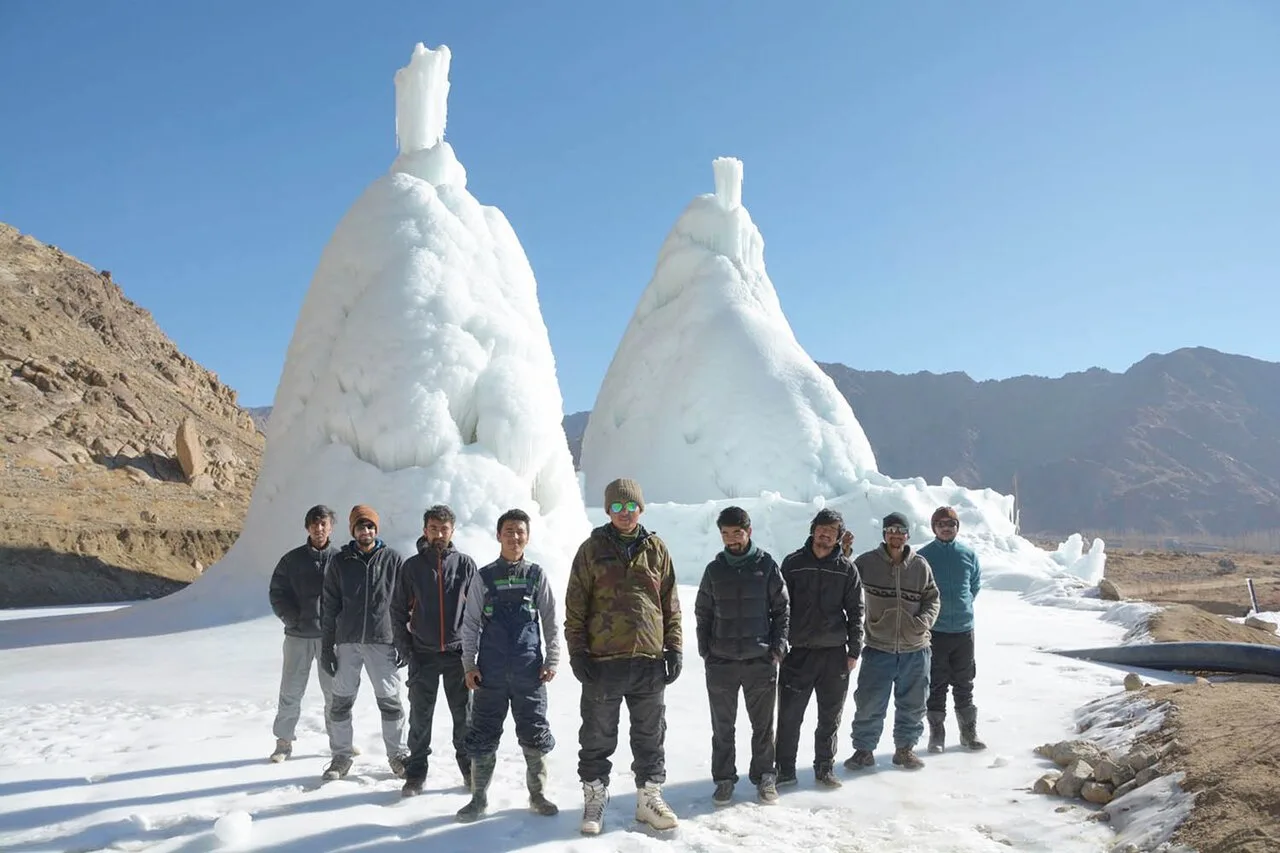

An ice stupa is a glacier grafting technique designed to create artificial glaciers, serving as a critical water storage solution for arid regions. The method involves storing winter water in the form of conical-shaped ice heaps, which melt during the summer months when natural water supplies are typically scarce. This seasonal release of water is primarily utilized for crop irrigation, addressing the timing mismatch between winter runoff and summer agricultural demand in high-altitude environments. While the fundamental concept of channelling and freezing water for irrigation has existed for hundreds of years, the modern iteration of the ice stupa was re-invented, popularised, and scaled up by Sonam Wangchuk in the Ladakh region of India.
The initiative is formally undertaken by the Students' Educational and Cultural Movement of Ladakh, a non-governmental organisation dedicated to the region's development. The specific project, known as The Ice Stupa Project, was launched in October 2013, with the initial test project commencing in January 2014. This operational timeline marks the transition of the ice stupa from a conceptual prototype to a functional infrastructure element within Ladakh's water management strategy. The technology represents a low-tech, passive cooling solution that leverages the natural freeze-thaw cycles of the Himalayan plateau to mitigate water scarcity.
The impact of this technique has been recognized both locally and internationally. On 15 November 2016, Sonam Wangchuk was awarded the Rolex Awards for Enterprise in recognition of his work on ice stupas. Since the inception of Wangchuk's first ice stupa project, the technology has expanded across the region. More than a dozen ice stupas have been constructed, collectively providing over 25 million liters of water. This volume of stored water significantly enhances agricultural resilience, allowing farmers in Ladakh to sustain crops during the critical dry season. The success of these installations demonstrates the viability of artificial glaciers as a scalable adaptation strategy for climate change in high-altitude desert environments.
Background: Water Scarcity in Ladakh
Ladakh is a high-altitude cold desert region in northern India, characterized by extreme aridity and a short growing season. The area receives less than 50 mm of annual rainfall, making precipitation alone insufficient to sustain agriculture or support the local population. Consequently, water security in Ladakh is heavily dependent on the seasonal melt of snow and glaciers from the surrounding Himalayan and Karakoram mountain ranges. This natural hydrological cycle has historically provided a reliable water supply during the critical spring and summer months when evaporation rates are high and crop demand peaks.
However, climate change has disrupted this delicate balance. Rising temperatures are causing glaciers to retreat and snowpacks to melt earlier in the year. This shift has led to a phenomenon known as "spring water scarcity," where the traditional timing of meltwater availability no longer aligns with the agricultural calendar. Farmers often face a critical water deficit in early spring, just as crops begin to emerge, while the bulk of the meltwater arrives later in the summer, sometimes leading to flooding or runoff that is not fully utilized. This temporal mismatch between water supply and demand is a primary driver for innovative water storage solutions in the region.
The geographic isolation and rugged terrain of Ladakh further complicate water management. Traditional irrigation channels can be easily blocked by debris flows or freeze during unseasonal cold snaps. The reliance on glacial melt means that any variation in temperature directly impacts the volume and timing of water availability. As temperatures rise, the rate of evaporation increases, exacerbating the water stress. The region's water resources are thus under increasing pressure, necessitating adaptive strategies to capture and store water during the winter months when it is abundant but less useful for immediate agricultural needs.
The concept of artificial glaciers, such as the ice stupa, emerges as a direct response to these climatic and geographic challenges. By storing winter water in the form of conical ice heaps, these structures mimic natural glacier behavior, releasing water gradually as temperatures rise. This technique helps to bridge the gap between winter water abundance and spring scarcity, providing a more stable and predictable water supply for irrigation. The success of such projects depends on understanding the local microclimates and optimizing the design of the ice structures to maximize melting efficiency during the critical growing season.
History and Development
The development of the ice stupa concept is rooted in the water scarcity challenges faced by the high-altitude desert region of Ladakh, India. The technique involves glacier grafting to create artificial glaciers, specifically conical-shaped ice heaps designed to store winter water for summer irrigation. The project is undertaken by the Students' Educational and Cultural Movement of Ladakh NGO, which serves as the primary operator for this operational concept.
Project Timeline
The formalisation of the ice stupa project followed a specific sequence of events beginning in 2013. Sonam Wangchuk's inspiration for the project occurred in May 2013. This conceptual phase was followed by the official launch of the initiative in October 2013. The first practical application, referred to as the test project under the name The Ice Stupa Project, started in January 2014.
| Year | Event |
|---|---|
| May 2013 | Sonam Wangchuk's inspiration for the ice stupa concept. |
| October 2013 | Official launch of the initiative. |
| January 2014 | Start of the test project under the name The Ice Stupa Project. |
| 15 November 2016 | Sonam Wangchuk awarded the Rolex Awards for Enterprise. |
These structures melt during the summer months when water is scarce, thereby increasing the water supply for crops. The operational status of these installations remains active, continuing to serve as a critical water storage solution in Ladakh.
How do ice stupas work?
Ice stupas function as artificial glaciers designed to store winter water in the form of conical-shaped ice heaps. The technique relies on gravity-fed piping systems that channel water from higher elevations to lower areas, minimizing the need for electricity. Water is sprayed into the air through nozzles, where it freezes in the cold winter air before accumulating on the ground. The conical shape is critical to the system's efficiency, as it minimizes the surface area exposed to sunlight, thereby reducing melting rates during the warmer months. This geometric optimization ensures that the ice persists longer, providing a steady water supply for crops when natural glaciers have receded.
Technical Parameters
| Parameter | Value / Description |
|---|---|
| Shape | Conical |
| Primary Function | Minimize surface area to reduce melting |
| Water Source | Winter runoff, channeled via gravity |
| Energy Input | Gravity-fed (low electricity dependency) |
| Melting Season | Summer (when water is scarce) |
The role of shading further enhances the ice stupa's longevity. By positioning the stupas in areas with natural or artificial shade, the exposure to direct solar radiation is reduced. This passive cooling method complements the conical geometry, ensuring that the ice melts gradually rather than rapidly. The system does not require complex machinery; instead, it leverages the natural temperature gradients of the Ladakh region. Water is directed through pipes that end in nozzles, which atomize the flow to increase the surface area during freezing, allowing for rapid ice formation in the sub-zero winter temperatures.
The efficiency of the ice stupa can be understood through basic geometric principles. For a given volume V, a cone has a smaller surface area A compared to a cylinder or a sphere of similar dimensions, depending on the height-to-radius ratio. This reduced surface area A means less heat absorption from the surrounding air and sunlight. The melting rate is thus slowed, extending the duration over which the water is released. This method has been scaled up by the Students' Educational and Cultural Movement of Ladakh, with over a dozen stupas built in the region since the initial project launched in 2013. These structures have provided over 25 million liters of water, demonstrating the viability of this low-tech solution for high-altitude agriculture.
Worked examples: The 2013 Prototype
The first ice stupa prototype, constructed in Leh in early 2014, serves as the foundational case study for the technology. This initial structure reached a height of 6 meters and utilized approximately 150,000 liters of water. The prototype remained intact until 18 May 2014, demonstrating resilience against daytime temperatures exceeding 20 °C. This performance validated the concept of vertical glacier grafting for high-altitude irrigation.
Volume and Geometry Analysis
To understand the efficiency of the conical shape, we can analyze the volume of the prototype. The structure is approximated as a cone. Using the standard formula for the volume of a cone, V = (1/3)πr²h, we can verify the spatial requirements. Given a height (h) of 6 meters and a total water volume (V) of 150,000 liters (which equals 150 cubic meters, since 1 m³ = 1000 L), we can solve for the radius (r).
Step 1: Convert volume to cubic meters. 150,000 L = 150 m³.
Step 2: Rearrange the volume formula to solve for r. 150 = (1/3) * π * r² * 6 150 = 2 * π * r² 75 = π * r² r² = 75 / π ≈ 23.87
Step 3: Calculate the radius. r = √23.87 ≈ 4.89 meters.
This calculation shows that a 6-meter high stupa holding 150,000 liters requires a base radius of nearly 5 meters, resulting in a base diameter of approximately 9.8 meters. This wide base provides structural stability against wind and thermal stress.
Thermal Persistence Calculation
The prototype lasted until 18 May 2014. Assuming construction began in January 2014, the ice persisted for approximately 4.5 months. This duration is critical for late-season irrigation. The key to this persistence is the vertical orientation, which minimizes surface area exposure to sunlight compared to traditional horizontal ice fields.
Step 1: Estimate surface area of the conical stupa. Surface Area (excluding base) = π * r * l, where l is the slant height. l = √(r² + h²) = √(4.89² + 6²) ≈ √(23.87 + 36) ≈ √59.87 ≈ 7.74 meters. Surface Area ≈ π * 4.89 * 7.74 ≈ 118.5 m².
Step 2: Compare to a horizontal sheet. If the same volume (150 m³) were spread as a 1-meter thick square sheet, the side length would be √150 ≈ 12.25 meters. The top surface area would be 150 m². The conical stupa’s exposed surface area (118.5 m²) is significantly less than the horizontal sheet’s top area (150 m²), reducing direct solar radiation absorption per unit of volume.
Step 3: Relate to melting time. With less surface area exposed to the sun, the rate of heat transfer is reduced. This allows the ice to persist until mid-May, extending the water supply into the critical pre-planting season when natural glaciers have not yet fully melted.
These calculations demonstrate why the conical shape is superior for thermal retention in high-altitude environments, validating the design principles used in subsequent ice stupa projects.
Applications in Agriculture and Energy
Ice stupas function primarily as artificial glaciers designed to address seasonal water scarcity in high-altitude regions. The core application is agricultural: storing winter water in conical ice heaps that melt during the summer when natural snowmelt is often depleted. This technique extends the water supply for crops, enabling spring sowing in the Ladakh region of India. The Students' Educational and Cultural Movement of Ladakh NGO has scaled this approach, with over a dozen ice stupas built since the project's inception, providing over 25 million liters of water. This stored water is critical for irrigation, allowing farmers to cultivate crops earlier in the season than would be possible with natural snowmelt alone.
Integration with Energy Systems
While primarily a water storage solution, ice stupas offer potential integration with local energy infrastructure. The formation of ice stupas can be enhanced by using snow cannons, which spray water into the cold night air to create artificial snow. These snow cannons can be powered by renewable energy sources such as wind, hydro, and solar power. This integration creates a synergistic relationship: excess winter energy, particularly from solar PV and wind turbines, can drive the pumps and nozzles of the snow cannons, converting electrical energy into thermal storage in the form of ice. As the ice melts in summer, it provides water for hydroelectric generation or irrigation, effectively shifting energy availability from winter to summer.
The efficiency of this system relies on the conical shape of the stupa, which minimizes surface area exposure to the sun and wind, slowing the melting process. This design ensures that water is released gradually throughout the critical growing season. The technique was re-invented and popularized by Sonam Wangchuk, who was awarded the Rolex Awards for Enterprise in 2016 for this work. The project, launched in October 2013 and starting tests in January 2014, demonstrates how simple engineering can address complex climate challenges in high-altitude deserts. By linking water storage with renewable energy generation, ice stupas contribute to a more resilient local energy and water grid.
Why it matters
The ice stupa initiative represents a significant advancement in decentralized water resource management for high-altitude arid regions. By transforming seasonal glacial meltwater into a reliable summer supply, the technology directly addresses the critical timing mismatch between water availability and agricultural demand in the Ladakh region. The project, spearheaded by the Students' Educational and Cultural Movement of Ladakh NGO, has demonstrated that low-tech, gravity-fed freezing systems can effectively mitigate summer water scarcity without requiring extensive infrastructure or high energy inputs.
Impact on Water Security
Since the inception of the first ice stupa project, the initiative has scaled to include over a dozen structures across the region. These artificial glaciers have collectively provided over 25 million liters of water, a substantial volume for local irrigation needs during the critical growing season. This water storage method ensures that crops receive necessary hydration when natural streamflows are at their lowest, thereby stabilizing agricultural yields and reducing dependency on unpredictable rainfall or distant canal systems. The conical shape of the stupas minimizes surface area exposure to the sun, slowing the melting process and extending the water release period well into the summer months.
Role of the Students' Educational and Cultural Movement of Ladakh
The Students' Educational and Cultural Movement of Ladakh NGO has been the primary driver behind the development, popularization, and scaling of the ice stupa concept. Under the leadership of Sonam Wangchuk, the organization transformed a traditional practice of channelling and freezing water into a structured, replicable engineering solution. The NGO's work has not only focused on the technical construction of the stupas but also on community engagement and educational outreach, ensuring local ownership and maintenance of the infrastructure. This grassroots approach has been instrumental in the project's success, fostering a model of community-led climate adaptation that can be adapted to other high-altitude regions facing similar water stress challenges.
Growth and Competition
The expansion of the ice stupa initiative accelerated significantly in the years following its initial launch, transitioning from a single experimental model to a regional network of artificial glaciers. By 2019, the project had grown to include 12 distinct ice stupas across the Ladakh region, demonstrating the scalability of the glacier grafting technique beyond its original site. This growth continued into 2020, with the number of operational stupas reaching approximately 25, marking a substantial increase in winter water storage capacity for local agriculture.
The Ice Stupa Competition
A key driver of this rapid expansion was the introduction of the Ice Stupa Competition, a strategic initiative designed to engage local communities and standardize the construction methodology. The competition served as both a pedagogical tool and a quality assurance mechanism, encouraging villages to adopt the conical ice heap design to maximize surface area efficiency and minimize melt rates during the critical pre-summer months. This competitive framework helped disseminate the technical knowledge developed by the Students' Educational and Cultural Movement of Ladakh, ensuring that the core principles of vertical freezing and passive cooling were replicated accurately across different microclimates in the region.
The competition also fostered a sense of ownership among local stakeholders, transforming the ice stupa from a top-down engineering solution into a community-led resource management strategy. By incentivizing the construction of new stupas, the initiative ensured that the infrastructure remained relevant to the immediate water scarcity challenges faced by farmers in the high-altitude desert. The growth from 12 stupas in 2019 to around 25 in 2020 reflects the effectiveness of this community-engagement model, which leveraged local labor and traditional knowledge to scale up the artificial glacier network without requiring extensive external capital investment.
This period of growth also highlighted the adaptability of the ice stupa design to varying topographical conditions. The competition encouraged participants to experiment with site selection and water channeling techniques, leading to iterative improvements in the efficiency of water storage. As the number of stupas increased, the collective water yield of the network became more significant, providing a more reliable source of irrigation water during the early spring planting season when natural glacier melt is often delayed. The success of the competition model demonstrated that decentralized, community-driven approaches could effectively address water scarcity in the Himalayan region, offering a scalable template for other high-altitude agricultural zones facing similar climatic challenges.
