IEC 60320: Standard for Appliance Couplers and Power Connectors

Overview

IEC 60320 is a comprehensive set of standards published by the International Electrotechnical Commission (IEC) that defines non-locking appliance couplers for connecting power supply cords to electrical appliances. Entitled "Appliance couplers for household and similar general purposes," this standard establishes the technical specifications for connectors intended for use with devices operating at voltages up to 250 volts (AC) and currents up to 16 amperes (per IEC 60320 standard definitions). The standard specifies various types of connectors, differentiated by shape and size, to accommodate different combinations of current ratings, temperature tolerances, and earthing requirements for general-purpose electrical applications.

Terminology and Components

The standard uses the term "coupler" to refer collectively to both the appliance inlets and outlets, as well as the connectors on power supply cords. This terminology encompasses the complete interface between the power source and the electrical device. Unlike IEC 60309 connectors, IEC 60320 couplers are not keyed or color-coded to indicate voltage. It is the responsibility of the user to ensure that the appliance's voltage rating is compatible with the local mains supply when utilizing these non-locking connectors (per IEC 60320 standard definitions).

Historical Development

The first edition of the standard was published in 1970 under the designation IEC 320. It was renumbered to IEC 60320 in 1994 as part of the IEC's revision and reorganization of its numbering system. The standard has remained operational since its initial commissioning in 1970, providing a consistent framework for appliance connectivity in household and general-purpose electrical installations. The International Electrotechnical Commission continues to maintain this standard as a key reference for electrical connector specifications.

History and Standardization

Renumbering and Reorganization

In 1994, the standard underwent a significant administrative change. This renumbering aligned the standard with the IEC's systematic approach to cataloging electrotechnical standards. The core technical definitions remained consistent, continuing to specify non-locking appliance couplers for connecting power supply cords to electrical appliances.

The reorganization into parts 1, 2, and 3 further structured the standard to address specific aspects of appliance couplers. This structural evolution allowed for more precise technical specifications and easier updates to the standard. The responsibility for ensuring that the appliance's voltage rating is compatible with the local mains supply remains with the user. This distinction highlights the specific design philosophy of the IEC 60320 standard, focusing on flexibility and general-purpose applicability for household and similar general purposes.

The evolution from IEC 320 to IEC 60320 reflects the ongoing effort by the International Electrotechnical Commission to maintain and update standards to meet the changing needs of the electrotechnical industry. The standard continues to be operational and widely used, providing a consistent framework for the design and manufacturing of appliance couplers. The renumbering and reorganization in 1994 did not alter the fundamental purpose of the standard, which is to define non-locking appliance couplers for connecting power supply cords to electrical appliances.

What are the main types of IEC connectors?

The IEC 60320 standard defines a range of non-locking appliance couplers designed for household and general-purpose electrical connections. These connectors are categorized into distinct types, identified by letter-number combinations (e.g., C13, C14), which differentiate them by shape, size, current rating, and earthing requirements. The standard covers devices operating at voltages up to 250 volts AC and currents up to 16 amperes. Unlike IEC 60309 connectors, IEC 60320 couplers are not inherently keyed or color-coded for voltage, placing the onus on the user to ensure compatibility with the local mains supply (per IEC 60320 standard definitions).

Common Connector Types

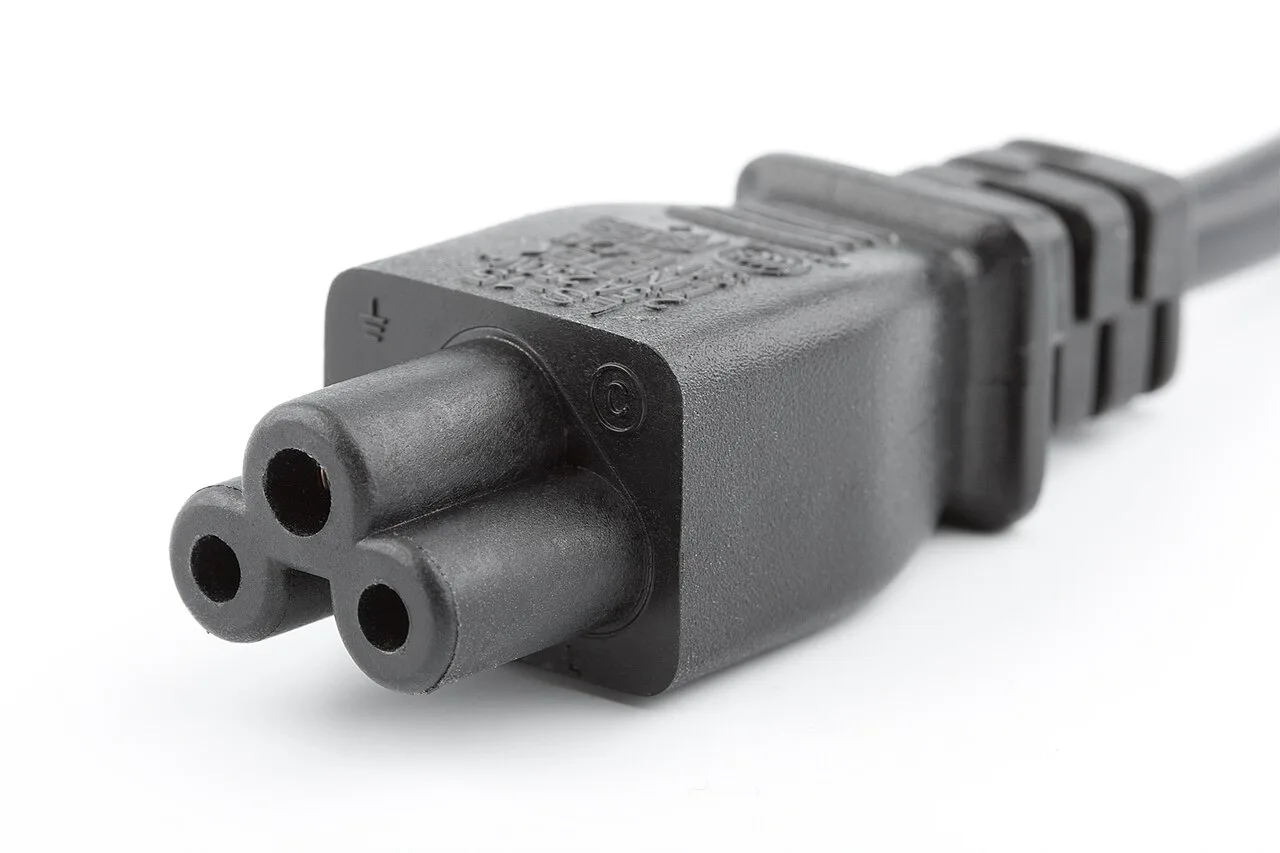

The most widely recognized types include the C13/C14 pair, commonly known as the "Kempston" connector, which is standard for computers and monitors. The C7/C8 pair, often called "Figure-8" connectors, is frequently used for audio equipment and smaller appliances. The C5/C6 pair, known as the "Cloverleaf" connector, is common in European computer equipment. The C15/C16 pair is designed for higher temperature tolerances, typically used for halogen lamps and projectors. The C19/C20 pair provides a higher current rating for larger appliances like servers and power supplies. The C17/C18 pair is less common but serves specific low-current applications.

These types are differentiated by their physical dimensions and pin configurations to accommodate various current ratings and temperature tolerances. The C13/C14 type is the most ubiquitous in office environments, while the C19/C20 type is preferred for higher-power equipment due to its robust contact design. The standard ensures that these connectors can handle the specified electrical loads safely, provided that the user matches the voltage and current requirements of the appliance with the local power supply (per IEC 60320 standard definitions).

Technical Specifications and Safety Ratings

IEC 60320 defines non-locking appliance couplers designed for household and similar general purposes, establishing rigorous technical specifications for voltage, current, and temperature tolerances. These ratings ensure compatibility with a wide range of electrical appliances while maintaining safety margins for typical domestic and light commercial usage. The standard differentiates connector types by shape and size to accommodate various combinations of current ratings, temperature tolerances, and earthing requirements, allowing manufacturers to select the appropriate coupler for specific operational environments.

Voltage and Current Ratings

The voltage limit of 250 volts (AC) covers the majority of single-phase mains supplies globally, including the common 110–120 V and 220–240 V systems. The current rating of up to 16 amperes allows for significant power delivery, supporting appliances ranging from small electronics to larger heating elements. This design choice places the responsibility on the user to ensure that the appliance's voltage rating is compatible with the local mains supply. Users must verify that the connector's voltage tolerance matches the input requirements of the device to prevent overvoltage stress or underperformance.

Temperature Tolerances

Temperature ratings are critical for determining the thermal endurance of the coupler materials under continuous load. The standard specifies temperature tolerances of 70 °C, 120 °C, and 155 °C, depending on the specific connector type and the materials used in the housing and contacts. These ratings reflect the maximum temperature the connector can withstand without degradation of insulation or mechanical integrity. Higher temperature ratings, such as 155 °C, are often required for appliances with significant internal heat generation or those operating in warm environments, ensuring that the connector remains reliable over time.

Appliance Classes and Polarization

IEC 60320 connectors are designed to support different appliance classes, primarily Class I and Class II. Class I appliances rely on basic insulation and an earth connection for protection, requiring connectors with a dedicated earth pin. Class II appliances feature double or reinforced insulation, eliminating the need for an earth connection and allowing for simpler connector designs. The standard ensures that the physical dimensions and pin configurations of the connectors align with these class requirements, providing clear mechanical and electrical distinctions. Polarization is also addressed, ensuring that the live and neutral connections are maintained correctly to enhance safety and reduce the risk of electric shock during operation.

How do North American ratings differ from IEC standards?

The IEC 60320 standard defines global maximum ratings for appliance couplers, specifying that connectors are intended for devices operating at voltages up to 250 volts (AC) and currents up to 16 amperes. However, regional certification bodies, particularly Underwriters Laboratories (UL) and the Canadian Standards Association (CSA) in North America, often apply more conservative current ratings for specific connector types to account for thermal performance and mating cycles. These divergences create critical compatibility considerations for high-power electronic devices, such as computer power supplies, which may be designed to the IEC maximum but used in environments governed by UL/CSA limits.

Current Rating Discrepancies

For the smaller C5 and C6 couplers, commonly known as "DIN" or "Euro" connectors, the IEC standard permits a current rating of up to 16 amperes. In contrast, UL and CSA certifications typically rate these connectors for only 13 amperes. This reduction is often due to the thinner gauge of the wires commonly used in North American power cords and the thermal characteristics of the plastic housing under continuous load. Consequently, a C5/C6 connector rated at 16 A under IEC standards may be considered overloaded if used at that capacity in a strict UL-certified installation, potentially leading to increased heat generation at the contact points.

Implications for High-Power Devices

The most significant discrepancy occurs with the ubiquitous C13 and C14 connectors, widely used for computer monitors, desktop towers, and external hard drives. The IEC 60320 standard allows these connectors to handle up to 16 amperes. However, UL and CSA standards typically rate the C13 inlet and C14 outlet for only 15 amperes. This 1-ampere difference becomes critical for high-power devices, such as gaming PCs or workstations with power supplies exceeding 330 watts (at 110 V AC). While the IEC standard technically supports higher current draw, North American safety standards impose a lower threshold. Engineers and users must ensure that the power supply unit (PSU) and the cable assembly are both rated for the specific regional standard to avoid derating the connector or risking thermal fatigue. Unlike IEC 60309 connectors, IEC 60320 couplers are not keyed or color-coded to indicate voltage or current capacity, placing the responsibility on the user to verify compatibility between the appliance's rating and the local mains supply or regional certification limits.

Applications in Electronics and IT Infrastructure

IEC 60320 couplers serve as the fundamental interconnection standard for a vast array of electronic equipment, information technology (IT) infrastructure, and medical devices. In office environments, these connectors are ubiquitous, linking computers, monitors, printers, and lighting systems to local mains supplies. The standard’s specification of non-locking appliance couplers for voltages up to 250 volts (AC) and currents up to 16 amperes makes it suitable for the diverse power requirements found in modern workspaces (per IEC 60320 standard definition). Unlike IEC 60309 connectors, which utilize keying and color-coding to indicate voltage, IEC 60320 relies on the user to ensure voltage compatibility, a design choice that prioritizes compactness and cost-effectiveness for general-purpose applications.

IT Infrastructure and Data Centers

In data centers and server farms, IEC 60320 connectors play a critical role in power distribution units (PDUs) and server backplanes. This variety allows engineers to select the optimal connector for specific server densities and thermal profiles. For instance, higher current ratings may require larger connector footprints to manage heat dissipation, while specific earthing requirements ensure signal integrity in sensitive IT equipment. The standard’s widespread adoption ensures interoperability between servers, PDUs, and power supply cords from different manufacturers, reducing supply chain complexity.

Medical Devices and Office Equipment

Medical devices also rely heavily on IEC 60320 couplers for power connection, particularly in non-critical care equipment and diagnostic tools. The standard’s emphasis on temperature tolerances and earthing requirements helps ensure patient and operator safety in clinical settings. In office equipment, the standard’s flexibility allows for the integration of power connections into compact form factors, such as laptop power bricks and desktop computer power supply units. The responsibility for ensuring voltage compatibility lies with the user, which necessitates careful selection of power supply cords and adapters, especially in regions with varying mains voltages.

Minimizing Manufacturing Variations

The IEC 60320 standard plays a crucial role in minimizing manufacturing variations across the global electronics industry. By defining precise dimensions, electrical ratings, and mechanical properties for appliance inlets, outlets, and connectors, the standard ensures that components from different manufacturers are interchangeable. This interoperability reduces the need for custom connectors, lowering production costs and simplifying inventory management. The standard’s first edition, published in 1970 under the designation IEC 320, established a foundation for global consistency, which was further refined with the renumbering to IEC 60320 in 1994 as part of the IEC's revision and reorganization of its numbering system (per IEC historical records). This long-standing standardization supports the seamless integration of electronic devices into global power infrastructures.
