Overview

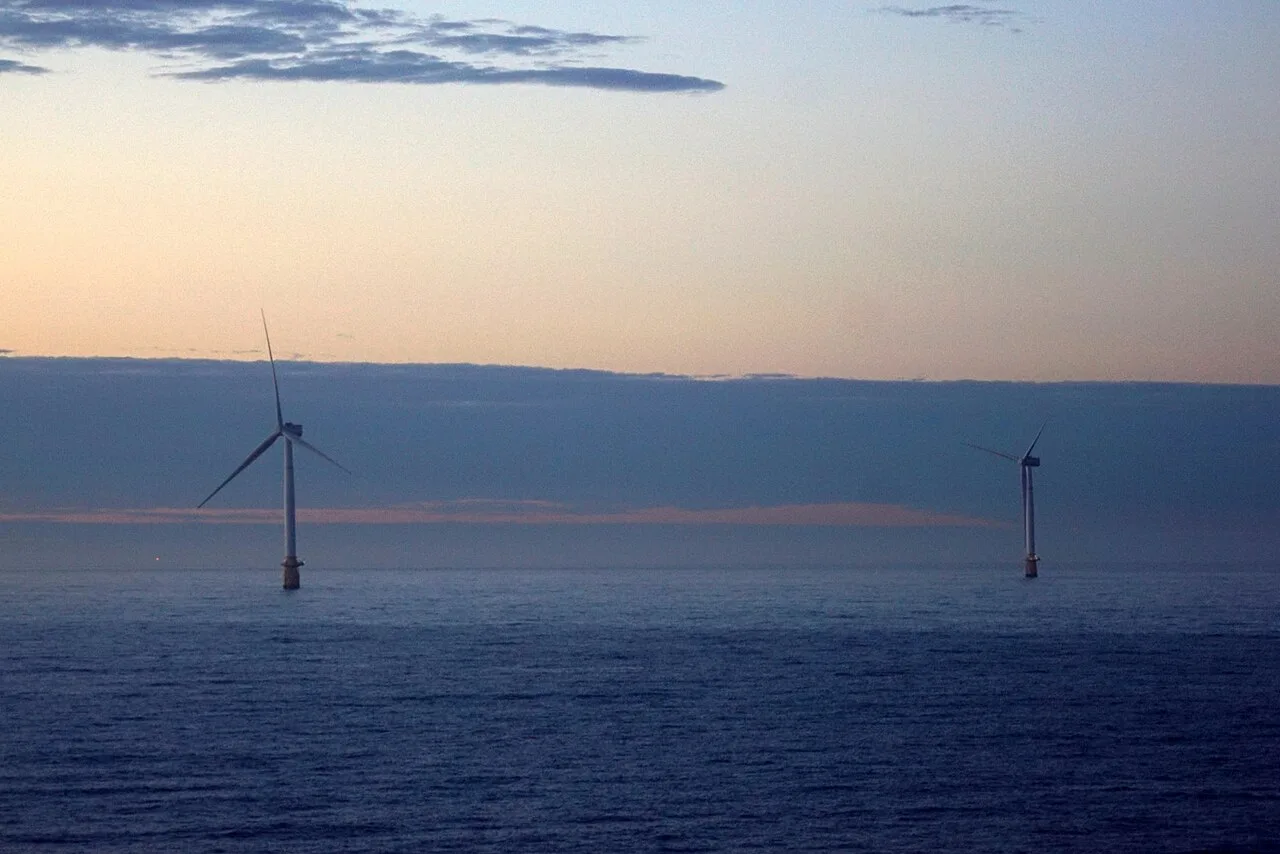

Hywind Scotland represents a significant milestone in the development of offshore renewable energy infrastructure, recognized globally as the world's first commercial wind farm utilizing floating wind turbine technology. Located 29 kilometres (18 mi) off the coast of Peterhead, Scotland, the facility demonstrates the viability of floating foundations in deeper waters where traditional fixed-bottom structures are less economical. The project is situated in the North Sea, leveraging the region's strong wind resources to generate electricity for the Scottish grid.
The wind farm has a total installed capacity of 30 MW, achieved through the deployment of five individual wind turbines. Each turbine has a rated capacity of 6 MW and is manufactured by Siemens, utilizing direct-drive generator technology. The turbines are mounted on Hywind floating monopiles, a specific type of floating foundation designed to stabilize the units in marine environments. This configuration allows the farm to operate effectively in water depths that challenge conventional offshore wind engineering.
Operational responsibility for Hywind Scotland lies with Hywind (Scotland) Limited. This operating entity is structured as a joint venture between two major energy companies: Equinor and Masdar. Equinor holds a 75% ownership stake in the venture, while Masdar retains the remaining 25% share. The facility became operational in 2017, marking the transition of floating wind technology from pilot projects to commercial-scale production. The project serves as a key reference point for subsequent floating wind developments globally, illustrating the technical and commercial integration of floating platforms with direct-drive turbine systems.
Why it matters
Hywind Scotland represents a critical inflection point in offshore wind technology, marking the transition from experimental prototypes to commercial-scale floating wind energy production. As the world’s first commercial floating wind farm, it demonstrated the viability of floating foundations in deeper waters where fixed-bottom turbines become economically challenging. The project is situated 29 kilometres (18 mi) off Peterhead, Scotland, leveraging the region’s strong wind resources and deep-water conditions.
The farm consists of five 6 MW Siemens direct-drive turbines mounted on Hywind floating monopiles, resulting in a total capacity of 30 MW. It is operated by Hywind (Scotland) Limited, a joint venture between Equinor (75%) and Masdar (25%), and has been operational since 2017. This deployment validated the technology for subsequent larger projects, proving that floating platforms could withstand harsh North Sea conditions while delivering consistent power output.
Evolution of the Hywind Technology
Hywind Scotland serves as the middle chapter in the Hywind technological lineage, bridging the gap between the initial proof-of-concept and large-scale industrial deployment. The earlier Hywind One prototype, commissioned in 2009, was a single-turbine demonstration project that proved the fundamental stability of the floating monopile design. Hywind Scotland scaled this concept to a five-turbine array, introducing grid connectivity and operational complexity. The technology continued to evolve with projects like Hywind Tampen, commissioned in 2023, which significantly increased turbine size and total farm capacity to support offshore oil and gas platforms.
| Project | Year | Capacity | Status | Notes |
|---|---|---|---|---|
| Hywind One | 2009 | 2.3 MW | Operational | First floating wind turbine prototype |
| Hywind Scotland | 2017 | 30 MW | Operational | First commercial floating wind farm |
| Hywind Tampen | 2023 | 88 MW | Operational | Larger turbines, supports oil platforms |
This progression illustrates the rapid maturation of floating wind technology. The move from a single 2.3 MW turbine in 2009 to a 30 MW farm in 2017, and subsequently to an 88 MW project in 2023, highlights increasing confidence in the technology’s reliability and economic potential. Hywind Scotland’s role was pivotal in de-risking the technology for investors and engineers, providing real-world data on maintenance, grid integration, and turbine performance in deep-water environments.
How does floating wind technology work?
Hywind Scotland utilizes a specialized floating foundation system known as the floating monopile, designed to anchor turbines in water depths where fixed-bottom foundations become economically unviable. Unlike traditional fixed foundations that are bolted directly to the seabed, the Hywind system relies on buoyancy and mooring to maintain position and stability. The foundation consists of a large cylindrical steel column that houses the turbine tower and extends significantly below the waterline to provide stability.
Floating Monopile Design and Anchoring
The core of the Hywind technology is the floating monopile foundation. Each foundation is a large steel cylinder with a height of 16 m and a diameter of 5 m. These structures are engineered to be semi-submerged, with approximately one-third of the column above water and two-thirds below. This configuration lowers the center of gravity, enhancing stability against wind and wave forces. The foundations are secured to the seabed using three large suction anchors. Each of these anchors weighs 300 tonnes and functions by pumping water out of the cylinder, creating a vacuum that pulls the anchor into the seabed sediment. This suction caisson method allows for relatively quick installation and removal compared to traditional driven piles or gravity bases.
Technical Specifications
The wind farm comprises five turbines, each with a capacity of 6 MW, resulting in a total installed capacity of 30 MW. The turbines are Siemens direct-drive models, chosen for their efficiency and reliability in offshore environments. The floating monopile design allows the farm to be situated 29 kilometres off the coast of Peterhead, Scotland, in water depths that challenge conventional fixed foundations.
| Component | Specification |
|---|---|
| Turbine Model | Siemens Direct-Drive |
| Turbine Capacity | 6 MW |
| Total Farm Capacity | 30 MW |
| Foundation Type | Floating Monopile |
| Foundation Height | 16 m |
| Foundation Diameter | 5 m |
| Anchor Weight | 300 tonnes each |
| Number of Anchors | 3 per foundation |
This floating approach differs significantly from fixed foundations, which require extensive seabed preparation and are limited to shallower waters. The Hywind system’s reliance on suction anchors and buoyancy allows for deployment in deeper waters, expanding the potential areas for wind energy generation along the Scottish coast and beyond.
Development and construction history
The conceptual foundation for Hywind Scotland was established with the deployment of the Hywind prototype off the coast of Stavanger, Norway, in 2009 (Equinor). This initial project served as a critical proof-of-concept for floating wind technology, demonstrating the viability of the floating monopile design in open-water conditions prior to the larger Scottish venture. The success of the Stavanger pilot paved the way for the commercial scale-up that would eventually define the industry’s approach to deep-water wind energy.
Permitting and Site Selection
Following the prototype phase, the project moved toward formalization in Scotland. In 2015, the Hywind Scotland project received official permission to proceed, securing the necessary regulatory approvals to develop the site located 29 kilometres (18 mi) off Peterhead, Scotland. This location was selected to leverage the strong wind resources of the North Sea while testing the floating foundation technology in waters deeper than those accessible to traditional fixed-bottom turbines.
Manufacturing and Assembly
The construction phase involved a coordinated international supply chain. The farm consists of five 6 MW Siemens direct-drive turbines, which were manufactured in Spain, Norway, and Scotland. The unique Hywind floating monopiles were also produced across these locations to optimize logistics and local industrial capacity. The assembly and installation process was executed using the Saipem 7000 crane, one of the largest semi-submersible cranes in the world, which was essential for lifting the heavy floating foundations and turbine assemblies into position in the open sea.
Commissioning
The Hywind Scotland wind farm was officially commissioned in October 2017. Upon commissioning, it became recognized as the world's first commercial wind farm using floating wind turbines. The facility is operated by Hywind (Scotland) Limited, a joint venture between Equinor (75%) and Masdar (25%), with a total installed capacity of 30 MW. The successful commissioning marked a significant milestone in the transition from prototype to commercial-scale floating wind energy production.
What are the economic challenges of floating wind?
The deployment of floating offshore wind technology introduces distinct economic hurdles compared to established fixed-bottom foundations, primarily driven by higher capital expenditures and levelized costs. Hywind Scotland represents a critical case study in these financial dynamics, having required a total capital investment of £264 million to bring its 30 MW capacity online. This translates to a capital cost of £8.8 million per megawatt, a figure that underscores the initial premium associated with floating infrastructure. When analyzing the levelized cost of energy (LCoE), the disparity becomes even more pronounced. The LCoE for Hywind Scotland stands at approximately £180 per megawatt-hour (MWh). In contrast, conventional fixed offshore wind projects in the region have achieved significantly lower costs, with benchmarks reaching as low as £55 per MWh. This substantial gap highlights the current economic challenge: while floating wind unlocks deeper water resources, it currently demands a higher price per unit of energy generated than its shallower-water counterparts.
Subsidy Structures and Cost Evolution
To bridge the gap between the higher LCoE of floating wind and market prices, robust subsidy mechanisms are often essential during the early commercial phases. For Hywind Scotland, the financial model relied heavily on the Renewable Obligation Certificates (ROCs). The project received a subsidy of £165.27 per MWh through this mechanism, which was critical in making the project financially viable against grid parity targets. This subsidy structure helped offset the higher operational and capital costs inherent to the floating technology, providing revenue stability for the joint venture operators, Equinor and Masdar. Without such targeted financial instruments, the higher initial costs could have delayed the commercialization of the technology in the North Sea basin.
Despite the high initial costs, the economic trajectory of floating wind shows signs of improvement through technological scaling and design optimization. The cost structure of Hywind Scotland reflects a significant reduction from earlier developmental stages. The original prototype phases of the Hywind technology carried a capital cost of approximately $31 per watt. The reduction to the £8.8 million per MW (roughly £8.8 per watt) seen in the Scotland project demonstrates the potential for cost curve flattening. This decline in capital intensity suggests that as the supply chain matures and turbine sizes increase, the economic gap between floating and fixed offshore wind may narrow. However, achieving parity with the £55/MWh benchmark of fixed foundations remains a key economic objective for the broader floating wind sector.
Operational performance and maintenance
Hywind Scotland has demonstrated significant operational resilience and performance metrics since its commissioning in 2017. The floating wind farm achieved a capacity factor of 54% over a five-year period, establishing a strong baseline for commercial floating offshore wind technology (per Hywind (Scotland) Limited operational data). This performance is attributed to the strategic location 29 kilometres (18 mi) off Peterhead, Scotland, where wind resources are robust and consistent.
Extreme Weather Resilience
The structural integrity of the Hywind floating monopiles was rigorously tested during two major meteorological events: Hurricane Ophelia and Storm Caroline. During these storms, the turbines withstood wind speeds reaching 160 km/h and wave heights of up to 8.2 m (per Hywind (Scotland) Limited storm reports). The ability of the five 6 MW Siemens direct-drive turbines to survive such extreme conditions without significant downtime or structural failure has been cited as a key validation of the floating foundation design.
Maintenance and Technical Upkeep
Maintenance operations for floating offshore wind farms present unique logistical challenges compared to fixed-bottom installations. In 2024, Hywind (Scotland) Limited conducted a significant maintenance event involving the replacement of a main bearing on one of the turbine units (per Hywind (Scotland) Limited maintenance logs). This operation highlighted the importance of accessible maintenance strategies for floating platforms, where sea state and vessel availability play critical roles in scheduling and execution efficiency. The successful completion of the 2024 bearing replacement underscores the operational maturity of the site and the effectiveness of its maintenance protocols.
Future of floating wind energy
Hywind Scotland serves as a foundational case study for the global transition toward deep-water offshore wind energy. As the world's first commercial floating wind farm, its successful operation demonstrates the viability of floating foundations in waters where traditional fixed-bottom turbines are less economically or geologically feasible. The project's location, situated 29 kilometres off Peterhead, Scotland, allowed developers to access stronger and more consistent wind resources while minimizing visual impact on the coastline. This pioneering effort has provided critical operational data that continues to influence engineering standards and financial models for subsequent floating wind developments worldwide.
Technological maturation and cost reduction
The industry has seen significant progress since Hywind Scotland's commissioning, most notably with the operational launch of the 88 MW Hywind Tampen project in 2023. This subsequent development highlights the rapid maturation of floating wind technology, characterized by increased turbine scales and optimized foundation designs. Hywind Tampen's larger capacity and improved efficiency have contributed to a lower cost per megawatt compared to earlier projects, signaling a strong trajectory toward grid parity for floating offshore wind. The reduction in levelized cost of energy is driven by economies of scale, standardized manufacturing processes, and enhanced supply chain logistics.
The transition from the 30 MW Hywind Scotland to the larger Hywind Tampen illustrates how initial pilot projects de-risk the technology for broader investment. These advancements are essential for unlocking vast offshore wind resources in deeper waters across Europe, Asia, and the Americas. As floating wind technology continues to evolve, it offers a critical pathway for expanding renewable energy capacity beyond the continental shelf, supporting global decarbonization goals with increasingly competitive pricing structures.
