Name: Highbank Power Station
Address: NZ

Overview

The Highbank Power Station is a small run-of-the-river hydroelectric facility located in the Ashburton District of New Zealand's South Island. Owned and operated by Manawa Energy, the station serves as a key component of the regional water management infrastructure, specifically the Rangitata Diversion Race (RDR) irrigation scheme. The plant operates on a flexible schedule, generating electricity primarily when agricultural water demand along the race is relatively low. This operational strategy allows for efficient dual-use of the water resource, balancing energy production with agricultural needs.

Operational Mechanics and Water Management

The station draws its water supply directly from the Rangitata Diversion Race. When the turbine units are active, water is discharged into the Rakaia River. This discharge pattern is integral to the local hydrological cycle and irrigation logistics. The facility was officially opened on 16 June 1945 by the Minister of Works, Bob Semple, who inaugurated the plant by setting the 36,000bhp machinery in motion. The installed capacity of the station is 26.5 MW, providing a steady, albeit modest, contribution to the regional power grid.

In 2010, additional equipment was installed at the Highbank site to enhance its operational versatility. This upgrade introduced the capability to pump water from the Rakaia River back up the penstock. This reverse-flow mechanism increases the water availability within the RDR system during peak summer months, a critical period for agricultural irrigation. By functioning as both a generator and a pumping station, the facility plays a strategic role in managing water levels and ensuring reliable supply for downstream farms. The integration of pumping capabilities demonstrates the adaptive nature of the infrastructure, allowing Manawa Energy to optimize water usage based on seasonal demand fluctuations.

History and Construction

The Highbank Power Station is a small run-of-the-river-hydroelectric power station in the Ashburton District of the South Island of New Zealand. Owned and operated by Manawa Energy, the station generates power from the Rangitata Diversion Race (RDR) irrigation scheme when agricultural water demand is low. Water is discharged into the Rakaia River when the station is generating. On 16 June 1945 the Minister of Works, Bob Semple, opened the power station, and "set the 36,000bhp in motion". Additional equipment installed at the site in 2010 enables pumping of water from the Rakaia River back up the penstock to increase the water availability in the RDR for agricultural irrigation during the peak summer months.

Engineering Design and Infrastructure

The Highbank Power Station utilizes a run-of-the-river hydroelectric design, leveraging the Rangitata Diversion Race (RDR) irrigation scheme as its primary water source. The facility operates by capturing water from the RDR when agricultural demand is low, discharging the flow into the Rakaia River during generation cycles. This operational model allows the station to supplement energy production while maintaining water levels for local agriculture.

Powerhouse Specifications

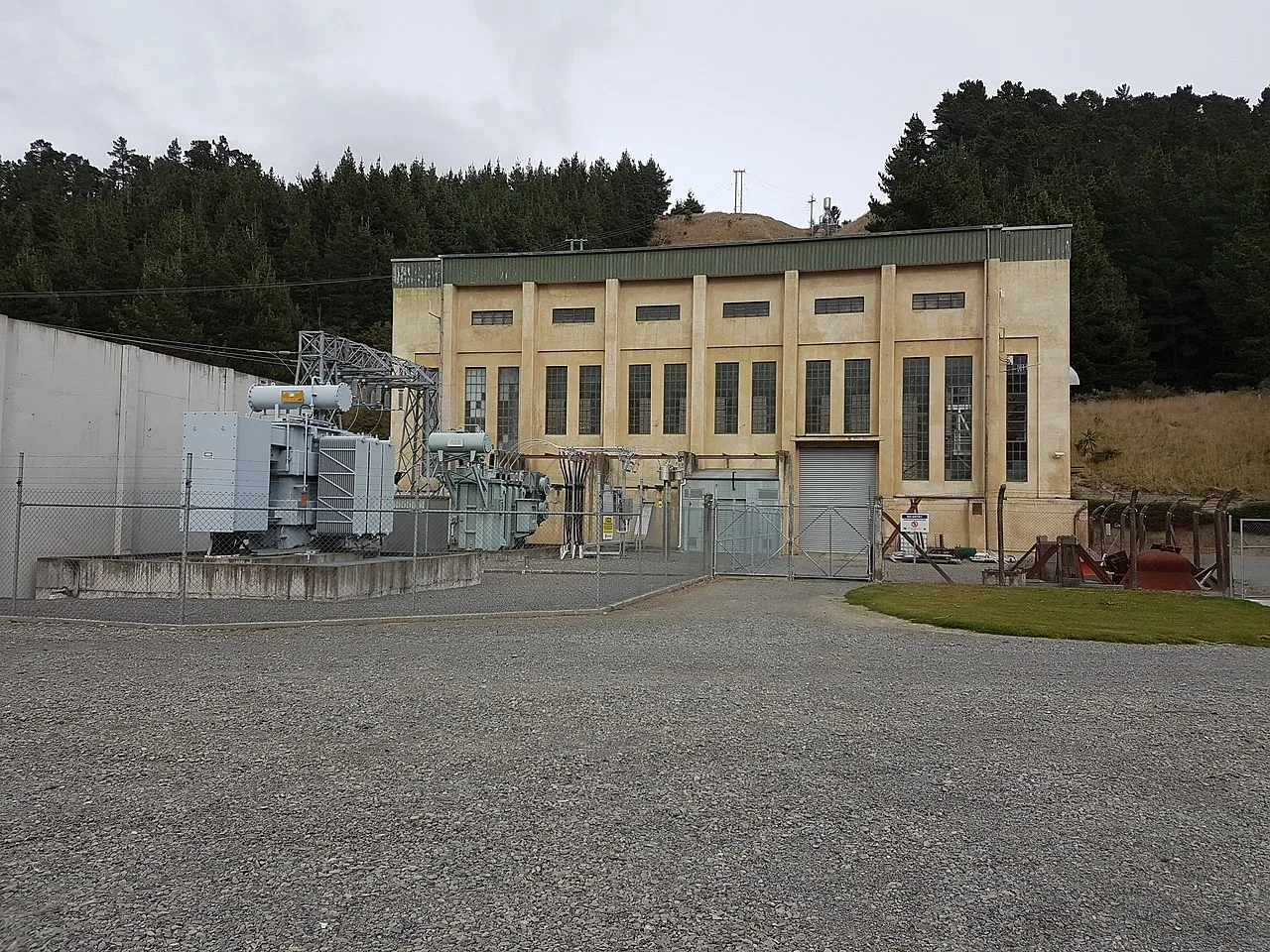

The powerhouse structure measures 37 m in length and 16 m in width, housing the core generation equipment. The station was originally commissioned with an English Electric turbine and generator set. The total installed capacity is 26.5 MW, which corresponds to the 36,000 bhp rating cited during the station’s opening by Minister of Works Bob Semple in 1945.

Parameter	Value
Entity Type	Run-of-the-river hydroelectric power station
Operator	Manawa Energy
Capacity	26.5 MW
Original Horsepower	36,000 bhp
Powerhouse Length	37 m
Powerhouse Width	16 m
Water Source	Rangitata Diversion Race (RDR)
Discharge River	Rakaia River
Commissioned	1945

Hydraulic Infrastructure and Pumping

In 2010, additional equipment was installed to enhance the station’s hydraulic flexibility. This upgrade enables the pumping of water from the Rakaia River back up the penstock, thereby increasing water availability in the RDR for agricultural irrigation during peak summer months. This bidirectional flow capability optimizes the use of the Rakaia River as both a discharge point and a source for replenishing the diversion race.

The fundamental hydroelectric power generation at Highbank follows the standard power equation, where power output P is determined by water flow rate Q, gravitational acceleration g, head height H, and overall efficiency η:

P=η⋅ρ⋅g⋅Q⋅H

Where ρ represents the density of water. This configuration allows Manawa Energy to manage water resources efficiently, balancing energy generation with agricultural needs in the Ashburton District of the South Island.

How does the pumped-storage upgrade work?

The 2010 infrastructure upgrade transformed the Highbank Power Station from a simple run-of-the-river facility into a hybrid system with limited pumped-storage capabilities. This enhancement allows the station to actively manage water resources for the Rangitata Diversion Race (RDR) irrigation scheme. The system addresses the seasonal variance in agricultural water demand, particularly during peak summer months when irrigation needs are highest. By pumping water back into the system, the station increases the available water volume in the RDR, ensuring reliable supply for downstream farms.

Mechanical Configuration and Pumping Capacity

The upgrade installed six dedicated pumps at the site. Each unit has a capacity of 1.5 MW. These pumps draw water directly from the Rakaia River. The water is then forced back up the existing penstock infrastructure. This process effectively reverses the flow direction used during standard hydroelectric generation. The mechanical lift required for this operation is significant. The water must be raised 104 m from the river level to the headrace. This vertical distance represents the primary energy cost of the pumping cycle. The six pumps work in tandem to move sufficient volume to impact the RDR's storage levels.

Pressure Management and Air Chambers

Managing hydraulic pressure is critical in this short-penstock configuration. The system utilizes air chambers to stabilize pressure fluctuations during the pumping phase. These chambers absorb the water hammer effects generated by the sudden start and stop of the 1.5 MW pumps. Without this pressure management, the hydraulic shock could damage the penstock walls and the turbine-pump units. The air chambers ensure a smoother transition between the pumping and generating modes. This design allows the station to operate efficiently despite the relatively short length of the water conveyance system.

Operational Synergy

The pumped-storage function is not primarily for electricity arbitrage but for water resource management. The station generates power when agricultural water demand is low. This typically occurs during winter or early spring. During these periods, excess water in the RDR is released through the turbines to generate electricity. The water is then discharged into the Rakaia River. Later, during peak summer, the pumps activate to retrieve water from the Rakaia River. This water is returned to the RDR for irrigation. This cycle maximizes the utility of the water resource. It provides both energy generation and irrigation reliability. The system is owned and operated by Manawa Energy. The integration of pumping and generation creates a flexible asset for the South Island's energy and agricultural sectors.

What are the grid synchronization challenges?

The Highbank Power Station presents unique grid synchronization challenges due to its operational dependency on the Rangitata Diversion Race (RDR) irrigation scheme. Unlike conventional baseload hydro plants, Highbank’s generation is intermittent, activating primarily when agricultural water demand is low. This variability means the station frequently connects and disconnects from the 66 kV network, introducing out-of-phase synchronization risks. If the phase angle difference between the generator and the grid exceeds acceptable limits at the moment of closure, significant mechanical stress and electrical transients can occur, potentially affecting local voltage stability.

Operational Precautions by EA Networks

To mitigate these risks, EA Networks, the primary distribution network operator for the South Island’s east coast, has implemented strict operational precautions. Given that Highbank discharges water into the Rakaia River during generation, the timing of startup is critical. Operators must coordinate closely with irrigation schedules to ensure that the water head and flow rate are sufficient to bring the turbine up to speed smoothly. EA Networks monitors the 66 kV line parameters in real-time, ensuring that the voltage magnitude and frequency at the point of common coupling are within tight tolerances before the circuit breakers close. This coordination prevents sudden power surges that could disrupt other consumers on the Ashburton District grid.

Technological Enhancements: 2025 Phasor Measurement Units

In 2025, significant technological upgrades were installed at the Highbank site to enhance synchronization precision. The installation of advanced phasor measurement units (PMUs) allows for high-resolution monitoring of the electrical signal’s magnitude and phase angle. These devices provide synchrophasor data, enabling operators to visualize the exact state of the grid relative to the generator. The synchronization condition can be expressed as minimizing the phase difference Δθ and voltage difference ΔV at the moment of connection:

Δθ=θgen−θgrid≈0 ΔV=Vgen−Vgrid≈0

The PMUs transmit this data at high frequency, allowing for near-instantaneous adjustments to the generator’s excitation and governor settings. This technology is particularly valuable for Highbank because it operates in a run-of-the-river configuration, where water availability can fluctuate rapidly. The additional equipment installed in 2010, which enables pumping water from the Rakaia River back up the penstock, further complicates the hydraulic profile. The 2025 PMU installation ensures that these hydraulic adjustments do not lead to electrical instability, maintaining reliable power generation for the Manawa Energy portfolio.

Significance

Highbank Power Station holds a distinct place in the history of New Zealand’s energy infrastructure, primarily due to the scale of its initial generating capacity. Upon its commissioning on 16 June 1945, the facility was recognized as the largest single generating unit in the country. The opening ceremony was presided over by the Minister of Works, Bob Semple, who officially "set the 36,000bhp in motion". This substantial output for a run-of-the-river hydroelectric station underscored the strategic importance of the Rangitata Diversion Race (RDR) irrigation scheme in the Ashburton District of the South Island. The station’s design allowed it to generate power from the RDR when agricultural water demand was low, discharging water into the Rakaia River during generation periods. This operational model established a precedent for integrating large-scale hydroelectric generation with regional agricultural water management in New Zealand.

Innovations in Irrigation-Hydro Integration

The operational significance of Highbank evolved significantly with the installation of additional equipment in 2010. According to the, this 2010 enhancement was a New Zealand first for irrigation-hydro integration. The system allows for greater flexibility in managing water resources, balancing the needs of power generation and agricultural irrigation. By pumping water back into the system, the station can store potential energy in the form of water elevation, which can then be utilized for generation or released for irrigation as needed. This innovation highlights the adaptive nature of hydroelectric infrastructure in responding to the changing demands of regional water management.

The integration of the pump-back system at Highbank demonstrates how existing hydroelectric assets can be enhanced to serve multiple purposes. The ability to pump water from the Rakaia River back into the penstock allows for a more efficient use of the water resources in the Ashburton District. This system supports the agricultural sector by ensuring adequate water supply during critical summer months, while also maintaining the power generation capabilities of the station. The 2010 upgrade represents a significant milestone in the evolution of Highbank Power Station, transforming it from a primarily power-generating facility into a dual-purpose infrastructure asset that supports both energy production and agricultural irrigation. This dual functionality is increasingly important in regions where water resources are shared between multiple sectors, and Highbank serves as a model for such integrated management approaches.
