Overview
A heavy-water reactor (HWR) is a distinct class of nuclear fission reactor defined by its utilization of heavy water (chemically denoted as D2O or deuterium oxide) as the primary neutron moderator. This specific choice of moderating material fundamentally differentiates HWRs from light-water reactors (LWRs), which rely on ordinary water (H2O). The defining characteristic of heavy water is its significantly lower neutron absorption cross-section compared to light water. In nuclear physics terms, this means that deuterium nuclei are less likely to capture free neutrons without causing fission, thereby preserving the neutron economy within the reactor core. This physical property is the critical enabler for the operational flexibility of heavy-water reactor designs.
Moderation and Cooling Mechanisms
The role of heavy water in these reactors can vary depending on the specific engineering configuration. In all HWRs, D2O serves as the neutron moderator, slowing down fast neutrons emitted during fission to thermal energies where they are more likely to induce further fission events. In many designs, heavy water also functions as the primary coolant, circulating through the core to extract thermal energy. This dual role is characteristic of pressurized heavy water reactors (PHWRs). In such systems, the coolant is kept under high pressure to prevent boiling at the operating temperatures, allowing for efficient heat transfer to a secondary loop or directly to a turbine. The separation of moderator and coolant functions is also possible in certain HWR designs, where the moderator may be contained in a large calandria vessel while the coolant flows through pressure tubes. This architectural flexibility allows engineers to optimize the reactor for specific thermal and neutronic performance metrics.
Fuel Cycle Advantages
The most significant operational advantage conferred by the low neutron absorption of heavy water is the ability to utilize natural uranium as fuel. Natural uranium consists primarily of the isotope Uranium-235 (approximately 0.7% by weight) and Uranium-238, without the need for extensive enrichment processes required by light-water reactors. Because heavy water "wastes" fewer neutrons through parasitic absorption, the neutron flux in the core remains sufficient to sustain a critical chain reaction using unenriched fuel. This capability simplifies the nuclear fuel cycle, reducing dependence on centrifuge enrichment plants and allowing for greater flexibility in fuel sourcing and management. The operational status of these reactors remains active globally, demonstrating the enduring viability of the heavy-water technology for baseload power generation and isotope production.
How do heavy-water reactors work?
Heavy-water reactors (HWRs) utilize heavy water, chemically known as deuterium oxide (D2O), as the primary neutron moderator. In some configurations, such as pressurized heavy water reactors, D2O also serves as the coolant. The fundamental operational advantage of this design stems from the nuclear properties of deuterium, the isotope of hydrogen containing one proton and one neutron. Compared to light water (H2O), which contains the more common hydrogen-1 isotope, heavy water exhibits a significantly lower neutron absorption cross-section. This physical characteristic allows neutrons to pass through the moderator with a higher probability of surviving without being captured, thereby sustaining the nuclear chain reaction more efficiently.
Neutron Moderation and Fuel Flexibility
The low absorption cross-section of deuterium enables HWRs to operate using natural uranium fuel, which consists predominantly of uranium-235 and uranium-238 without the need for significant enrichment. In light water reactors, the higher neutron absorption by oxygen and hydrogen-1 often necessitates enriched uranium to maintain criticality. In contrast, the efficient moderation provided by D2O allows for a more effective utilization of the natural uranium fuel cycle. This capability reduces the dependence on uranium enrichment plants, offering a strategic advantage in fuel supply chain management.
The neutron economy in a heavy-water reactor is optimized by the ratio of neutrons absorbed by the moderator relative to those absorbed by the fuel. The mathematical representation of this efficiency involves the scattering cross-section (σs) and the absorption cross-section (σa) of deuterium. The lower σa value ensures that a larger fraction of neutrons remains available to induce fission in the uranium-235 nuclei. This operational characteristic defines the core physics of HWRs, distinguishing them from other reactor types that rely on different moderator materials or fuel enrichment levels. The use of natural uranium fuel is a direct consequence of this optimized neutron moderation process.
History
The development of heavy-water reactors (HWRs) is intrinsically linked to the discovery of nuclear fission in 1938, which highlighted the need for efficient neutron moderators. Early experiments at Cambridge University in 1940 demonstrated the effectiveness of deuterium oxide (D2O) as a moderator, a finding that spurred global interest in heavy water technology.
World War II and the Manhattan Project
During World War II, securing heavy water became a strategic priority. The Vemork plant in Norway emerged as a critical supply source, while Nazi Germany pursued the B-VIII reactor design. Concurrently, the Manhattan Project advanced heavy-water technology with the CP-3 reactor in Chicago, which achieved criticality in 1944. These efforts established the foundational engineering principles for pressurized heavy water reactors, where D2O serves as both moderator and coolant.
Post-War Development and ZEEP
Following the war, national nuclear programs expanded rapidly. In 1945, Canada commissioned the ZEEP reactor, marking a significant milestone in heavy-water reactor technology. ZEEP's success demonstrated the viability of natural uranium fuel in HWRs, leveraging the low neutron absorption cross-section of deuterium. This characteristic allows HWRs to operate efficiently without enriched uranium, providing flexibility in fuel cycles.
Subsequent National Programs
In the decades following ZEEP, various countries developed distinct heavy-water reactor designs. These programs capitalized on the ability to use natural uranium, reducing dependency on enrichment facilities. The operational status of many HWRs remains active, reflecting the enduring relevance of heavy water as a moderator in nuclear energy infrastructure. The technology continues to support diverse national energy strategies, maintaining a significant presence in the global nuclear landscape.
What are the main types of heavy-water reactors?
Heavy-water reactors are primarily categorized by their core structural design: pressure-shell and pressure-tube configurations. These designs dictate how the heavy water moderator and coolant are contained and managed, influencing the reactor's flexibility and thermal efficiency.
Pressure-Shell Design
In the pressure-shell design, the entire core is enclosed within a single large cylindrical vessel, known as the calandria or pressure vessel. This vessel contains both the moderator and the coolant. This configuration is mechanically simpler but often requires the reactor to be shut down to replace individual fuel elements, as the entire core is under high pressure. The heavy water serves as the neutron moderator, leveraging its low neutron absorption cross-section to allow the use of natural uranium fuel.
Pressure-Tube Design

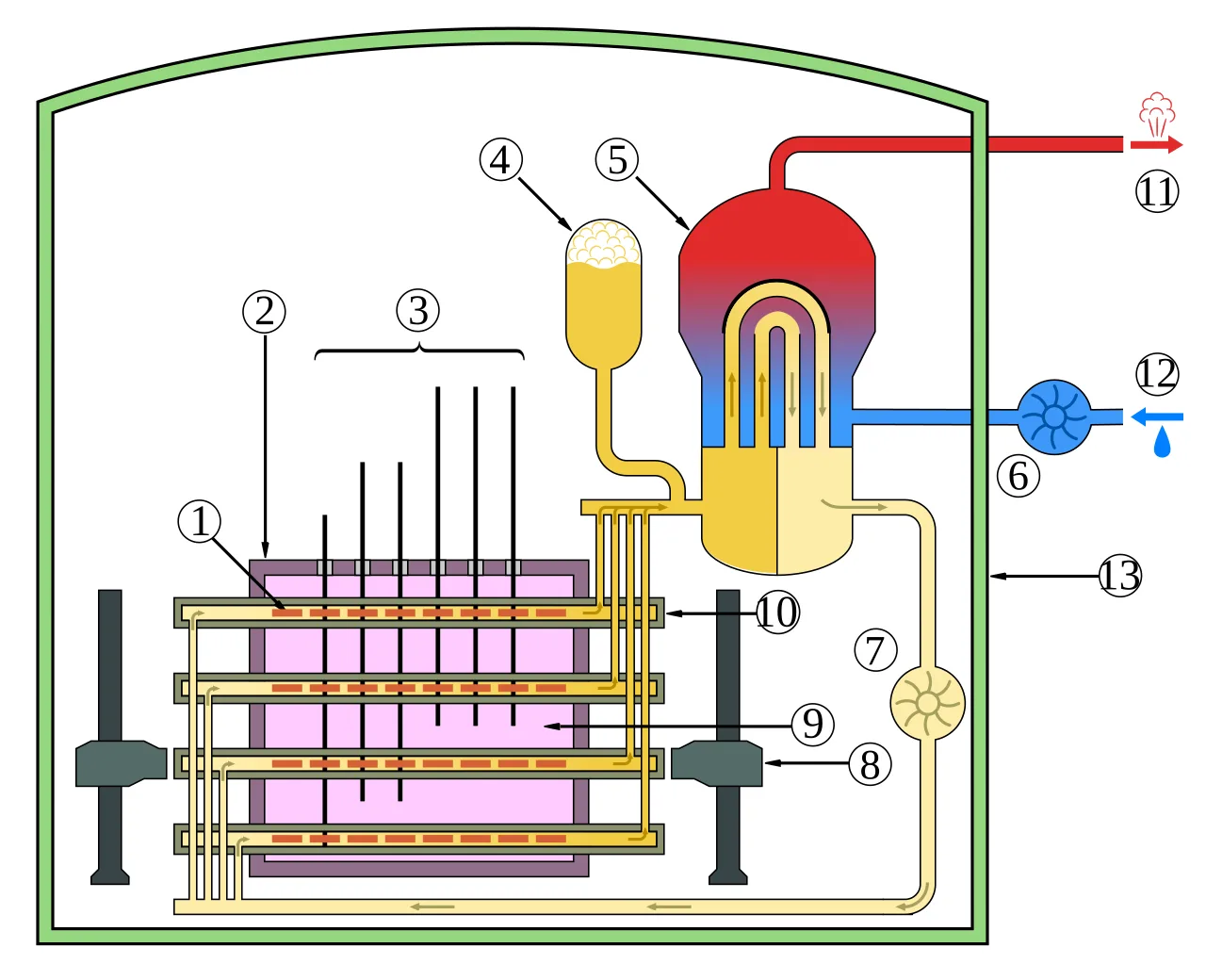

The pressure-tube design, exemplified by the CANDU (Canada Deuterium Uranium) reactor, features a large, low-pressure cylindrical tank called the calandria, which holds the liquid heavy water moderator. Individual fuel channels, or pressure tubes, run horizontally or vertically through the calandria. Each tube contains the fuel and the primary coolant. This design allows for on-power refueling, as individual pressure tubes can be isolated and replaced while the reactor remains operational. The separation of the moderator and coolant systems provides greater thermal and mechanical flexibility.
Coolant Variations
Heavy-water reactors can utilize different coolant media, which affect the thermal cycle and steam generation process.
| Coolant Type | Description |
|---|---|
| Pressurized Heavy Water | The heavy water coolant is kept under high pressure to prevent boiling, similar to a Pressurized Water Reactor (PWR). It transfers heat to a secondary light-water loop via a steam generator. |
| Boiling Heavy Water | The heavy water coolant boils directly in the core to produce steam, which drives the turbine. This simplifies the primary loop but requires the turbine to be shielded from neutron activation. |
| Boiling Light Water | Light water is used as the coolant within the pressure tubes, while heavy water remains the moderator. The light water boils directly in the core, offering a hybrid approach that reduces the total volume of expensive heavy water needed. |
| Organic Medium | Some experimental designs use an organic fluid (such as terphenyl) as the coolant. This allows for lower operating pressures and temperatures compared to water-cooled systems. |
The choice between these designs and coolants depends on factors such as fuel cost, desired thermal efficiency, and the availability of deuterium oxide. The pressure-tube design with pressurized heavy water coolant is the most widely deployed configuration for commercial power generation.
Applications
Heavy-water reactors serve distinct roles across commercial power generation, scientific research, and strategic isotope production, leveraging the unique neutron economy of deuterium oxide. The versatility of the HWR design allows for significant operational flexibility compared to light-water counterparts.
Commercial Power Generation
The most prominent application of heavy-water reactor technology is in commercial nuclear power, exemplified by the CANDU (Canada Deuterium Uranium) design. These pressurized heavy water reactors utilize heavy water as both the moderator and the coolant. This configuration enables the use of natural uranium fuel, reducing enrichment costs and allowing for online refueling capabilities. The CANDU system represents a major class of operational heavy-water reactors globally, demonstrating the commercial viability of the technology for baseload power generation.
Research and Experimental Reactors
Heavy water’s low neutron absorption cross-section makes it an ideal moderator for research reactors, where maximizing neutron flux is critical for experiments and isotope production. Notable examples include the EL-1 reactor, the TVR (Trivolt Reactor), and the HWRR (Heavy Water Research Reactor). These facilities utilize D2O to achieve high thermal neutron fluxes, supporting a wide range of scientific investigations, materials testing, and neutron scattering experiments. The ability to operate with natural uranium or low-enriched uranium further enhances their operational flexibility for research purposes.
Plutonium and Tritium Production
Heavy-water reactors have been historically significant for the production of strategic nuclear isotopes, particularly plutonium and tritium. The Savannah River Site in the United States utilized heavy-water reactors for large-scale plutonium production for nuclear weapons and tritium for fusion stages. The efficient neutron moderation provided by heavy water allows for high conversion ratios, making these reactors effective for breeding plutonium-239 from uranium-238. Additionally, the capture of neutrons by deuterium nuclei produces tritium, a key isotope for both nuclear weapons and emerging fusion energy concepts. The nuclear reaction for tritium production in heavy water involves the neutron capture by deuterium: 2H(n,γ)3H. This capability underscores the strategic importance of heavy-water reactor technology in national security and energy research.
Why it matters
Heavy-water reactors (HWRs) hold a distinct strategic position in global nuclear energy infrastructure due to their unique thermodynamic and neutronic properties. The defining characteristic of this technology is the use of heavy water (D2O, deuterium oxide) as a neutron moderator, which exhibits a significantly lower neutron absorption cross-section compared to light water (H2O). This physical attribute enables HWRs to operate efficiently using natural uranium fuel, which contains approximately 99.3% uranium-238 and only about 0.7% uranium-235. This fuel flexibility reduces the dependency on expensive uranium enrichment facilities, allowing nations with abundant uranium reserves but limited industrial infrastructure to achieve nuclear self-sufficiency.
Strategic Fuel Flexibility
The ability to utilize natural uranium provides significant economic and geopolitical advantages. By minimizing the need for enrichment, countries can reduce their exposure to the uranium enrichment market, which has historically been dominated by a few key players. This independence is particularly valuable for emerging nuclear powers seeking to diversify their energy portfolios. Furthermore, the low neutron absorption of heavy water allows for greater fuel economy, enabling the reactor to extract more energy from the same mass of uranium compared to light-water reactors. This efficiency is crucial for optimizing the lifecycle costs of nuclear fuel, from mining to final disposal.
Historical Role in Nuclear Programs
Historically, heavy-water reactors played a pivotal role in the early development of nuclear energy and weapons programs. During the mid-20th century, the choice of moderator was a critical technological decision. Heavy water’s superior moderating properties made it an attractive option for early experimental and commercial reactors. The technology facilitated the rapid deployment of nuclear power in several countries, contributing to the diversification of the global nuclear landscape. Additionally, the flexibility in fuel types allowed for the integration of various fuel cycles, enhancing the adaptability of nuclear programs to changing economic and technological conditions. This historical significance underscores the enduring relevance of heavy-water reactors in the evolution of nuclear technology.
