Overview

The Harapaki Wind Farm is a significant renewable energy infrastructure project located in the Hawke's Bay region of New Zealand. Operated by Meridian Energy, the facility represents a major expansion in the country's wind power capacity. Construction activities commenced in June 2021, marking the start of the physical development phase for the site. The project reached completion in 2024, at which point the wind farm officially entered operational status. This timeline reflects a relatively rapid development cycle for a project of this scale, moving from groundbreaking to full commissioning within a three-year window.

As of 2024, the Harapaki Wind Farm holds the distinction of being the second-largest wind farm in New Zealand. This ranking underscores its importance within the national energy mix and highlights the growing role of wind power in the country's electricity generation strategy. The facility contributes significantly to the regional grid in Hawke's Bay, providing a steady source of variable renewable energy. Its operational status as of 2024 indicates that the turbines are actively generating power, feeding into the national transmission network to support both local and broader New Zealand demand.

Technical Specifications

The Harapaki Wind Farm is equipped with 41 individual wind turbines. Each turbine has a rated capacity of 4.3 MW. This configuration defines the total installed capacity of the facility, leveraging modern turbine technology to maximize energy capture in the Hawke's Bay wind regime. The selection of 4.3 MW units reflects a balance between individual turbine output and the spatial distribution required across the site. With 41 such units, the farm achieves a substantial aggregate generation potential, solidifying its position as a key asset in Meridian Energy's portfolio.

Property Value
Entity Type Wind Farm
Location Hawke's Bay, New Zealand
Operator Meridian Energy
Commissioned 2024
Construction Start June 2021
Operational Status Operational
Number of Turbines 41
Turbine Capacity 4.3 MW each
Ranking 2nd largest in New Zealand (as of 2024)

History

Development of the Harapaki Wind Farm originated from earlier resource consent applications for the Titiokura and Unison projects in 2006, establishing the initial framework for wind energy exploitation in the Hawke's Bay region of New Zealand. These early consents laid the groundwork for subsequent corporate interest and infrastructure planning that would define the site's long-term trajectory. In the period between 2010 and 2011, Meridian Energy acquired the project, positioning the operator to advance the development through various stages of feasibility, engineering, and stakeholder engagement. The acquisition marked a critical phase in the project's history, transitioning it from preliminary consent phases to active corporate stewardship under a major New Zealand energy provider.

By 2019, the project attracted significant contractor interest, signaling renewed momentum toward physical construction. This phase involved detailed site assessments, supply chain coordination, and logistical planning required to install large-scale wind turbines in the local terrain. The growing attention from contractors reflected the project's maturation and the increasing confidence in its viability as a major renewable energy asset. These preparatory efforts were essential for aligning technical specifications with operational goals, ensuring that the infrastructure could meet the demands of modern wind energy production.

Construction officially began in June 2021, initiating the physical transformation of the Harapaki site into a functional wind farm. This milestone represented the culmination of years of planning, consent processing, and financial structuring. However, the construction phase was not without challenges. The project experienced delays due to Cyclone Gabrielle, a significant meteorological event that impacted infrastructure development across New Zealand. The cyclone introduced logistical and structural hurdles, affecting timelines and requiring adaptive management strategies to maintain progress. Despite these disruptions, the project continued to advance, demonstrating resilience in the face of environmental and operational pressures.

The Harapaki Wind Farm was completed in 2024, marking the end of a multi-year development journey that began with the initial resource consents in 2006. Upon completion, it became the second-biggest wind farm in New Zealand, solidifying its role in the country's renewable energy landscape. The operational status of the farm reflects the successful integration of planning, construction, and environmental adaptation, resulting in a key asset for Meridian Energy and the broader New Zealand energy sector.

Location and Geography

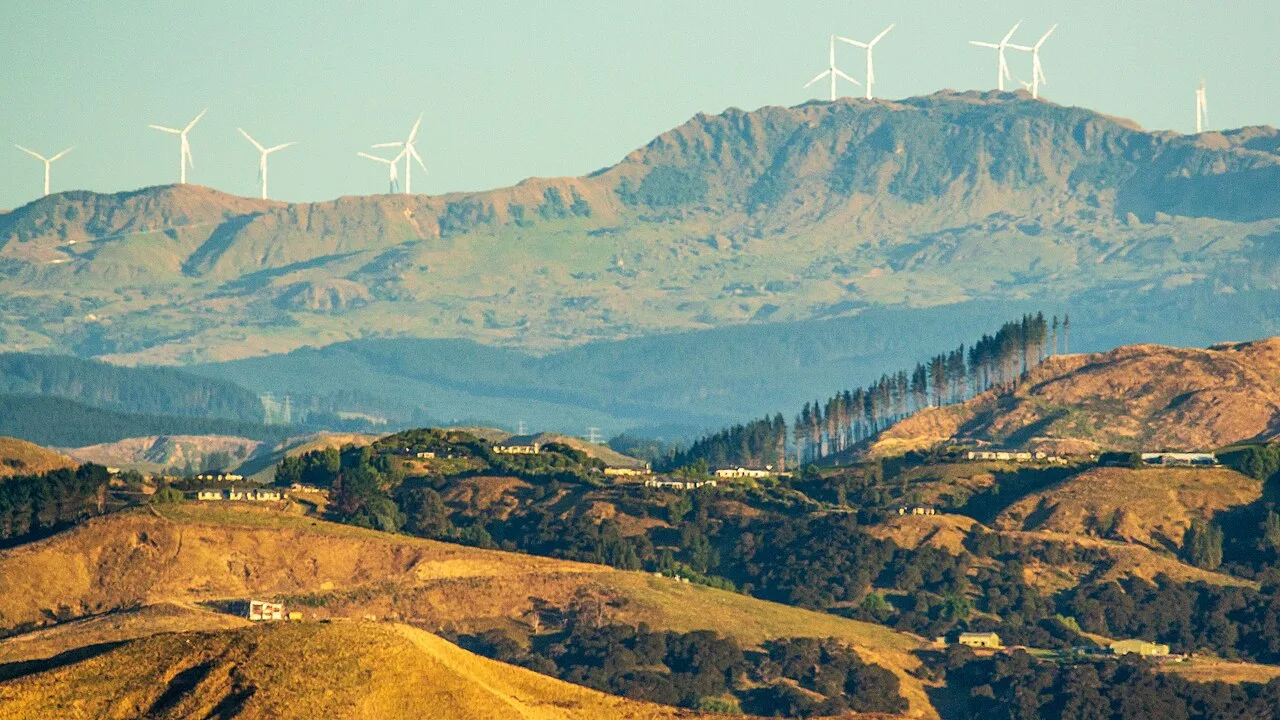

The Harapaki Wind Farm is situated within the Hawke's Bay region of New Zealand, a geographical area characterized by diverse topography that provides significant potential for wind energy generation. The facility is specifically located in the Maungaharuru Range, a prominent mountain range that runs parallel to the coast and serves as a critical climatic barrier and wind corridor for the region. This strategic placement allows the wind farm to capture consistent and high-velocity wind flows, which are essential for the operational efficiency of the installed turbines.

Topography and Altitude

A key feature of the Harapaki Wind Farm's location is its proximity to the Titiokura Summit, which is the highest point in the Maungaharuru Range. The wind farm infrastructure is deployed at an altitude of approximately 1300 metres above sea level. This elevation is a critical factor in the project's energy yield, as wind speeds generally increase with altitude due to reduced surface friction and the influence of the pressure gradient force. The terrain at this elevation is rugged and undulating, requiring careful engineering for the placement of turbine foundations and access roads. The high-altitude location also subjects the equipment to specific microclimatic conditions, including temperature variations and potential icing events, which influence the operational maintenance schedules.

Proximity to Infrastructure

The wind farm is located approximately 34 km from Napier Airport, a key transportation hub in the Hawke's Bay region. This distance places the facility within a reasonable logistical radius for the transport of large turbine components, such as blades, towers, and nacelles, which were likely delivered via the coastal road network and then hauled up the range. The proximity to Napier also facilitates the integration of the generated electricity into the local and national grid, as Napier serves as a major load center for the region. The 34 km distance represents a balance between maximizing wind resource quality at higher elevations and minimizing transmission losses and logistical costs associated with grid connection.

Impact of Cyclone Gabrielle

The geographical location of the Harapaki Wind Farm is also defined by its vulnerability to extreme weather events, particularly cyclones that affect the eastern coast of New Zealand's North Island. Cyclone Gabrielle, which struck the region in 2022, had a significant impact on the local infrastructure, including State Highway 5, which is a primary arterial route connecting Napier to other parts of the region and providing access to the Maungaharuru Range. The cyclone caused substantial damage to State Highway 5, with landslides and flooding disrupting transport links. This event highlighted the importance of robust access routes for the maintenance and operation of the wind farm, as the highway serves as a critical supply chain link for bringing in spare parts and personnel. The impact of Cyclone Gabrielle on the infrastructure surrounding the wind farm underscores the need for resilient engineering solutions in the region's energy infrastructure planning.

Technical Specifications

The Harapaki Wind Farm utilizes a fleet of 41 wind turbines to generate electricity for the New Zealand grid. The project was completed in 2024 and is currently operational. The wind farm is recognized as the second-biggest wind farm in New Zealand as of 2024. The turbines are manufactured by Siemens Gamesa, a major global supplier of wind energy technology. The hub height for these turbines is 85 m. The rotor diameter is 120 m. These specifications are typical for onshore wind farms in the Hawke's Bay region of New Zealand. The wind farm is operated by Meridian Energy. Construction of the project began in June 2021.

Turbine Specifications

The technical parameters of the wind turbines are critical for understanding the energy generation capacity of the Harapaki Wind Farm. The use of 4.3 MW turbines allows for efficient energy capture in the local wind conditions. The 85 m hub height positions the rotors in stronger and more consistent wind currents. The 120 m rotor diameter provides a large swept area for capturing wind energy. These design choices contribute to the overall efficiency of the wind farm. The total installed capacity is derived from the 41 individual turbine units. The Siemens Gamesa brand is known for its reliability in various wind farm projects globally.

Parameter Value
Turbine Manufacturer Siemens Gamesa
Rated Capacity per Turbine 4.3 MW
Hub Height 85 m
Rotor Diameter 120 m
Total Turbine Count 41

Grid Connection

The electricity generated by the Harapaki Wind Farm is transmitted to the national grid via a high-voltage transmission line. The specific line used is the Redclyffe-Whirinaki-Wairakei 220 kV line. This transmission infrastructure is essential for integrating the wind farm's output into the broader energy system of New Zealand. The 220 kV voltage level is common for medium to long-distance power transmission. The connection ensures that the energy produced in Hawke's Bay can be distributed to consumers in other regions. The reliability of the grid connection is a key factor in the operational status of the wind farm. Meridian Energy manages the integration of the wind farm with the grid infrastructure.

Why it matters

The Harapaki Wind Farm holds a prominent position in New Zealand’s renewable energy landscape, recognized as the second-biggest wind farm in the country as of 2024. This status underscores its critical role in the national grid and specifically within the Hawke’s Bay region, where it serves as a major contributor to the local renewable energy mix. The project’s scale and operational commencement in 2024 mark a significant milestone for regional energy security, providing a substantial influx of wind-generated power to meet growing demand.

Evolution of Project Scale

The final configuration of the Harapaki Wind Farm reflects a strategic refinement of earlier development plans. Initial proposals for the site envisioned a significantly larger installation, with plans for 75 turbines generating a total capacity of 225 MW. However, the project was subsequently scaled down to a more focused design. The actual constructed project consists of 41 turbines, representing a deliberate adjustment in scope that balanced environmental considerations, logistical feasibility, and energy output requirements.

This reduction from the originally proposed 75-turbine layout to the final 41-turbine configuration highlights the dynamic nature of large-scale wind energy development in New Zealand. The decision to proceed with the 41-turbine model allowed for the efficient utilization of the Hawke’s Bay wind resources while maintaining the project’s status as a top-tier energy asset. The construction phase, which began in June 2021, culminated in the 2024 completion, delivering a streamlined yet powerful infrastructure that aligns with modern wind farm engineering standards.

By achieving operational status in 2024, the Harapaki Wind Farm has solidified its role as a key pillar of Meridian Energy’s portfolio. Its significance extends beyond mere capacity metrics; it represents a mature phase in Hawke’s Bay’s transition toward diversified renewable sources. The farm’s ability to deliver consistent wind power complements other regional energy projects, enhancing grid stability and reducing reliance on variable or imported energy sources. As the second-largest wind facility in New Zealand, Harapaki sets a benchmark for future wind energy investments in the country, demonstrating the viability of large-scale wind development in the Hawke’s Bay region.

What is the grid integration strategy?

The Harapaki Wind Farm connects to the New Zealand national grid through a dedicated integration strategy centered on Transpower’s high-voltage transmission infrastructure. The project utilizes a new substation located on the Redclyffe-Whirinaki-Wairakei 220 kV transmission line. This specific line is a critical artery in the North Island’s electricity network, linking major generation hubs with load centers. By tapping into this 220 kV corridor, the wind farm ensures efficient power evacuation from the Hawke's Bay region. The integration design minimizes transmission losses and enhances grid stability for the surrounding area. The substation serves as the primary interface between the wind turbines and the broader Transpower network. This connection point allows for seamless power flow management and voltage regulation. The use of the 220 kV level is standard for large-scale renewable projects in New Zealand. It provides sufficient capacity to handle the output of the second-biggest wind farm in the country. The location of the substation was selected to optimize the distance from the turbine clusters. This reduces the length of feeder cables required to aggregate power before stepping it up to transmission voltage. The Redclyffe-Whirinaki-Wairakei line runs through key geographic zones in the region. Its existing capacity was assessed to accommodate the additional load from Harapaki. This strategic placement supports the overall reliability of the regional grid. The integration also facilitates future expansion potential for the site. The infrastructure is designed to handle current output while allowing for upgrades. This forward-looking approach is typical of modern wind farm developments in New Zealand. The connection strengthens the renewable energy share in the Hawke's Bay area. It contributes to the diversification of the local power supply mix. The grid integration strategy reflects a coordinated effort between the operator and the national grid manager. This collaboration ensures that the new generation asset aligns with system requirements. The technical specifications of the substation are tailored to the wind farm’s operational profile. This includes handling variable power output characteristic of wind energy. The integration supports frequency control and reactive power support. These features are essential for maintaining grid quality as wind penetration increases. The project’s connection to the 220 kV line underscores its significance in the national energy landscape. It represents a key infrastructure investment in the region’s power transmission capabilities. The successful integration marks a milestone in the farm’s operational readiness. It enables the efficient delivery of clean energy to consumers across the North Island. The design adheres to Transpower’s technical standards for new generation connections. This ensures compatibility with existing grid protection and control systems. The substation’s location on the Redclyffe-Whirinaki-Wairakei line is a strategic choice. It leverages existing infrastructure to reduce capital expenditure and construction time. This approach is common in mature energy markets like New Zealand. The integration strategy supports the broader goal of decarbonizing the national grid. It provides a reliable pathway for wind power to reach demand centers. The technical execution of the connection is a critical component of the project’s success. It ensures that the generated electricity can be effectively utilized by the grid. The Harapaki Wind Farm’s grid connection is a model for future renewable projects. It demonstrates the importance of strategic planning in transmission infrastructure. The integration enhances the resilience of the regional power system. It provides an additional source of generation capacity in a key location. This contributes to the overall security of supply for the Hawke's Bay region. The project’s connection to the national grid is a testament to the region’s growing role in New Zealand’s energy mix. It highlights the importance of transmission infrastructure in unlocking renewable energy potential. The integration strategy ensures that the wind farm operates efficiently within the broader system. It balances generation output with grid demands. This coordination is vital for maintaining stable electricity prices and supply reliability. The Harapaki Wind Farm’s connection to the 220 kV line is a key feature of its design. It enables the farm to compete effectively in the wholesale electricity market. The integration supports the economic viability of the project. It ensures that the power generated can be sold at competitive rates. The technical details of the substation and connection are critical to the farm’s performance. They determine how well the wind farm can respond to grid signals. This responsiveness is increasingly important as the share of variable renewables grows. The integration strategy reflects the evolving nature of New Zealand’s electricity system. It adapts to the needs of a grid with higher wind penetration. The Harapaki Wind Farm’s connection is a significant step in this transition. It provides a template for integrating large-scale wind projects into existing transmission networks. The project’s success in connecting to the grid is a key achievement. It validates the technical planning and engineering efforts involved. The integration ensures that the wind farm can deliver on its capacity commitments. It provides a reliable source of renewable energy for the region. The connection to the Redclyffe-Whirinaki-Wairakei line is a strategic asset. It enhances the value of the wind farm’s output. This connection supports the long-term operational goals of the project. It ensures that the Harapaki Wind Farm remains a competitive and efficient energy producer. It enables the farm to contribute effectively to New Zealand’s energy security. The connection to the national grid is a vital link in the supply chain. It ensures that the wind power generated in Hawke's Bay reaches consumers efficiently. The technical execution of the integration is a testament to the project’s planning. It reflects the high standards of New Zealand’s energy infrastructure development. The integration supports the region’s economic development. It provides a stable power supply for local industries and households. It ensures that the wind farm can operate effectively within the national grid. The integration strategy is a critical success factor for the project. It enables the Harapaki Wind Farm to deliver on its renewable energy potential. It leverages existing infrastructure to maximize efficiency.
