Overview
Gravfoss Power Station is a hydroelectric facility located in Modum municipality, Buskerud county, Norway. The installation consists of two distinct run-of-the-river power plants situated within the Drammen watercourse. This configuration allows the station to harness the flow of the river system for electricity generation, contributing to the regional energy infrastructure of southern Norway. The facility is currently operational and is managed by the energy company Glitre Energi, which oversees the daily operations and maintenance of the hydroelectric assets in the area.
The Drammen watercourse serves as the primary water source for the power station, providing the necessary hydraulic head and flow volume for the run-of-the-river turbines. The location in Modum municipality places the station within a region known for its significant hydroelectric potential, leveraging the natural topography of Buskerud. The operational status of the plants indicates their continued relevance in the local power grid, supplying renewable energy derived from the water cycle. The management by Glitre Energi reflects the broader trend of regional energy companies operating specialized hydroelectric facilities in Norway.
Geographically, the Gravfoss Power Station is positioned in relation to other key hydroelectric sites in the vicinity. It is located near the Snarum River, which is a significant tributary or component of the broader Drammen water system. The station's placement allows for efficient water management and energy capture from the river's flow. Additionally, the station is associated with the Geithusfoss Power Station, indicating a network of hydroelectric installations that work in tandem or in sequence within the same watercourse. This proximity suggests a coordinated approach to energy production in the Modum area, optimizing the use of the available water resources.
The commissioning of the Gravfoss Power Station dates back to 1903, marking it as a long-standing energy infrastructure project in Norway. This early start highlights the historical importance of hydroelectric power in the country's energy mix. The station has remained in operation for over a century, demonstrating the durability and efficiency of the run-of-the-river technology used in its construction. The continued operation by Glitre Energi underscores the station's enduring value to the local and national energy supply.
Hydrological Context and Water Sources
Gravfoss Power Station operates as a run-of-the-river facility within the Drammen watercourse, situated in Modum municipality, Buskerud, Norway. The station’s hydrological function is defined by its integration into the broader regional water system, which includes significant natural reservoirs and connecting watercourses. The primary water sources feeding this system include Tyrifjorden and the Begna, alongside the Randsfjorden and Dokka watercourses. These bodies of water provide the essential flow required for continuous power generation, characteristic of run-of-the-river technology which relies on the natural flow of the river rather than large-scale storage alone.
The station utilizes a specific intake dam located above Gravfossen to manage water flow. This infrastructure captures the natural fall of 14 meters, converting potential energy into electricity. The geographic positioning within the Drammen watercourse allows for efficient utilization of the regional topography. The interaction between the intake dam and the natural fall is critical to the operational efficiency of the two power plants that constitute the Gravfoss complex.
| Feature | Description |
|---|---|
| Water Sources | Tyrifjorden, the Begna, Randsfjorden, Dokka watercourses |
| Primary Watercourse | Drammen watercourse |
| Intake Infrastructure | Dam above Gravfossen |
| Natural Fall | 14 meters |
| Location | Modum municipality, Buskerud, Norway |
Dam Infrastructure and Regulation
The operational framework of the Gravfoss Power Station relies on a specific dam infrastructure that has defined its hydraulic regulation for over eight decades. The current dam structure was put into use in 1935, marking a significant phase in the development of the run-of-the-river facilities within the Drammen watercourse. This infrastructure is essential for managing the water flow from the source to the turbines operated by Glitre Energi in Modum municipality, Buskerud, Norway. The 1935 dam replaced earlier structures, allowing for more efficient energy extraction from the water, which remains the primary fuel source for this hydroelectric powerplant.
Regulation Mechanism
The regulation of water flow at the Gravfoss Power Station is achieved through a dual-gate system designed to optimize the run-of-the-river operation. This mechanism utilizes one sector gate and one segment gate to control the volume and pressure of water entering the power plants. The sector gate operates by rotating around a horizontal axis, allowing for precise adjustments to the water intake based on the immediate energy demands and the natural flow variations of the Drammen watercourse. This type of gate is particularly effective for maintaining stable head pressure, which is critical for the efficiency of the turbine units commissioned in 1903 and subsequently upgraded.
Complementing the sector gate is a segment gate, which functions similarly to a radial gate, rotating around a pivot point to regulate flow. The combination of these two distinct gate types provides the operators with flexible control over the water regulation process. This dual-system approach ensures that the power station can adapt to seasonal changes in water availability and fluctuating electricity demand in the region. The precise engineering of these gates allows for the smooth operation of the two run-of-the-river power plants, minimizing turbulence and maximizing energy conversion efficiency. The maintenance and operation of these gates are integral to the ongoing operational status of the facility, ensuring consistent power generation for the local grid.
The integration of the 1935 dam with this specific gate configuration represents a mature engineering solution for the geographical and hydrological conditions of the Modum municipality area. By leveraging the natural gradient of the Drammen watercourse, the sector and segment gates work in tandem to maintain optimal flow rates, supporting the long-term sustainability of the hydroelectric infrastructure. This regulatory system has proven durable, continuing to serve the power station's needs well into the 21st century, reflecting the robust design principles applied during the mid-20th century expansion. The continued reliance on these mechanical controls underscores the importance of precise water management in run-of-the-river hydroelectric systems.
Gravfoss I: History and Technical Specifications
This facility operates as a run-of-the-river hydroelectric plant, a design choice that leverages the natural flow of the river rather than relying on a large reservoir for storage. The plant is operated by Glitre Energi and has maintained an operational status since its initial commissioning in 1903. Its long-standing presence in the region highlights the early adoption of hydroelectric technology in Norwegian energy infrastructure, providing a continuous power source for over a century.
Historical Development
The original Gravfoss I plant was put into operation in 1903, marking the beginning of hydroelectric generation in this specific section of the Drammen watercourse. This initial installation established the site as a key energy producer in the Buskerud region. The facility underwent a significant expansion in 1931, which enhanced its capacity and modernized its operational capabilities. This expansion reflects the growing demand for electricity in the early 20th century and the strategic importance of the Drammen watercourse for energy production. The plant has remained operational through these changes, adapting to technological advancements while maintaining its core function.
Technical Specifications
Gravfoss I is characterized by a hydraulic head of 19.7 meters, which is typical for run-of-the-river installations in the region. The plant utilizes two distinct turbine types to optimize energy extraction from the water flow. One unit is equipped with a Francis turbine, known for its efficiency in medium-head conditions. The second unit features a Kaplan bulb turbine, which is particularly effective for lower head and variable flow rates. Together, these turbines contribute to a total output capacity of 19 MW. The mean annual production of the plant is 30 GWh, providing a steady contribution to the local and regional grid. The combination of Francis and Kaplan bulb turbines allows Gravfoss I to adapt to varying flow conditions, maximizing energy yield throughout the year.
Operational Role
In addition to its base load contributions, Gravfoss I functions as a flood power plant. This role is critical for managing water levels in the Drammen watercourse, particularly during periods of high inflow. By adjusting its generation output, the plant helps mitigate flooding risks in downstream areas, including parts of Modum municipality and the broader Buskerud region. This dual function of energy production and flood management underscores the strategic importance of Gravfoss I within the local hydroelectric network. The plant's ability to respond quickly to changes in water flow makes it a valuable asset for both energy stability and environmental management in the area.

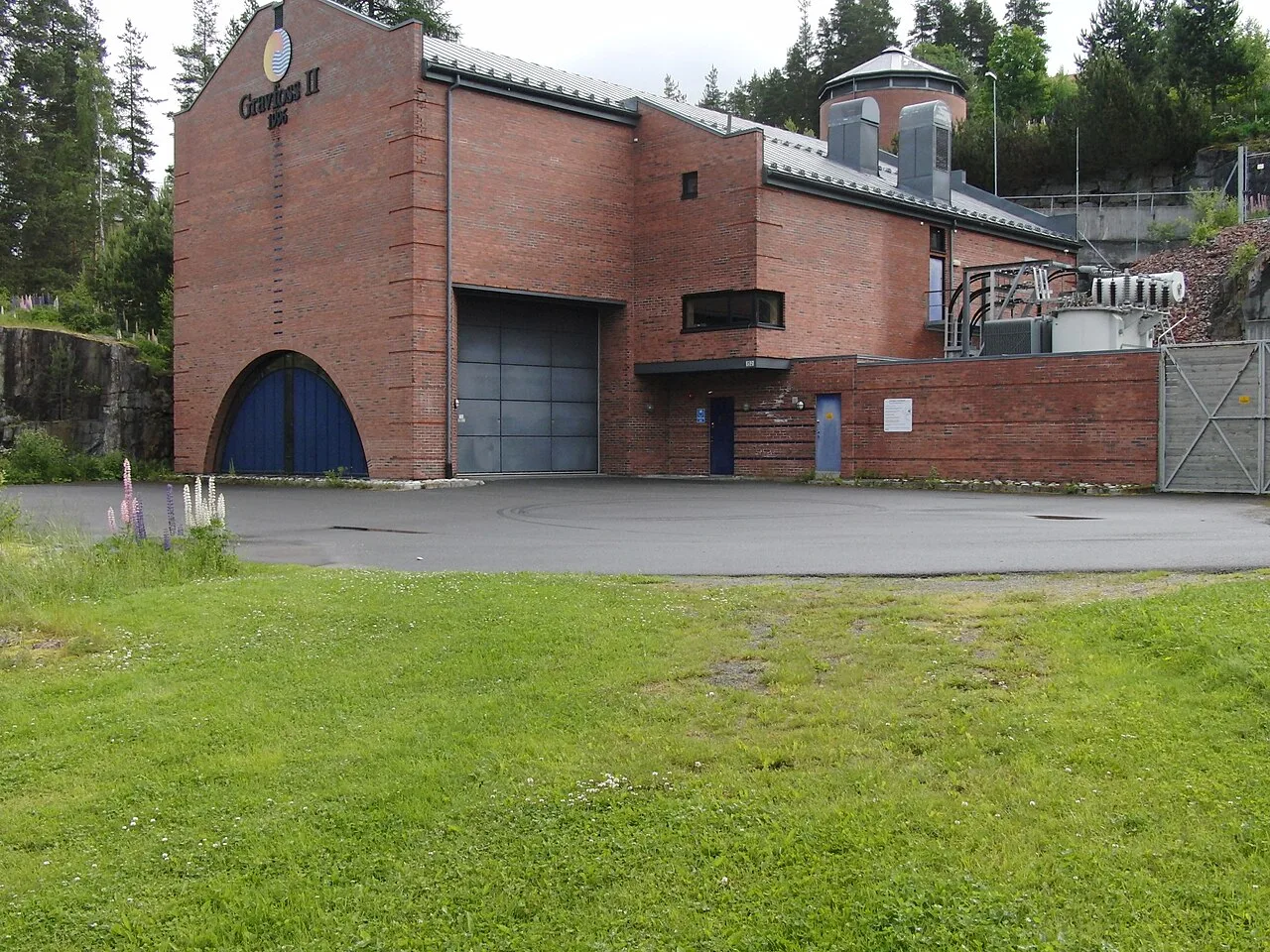

Gravfoss II: Modern Expansion and Capacity
Gravfoss II represents the modern expansion phase of the Gravfoss hydroelectric complex, significantly enhancing the energy output of the Drammen watercourse system in Modum municipality, Buskerud, Norway. This facility was commissioned in 1996, introducing updated run-of-the-river technology to complement the original infrastructure. The plant is operated by Glitre Energi, which manages the operational parameters to optimize efficiency within the local hydrological conditions. As a key component of the regional energy grid, Gravfoss II demonstrates the evolution of Norwegian hydropower engineering through the late 20th century, focusing on capacity enhancement and technological modernization.
Technical Specifications and Turbine Configuration
The technical design of Gravfoss II is characterized by a specific head and turbine configuration tailored to the flow dynamics of the Drammen watercourse. The plant operates with a hydraulic head of 20 meters. This relatively low head is typical for run-of-the-river installations in this region, where the terrain does not allow for the steep gradients found in upstream mountainous sections. The choice of a 20-meter head influences the selection of the turbine type, requiring a unit capable of handling high flow rates at lower pressure differentials to maintain optimal rotational speed and efficiency.
At the core of the generating unit is a single Kaplan bulb turbine. The Kaplan bulb design is particularly well-suited for low-head, high-flow hydroelectric projects. This turbine type features a propeller-style rotor housed within a bulb-shaped casing, allowing the water to flow through the turbine in a more linear path compared to traditional Francis or Pelton turbines. The Kaplan bulb configuration minimizes hydraulic losses and enables the turbine to adjust its blade angles to accommodate variations in water flow, which is crucial for maintaining consistent performance in a run-of-the-river system where water levels can fluctuate seasonally.
Generating Capacity and Annual Production
The generating unit at Gravfoss II has an installed capacity of 30 MW. This capacity is generated by the single Kaplan bulb turbine, which converts the kinetic and potential energy of the water into electrical energy. The 30 MW output contributes significantly to the total capacity of the Gravfoss complex, working in tandem with the original plant to provide a stable power supply to the local grid. The operational status of the plant remains active, with Glitre Energi overseeing its maintenance and performance metrics.
The mean annual production of Gravfoss II is 219 GWh. This figure reflects the average energy output over a typical year, accounting for seasonal variations in water flow in the Drammen watercourse. The 219 GWh annual production demonstrates the efficiency of the 30 MW unit under the specific hydraulic conditions of the site. This level of production supports the energy demands of the surrounding areas in Buskerud and contributes to Norway's broader hydroelectric energy portfolio. The consistent output highlights the reliability of run-of-the-river technology in this geographical context.
How do Gravfoss I and II differ in operation?
Operated by Glitre Energi, the two plants—Gravfoss I and Gravfoss II—exhibit significant differences in age, turbine technology, installed capacity, and annual energy production. These variations reflect the evolution of hydroelectric engineering over nearly a century of operation.
Gravfoss I: The Pioneer Facility
Commissioned in 1903, Gravfoss I represents the older generation of the complex. This facility utilizes both Francis and Kaplan turbines to harness the water flow. The installed capacity of Gravfoss I is 19 MW. In terms of energy output, the plant produces approximately 30 GWh annually. As the first of the two stations, Gravfoss I has served as a foundational component of the local energy infrastructure for over a century.
Gravfoss II: The Modern Expansion
Gravfoss II was commissioned much later, in 1996, introducing more contemporary hydroelectric technology. This plant employs a Kaplan bulb turbine, a design choice that often enhances efficiency in run-of-the-river settings. Gravfoss II has a significantly larger installed capacity of 30 MW. Its annual production is substantially higher than its predecessor, generating 219 GWh per year. The difference in production volume highlights the impact of technological advancements and potentially different hydraulic conditions or operational strategies between the two sites.
| Feature | Gravfoss I | Gravfoss II |
|---|---|---|
| Commissioning Year | 1903 | 1996 |
| Turbine Types | Francis and Kaplan | Kaplan bulb |
| Installed Capacity | 19 MW | 30 MW |
| Annual Production | 30 GWh | 219 GWh |
The contrast between the two plants is stark. Gravfoss II, despite being commissioned nearly a century after Gravfoss I, produces more than seven times the annual energy output (219 GWh vs 30 GWh) with only a moderate increase in installed capacity (30 MW vs 19 MW). This disparity suggests that Gravfoss II may benefit from a higher head, a larger flow volume, or superior turbine efficiency inherent in the Kaplan bulb design compared to the mixed Francis/Kaplan setup of the older plant. Both facilities remain operational under the management of Glitre Energi, contributing to the renewable energy profile of the Drammen watercourse.
Why it matters
Gravfoss Power Station holds a distinct position within Norway’s hydroelectric landscape as a dual-facility complex operating within the Drammen watercourse. Located in Modum municipality, Buskerud, the station exemplifies the strategic integration of historic and modern run-of-the-river technology to maximize energy yield from a single river system. The facility is operated by Glitre Energi, which manages the two plants as a coordinated unit, leveraging the natural flow of the Drammen river to generate electricity with minimal reservoir storage requirements. This configuration is characteristic of efficient Scandinavian hydro infrastructure, where multiple intakes along a river gradient allow for continuous power generation without the massive land inundation associated with reservoir dams.
The historical significance of the site is anchored by its initial commissioning in 1903. This early start date places Gravfoss among the pioneering hydroelectric installations in Norway, a country that has long relied on water power as a primary driver of industrialization and electrification. The 1903 plant represents the early engineering approaches to harnessing the Drammen watercourse, reflecting the technological capabilities and energy demands of the turn of the 20th century. Its continued operation highlights the durability and adaptability of early hydro infrastructure, which has been maintained and integrated into the broader regional grid over more than a century of service.
The modernization of the Gravfoss complex is marked by the addition of a second run-of-the-river power plant in 1996. This expansion demonstrates the ongoing evolution of hydroelectric technology in Norway, where newer facilities are often added to existing watercourses to capture additional head and flow efficiency. The 1996 plant complements the original 1903 installation, allowing Glitre Energi to optimize energy production across different flow conditions and seasonal variations. This dual-plant approach enhances the reliability of the power supply for Modum municipality and the wider Buskerud region, contributing to the stability of the local energy grid.
Within the context of the Drammen watercourse, Gravfoss Power Station serves as a critical node in the regional hydroelectric infrastructure. The Drammen river system is a significant contributor to Norway’s renewable energy mix, and the coordinated operation of the two Gravfoss plants ensures that a substantial portion of the river’s kinetic energy is converted into electrical power. This integration supports the broader goals of energy sustainability and efficiency in Norway, where hydroelectricity remains the dominant source of renewable energy. The station’s operational status as an active facility underscores its continued relevance in meeting local energy demands and contributing to the national grid’s flexibility.
