Overview
Ghatghar Dam constitutes a significant infrastructure project within India's energy landscape, specifically functioning as a 250 MW pumped-storage hydroelectric power station. Located in the village of Ghatghar within the Ahmednagar district of Maharashtra, this facility represents a notable engineering achievement due to its construction methodology and hydrological configuration. The project is distinguished by the use of roller-compacted concrete for its gravity dams, marking the first application of this specific construction technique in India for such structures. This innovation in dam engineering contributes to the operational efficiency and structural integrity required for the dynamic load cycles inherent to pumped-storage operations.
The facility operates through a dual-dam system designed to manage water flow between two distinct reservoirs. The upper Ghatghar Dam, standing 15 m tall, is situated on the Pravara River, which serves as a tributary to the Godavari River. In contrast, the lower Ghatghar Dam is substantially taller at 86 m and is located on the Shahi Nalla, a tributary of the Ulhas River. The lower dam is positioned to the southwest of the upper reservoir, nestled within a steep valley that facilitates the necessary head difference for power generation. This geographical arrangement allows the hydro power project to divert water from the Godavari River basin outside its traditional area, transferring it to a west-flowing river system within the Western Ghats. This inter-basin transfer is critical to the functionality of the 250 MW capacity station, enabling the storage and release of water to meet fluctuating energy demands.
Engineering Significance: First RCC Dams in India
The Ghatghar Dam complex represents a significant milestone in Indian civil engineering, marking the first application of roller-compacted concrete (RCC) technology for gravity dams in the country. This innovative construction method was employed for both the upper and lower dams, which are situated in Ghatghar village within the Ahmednagar district of Maharashtra. The adoption of RCC allowed for efficient construction in the steep valley terrain, facilitating the creation of the upper and lower reservoirs essential for the 250 MW pumped-storage hydroelectric power station. The upper Ghatghar Dam, standing at 15 m (49 ft), is located on the Pravara River, a tributary of the Godavari River. In contrast, the lower Ghatghar Dam is substantially larger, reaching a height of 86 m (282 ft). This lower structure is positioned on the Shahi Nalla, a tributary of the Ulhas River, located to the southwest of the upper reservoir. The project involves a complex hydrological diversion, moving water from the Godavari River basin outside its natural area to a west-flowing river within the Western Ghats. The use of roller-compacted concrete differs significantly from traditional concrete dam construction. RCC involves placing thin layers of low-slump concrete that are compacted using heavy rollers, similar to earth-fill dam construction. This method typically accelerates the construction schedule and reduces material costs compared to conventional mass concrete pouring. The successful implementation at Ghatghar demonstrated the viability of RCC for gravity dams in India, influencing subsequent hydroelectric projects.| Feature | Roller-Compacted Concrete (RCC) | Traditional Concrete |
|---|---|---|
| Placement Method | Thin layers compacted by rollers | Mass pouring in lifts |
| Construction Speed | Faster due to continuous compaction | Slower due to curing cycles |
| Material Usage | Lower cement content typically | Higher cement content |
Hydrological Context and Basin Diversion
The Ghatghar pumped-storage hydroelectric power station operates through a unique inter-basin water diversion system that bridges two distinct river basins in Maharashtra, India. This infrastructure project diverts water from the Godavari River basin, which flows eastward, to the Ulhas River basin, a west-flowing river system located in the Western Ghats. The hydrological setup is engineered to transfer water outside its natural basin area, enabling the pumped-storage mechanism to function by moving water between an upper and a lower reservoir situated in different drainage networks.
Upper Reservoir and the Godavari Basin
The upper reservoir of the Ghatghar Dam system is situated on the Pravara River. The Pravara River is a tributary of the Godavari River, one of the major river systems in India. The upper Ghatghar Dam, which creates this reservoir, is a gravity dam built using roller-compacted concrete. It stands 15 m (49 ft) tall. This structure is located in Ghatghar village, in Ahmednagar district, Maharashtra, India. The use of roller-compacted concrete for these dams marked the first such application in India, representing a significant technical milestone for the region's hydroelectric infrastructure.
Lower Reservoir and the Ulhas Basin

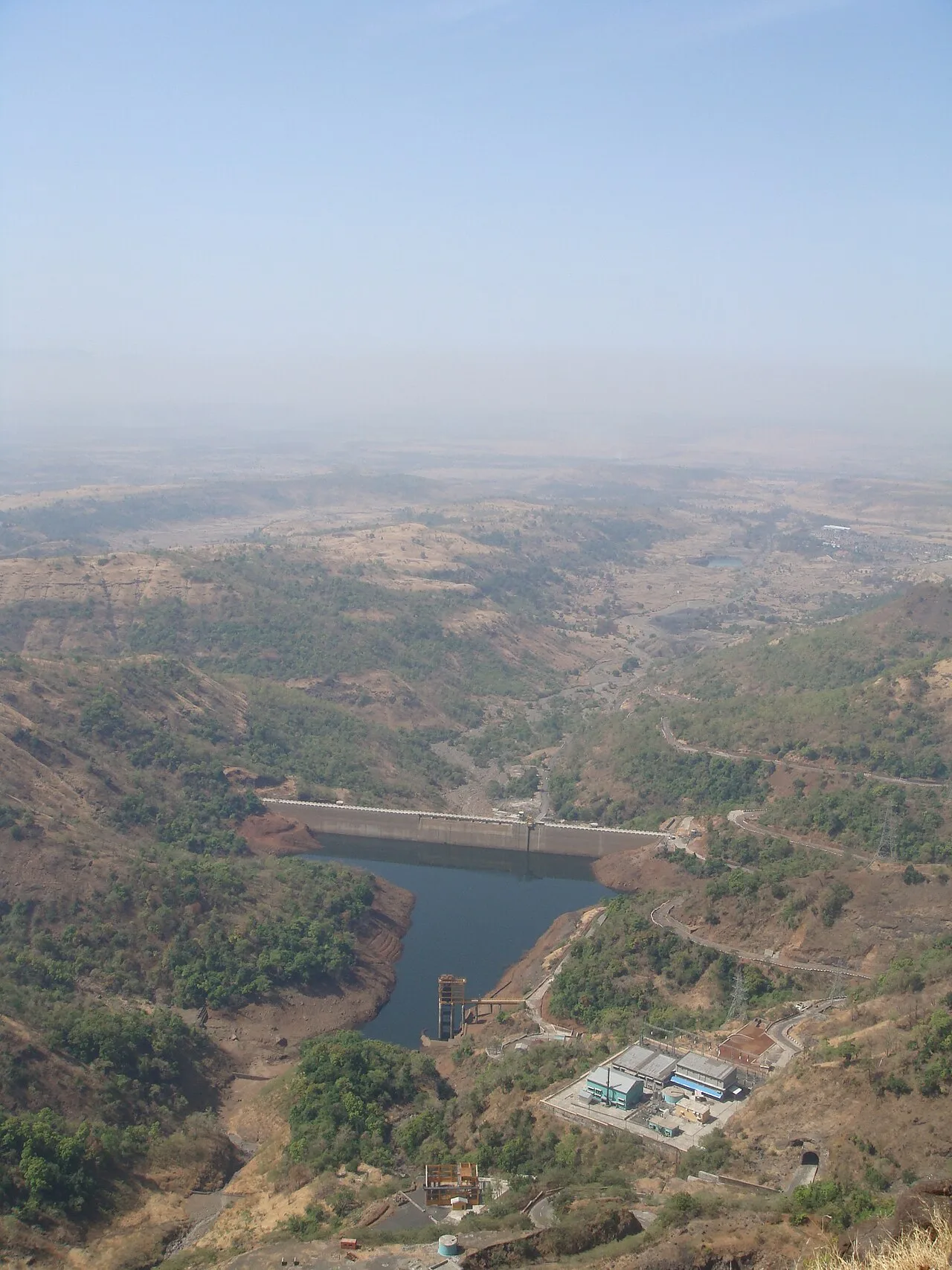

The lower reservoir is created by the lower Ghatghar Dam, which is located on the Shahi Nalla. The Shahi Nalla is a tributary of the Ulhas River. The lower dam is significantly taller than its upper counterpart, standing 86 m (282 ft) high. It is situated to the southwest of the upper reservoir, positioned in a steep valley. This geographical arrangement allows for the necessary elevation difference required for the 250 MW pumped-storage hydroelectric power station to generate electricity efficiently. The lower dam is also constructed using roller-compacted concrete, consistent with the engineering approach used for the upper dam.
Inter-Basin Diversion Mechanics
The core of the Ghatghar project's hydrological design is the diversion of water from the Godavari River basin to the Ulhas River basin. Water is drawn from the Pravara River in the Godavari basin and transferred to the Shahi Nalla in the Ulhas basin. This east-to-west diversion moves water across the drainage divide of the Western Ghats. The system utilizes the two associated gravity dams to manage the water levels in the upper and lower reservoirs. During periods of low electricity demand, water is pumped from the lower reservoir on the Shahi Nalla to the upper reservoir on the Pravara River. During peak demand, water is released from the upper reservoir back to the lower reservoir, passing through turbines to generate power. This closed-loop system relies on the precise management of water volumes between these two distinct river tributaries, effectively linking the hydrological cycles of the Godavari and Ulhas rivers for energy production.
How does the pumped-storage mechanism work?
The Ghatghar pumped-storage hydroelectric power station operates with a total installed capacity of 250 MW, utilizing water as the primary energy source (per provided entity data). The facility relies on two associated gravity dams constructed using roller-compacted concrete, marking the first such application in India. These structures create the necessary upper and lower reservoirs that define the pumped-storage mechanism. The upper Ghatghar Dam, standing 15 m tall, is situated on the Pravara River, which is a tributary of the Godavari River. The lower Ghatghar Dam, with a height of 86 m, is located on the Shahi Nalla, a tributary of the Ulhas River, positioned to the southwest of the upper reservoir in a steep valley. The hydro power project functions by diverting water from the Godavari River basin outside of its natural basin area to a west-flowing river within the Western Ghats. This inter-basin transfer establishes the hydraulic head required for power generation. The operational cycle involves pumping water from the lower reservoir to the upper reservoir during periods of low electricity demand, effectively storing potential energy. When electricity demand peaks, water is released from the upper reservoir back to the lower reservoir, driving the turbine-generators to produce power. The station is equipped with two 125 MW reversible Francis turbine-generators, which enable the facility to switch between pumping and generating modes efficiently. The 250 MW capacity is distributed across these two units, allowing for flexible output adjustment based on grid requirements. The use of roller-compacted concrete for the dams provides structural integrity suitable for the varying water levels and pressures associated with pumped-storage operations. The geographical placement of the dams on different river systems—the Pravara and the Shahi Nalla—highlights the complex engineering involved in linking the Godavari and Ulhas river basins for energy production. The facility has been operational since 2008, providing a reliable source of hydroelectric power in the Ahmednagar district of Maharashtra, India (per provided entity data).Construction History and Timeline
The Ghatghar Dam project represents a significant milestone in Indian civil engineering, specifically as the first application of roller-compacted concrete (RCC) technology for gravity dams in the country. The project was initiated in 1995, marking the inception phase of what would become a complex dual-dam system designed for pumped-storage hydroelectric power. The strategic decision to utilize RCC allowed for efficient construction in the challenging terrain of the Western Ghats, facilitating the creation of both upper and lower reservoirs essential for the 250 MW power station. Construction activities commenced in 2001, focusing on the precise placement of the two distinct gravity dams. The upper Ghatghar Dam, situated on the Pravara River, a tributary of the Godavari River, was constructed to a height of 15 m. Simultaneously, work progressed on the lower Ghatghar Dam, located on the Shahi Nalla, a tributary of the Ulhas River. This lower structure was significantly taller, reaching 86 m, and was positioned in a steep valley to the southwest of the upper reservoir. The engineering challenge involved diverting water from the Godavari River basin to a west-flowing river within the Western Ghats, effectively linking two different hydrological systems. The physical construction of the dams was completed in 2006. This phase concluded the major civil works, establishing the structural integrity required for the pumped-storage mechanism. Following completion, the project entered the commissioning phase, which involved integrating the mechanical and electrical components of the 250 MW power station. The facility was officially commissioned in 2008, becoming operational and beginning its role in energy storage and generation for the region.| Year | Event |
|---|---|
| 1995 | Project inception |
| 2001 | Start of dam placement |
| 2006 | Completion of construction |
| 2008 | Commissioning of the 250 MW power station |
Physical Specifications and Layout
The Ghatghar Dam complex consists of two distinct gravity dams constructed using roller-compacted concrete technology, marking the first application of this method in India. These structures are located in Ghatghar village within the Ahmednagar district of Maharashtra, India. The facility operates as a 250 MW pumped-storage hydroelectric power station, relying on the interplay between an upper and a lower reservoir to manage energy storage and generation.
Upper Dam and Reservoir
This structure stands at a height of 15 m (49 ft) and serves as the primary source for the pumped-storage system by holding water diverted from the Godavari River basin. The placement of the upper dam on the Pravara River is critical for capturing water from this major eastern-flowing river system.
Lower Dam and Reservoir
The lower Ghatghar Dam is significantly taller, reaching a height of 86 m (282 ft). The Shahi Nalla flows into the Ulhas River, which is part of the western drainage system.
Inter-basin Water Diversion
A defining characteristic of the Ghatghar hydro power project is its inter-basin water diversion strategy. The system diverts water from the Godavari River basin, an east-flowing river system, outside of its natural basin area and transfers it to a west-flowing river within the Western Ghats region. This geographical maneuver allows the facility to utilize the elevation changes in the Western Ghats for energy production, connecting the hydrology of the Godavari and Ulhas river systems through the engineered reservoirs.
Why it matters
The Ghatghar Dam project holds significant historical and technical importance within India's energy infrastructure landscape, primarily due to its role as the first implementation of roller-compacted concrete (RCC) technology for gravity dams in the country. This engineering milestone marked a departure from traditional mass concrete methods, offering enhanced construction efficiency and structural integrity for hydroelectric developments in the region. The adoption of RCC at Ghatghar demonstrated the viability of this technology for large-scale hydraulic structures, influencing subsequent dam construction projects across India by providing a proven model for cost-effective and rapid deployment of gravity dams. The successful execution of the upper and lower dams using this method established a technical precedent that continues to inform engineering decisions in the sector, highlighting the strategic value of material innovation in optimizing hydroelectric infrastructure.
Beyond its structural innovations, the Ghatghar Dam serves as a critical case study in inter-basin water management strategies, addressing the complex hydrological challenges of the Western Ghats region. The project facilitates the diversion of water from the Godavari River basin, specifically from the Pravara River tributary, to the Ulhas River basin via the Shahi Nalla tributary. This east-to-west water transfer mechanism is essential for the operation of the 250 MW pumped-storage hydroelectric power station, which relies on the elevation difference between the upper and lower reservoirs to generate electricity. The upper reservoir, located on the Pravara River, and the lower reservoir, situated on the Shahi Nalla, work in tandem to store and release water, enabling the power station to balance supply and demand on the grid. This inter-basin linkage underscores the strategic importance of integrating water resource management with energy production, allowing for the optimization of water usage across different river systems to support renewable energy generation.
The operational status of the Ghatghar Dam, commissioned in 2008, reflects its enduring contribution to Maharashtra's energy portfolio. As a pumped-storage facility, it provides crucial grid stability services, including peak load shaving and frequency regulation, which are increasingly vital as the share of variable renewable energy sources grows. The project's ability to harness the natural topography of the Ghatghar village area in Ahmednagar district exemplifies how geographical features can be leveraged to enhance energy efficiency. The dam's design, featuring an 86 m tall lower dam and a 15 m tall upper dam, illustrates the careful engineering required to manage water flow and pressure differences in a steep valley environment. This infrastructure not only supports local energy needs but also contributes to the broader regional grid, demonstrating the multifaceted role of hydroelectric projects in modern energy systems. The Ghatghar Dam thus stands as a testament to the integration of innovative construction techniques and strategic water management, serving as a model for future hydroelectric developments in India and beyond.
