Overview

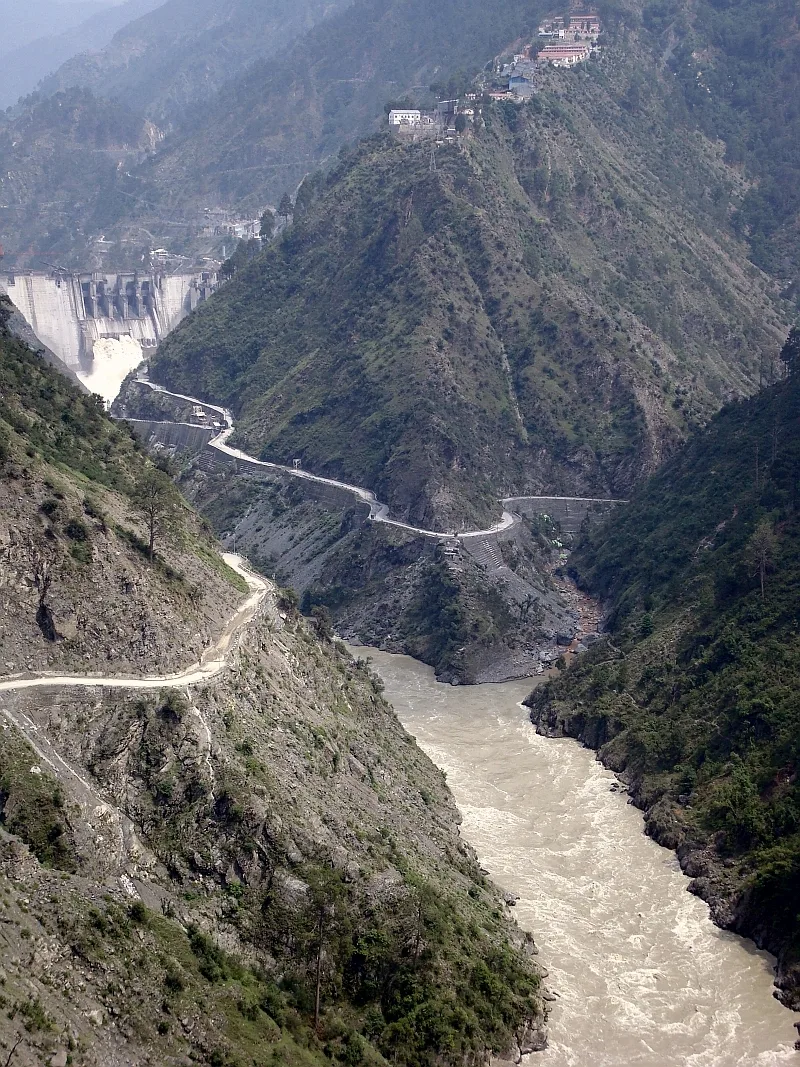

Baglihar Dam, formally designated as the Baglihar Hydroelectric Power Project, is an operational run-of-the-river hydroelectric power station situated on the Chenab River. The facility is located in Baglihar road within the Ramban district of Jammu and Kashmir, India. It stands approximately 50 km from Ramban town, which serves as the district headquarters. The project represents a significant infrastructure development in the region's energy landscape, leveraging the natural flow of the Chenab River to generate electricity without requiring a large reservoir, characteristic of run-of-the-river designs.
The plant has a total installed capacity of 900 MW. This capacity is structured in two stages, with each stage contributing 450 MW to the grid. The operator responsible for the facility is the Jammu and Kashmir State Power Development Corporation. Baglihar Dam holds the distinction of being the first major project undertaken by this corporation, marking a pivotal moment in the state's power development strategy. The project was commissioned in 2008, bringing the initial phase of power generation online and establishing a reliable source of renewable energy for the region. The operational status remains active, with the plant continuing to contribute to the energy mix of Jammu and Kashmir.
Construction History and Project Timeline
The Baglihar Hydroelectric Power Project represents a significant infrastructure development on the Chenab River in Jammu and Kashmir. The conceptualization of this run-of-the-river power plant began in 1992, marking the initial phase of planning for what would become a major energy asset in the region. Following years of evaluation and preparation, the project received formal approval in 1996, setting the stage for physical construction. Work on the dam officially commenced in 1999, initiating a multi-year building campaign that would span nearly two decades to full completion.
Construction was executed in two distinct stages to manage the flow of the Chenab River and the installation of turbine units. The first stage of the project was completed between 2008 and 2009. This initial phase was formally dedicated by Prime Minister Manmohan Singh, marking the beginning of power generation for the region. The second stage followed several years later, with completion achieved between 2015 and 2016. This final phase was dedicated by Prime Minister Narendra Modi, signifying the full operational capacity of the facility. The estimated total cost for the entire Baglihar Dam project was US$1 billion, reflecting the scale of engineering required for the site.
| Year | Event |
|---|---|
| 1992 | Project conception |
| 1996 | Formal project approval |
| 1999 | Construction start |
| 2008–2009 | Stage 1 completion; dedicated by PM Manmohan Singh |
| 2015–2016 | Stage 2 completion; dedicated by PM Narendra Modi |
How does the Indus Waters Treaty govern this project?
The Baglihar Dam operates within the complex legal framework established by the Indus Waters Treaty of 1960, which governs water rights between India and Pakistan. Under this treaty, the western rivers—including the Chenab River, on which the Baglihar Hydroelectric Power Project is situated—are primarily allocated to Pakistan, while India retains rights for limited use. Specifically, the treaty permits India to develop run-of-the-river hydroelectric projects on these western rivers, provided that the reservoir capacity remains within defined limits and flow interruptions are minimized. This legal structure was designed to balance India’s energy needs with Pakistan’s agricultural dependence on the western river systems.
Treaty Violations and Strategic Concerns
Pakistan has historically viewed the Baglihar project with skepticism, arguing that its design parameters exceed the treaty’s allowances. Starting in 1999, Pakistan raised formal objections, claiming that the dam’s reservoir capacity and flow control mechanisms violated the spirit and letter of the Indus Waters Treaty. Pakistani officials argued that the project granted India excessive control over the Chenab River’s flow, potentially providing strategic leverage during diplomatic or climatic tensions. These concerns were rooted in fears that India could manipulate water releases to affect downstream agriculture and hydropower generation in Pakistan.
Diplomatic Stalemate and World Bank Intervention
Despite years of bilateral negotiations, the dispute remained unresolved. Talks between India and Pakistan stalled in 2004, with neither side willing to compromise on key technical and legal interpretations of the treaty. In response, Pakistan escalated the matter by filing six specific objections with the World Bank, which serves as the treaty’s guarantor. These objections focused on issues such as the size of the live storage reservoir, the design of the spillway, and the potential for India to control the river’s flow more than permitted under the treaty. The World Bank’s involvement marked a significant step in the dispute, highlighting the growing complexity of managing shared water resources in South Asia.
The Baglihar Dam case underscores the challenges of implementing the Indus Waters Treaty in a region where water is both a resource and a strategic asset. While the project was eventually commissioned in 2008, the legal and diplomatic battles surrounding it continue to influence India-Pakistan relations and the broader discourse on transboundary water management.
What was the outcome of the World Bank arbitration?
In April 2005, the World Bank classified the dispute over the Baglihar Dam as a 'Difference' under the Indus Waters Treaty, initiating formal arbitration. The institution appointed Swiss engineer Raymond Lafitte as the neutral expert to adjudicate the technical and legal arguments presented by India and Pakistan.
Lafitte's Verdict
On 12 February 2007, Raymond Lafitte issued his verdict, largely favoring India's classification of the project as a run-of-the-river plant while mandating specific technical adjustments to mitigate downstream impacts on Pakistan. The adjudication allowed India to proceed with the 900 MW capacity but imposed strict modifications to the dam's physical structure and operational parameters.
Key technical adjustments included a reduction in the pondage capacity by 13.5% and a decrease in the dam height by 1.5 meters. Additionally, the power intake tunnels were required to be raised by 3 meters. The verdict also permitted the use of gated spillways and drawdown flushing, which provided India with greater operational flexibility compared to Pakistan's initial demands for uncontrolled overflow.
| Parameter | India's Demands | Lafitte's Verdict (2007) |
|---|---|---|
| Pondage Capacity | Original design | Reduced by 13.5% |
| Dam Height | Original design | Reduced by 1.5 meters |
| Power Intake Tunnels | Original elevation | Raised by 3 meters |
| Spillways | Gated | Gated spillways allowed |
| Flushing Mechanism | Drawdown flushing | Drawdown flushing allowed |
This decision resolved the immediate technical dispute, allowing the Jammu and Kashmir State Power Development Corporation to finalize construction and commission the plant in 2008, securing the 900 MW capacity on the Chenab River.
Engineering Specifications and Reservoir Management
The Baglihar Hydroelectric Power Project is a run-of-the-river facility situated on the Chenab River in the Ramban district of Jammu and Kashmir, India. The engineering specifications of the dam were significantly shaped by international arbitration, which modified the original design parameters to balance energy generation with downstream water flow requirements. The project is operated by the Jammu and Kashmir State Power Development Corporation and has an installed capacity of 900 MW, having been commissioned in 2008.
Arbitration-Driven Design Modifications
The final technical configuration of the Baglihar Dam reflects compromises reached during arbitration proceedings. A critical aspect of this agreement involved the pondage capacity. The arbitration allowed for a pondage capacity of 32.56 million cubic meters, which was a reduction from the 37.5 million cubic meters originally demanded by the project proponents. This adjustment was necessary to manage the flow variability of the Chenab River while ensuring adequate water supply for downstream users, particularly during dry seasons. The run-of-the-river nature of the project means that the reservoir does not hold a massive volume of water compared to storage dams, but rather maintains a controlled flow to drive the turbines efficiently.
Reservoir Management and Siltation
A key feature of the Baglihar Dam’s engineering is its strategy for managing silt accumulation, which is a major challenge for hydroelectric projects in the Himalayan region. The design incorporates drawdown flushing, a process where the water level in the reservoir is periodically lowered to allow the force of the incoming river water to wash out accumulated sediment. This method is crucial for extending the operational life of the reservoir. According to projections available by 2017, the implementation of drawdown flushing was expected to extend the reservoir's life to above 80 years. In contrast, without this flushing mechanism, the reservoir life was projected to be significantly shorter, at approximately 13 years. This difference highlights the importance of sediment management in the long-term viability of the power project.
Freeboard and Surcharge Storage
The arbitration also affected the vertical dimensions of the dam's storage capabilities. The freeboard height, which is the vertical distance between the normal water level and the top of the dam, was reduced from 1.5 m to nil. This reduction allowed for the optimization of the dam's structural height relative to the water level. Additionally, the surcharge storage, which refers to the volume of water held above the normal pool level during peak inflow periods, was set at 3 m. These adjustments were part of the broader effort to define the precise operational limits of the dam, ensuring that it could handle seasonal variations in the Chenab River's flow without exceeding the agreed-upon physical and hydraulic parameters. The combination of these technical specifications—pondage capacity, drawdown flushing, freeboard height, and surcharge storage—defines the operational profile of the Baglihar Dam as a modern run-of-the-river hydroelectric facility.
Resolution of the Initial Filling Dispute
The diplomatic resolution of the initial filling dispute marked a critical juncture in the operational history of the Baglihar Hydroelectric Power Project. The conflict centered on the technical classification of the dam under the Indus Waters Treaty, with Pakistan arguing that the 900 MW run-of-the-river project on the Chenab River was being operated more like a storage project, thereby affecting downstream water flow. India maintained that the project adhered to the treaty’s provisions for run-of-the-river schemes. This disagreement delayed the full utilization of the facility, which was operated by the Jammu and Kashmir State Power Development Corporation and commissioned in 2008.
On 1 June 2010, representatives from India and Pakistan convened at the Permanent Indus Commission to address the standoff. The meeting resulted in a formal agreement regarding the initial filling of the Baglihar dam. Pakistan agreed not to raise the issue further, effectively accepting the parameters of the initial filling as proposed by India. This decision resolved the primary operational disputes that had hindered the dam's commissioning process. The resolution allowed the project to proceed with its intended operational profile without further legal or diplomatic obstruction from the downstream neighbor.
This agreement was significant for the energy infrastructure landscape of the region. By settling the dispute, India secured the right to operate the 900 MW capacity plant according to its design specifications. The Chenab River, located in the Ramban district of Jammu and Kashmir, continues to serve as a vital resource for power generation. The resolution on 1 June 2010 demonstrated the efficacy of the Permanent Indus Commission as a mechanism for bilateral dispute resolution. It also ensured that the Baglihar project, situated 50 km from Ramban town, could contribute to the regional power grid without prolonged uncertainty. The end of these primary disputes allowed the operator to focus on maintenance and efficiency, stabilizing the project's status as an operational hydroelectric asset.
Why it matters
The Baglihar Dam represents a critical node in the geopolitical and technical landscape of South Asian energy infrastructure, serving as a primary case study for the complexities of the Indus Waters Treaty between India and Pakistan. Located on the Chenab River in the Ramban district of Jammu and Kashmir, this run-of-the-river hydroelectric project has been central to long-standing bilateral water disputes. The project’s development and subsequent operational status have provided a practical testing ground for the treaty’s dispute resolution mechanisms, specifically highlighting the procedural distinctions and diplomatic tensions between appointing a Neutral Expert and convening a Court of Arbitration. These legal and diplomatic maneuvers underscore how technical engineering decisions can escalate into significant international relations issues, affecting water flow rights and downstream agricultural and hydropower potential in Pakistan.
Geopolitical and Legal Significance
The Baglihar Hydroelectric Power Project has been instrumental in defining the interpretation of the Indus Waters Treaty. The dispute surrounding the dam involved detailed technical arguments regarding the classification of the project’s components, such as pondage and spillway gates, and their impact on the Chenab River’s flow. The resolution process demonstrated the treaty’s capacity to handle complex engineering parameters through legal frameworks, setting precedents for future hydroelectric developments in the region. The involvement of international arbitration bodies highlighted the necessity of precise technical data in diplomatic negotiations, making Baglihar a reference point for energy analysts and international lawyers studying water-sharing agreements in transboundary river basins.
Regional Energy Infrastructure Impact
Beyond its geopolitical implications, the Baglihar Dam is a vital energy asset for the Jammu and Kashmir region. Operated by the Jammu and Kashmir State Power Development Corporation, it stands as the first major hydroelectric project undertaken by the local power corporation, marking a significant milestone in the region’s energy independence and infrastructure development. With an installed capacity of 900 MW, the project contributes substantially to the regional grid, providing reliable power generation from the Chenab River. Its operational status since 2008 has helped stabilize the energy supply in the area, supporting local economic activities and reducing dependence on imported power. The dam’s location, approximately 50 km from Ramban town, also facilitates regional connectivity and economic integration, further enhancing its strategic importance in the northern Indian energy landscape.
