Overview
The Gatun Dam is a critical piece of energy and transportation infrastructure located in Panama. It is an earthen embankment dam constructed across the Chagres River, situated near the town of Gatun. The structure serves a dual purpose: it creates the artificial Gatun Lake, which forms a vital waterway for the Panama Canal, and it houses a hydroelectric generating station that provides power for the canal’s operations. The dam is currently operational and is managed by the Panama Canal Authority. Its construction took place between 1907 and 1913, marking a significant engineering achievement in the early 20th century. The dam impounds water to form Gatun Lake, which allows ships to travel 33 kilometres (21 mi) across the Isthmus of Panama during their transit. This artificial lake is essential for the canal’s function, providing the necessary water depth and volume for vessels to move between the Atlantic and Pacific Oceans. The hydroelectric station at the dam generates 6 MW of electricity, which is used to operate the locks and other equipment within the canal system. This integration of water management and power generation highlights the dam’s importance as a multifunctional infrastructure component. The Gatun Dam remains a crucial element of the Panama Canal, ensuring the smooth flow of maritime traffic and the reliable operation of the canal’s mechanical systems. Its continued operation underscores the enduring legacy of its early 20th-century construction and its ongoing role in global trade and energy infrastructure.
Why it matters
The Gatun Dam holds a distinctive place in global engineering history as the largest earth dam in the world at the time of its completion in 1913. This superlative status was not merely a matter of volume but represented a fundamental shift in hydraulic engineering, demonstrating that earthen embankments could reliably contain vast quantities of water to create a stable reservoir for complex transit systems. The construction period, spanning from 1907 to 1913, coincided with the most critical phase of the Panama Canal project, where the dam served as the primary mechanism for regulating the water supply necessary for the canal's operation.
Creation of Gatun Lake
The most significant outcome of the dam's construction was the impoundment of the Chagres River, which created Gatun Lake. This body of water became the largest artificial lake in the world, a distinction that underscores the massive scale of the hydrological intervention required to connect the Atlantic and Pacific Oceans. The lake is not just a scenic feature but a functional hydraulic battery; it carries ships for 33 kilometres (21 mi) of their transit across the Isthmus of Panama, effectively leveling the elevation difference between the two oceans through a series of locks. The creation of such a large artificial lake in a tropical rainforest environment presented unique challenges, including the management of water levels during heavy rainfall and the maintenance of sufficient depth for maritime navigation.
Hydroelectric Integration
Beyond its primary role in water retention and navigation, the Gatun Dam integrates a hydro-electric generating station that produces 6 MW of capacity. This electricity is used to operate the locks and other equipment in the canal, creating a self-sustaining energy loop that reduces the canal's dependence on external power grids. The operator, the Panama Canal Authority, relies on this hydroelectric output to ensure the reliability of the lock mechanisms, which are critical for the continuous flow of maritime traffic. The integration of power generation directly into the dam structure exemplifies the multi-functional design philosophy of early 20th-century infrastructure, where a single civil engineering feat could address multiple operational needs: water storage, navigation, and energy production. This operational status remains active, highlighting the enduring utility of the 1913 design in modern canal operations.
How does the Gatun Dam spillway work?
The Gatun Dam incorporates a specialized spillway system designed to manage the fluctuating water levels of Gatun Lake, which serves as the primary water source for the Panama Canal's lock operations. This structure is critical for maintaining the hydraulic balance required for ship transit across the Isthmus of Panama. The spillway is constructed of concrete and features a distinctive semi-circular design, which allows for efficient water discharge while minimizing structural stress on the earthen dam body.
Spillway Structure and Gate Mechanism

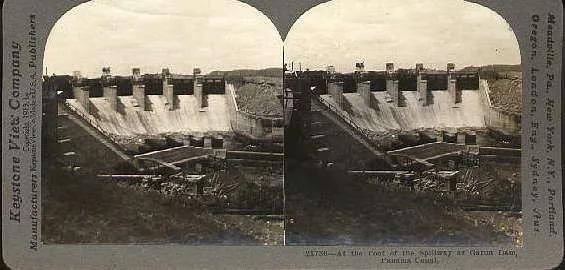

The spillway is equipped with 14 radial gates, also known as Tainter gates, which control the flow of water from the reservoir into the Chagres River. These gates are operated by the Panama Canal Authority to regulate water levels during both normal operations and peak flow events, such as heavy rainfall in the tropical climate of Panama. The hydraulic design of the spillway is engineered to neutralize the force of the discharging water, preventing erosion of the downstream riverbed and ensuring the stability of the dam's foundation.
| Spillway Component | Specification |
|---|---|
| Structure Type | Semi-circular concrete spillway |
| Number of Gates | 14 radial (Tainter) gates |
| Primary Function | Regulate Gatun Lake levels and discharge excess water |
| Downstream River | Chagres River |
| Operator | Panama Canal Authority |
The integration of this spillway with the dam's hydroelectric generating station ensures that water management supports both navigation and power generation. The electricity generated by the station, which has a capacity of 6 MW, is used to operate the locks and other equipment in the canal. The spillway's ability to handle varying flow rates is essential for the continuous operation of the canal, particularly during the wet season when water levels in Gatun Lake rise significantly. The design reflects the engineering priorities of the early 20th century, balancing durability, functionality, and the unique geographical challenges of the Panama Isthmus.
History of construction
The construction of the Gatun Dam was integral to the broader engineering challenge of crossing the Isthmus of Panama. While the initial French effort between 1880 and 1889 focused on a sea-level canal, the subsequent United States takeover in 1904 re-evaluated the geographic and hydrologic constraints of the Chagres River. The decision to adopt a lock-based canal system, finalized in 1906, necessitated the creation of a large artificial reservoir to provide the water volume required for lock operations and ship transit. This strategic shift made the Gatun Dam a crucial element of the Panama Canal infrastructure.
Construction of the earthen dam began in 1907 and concluded in 1913. The project was overseen by George Washington Goethals, who directed the engineering efforts to impound the Chagres River and form the artificial Gatun Lake. This reservoir carries ships 33 kilometres (21 mi) of their transit across the isthmus. The dam's design also incorporated a hydro-electric generating station, which was commissioned in 1913 to generate electricity used to operate the locks and other equipment in the canal. The Panama Canal Authority currently operates the facility, which remains operational with a capacity of 6 MW.
Engineering techniques and materials
The construction of the Gatun Dam represented a significant engineering achievement in early 20th-century civil works, utilizing an earthen embankment design specifically tailored to the geological conditions of the Chagres River valley. The primary structural technique employed was hydraulic fill, a method that allowed for the rapid placement and compaction of soil materials using water pressure. This approach was critical for managing the massive volume of earth required to create the impoundment for Gatun Lake, which serves as the central reservoir for the Panama Canal system.
Hydraulic Fill and Material Sourcing
The hydraulic fill technique involved pumping a mixture of water and soil into the dam site, allowing the water to drain away while the solid particles settled and compacted. This process created a dense, stable foundation and body for the dam. A key logistical advantage of this method was the efficient use of waste materials generated by the simultaneous excavation of the Culebra Cut. Rock and soil debris from the Culebra Cut were transported to the dam site, where they were processed and integrated into the hydraulic fill structure. This integration minimized waste and reduced the need for additional quarrying, streamlining the construction timeline between 1907 and 1913.
The Impervious Clay Core
To prevent excessive seepage through the earthen body, engineers designed an impervious clay core within the dam. This core acted as the primary barrier against water infiltration, ensuring that the hydraulic head of Gatun Lake was effectively retained. The clay material was carefully selected and placed to create a continuous, low-permeability zone running through the center of the embankment. The combination of the hydraulic fill outer layers and the central clay core provided the necessary structural integrity and watertightness required for the dam's long-term operation. This design has allowed the dam to remain operational since its commissioning in 1913, continuing to support the hydro-electric generating station that powers the canal's locks and equipment.
Hydroelectric power generation
The Gatun Dam incorporates a dedicated hydroelectric generating station that serves as the primary power source for the Panama Canal's operational infrastructure. Constructed between 1907 and 1913, the station was designed to harness the potential energy of the Chagres River, which flows through the dam structure to drive turbines and generate electricity. The facility has a total installed capacity of 6 MW, a figure that reflects the specific energy requirements of the canal's lock systems and auxiliary equipment rather than a surplus for regional grid distribution. This power generation is integral to the canal's function, providing the electrical energy needed to operate the massive lock gates, motors, and lighting systems that facilitate the transit of ships across the Isthmus of Panama.
The electricity produced at the Gatun Dam is primarily consumed on-site to support the mechanical operations of the locks. The locks require significant power to lift and lower vessels between sea level and the elevation of Gatun Lake, which sits approximately 26 meters above sea level. The hydroelectric station ensures a reliable and consistent power supply for these critical movements, reducing dependence on external power sources and enhancing the operational resilience of the canal. The 6 MW capacity is sufficient to manage the electrical demands of the lock mechanisms, including the electric motors that drive the lock gates and the lighting systems that illuminate the lock chambers and surrounding areas during day and night transits.
The integration of hydroelectric power generation into the Gatun Dam design was a forward-thinking engineering decision that capitalized on the natural flow of the Chagres River. The dam impounds the river to create Gatun Lake, an artificial body of water that not only provides the necessary water volume for lock operations but also drives the turbines of the hydroelectric station. This dual-purpose design maximizes the utility of the water resource, ensuring that the energy generated from the river's flow directly supports the canal's primary function. The station's continued operation underscores the enduring relevance of the original engineering plans, which anticipated the need for a dedicated power source to maintain the efficiency and reliability of the Panama Canal's lock systems.
The hydroelectric generating station at the Gatun Dam remains a critical component of the Panama Canal's infrastructure. Its 6 MW capacity continues to provide the necessary electrical power for the operation of the locks and other essential equipment, ensuring the smooth transit of ships across the isthmus. The station's design and operation reflect the careful planning and engineering expertise that went into the construction of the Panama Canal, highlighting the importance of integrating power generation with the canal's hydraulic systems. The continued reliance on this hydroelectric power source demonstrates the enduring value of the original design and the strategic importance of the Gatun Dam in the overall functionality of the Panama Canal.
Gatun Lake and water management
The Gatun Dam functions as the primary retention structure for Gatun Lake, an artificial body of water that serves as the central aquatic highway of the Panama Canal. This lake carries ships approximately 33 kilometres (21 mi) of their transit across the Isthmus of Panama, effectively bridging the Atlantic and Pacific oceans. Its construction was a critical engineering undertaking that took place between 1907 and 1913, culminating in the impoundment of the lake that defines the canal’s sea-level section. The management of water levels in Gatun Lake is essential not only for navigation depth but also for the hydraulic operation of the canal’s lock systems.
Hydro-electric generation and lock operation
In addition to its primary function of water retention, the Gatun Dam houses a hydro-electric generating station. This facility generates electricity that is directly used to operate the locks and other critical equipment within the canal infrastructure. The plant has a capacity of 6 MW, providing a dedicated power source for the mechanical and electrical systems required to raise and lower vessels between the lake level and the sea. This integration of power generation and water management ensures that the canal’s operational energy needs are partially met by the very resource it manages, creating a symbiotic relationship between the hydraulic head of the Chagres River and the mechanical demands of the transit route.
Madden Dam and water regulation
To further regulate the water levels of Gatun Lake, the Madden Dam was constructed in 1935. This secondary dam was built further upstream on the Chagres River to create Madden Lake, which acts as a buffer reservoir. The construction of the Madden Dam was a strategic decision to mitigate the variability of rainfall in the tropical climate of the Isthmus of Panama. By regulating the flow of water from the upper Chagres River, the Madden Dam helps maintain consistent water levels in Gatun Lake, ensuring that there is sufficient depth for ship transit and adequate volume for the lock chambers during both wet and dry seasons. This dual-dam system represents a sophisticated approach to water management, balancing the needs of navigation, power generation, and hydrological stability.
The operational status of the Gatun Dam remains active, with the Panama Canal Authority overseeing its management and maintenance. The dam continues to play a crucial role in the functionality of the Panama Canal, which remains a vital artery for global maritime trade. The water management strategies implemented through the Gatun and Madden dams ensure that the canal can handle the increasing volume and size of ships transiting the isthmus, while also supporting the hydro-electric generation that powers the lock mechanisms. The integration of these systems highlights the importance of coordinated water resource management in large-scale infrastructure projects.
