Overview

The Gas Turbine Modular Helium Reactor (GT-MHR) was a nuclear reactor design concept that remained under development but was never constructed, ultimately resulting in a cancelled operational status. This advanced reactor design was the product of an international collaboration involving a group of Russian enterprises, an American consortium led by General Atomics, French company Framatome, and Japanese firm Fuji Electric. The GT-MHR represented a significant departure from traditional nuclear power generation methods by utilizing a helium-cooled, graphite-moderated core architecture.

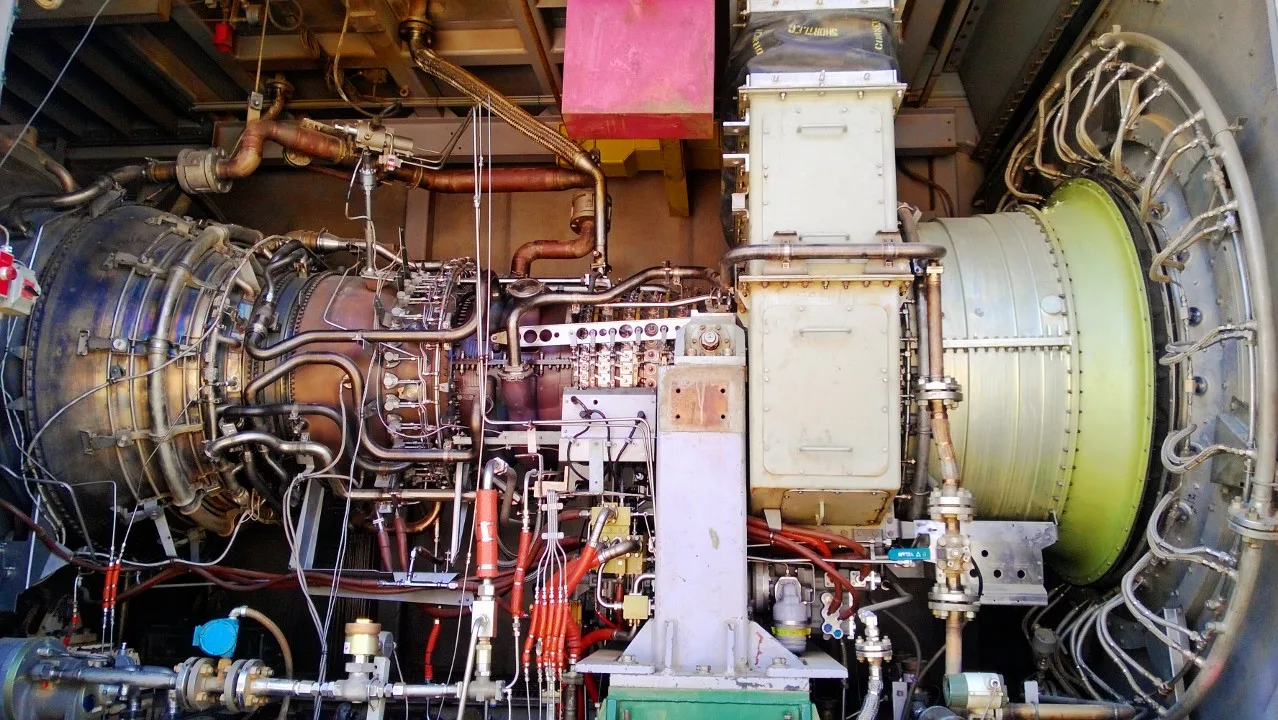

A defining characteristic of the GT-MHR was its power conversion system. Unlike the more common steam turbine systems used in many conventional nuclear reactors, the GT-MHR generated power directly via a gas turbine. This direct-cycle approach aimed to improve thermal efficiency and simplify the balance of plant components. The reactor core design featured prismatic fuel elements containing TRISO (Tristructural Isotropic) fuel compacts. These fuel particles provided enhanced thermal and mechanical properties, contributing to the reactor's inherent safety features and operational flexibility.

The development of the GT-MHR was part of the broader exploration of Generation IV nuclear reactor technologies, focusing on modular construction and advanced materials. The helium coolant offered advantages such as chemical inertness and high thermal conductivity, while the graphite moderator provided excellent neutron economy. The collaboration between American, Russian, French, and Japanese entities highlighted the global interest in advancing nuclear technology beyond traditional light water reactor designs. Despite the technical innovations and international partnership, the GT-MHR project did not progress to full-scale commercial deployment, remaining a notable concept in the history of nuclear reactor development.

Development history

The Gas Turbine Modular Helium Reactor (GT-MHR) emerged from a significant international collaborative effort involving enterprises from Russia, the United States, France, and Japan. The development consortium included Russian organizations OKBM Afrikantov, the Kurchatov Institute, and VNIINM, working alongside American firm General Atomics, French company Framatome, and Japanese manufacturer Fuji Electric. This multi-national partnership aimed to advance a helium-cooled, graphite-moderated reactor design utilizing TRISO fuel compacts in a prismatic core configuration. The power generation approach relied on a gas turbine system rather than the more conventional steam turbine method commonly found in nuclear power plants.

Project Timeline

The development history of the GT-MHR followed a structured timeline with key milestones identified for the project's progression. The conceptual design phase was initiated in 1997, marking the formal beginning of the collaborative engineering effort. This initial stage involved defining the fundamental parameters of the reactor system, including the integration of the helium cooling loop and the prismatic core architecture. The project planned to reach a final design completion by 2005, which would have solidified the technical specifications required for prototype construction. The timeline further projected that a prototype unit would be commissioned in 2010, representing the transition from paper design to operational demonstration. Despite these planned milestones, the GT-MHR project ultimately reached a cancelled operational status, reflecting the challenges inherent in developing advanced nuclear reactor concepts through international consortia.

How does the GT-MHR core design work?

The GT-MHR core utilizes a graphite-moderated, helium-cooled configuration distinct from traditional pressurized water reactors. The core structure consists of a graphite cylinder with a radius of 4 metres and a height of 10 metres. This cylindrical arrangement is composed of concentric rings of hexagonal prismatic blocks. Each block contains vertical channels for the helium coolant and horizontal holes for fuel pins.

The fuel consists of TRISO (Tristructural Isotopic) particles embedded in graphite compacts. These particles provide multiple layers of ceramic and metallic coatings to retain fission products. The helium coolant flows through the vertical channels, absorbing heat generated by the fission process. The heated helium then exits the core to drive the gas turbine directly, minimizing thermal losses compared to steam turbine cycles.

Axial reflectors at the top and bottom of the core help optimize the neutron flux distribution. The prismatic block design allows for modular replacement and flexible core configuration. The graphite moderator slows down neutrons to thermal energies, enhancing the probability of fission in the uranium fuel.

Component Dimension/Count
Core Radius 4 metres
Core Height 10 metres
Block Shape Hexagonal prismatic
Coolant Helium
Moderator Graphite
Fuel Type TRISO particles

The thermal power output is transferred via the helium gas to a closed-cycle gas turbine. This direct cycle approach improves thermodynamic efficiency. The reactor operates at lower pressure than PWRs, reducing the primary loop volume and potential energy release during accidents. The graphite structure provides significant thermal inertia, enhancing inherent safety characteristics.

What distinguishes GT-MHR from light water reactors?

The Gas Turbine Modular Helium Reactor (GT-MHR) fundamentally diverges from commercial light water reactors (LWRs) in its thermodynamic cycle and inherent safety architecture. While LWRs rely on the Rankine cycle, utilizing steam turbines with a typical thermal efficiency of approximately 32%, the GT-MHR employs a direct-cycle gas turbine system. This design leverages the helium coolant to drive the turbine directly, achieving a thermal efficiency of up to 48%. The efficiency gain is derived from the higher operating temperatures enabled by the graphite moderator and helium coolant, reducing the thermal energy required per unit of electrical output compared to the steam-based systems of conventional reactors.

Thermodynamic Efficiency and Cycle Comparison

The performance advantage of the GT-MHR stems from the Brayton cycle used in its gas turbine system. In contrast, light water reactors operate on the Rankine cycle, where water is heated to produce steam that drives a turbine before condensing back into water. The thermal efficiency (η) of the Brayton cycle is generally higher due to the direct coupling of the reactor core to the turbine, minimizing intermediate heat exchangers and reducing parasitic losses. The GT-MHR's prismatic core design, utilizing TRISO fuel compacts, allows for stable operation at higher temperatures than the pressurized water environments of LWRs. This results in a more compact power conversion system and improved overall plant efficiency.

Inherent Safety and Passive Heat Conduction

Safety in the GT-MHR is characterized by passive heat removal mechanisms, distinguishing it from the active safety systems often required in LWRs. The reactor's graphite moderator and TRISO fuel compacts provide significant thermal inertia, allowing the core to absorb decay heat without immediate external cooling. In the event of a loss of power or coolant flow, heat is conducted passively to the surrounding structures and eventually to the ground. This passive conduction reduces reliance on active pumps and diesel generators, enhancing the reactor's resilience during transient events. The design ensures that the fuel temperature remains within safe limits, minimizing the risk of core meltdown compared to traditional light water reactor configurations.

Worked examples

Core Block Geometry

The GT-MHR design utilizes a prismatic core structure composed of individual fuel blocks. Each block contains a specific arrangement of coolant channels and fuel pins. Based on the provided specifications, a single block features 108 coolant channels and 216 fuel pins. To determine the total number of fuel pins in a core section consisting of 36 blocks, we multiply the number of pins per block by the total number of blocks.

Calculation: 216 pins/block × 36 blocks = 7,776 fuel pins. This calculation confirms that a 36-block core section contains 7,776 fuel pins in total.

Coolant Channel Aggregation

Similarly, the total number of coolant channels can be calculated using the same block specifications. With 108 channels per block and 36 blocks in the core section, the total channel count is derived by multiplying the channels per block by the block count.

Calculation: 108 channels/block × 36 blocks = 3,888 coolant channels. This indicates that the helium coolant flows through 3,888 distinct channels in a 36-block configuration.

Pin-to-Channel Ratio

The relationship between fuel pins and coolant channels within a single block can also be analyzed. Given 216 pins and 108 channels per block, the ratio of pins to channels is calculated by dividing the number of pins by the number of channels.

Calculation: 216 pins / 108 channels = 2 pins per channel. This ratio suggests that, on average, each coolant channel in a GT-MHR fuel block accommodates two TRISO fuel pins, optimizing the helium cooling efficiency for the graphite-moderated core.

Legacy and the Energy Multiplier Module

Following the cancellation of the Gas Turbine Modular Helium Reactor (GT-MHR) project, General Atomics continued to explore advanced nuclear concepts that retained key technological features of the original design. In 2010, the company conceptualized the Energy Multiplier Module (EM2), a next-generation nuclear reactor system designed to leverage the power conversion advantages of the GT-MHR while introducing significant advancements in fuel cycle management and neutron spectrum optimization. The EM2 was not a direct successor but rather a conceptual evolution that sought to address emerging challenges in nuclear waste transmutation and fuel flexibility.

Technological Continuity and Innovation

The EM2 concept maintained the helium-cooled, gas turbine-driven power conversion system that characterized the GT-MHR. This approach offered direct cycle efficiency advantages over traditional steam turbine systems, potentially achieving higher thermal efficiency due to the helium working fluid's properties at elevated temperatures. The gas turbine configuration eliminated the need for large condensers and feedwater systems, reducing both capital costs and parasitic power losses in the balance of plant.

Unlike the GT-MHR's thermal neutron spectrum, the EM2 incorporated a fast neutron spectrum design, classifying it as a gas-cooled fast reactor (GCFR). This spectral shift enabled more effective transmutation of minor actinides and fission products, particularly targeting long-lived isotopes such as neptunium-237, technetium-99, and iodine-129. The fast spectrum also improved the utilization of uranium-238 through increased fission probability, enhancing the overall fuel economy of the system.

Waste Transmutation Strategy

The primary innovation of the EM2 concept centered on nuclear waste transmutation capabilities. By operating in a fast neutron spectrum, the reactor could convert long-lived radioactive isotopes into shorter-lived or stable isotopes through neutron capture and subsequent beta decay. This process significantly reduced the radiotoxicity and volume of high-level nuclear waste requiring geological repository storage.

The transmutation efficiency depends on the neutron flux intensity and the residence time of fuel assemblies within the core. Fast neutrons, typically in the energy range above 0.6 MeV, interact more effectively with minor actinides compared to thermal neutrons. The EM2 design aimed to optimize this interaction by maintaining high helium coolant temperatures and utilizing advanced fuel forms compatible with fast spectrum conditions.

Development Status and Outlook

The EM2 remained primarily a conceptual design as of the available documentation, with General Atomics continuing to refine the technical parameters and economic modeling. The integration of gas turbine power conversion with fast reactor technology represented a unique combination in the nuclear industry, distinguishing the EM2 from other Generation IV reactor concepts. However, the project faced competition from other advanced reactor designs and required significant demonstration efforts to validate the technical and economic assumptions underlying the concept.

Why it matters

The Gas Turbine Modular Helium Reactor (GT-MHR) represents a significant divergence from traditional nuclear power generation, primarily through its integration of a direct-cycle gas turbine with a high-temperature helium-cooled core. Unlike conventional light water reactors that rely on steam turbines and complex secondary loops, the GT-MHR design utilizes helium as the primary coolant and graphite as the moderator. This configuration allows for higher thermodynamic efficiency, as the helium expands directly through the turbine, reducing parasitic power losses and simplifying the balance of plant. The use of TRISO (Tristructural Isotropic) fuel compacts within a prismatic core further enhances the reactor's inherent safety and thermal performance, enabling outlet temperatures that are substantially higher than those of standard pressurized water reactors.

Influence on Modular Reactor Concepts

Although the GT-MHR project was ultimately cancelled and never reached full-scale construction, its engineering principles have had a lasting impact on the development of subsequent modular nuclear technologies. The design demonstrated the viability of integrating nuclear islands with compact gas turbine generators, a concept that has influenced later generations of high-temperature gas reactors. The modular nature of the GT-MHR, characterized by standardized prismatic core blocks and scalable power output, provided a blueprint for future small modular reactor (SMR) initiatives. These initiatives, including concepts like the EM2, continue to explore the advantages of high-temperature helium cooling and direct-cycle power conversion to achieve greater flexibility and efficiency in nuclear power generation.

The collaboration behind the GT-MHR, involving Russian enterprises, General Atomics, Framatome, and Fuji Electric, highlighted the potential for international cooperation in advanced nuclear design. This multi-national effort contributed to the refinement of key components, such as the helium turbine and the TRISO fuel fabrication processes, which remain critical technologies in the broader landscape of Generation IV nuclear reactors. The GT-MHR's legacy persists in the ongoing pursuit of high-efficiency, modular nuclear solutions that aim to complement variable renewable energy sources and provide flexible baseload power.
