Overview

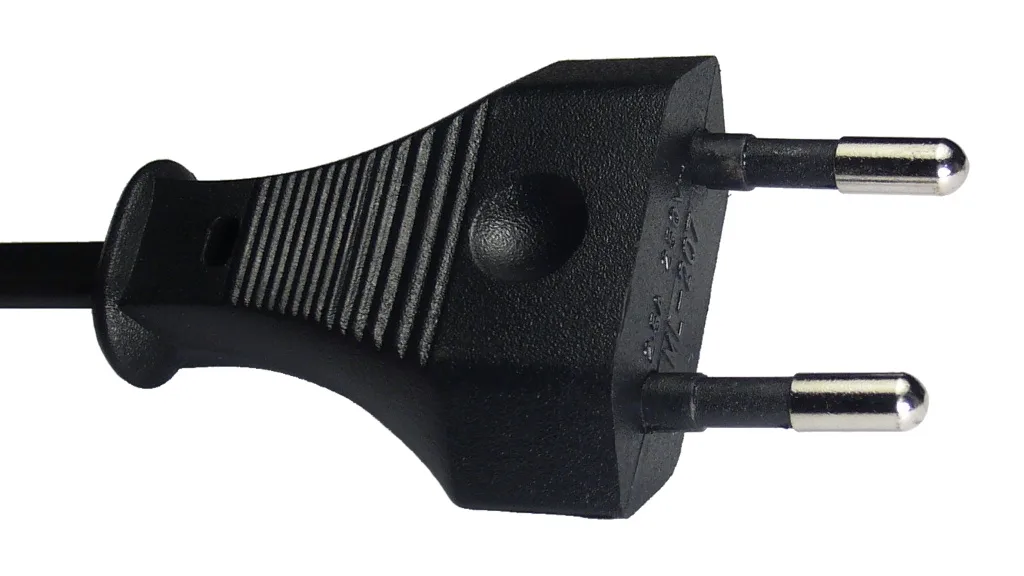

The Europlug, formally designated as Type C by the International Electrotechnical Commission (IEC), is a standardized flat, non-rewirable two-pole, round-pin domestic AC power plug. It is engineered specifically for low-power Class II appliances, providing a universal interface for electrical devices that require double insulation rather than a dedicated earth connection. The plug is rated for voltages up to 250 V and currents up to 2.5 A, making it suitable for a wide range of consumer electronics, small lighting fixtures, and portable appliances. Its design is defined by the CEE 7 standard under the official designation CEE 7/16 Alternative II, which mandates that the plug be non-rewirable and permanently attached to a power cord or the appliance itself. Any deviation from this attachment method renders the plug non-compliant with the standard.
Technical Specifications and Design
The Europlug features two round pins, typically 4.0 mm in diameter and 19 mm in length, spaced 19 mm apart. This configuration allows for a high degree of mechanical flexibility and compatibility with various socket designs across different regions. The flat profile of the plug enables it to slide into sockets with minimal clearance, a feature that became particularly advantageous in the design of compact electronic devices. The standard requires the plug to be non-rewirable, meaning the wires are connected internally to the pins and secured within the plastic housing, often through a strain relief mechanism that anchors the cord to the plug body. This construction reduces the likelihood of loose connections and enhances the durability of the power connection for frequently moved appliances.
International Adoption and Compatibility
As one of the most widely used plug types globally, the Europlug serves as a de facto standard for low-power devices in Europe, South America, and parts of Asia and Africa. Its widespread adoption is partly due to its compatibility with multiple socket types, including the Type E (France), Type F (Germany), and Type J (Switzerland) sockets, which often feature grounding clips or holes that do not interfere with the ungrounded Europlug. This versatility allows manufacturers to use a single plug design for international markets, reducing production costs and simplifying supply chains. The Europlug's status as a compromise design for low-power applications has ensured its continued relevance in an era of increasingly diverse electrical standards, providing a reliable and simple solution for connecting a vast array of modern electronic devices to the AC power grid.
History and Standardization
The Europlug originated as a standardized solution for low-power domestic appliances across Europe, with its formal inception marked by the publication of CEE Publication 7 in 1963 (per historical standardization records). This early framework established the foundation for a flat, non-rewirable two-pole plug with round pins, designed to accommodate voltages up to 250 V and currents up to 2.5 A. The design emerged as a pragmatic compromise for Class II appliances, prioritizing simplicity and cost-effectiveness for devices such as lamps, radios, and small kitchen electronics that did not require a dedicated earth connection.
Standardization Evolution
The technical definition of the Europlug evolved through several key international standards. Initially defined under the CEE 7 standard with the official designation CEE 7/16 Alternative II, the plug was required to be non-rewirable and permanently attached to the power cord or appliance to ensure compliance (per IEC documentation). In 1975, the International Electrotechnical Commission (IEC) further formalized the specifications through IEC TR 83, which helped harmonize the design across different national markets. This was followed by the adoption of EN 50075 in 1990, which integrated the Europlug into the broader European Norm framework, ensuring consistent manufacturing and interoperability throughout the European Economic Area.
Designation Changes
Over time, the nomenclature for the Europlug shifted from the original CEE 7/16 designation to the more widely recognized IEC 60083 standard, where it is classified as Type C. This transition reflected the growing influence of the IEC in global electrical standardization. The Type C designation remains the primary reference in technical literature and consumer guides, distinguishing the Europlug from other round-pin plugs such as Type E and Type F, which feature additional earth contacts. The standard strictly mandates that the plug be non-rewirable, meaning the wires are soldered or crimped within the plug housing rather than connected via screws, which simplifies production and reduces the risk of loose connections in low-current applications.
Contributing Countries
The development of the Europlug involved collaboration among several European nations, including Germany, France, Italy, and the Netherlands, each contributing to the refinement of the pin dimensions and voltage ratings. This multinational effort ensured that the plug could fit into a variety of socket types, enhancing its versatility across different European power grids. The resulting design became a de facto standard for small appliances, facilitating trade and consumer convenience throughout the continent.
Physical Design and Dimensions
The Europlug is defined by strict physical parameters that ensure compatibility with the CEE 7 standard. It is a flat, non-rewirable two-pole plug with round pins. The design is optimized for low-power Class II appliances. The plug body measures 35.3 mm in length and 13.7 mm in width. These dimensions allow it to fit into various European socket types. The flat profile reduces the overall volume of the connector. This compact size is critical for portable devices.
Pin Specifications
The pins are the primary conductive elements of the Europlug. Each pin has a total length of 19 mm. The tip of each pin has a diameter of 4 mm. The shaft of the pin has a diameter of 3.8 mm. This slight reduction in shaft diameter aids in insertion. The convergence angle of the pins is also specified. The pins are angled to match the socket holes. This alignment ensures reliable electrical contact. The 4 mm tip diameter is a key feature. It allows the Europlug to fit into sockets designed for larger pins. The 3.8 mm shaft provides sufficient surface area for current flow. The 2.5 A current rating is supported by these dimensions. The 250 V voltage rating is also maintained by the pin design. The pins are typically made of brass or steel. They are often silver-plated for better conductivity. The flat body ensures the pins are held firmly. This prevents wobble during use.
Safety Rationale
The physical design of the Europlug prioritizes user safety. It is designed for Class II appliances. These appliances feature double insulation. This means they do not require a separate earth connection. The Europlug is therefore a two-pole connector. The flat body helps to cover the live pins. This prevents accidental contact with the metal parts. The standard requires the plug to be non-rewirable. This ensures the internal connections remain secure. The plug is attached directly to the power cord. This reduces the risk of loose wires. The design ensures no accessible live parts remain exposed. The 19 mm pin length allows for deep insertion. This maximizes the contact area within the socket. The 35.3 mm body length provides adequate grip. The 13.7 mm width fits comfortably in most hands. The convergence angle guides the pins into the socket. This reduces the force required for insertion. The overall design is a compromise. It balances size, cost, and safety. The CEE 7/16 Alternative II designation reflects this balance. The standard ensures consistency across manufacturers. This uniformity is essential for interoperability. The Europlug remains a widely used connector. Its simple design has stood the test of time. The 1963 commissioning date marks its introduction. It has been operational since then. The design continues to meet modern safety needs. The flat profile is a distinctive feature. It distinguishes the Europlug from other plug types. The round pins are another key characteristic. They provide reliable contact in various socket designs. The 2.5 A rating is suitable for many devices. The 250 V rating covers most domestic voltages. The non-rewirable nature simplifies production. It also reduces user error. The attached power cord ensures a secure connection. The overall design is efficient and effective. It serves its purpose well. The Europlug is a standard component in many homes. It is recognized by its shape and size. The 35.3 mm and 13.7 mm dimensions are standard. The 19 mm pin length is standard. The 4 mm and 3.8 mm diameters are standard. These specifications are critical for compliance. The CEE 7 standard enforces these dimensions. This ensures that all Europlugs are compatible. The safety features are built into the design. The flat body covers the pins. The double insulation protects the user. The non-rewirable design ensures reliability. The Europlug is a safe and effective connector. It continues to be used worldwide. The design has not changed significantly. It remains a benchmark for plug design. The simplicity of the Europlug is its strength. It performs its function without complexity. The physical dimensions are precise. They ensure a good fit in the socket. The pin design ensures good contact. The body design ensures safety. The Europlug is a well-engineered product. It meets the needs of users and manufacturers. The standard is well-defined. It provides clear guidelines for production. The Europlug is a testament to good design. It is simple, safe, and effective. The 1963 introduction was a milestone. It established a new standard for plugs. The Europlug has influenced other designs. It remains a relevant connector today. The physical design is key to its success. The dimensions are optimized for performance. The Europlug is a reliable choice for many devices. It continues to serve its purpose well. The standard ensures quality and consistency. It is recognized and accepted. The design is proven and tested. It meets the requirements of the CEE 7 standard. The physical design is a key factor. It ensures compatibility and safety. The Europlug is a standard connector. It is used in many applications. It continues to be a popular choice. The Europlug is a successful design. It is widely used and accepted.
How does the Europlug achieve compatibility with European sockets?
The Europlug achieves widespread compatibility across Europe through a specific mechanical design that accommodates variations in socket geometry. Defined by the CEE 7 standard, the plug features two round pins with a diameter of 4.0 mm. The key to its versatility lies in the pin spacing and the socket's internal structure. While the standard pin center-to-center distance for the Europlug is 19 mm, the actual inner distance between the pins is 13.5 mm. This specific dimension allows the plug to fit into sockets with varying hole diameters and pin spacings.
Socket Compatibility Mechanics
European sockets, such as Types E, F, and K, are designed to accept the Europlug through a combination of hole diameter and internal gripping mechanisms. The standard hole diameter for these sockets is 5.5 mm. This is slightly larger than the 4.0 mm pin diameter of the Europlug, creating a necessary clearance for insertion. However, this clearance alone would result in a loose fit. To secure the connection, sockets employ different gripping strategies.
| Parameter | Standard Value | Function |
|---|---|---|
| Pin Diameter | 4.0 mm | Standard contact surface |
| Socket Hole Diameter | 5.5 mm | Allows for pin convergence |
| Pin Center Spacing | 19 mm | Standardized alignment |
| Inner Pin Distance | 13.5 mm | Effective grip range |
In Type F sockets, also known as the Schuko socket, the grip is achieved through spring-loaded earth clips located on the top and bottom of the socket. These clips press against the flat sides of the Europlug pins, securing the plug in place. This mechanism allows the Europlug to fit snugly despite the 1.5 mm difference between the pin diameter and the hole diameter. The formula for the effective grip force can be conceptualized as Fgrip∝(Dhole−Dpin), where the difference in diameters determines the pressure exerted by the spring clips.
Type E and Type K Variations
Type E sockets, commonly found in France, utilize a different gripping mechanism. Instead of spring clips, they feature a protruding earth pin in the center of the socket. The Europlug has a corresponding hole on one side of its face to accommodate this pin. The grip is achieved through the friction between the pin and the socket's internal walls, as well as the earth pin's alignment. This design ensures that the Europlug remains securely connected while maintaining electrical continuity through the earth pin.
Type K sockets, used primarily in Denmark, have a larger pin spacing of 20 mm compared to the 19 mm of the Europlug. However, the Europlug can still fit into Type K sockets due to the flexibility of the pins and the socket's internal design. The 13.5 mm inner distance of the Europlug allows it to bridge the gap effectively, ensuring a stable connection. This compatibility is crucial for travelers and manufacturers who need to use low-power Class II appliances across different European countries.
The Europlug's design as a compromise solution for low-power appliances is evident in its ability to fit into multiple socket types without requiring additional adapters. This versatility is a result of careful engineering that balances pin diameter, spacing, and gripping mechanisms. The standardization under the CEE 7/16 Alternative II ensures that manufacturers produce plugs that are non-rewirable and securely attached to the power cord or appliance, enhancing safety and reliability.
What are the compatibility issues with non-European socket types?
The Europlug’s compatibility is strictly limited by its physical dimensions and the absence of an earth pin. The standard specifies a maximum pin diameter of 4.0 mm and a center-to-center spacing of 19 mm. These tolerances allow it to fit into sockets with larger holes or wider spacings, but create significant friction or mechanical interference with tighter designs.Compatibility with Non-European Types
| Socket Type | Typical Location | Hole Diameter / Spacing | Compatibility Status |
|---|---|---|---|
| Type D | India, Nepal | 5.5–7.1 mm / 19.05 mm | Compatible (loose fit) |
| Type G | UK, Ireland | 4.8 mm / 22.2 mm | Incompatible (requires adaptor) |
| Type H | Israel | 4.8 mm / 19 mm | Incompatible (requires adaptor) |
| Type J | Switzerland | 4.0 mm / 19 mm | Compatible (tight fit) |
| Type L | Italy | 5.0 mm / 32.5 mm (16A) | Incompatible (16A); Compatible (10A variant) |
| Type N | Brazil | 4.0 mm / 19 mm | Compatible |
| Type O | Thailand | 4.0 mm / 19 mm | Compatible |
Safety Risks and Mechanical Interference
The primary safety concern with Type G (BS 1363) sockets is the lack of a third earth pin on the Europlug. The Type G socket has a rectangular earth pin that protrudes into the center, which physically blocks the two round pins of the Europlug unless a specific two-pin adaptor is used. Without this adaptor, the connection is mechanically unstable. For Type D sockets, while the Europlug fits, the larger hole diameters (up to 7.1 mm) can lead to a loose electrical contact. This increases the risk of arcing and heat generation at the contact points, particularly for the Europlug’s maximum rated current of 2.5 A. The formula for contact resistance Rc highlights the importance of surface area and pressure: Rc∝Areal1 Where Areal is the real area of contact. In loose-fitting sockets, Areal decreases, increasing resistance and potential heat dissipation P=I2R. This is critical for Class II appliances that rely on double insulation rather than an earth path. Type L 16A sockets are incompatible due to the significantly wider pin spacing of 32.5 mm, which exceeds the Europlug’s 19 mm spacing. However, the Type L 10A variant, with a spacing of 23 mm, may accept the Europlug, though the fit can be tight depending on manufacturing tolerances. Users must verify the specific socket rating to avoid mechanical stress on the plug pins.Worked examples: Calculating Europlug fitment in specific sockets
Example 1: Verifying Fit in a Type F Socket
The Europlug, defined by the CEE 7/16 Alternative II standard, features a pin spacing of 19 mm. A Type F socket typically has a pin hole spacing of 19 mm. To verify fitment, compare the pin distance to the socket hole distance. The Europlug pins are 4.0–4.8 mm in diameter. Type F socket holes are generally 4.1–4.8 mm. Since the pin diameter falls within the socket hole range, and the spacing matches, the Europlug fits securely. This is a standard configuration for low-power Class II appliances rated up to 2.5 A and 250 V.
Example 2: Verifying Fit in a Type L 10A Socket
A Type L 10A socket has three pin holes per pole, with the central hole having a diameter of 4.5 mm. To determine fitment, check if the Europlug pin diameter is less than or equal to the socket hole diameter. The maximum Europlug pin diameter (4.8 mm) is slightly larger than the Type L 10A central hole (4.5 mm). However, due to manufacturing tolerances and the flat, non-rewirable design of the Europlug, it often fits with a snug connection. The pin spacing of the Europlug (19 mm) must also align with the central holes of the Type L socket, which are spaced 19 mm apart. This alignment ensures proper electrical contact for currents up to 2.5 A.
Example 3: Identifying Mismatch in a Type L 16A Socket
A Type L 16A socket has pin holes with a diameter of 5.0 mm. While the pin diameter is smaller than the socket hole, the primary issue is the pin spacing. The Type L 16A socket has pin holes spaced 22 mm apart. The Europlug has a fixed pin spacing of 19 mm. The 19 mm spacing of the Europlug does not match the 22 mm spacing of the Type L 16A socket. This mismatch can lead to a loose connection, where the Europlug pins do not align properly with the socket holes. For appliances rated up to 2.5 A, this loose fit may cause intermittent power or overheating, making the Type L 16A socket less ideal for Europlug fitment without an adapter.
Applications and Regulatory Context
The Europlug is specifically engineered for low-power Class II appliances, a classification that relies on double insulation rather than an earth connection for safety. This design makes the plug ideal for devices where the housing is non-conductive or where the internal insulation provides sufficient protection against electric shock. The standard rating of up to 2.5 A and 250 V accommodates the power requirements of a wide range of household electronics without the bulk of heavier-duty connectors. The non-rewirable nature of the Europlug ensures that the connection between the pins and the internal wiring remains secure and consistent, reducing the risk of loose contacts that can occur with user-assembled plugs. This reliability is critical for appliances that are frequently plugged and unplugged, such as mobile phone chargers and laptop adapters. The compact form factor allows for efficient use of space on power strips and wall sockets, which is particularly valuable in modern homes with increasing numbers of electronic devices. The plug’s flat profile also facilitates easier storage and transport, making it a popular choice for travel adapters and portable electronics. The standard mandates that the plug be attached directly to the power cord or appliance, ensuring that the assembly meets the rigorous testing requirements for durability and electrical continuity. This requirement eliminates the variability associated with user-installed plugs, providing a consistent level of quality and safety across different manufacturers and models. The Europlug’s design reflects a compromise that balances safety, convenience, and cost-effectiveness, making it a ubiquitous solution for low-power AC power needs in Europe and beyond. The exclusion of rewirable options simplifies the manufacturing process and reduces the potential for user error during installation. This standardization contributes to the overall reliability of the electrical supply chain for consumer electronics. The plug’s compatibility with various socket types, including the Type E and Type F sockets common in Europe, further enhances its versatility. Users can often insert the Europlug into multiple socket configurations without the need for additional adaptors, although the presence of earth clips on the socket may vary. The Europlug’s widespread adoption is a testament to its effectiveness in meeting the diverse needs of modern consumers. The standard continues to evolve to accommodate new technologies and changing usage patterns, ensuring that the Europlug remains a relevant and reliable solution for low-power applications. The regulatory context surrounding the Europlug emphasizes the importance of adherence to the CEE 7 standard, which provides a clear framework for manufacturers and consumers alike. This framework helps to ensure that all Europlugs meet the same high standards of safety and performance, regardless of the brand or country of origin. The standard also facilitates international trade by providing a common reference point for product compatibility and quality assurance. The Europlug’s role in the broader landscape of electrical connectors is significant, as it provides a simple and effective solution for a wide range of applications. The plug’s design continues to influence the development of new connector technologies, as engineers seek to balance the need for compactness, safety, and ease of use. The Europlug remains a fundamental component of the electrical infrastructure in many parts of the world, providing a reliable and efficient means of connecting low-power devices to the AC power supply. The standard’s emphasis on non-rewirable construction and direct attachment to the appliance ensures that the plug maintains its integrity over time, reducing the need for frequent maintenance or replacement. This durability is a key factor in the Europlug’s continued popularity among consumers and manufacturers. The plug’s ability to handle the power requirements of modern electronics, such as smartphones and tablets, demonstrates its adaptability to changing technological trends. The Europlug’s design also takes into account the need for ease of use, with a shape that is easy to grip and insert into sockets. This user-friendly design contributes to the plug’s widespread acceptance and continued relevance in the marketplace. The standard’s requirements for voltage and current ratings ensure that the Europlug can safely handle the power demands of a wide range of devices, from small personal electronics to larger household appliances. The Europlug’s role in the regulatory framework for electrical connectors is crucial, as it provides a clear and consistent standard for manufacturers and consumers. This standard helps to ensure that all Europlugs meet the same high levels of safety and performance, reducing the risk of electrical faults and improving the overall reliability of the electrical supply chain. The Europlug’s design continues to evolve to meet the changing needs of consumers and the demands of new technologies, ensuring that it remains a relevant and effective solution for low-power AC power applications. The standard’s emphasis on quality and consistency helps to maintain the Europlug’s reputation as a reliable and safe connector for a wide range of devices. The Europlug’s widespread use in Europe and other parts of the world is a testament to its effectiveness and adaptability. The standard continues to serve as a model for other connector designs, influencing the development of new technologies and improving the overall quality of electrical connections. The Europlug remains an essential component of the modern electrical landscape, providing a simple and effective solution for connecting low-power devices to the AC power supply. The Europlug’s design also takes into account the need for compatibility with various socket types, making it a versatile and convenient choice for consumers.
