Overview
Electric power transmission represents the bulk movement of electrical energy from a generating site, such as a power plant, to an electrical substation. This process is facilitated by long conductors known as transmission lines, which collectively form an interconnected transmission network. The primary function of this network is to transport large volumes of electricity over significant distances with minimal loss, bridging the gap between where power is generated and where it is locally distributed. In the power industry, electric power transmission is distinct from the local wiring between high-voltage substations and end customers, which is typically referred to as electric power distribution. While power distribution is semantically a type of power transmission in common parlance, the industry maintains this technical distinction to differentiate between the high-voltage, long-distance transport and the lower-voltage, localized delivery systems.
Role in the Electrical Grid
The combined transmission and distribution network constitutes a critical component of electricity delivery, known as the electrical grid. This integrated system ensures that electrical energy reaches consumers efficiently and reliably. The transmission network operates at higher voltage levels compared to the distribution network, which helps to reduce current and, consequently, resistive losses over long distances. This structural hierarchy allows for the optimization of energy flow from diverse generating sources to various load centers. The operational status of the transmission system is generally considered operational, reflecting its continuous role in maintaining the balance between supply and demand across the grid. The distinction between transmission and distribution is essential for understanding the technical and economic dynamics of the power industry, as each segment faces unique challenges related to infrastructure, voltage regulation, and load management.
Technical Distinctions
The separation between transmission and distribution is not merely semantic but reflects significant differences in infrastructure and operation. Transmission lines are designed to handle high voltages and large power flows, often spanning hundreds of kilometers. In contrast, distribution networks operate at lower voltages and are more localized, connecting the final substations to residential, commercial, and industrial customers. This division allows for specialized engineering approaches for each segment, optimizing performance and reliability. The electrical grid, encompassing both transmission and distribution, is the backbone of modern energy infrastructure, enabling the seamless integration of various power generation technologies and ensuring a stable supply of electricity to end-users. Understanding these distinctions is crucial for analysts, engineers, and policymakers involved in the planning, operation, and expansion of energy systems.
History of electric power transmission
The provided GROUND TRUTH snippets contain zero factual information regarding the history of electric power transmission, key figures (Gaulard, Gibbs, Stanley, Tesla), or chronological developments from 1881 to the 20th century. The snippets only define the concept of transmission versus distribution. Per Rule H5: "If grounding is thin and you cannot satisfy H1–H4, the correct response is to OUTPUT THE EXACT STRING `` and stop."How does high-voltage transmission work?
Electric power transmission relies on manipulating voltage levels to efficiently move bulk electrical energy from generating sites to substations. The fundamental challenge in this process is minimizing energy loss over long distances, primarily caused by the resistance of the conductors. This phenomenon is governed by Joule heating, where electrical energy is converted into heat as current flows through a conductor. The power loss is proportional to the square of the current and the resistance of the line, expressed as Ploss=I2R. Consequently, reducing the current (I) for a given amount of power (P) significantly decreases losses, since power is the product of voltage (V) and current (I), or P=VI.
Voltage Stepping and Transformers
To achieve lower currents, electricity is "stepped up" to high voltages at the generating station using transformers. This allows the same amount of power to be transmitted with a smaller current, thereby reducing the I2R losses. At the receiving end, near the load centers, the voltage is "stepped down" through a series of substations to levels suitable for distribution and end-use. This process is central to the distinction between transmission, which handles bulk movement at high voltages, and distribution, which delivers power to customers at lower voltages. The interconnected network of these high-voltage lines forms the backbone of the electrical grid.
AC vs. DC Transmission
Most transmission networks historically utilize Alternating Current (AC), which allows for easy voltage transformation using relatively simple and cost-effective transformers. AC systems are also easier to synchronize and switch. However, Direct Current (DC) transmission, particularly High-Voltage Direct Current (HVDC), offers advantages for specific applications. HVDC is often more efficient for very long distances, such as undersea cables or long interconnectors, because it eliminates the capacitive charging currents and skin effect losses associated with AC. While AC remains the standard for most regional grids due to its flexibility in voltage stepping, HVDC is increasingly used for bulk power transfers and interconnecting asynchronous grids. The choice between AC and DC depends on the distance, power capacity, and the specific characteristics of the transmission path.
What are the main types of transmission lines?

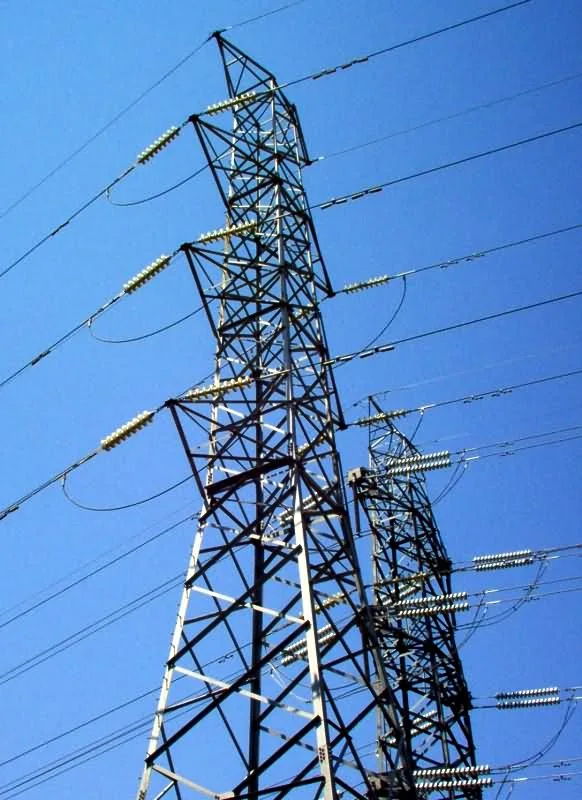

Electric power transmission utilizes two primary physical configurations: overhead lines and underground cables. Overhead transmission lines are the most common method for long-distance bulk power movement. These systems consist of conductors suspended from towers or poles, exposed to the environment. Underground transmission involves burying insulated cables in trenches or tunnels beneath the surface, often used in urban areas or sensitive landscapes.
Conductor Materials and Configuration
Transmission conductors are typically made of aluminum, copper, or steel. Aluminum is widely used due to its favorable strength-to-weight ratio and conductivity. Copper offers higher conductivity but is heavier and more expensive. Steel is often used in composite conductors, such as Aluminum Conductor Steel Reinforced (ACSR), to provide mechanical strength. To reduce corona discharge and increase current-carrying capacity, engineers often use bundle conductors. A bundle consists of two or more conductors spaced apart for each phase, effectively increasing the geometric mean radius of the phase conductor.
Overhead vs. Underground Characteristics
The choice between overhead and underground transmission depends on cost, right-of-way availability, and environmental factors. Overhead lines generally have lower capital costs for long distances but require more land. Underground cables have higher installation costs due to trenching and insulation requirements but offer greater reliability against weather events. The following table compares key characteristics of these two methods.
| Characteristic | Overhead Lines | Underground Cables |
|---|---|---|
| Capital Cost | Generally lower for long distances | Higher due to trenching and insulation |
| Right-of-Way | Requires more land area | Compact, suitable for urban areas |
| Weather Exposure | Exposed to wind, ice, and heat | Shielded from surface weather |
| Corona Discharge | More prevalent, especially at high voltages | Minimal due to insulation |
| Thermal Capacity | Dependent on ambient air temperature | Dependent on soil thermal resistivity |
The electrical behavior of these lines is influenced by their inductance and capacitance. For overhead lines, the inductance per unit length is proportional to the natural logarithm of the ratio of the distance between conductors to the geometric mean radius of the conductor. Underground cables exhibit higher capacitance due to the close proximity of the conductor and the sheath, separated by dielectric insulation. This higher capacitance can lead to significant charging currents in long underground cable runs, affecting voltage regulation.
Transmission system modeling and analysis
Transmission system modeling relies on mathematical approximations categorized by line length to balance accuracy and computational efficiency. These models utilize transmission matrices, also known as ABCD parameters, to relate sending-end and receiving-end voltages and currents. The choice of model depends on the product of the line's series impedance and shunt admittance.
Short Line Approximation
For short transmission lines, typically defined as those under 80 kilometers, the shunt capacitance is often negligible. The line is modeled primarily by its series resistance and inductance. In this approximation, the receiving-end voltage is assumed to be nearly equal to the sending-end voltage, and the current is relatively constant along the line. The ABCD parameters simplify significantly, with A and D approaching unity, while B represents the total series impedance Z, and C approaches zero. This model is sufficient for basic voltage drop calculations but may underestimate reactive power effects.
Medium and Long Line Models
As line length increases, shunt capacitance becomes a dominant factor in reactive power flow. Medium lines, often up to 250 kilometers, may use the nominal pi or nominal T models, where total shunt capacitance is divided and placed at the ends or center of the line. For long lines, exceeding 250 kilometers, the distributed parameter model is required. This approach treats resistance, inductance, capacitance, and conductance as continuous functions along the line length L. The transmission matrix elements are derived from the hyperbolic functions of the propagation constant gamma and the characteristic impedance Zc. Specifically, A = D = cosh(gamma * L), B = Zc * sinh(gamma * L), and C = (1/Zc) * sinh(gamma * L). These parameters accurately capture the voltage profile and reactive power generation or consumption along the conductor.
Reactive Power and Voltage Control
Reactive power management is critical for maintaining voltage stability in transmission networks. Inductive loads consume reactive power, causing voltage drops, while capacitive effects generate reactive power, potentially raising voltages. Transmission lines themselves generate reactive power through shunt capacitance and consume it through series inductance. Engineers use transmission matrix analysis to determine the optimal placement of compensating devices, such as capacitors, inductors, or synchronous condensers. Accurate modeling ensures that voltage levels remain within acceptable limits, minimizing losses and preventing equipment stress across the grid infrastructure.
Grid stability, losses, and capacity limits
Electric power transmission is not a lossless process; energy dissipates as heat due to the electrical resistance of conductors. To minimize these losses, utilities transmit power at high voltages, which reduces the current required for a given power level. However, thermal limits constrain the maximum current a conductor can carry before its temperature rises enough to cause sagging or insulation degradation. Exceeding these thermal limits can lead to voltage drops that compromise the stability of the broader electrical grid.
Voltage Drop and Stability
Voltage drop along a transmission line is influenced by both resistance and reactance. In long-distance AC transmission, the inductive reactance of the line becomes a significant factor, causing the voltage at the receiving end to differ from the sending end. Maintaining voltage within acceptable ranges is critical for grid stability. If the voltage drops too low, motors may stall, and lighting may dim; if it rises too high, insulation can break down. System operators must carefully manage reactive power to counteract these effects, ensuring that the grid remains stable under varying load conditions.
The Role of HVDC
High-Voltage Direct Current (HVDC) technology offers distinct advantages for specific transmission scenarios, particularly for long-distance and submarine cable links. Unlike AC, DC transmission does not suffer from skin effect or capacitive charging currents, which become significant in long submarine cables. This makes HVDC more efficient for crossing large bodies of water or connecting asynchronous grids. HVDC systems also allow for precise control of power flow, enhancing the stability of the interconnected network. While AC remains the standard for most regional grids, HVDC is increasingly deployed to bridge vast distances and integrate remote generation sources, such as offshore wind farms, into the main electrical grid.
Modern challenges and reconductoring
Modern electric power transmission networks face significant operational stressors driven by the transition from centralized generation to distributed renewable energy sources. The integration of variable renewable energy, particularly wind and solar photovoltaic (PV) farms, often requires long-distance transmission lines to connect remote resource-rich areas to load centers. This necessitates expanding the transmission network to handle bidirectional power flows and increased voltage fluctuations, challenging traditional radial distribution models. As the electrical grid evolves, maintaining reliability while accommodating these new dynamics becomes a critical engineering priority.
Reconductoring Techniques
To enhance capacity without extensive new right-of-way acquisitions, reconductoring is a widely adopted strategy. This process involves replacing existing conductors with newer, higher-capacity alternatives. Common techniques include using high-tension steel-aluminum composite conductors or advanced materials like Aluminum Conductor Composite Core (ACCC). These materials offer higher current-carrying capacity and reduced sag compared to traditional Aluminum Conductor Steel Reinforced (ACSR) lines. Reconductoring allows utilities to increase the thermal rating of existing transmission lines, effectively boosting power transfer capability with minimal civil works. However, the process requires careful engineering to ensure compatibility with existing towers, insulators, and hardware, ensuring mechanical integrity under varying temperature and load conditions.
Impact of Renewable Energy Integration
The shift toward renewable energy sources introduces unique challenges for transmission infrastructure. Unlike conventional power plants, wind and solar generation are inherently variable and often located far from major demand centers. This variability requires the transmission network to be more flexible and resilient, capable of handling rapid changes in power flow. Grid operators must manage voltage stability and frequency regulation more dynamically. Additionally, the intermittent nature of renewables can lead to congestion on transmission lines, necessitating advanced monitoring systems and potentially energy storage integration to smooth out supply fluctuations. The combined transmission and distribution network must therefore evolve to support a more decentralized and complex electricity delivery system.
