Earth shelter: Design, construction and sustainability

Overview

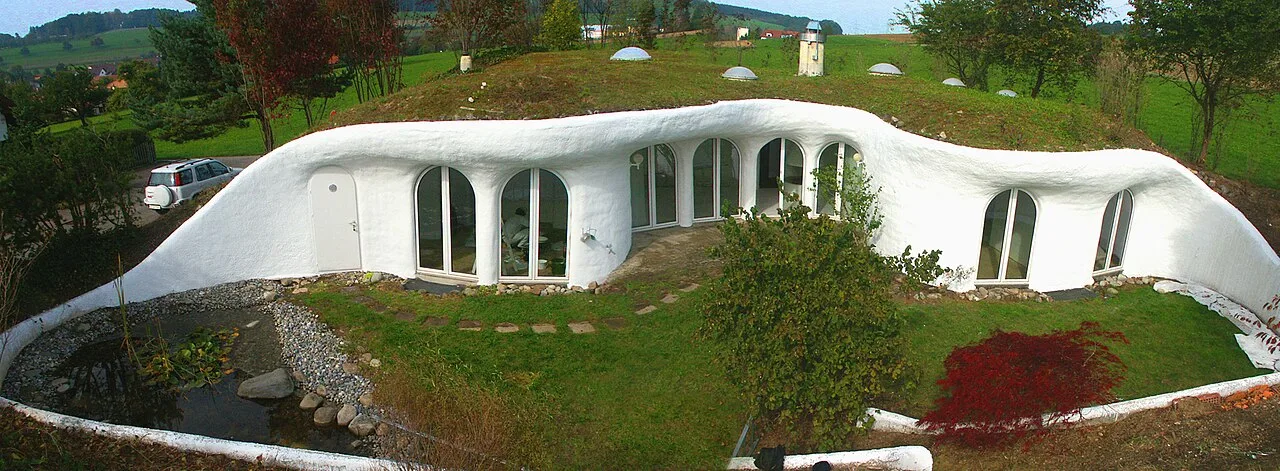

An earth shelter, frequently referred to as an earth house, earth home, earth-bermed house, earth-sheltered house, earth-covered house, or underground house, is a structural design defined by the direct application of earth (soil) against its walls and/or roof, or by being entirely buried underground. This architectural concept leverages the physical properties of the ground to create a passive energy-efficient environment. The primary function of an earth shelter is to utilize soil as a significant thermal mass, which helps maintain steady indoor air temperatures throughout varying climatic conditions. By burying portions of the structure, the building takes advantage of the earth’s relatively constant subsurface temperature, which is typically cooler than the summer air and warmer than the winter air. This natural insulation reduces the reliance on mechanical heating and cooling systems, thereby lowering overall energy costs for the occupants.

Thermal Mass and Energy Efficiency

The effectiveness of an earth shelter relies on the thermal inertia of the soil. Thermal mass refers to the ability of a material to absorb, store, and release heat. Soil has a high specific heat capacity and thermal conductivity compared to traditional building materials like wood or drywall. When the outdoor temperature fluctuates, the temperature change at the surface of the earth is dampened as it penetrates deeper into the ground. This creates a stable thermal zone that the building can tap into. The earth acts as a buffer, slowing down the rate of heat transfer between the interior of the house and the exterior environment. This process reduces the peak heating loads in winter and peak cooling loads in summer. The reduction in energy consumption is a direct result of minimizing the temperature differential that the HVAC systems must overcome. The design can vary from a simple earth-bermed wall on one side to a fully inverted dome structure, with the amount of earth coverage directly influencing the thermal performance. The structural integrity must also account for the hydrostatic and hydrostatic pressure of the soil, requiring careful engineering of the foundation and waterproofing systems to prevent moisture infiltration and structural fatigue over time.

What are the main types of earth shelters?

Earth shelters are categorized by the degree of earth coverage and the topography of the building site. The three primary configurations are bermed, in-hill, and fully underground structures. Each type offers distinct advantages regarding construction complexity, natural lighting, and thermal mass utilization.

Bermed Earth Shelters

Bermed houses are typically constructed on relatively flat terrain. Earth is banked against one or more exterior walls, often leaving the front facade exposed for windows and entry. This configuration allows for easier access to natural light and ventilation compared to fully buried structures. The soil acts as an insulator, reducing heat loss through the covered walls. Construction is generally less invasive to the landscape, making it suitable for sites with moderate slopes or flat plains.

In-Hill Earth Shelters

In-hill structures are integrated into a natural slope. The house is built into the side of a hill, with earth covering the roof and the uphill walls. The downhill side often features large windows, maximizing solar gain and views. This type leverages the natural grade to reduce excavation costs and provides excellent thermal stability. The surrounding earth helps regulate indoor temperatures, reducing the need for mechanical heating and cooling.

Fully Underground Earth Shelters

Fully underground houses are completely recessed into the ground, often featuring a central atrium or courtyard to allow light and air to penetrate the interior. This design maximizes the thermal mass of the earth, providing significant temperature stability. However, it requires more extensive excavation and structural reinforcement to handle hydrostatic pressure and soil weight. The atrium serves as a light well, distributing natural light to interior rooms.

Type	Site Requirement	Earth Coverage	Energy Efficiency
Bermed	Flat or gentle slope	Walls and/or roof	Moderate to High
In-Hill	Natural slope	Roof and uphill walls	High
Fully Underground	Flat or excavated site	All sides and roof	Very High

The energy efficiency of earth shelters is influenced by the thermal conductivity of the soil and the depth of burial. The temperature fluctuation at a depth d can be approximated by the formula T(d)=Tavg+A⋅e−d/δ, where Tavg is the average annual temperature, A is the amplitude of surface temperature variation, and δ is the damping depth. This principle explains why deeper burial leads to more stable indoor temperatures.

Design principles and site planning

Designing an earth shelter requires careful integration of architectural form with site-specific geological and climatic conditions. The primary objective is to maximize the thermal mass of the surrounding soil while mitigating moisture intrusion and structural stress. Site selection is the first critical step, as the performance of an earth-sheltered structure is heavily dependent on the quality and behavior of the underlying terrain. Engineers and architects must evaluate soil type, drainage patterns, and the depth of the frost line to ensure long-term stability and energy efficiency.

Solar Orientation and Passive Gain

The orientation of an earth shelter is typically optimized to capture passive solar energy, particularly in temperate and colder climates. Living spaces are often positioned on the equator-facing side—south-facing in the Northern Hemisphere and north-facing in the Southern Hemisphere—to maximize exposure to low-angle winter sun. This strategic placement allows large glazing areas to absorb solar radiation, which is then stored in the thermal mass of the earth and interior materials. The earth itself acts as a buffer, reducing temperature fluctuations and maintaining a relatively constant indoor temperature year-round. By aligning the building’s longest axis perpendicular to the sun’s path, designers can enhance daylight penetration and reduce reliance on mechanical heating and cooling systems.

Soil Mechanics and Frost Heave

Soil type plays a crucial role in the structural integrity of an earth shelter. Cohesive soils, such as clay, offer good insulation and water retention but may exert significant lateral pressure on walls if not properly compacted. Granular soils, like sand and gravel, provide excellent drainage but may require additional reinforcement to prevent settling. A major concern in colder climates is frost heave, where water in the soil freezes and expands, lifting the foundation. To mitigate this, foundations are often extended below the local frost line, and insulating materials are placed vertically along the exterior walls. Proper compaction and the use of backfill materials with low moisture retention can further reduce the risk of heaving and structural distortion.

Drainage and Water Table Management

Effective drainage is essential to prevent water accumulation against the walls and roof, which can lead to hydrostatic pressure, moisture infiltration, and mold growth. Designers typically incorporate a combination of surface grading, French drains, and waterproofing membranes to direct water away from the structure. The depth of the water table is a critical factor; if the water table is high, the shelter may require a crawl space or a raised foundation to keep the living areas above the saturated zone. In areas with poor natural drainage, artificial systems such as sump pumps and perimeter drains are often installed to maintain a dry environment. Proper ventilation within the earth-covered roof and wall cavities also helps to dissipate moisture and prevent condensation buildup.

Construction materials and methods

Earth shelter construction relies on a diverse range of materials, primarily concrete, steel, wood, and masonry, selected for their ability to withstand lateral earth pressure and maintain structural integrity. The choice of material often dictates the specific construction methodology employed. Concrete is frequently used for its strength and durability, while steel provides necessary reinforcement. Wood and masonry are also common, offering varied aesthetic and thermal properties.

Excavation and Foundation

The initial phase involves significant excavation to create the site for the structure. Following excavation, foundation pouring is a critical step. This process establishes the base upon which the walls will rest, ensuring stability against the surrounding soil. The foundation must be designed to handle the specific load characteristics of the earth shelter, which can differ significantly from above-ground structures.

Wall Construction Methods

Wall construction in earth shelters employs several distinct techniques. One innovative method involves the use of rammed earth tires. This approach utilizes recycled tires filled with compacted earth, creating a robust and thermally massive wall system. Another common technique involves the use of post and shoring systems. In this method, vertical posts and horizontal shoring elements support the structure during and after construction. Polyethylene sheets are often integrated into these systems to provide moisture barriers and additional structural support, protecting the interior from dampness and soil pressure.

Roof Structures

The roof of an earth shelter is a crucial component, often bearing the weight of the overlying earth. Common roof structures include domes and arches. Domes provide excellent structural strength and distribute loads efficiently, making them well-suited for earth-covered roofs. Arches also offer strong load-bearing capabilities, allowing for spacious interiors while supporting the earth above. These structural forms help to manage the lateral and vertical pressures exerted by the soil, ensuring the longevity and stability of the earth shelter.

How do waterproofing and insulation work in earth shelters?

Waterproofing and thermal insulation are the two most critical engineering challenges in earth shelter design. Because the structure is in constant contact with the soil, the building envelope must resist hydrostatic pressure, capillary action, and thermal bridging more rigorously than a conventional above-ground home. Failure in either system can lead to moisture intrusion, mold growth, and significant heat loss, compromising the integrity of the buried structure.

Waterproofing Systems

The primary defense against soil moisture is a continuous waterproof membrane applied to the exterior of the foundation walls. Common materials include Ethylene Propylene Diene Monomer (EPDM) rubber, Bituthene (a modified bitumen sheet), and bentonite clay panels. EPDM rubber is favored for its elasticity and long-term durability, allowing it to accommodate minor structural settling without cracking. Bituthene offers a self-adhering, torch-on application that creates a seamless barrier against water vapor and liquid water. Bentonite clay panels expand when wet, forming a dense, plastic seal that effectively blocks water migration through the wall assembly.

Proper drainage is equally important. A perimeter drain tile system is typically installed at the footing level to collect groundwater and channel it away from the foundation. This reduces hydrostatic pressure on the waterproofing membrane, preventing it from being pushed inward or punctured by shifting soil particles. The drainage aggregate must be kept separate from the backfill soil using a geotextile fabric to prevent clogging over time.

Insulation Placement and Materials

Thermal insulation in earth shelters serves two purposes: reducing heat transfer through the walls and protecting the waterproofing membrane from mechanical damage and temperature extremes. The placement of insulation—exterior versus interior—depends on the climate, the type of foundation, and the desired thermal mass effect.

In many designs, rigid polystyrene insulation (EPS or XPS) is placed on the exterior of the foundation walls, directly over the waterproofing membrane. This "exterior insulation" approach keeps the structural concrete or masonry within the thermal envelope, allowing the mass of the earth and the foundation to act as a thermal battery, stabilizing indoor temperatures. The insulation protects the waterproofing layer from the fluctuating temperatures of the surrounding soil and shields it from backfill stones. Spray foam insulation can also be applied to interior surfaces, particularly on the ceiling or roof slab, to provide an airtight seal and additional R-value. However, interior insulation can reduce the effectiveness of the thermal mass, as the concrete is partially excluded from the conditioned space.

The choice of insulation material must account for moisture resistance. Extruded polystyrene (XPS) has a lower moisture absorption rate than expanded polystyrene (EPS), making it suitable for below-grade applications. Spray polyurethane foam (SPF) offers high R-value per inch and excellent air sealing properties, but it must be protected from UV light if exposed during construction. The thermal performance of the envelope can be evaluated using the heat transfer equation:

Q=RA⋅ΔT where Q is the heat flow, A is the surface area, ΔT is the temperature difference between the interior and the surrounding earth, and R is the total thermal resistance of the wall assembly. Maximizing R through proper insulation thickness and material selection is essential for energy efficiency in earth-sheltered homes.

Energy efficiency and thermal performance

Earth sheltering fundamentally alters the thermal dynamics of a building by leveraging the thermal mass of the surrounding soil. The primary mechanism is thermal lag, where the time delay between outdoor temperature fluctuations and indoor response reduces the need for mechanical heating and cooling. The soil acts as a buffer, dampening the amplitude of temperature swings. This phenomenon is quantified by the concept of thermal inertia, where the rate of heat transfer through the earth is governed by the soil’s thermal conductivity and specific heat capacity. The deeper the earth cover, the more stable the interior environment becomes, approaching the deep earth constant temperature, which typically remains near the annual average air temperature of the region.

Thermal Resistance and R-Value

The thermal performance of earth sheltered structures is often evaluated using the R-value, a measure of thermal resistance. Unlike traditional insulation materials, the R-value of earth is not a fixed constant but varies with moisture content, density, and temperature. Dry soil has a higher R-value than wet soil, making drainage and moisture control critical to maintaining efficiency. The effective R-value of an earth berm can be approximated by considering the thickness of the soil layer and its thermal conductivity. For example, a thick layer of well-drained soil can provide significant resistance, reducing heat loss in winter and heat gain in summer. The formula for thermal resistance R is given by R=d/k, where d is the thickness of the material and k is the thermal conductivity. This relationship highlights the importance of soil selection and preparation in earth shelter design.

Passive Solar Heating and Annual Heat Storage

Passive solar heating is a key component of earth sheltered design, particularly in the "umbrella house" concept. This design utilizes large south-facing windows to capture solar energy during the winter, which is then stored in the thermal mass of the earth and the building structure. The stored heat is gradually released during the night and in the summer months, a process known as passive annual heat storage. This approach minimizes the reliance on active heating systems and reduces overall energy consumption. The efficiency of passive solar heating in earth shelters depends on the orientation of the building, the size and placement of glazing, and the thermal mass of the interior elements. The integration of these features allows for a balanced indoor climate, enhancing comfort and energy efficiency.

Advantages and disadvantages of earth sheltering

Earth sheltering offers distinct performance benefits compared to standard above-ground housing, particularly regarding thermal stability and structural resilience. The thermal mass of the surrounding soil provides significant insulation, reducing heating and cooling loads. This configuration also enhances wind protection, as the earth berm shields walls from direct wind exposure, thereby lowering convective heat loss. Fire protection is inherently improved; the soil acts as a firebreak, and the reduced surface area exposed to external flames decreases the risk of ignition compared to traditional siding or roofing materials. Additionally, earth-sheltered structures benefit from superior soundproofing. The soil and compacted earth layers effectively dampen external noise, creating a quieter interior environment than conventional homes, which often require additional acoustic insulation to achieve similar results.

Disadvantages and Challenges

Despite these advantages, earth sheltering presents several engineering and maintenance challenges. Moisture management is critical; without proper waterproofing and drainage systems, hydrostatic pressure can lead to seepage, mold growth, and structural degradation. The soil’s natural moisture content requires continuous monitoring and effective vapor barriers to prevent interior dampness. Radon gas accumulation is another concern, as the soil can act as a source of this radioactive gas. Earth-sheltered homes often require enhanced ventilation systems or sub-slab depressurization to mitigate radon levels, which can be higher than in standard houses due to the increased soil contact area.

Limited natural light is a common drawback. Because walls are buried or bermed, window placement is restricted, often requiring light wells, skylights, or atriums to bring daylight into interior spaces. This can complicate architectural design and increase construction complexity. Legal and code challenges also persist. Building codes in many regions were historically designed for above-ground structures, leading to ambiguities in fire egress requirements, foundation standards, and insulation ratings. Navigating these regulatory frameworks can increase permitting times and construction costs, as builders must often demonstrate compliance through specialized engineering reports. Maintenance of the earth berms themselves, including vegetation control and drainage upkeep, adds a layer of ongoing care not typically required for standard housing exteriors.

History and global examples

Earth sheltering is an ancient building strategy that predates modern engineering, relying on the thermal mass of soil to regulate indoor temperatures. Early human settlements utilized this principle through pit-houses, where dwellings were partially dug into the ground to maximize insulation. One of the most significant archaeological examples is Skara Brae, a Neolithic settlement in Scotland where stone houses were covered with turf and earth, demonstrating early mastery of passive climate control. These structures remained prevalent in various regions until the advent of industrialized construction methods, which often favored above-ground framing and masonry.

20th-Century Resurgence

The concept experienced a notable revival during the 1970s, driven largely by the global oil crisis. As energy costs surged, architects and homeowners sought ways to reduce reliance on mechanical heating and cooling. This period saw the emergence of prominent proponents who advocated for earth-sheltered designs as a solution to energy efficiency. Mike Oehler became a key figure in popularizing the technique, particularly through his work on underground homes that utilized curved roofs and thick earth berms. Similarly, Peter Vetsch contributed to the discourse on earth architecture, emphasizing the integration of structures with their natural topography. These advocates helped shift earth sheltering from a rustic necessity to a deliberate architectural choice focused on sustainability.

Global Examples

Modern earth-sheltered structures can be found across several continents, reflecting diverse applications of the concept. In China, contemporary projects have incorporated earth-covered designs to blend with mountainous landscapes, often utilizing modern materials to manage moisture and structural load. Switzerland has seen the development of earth homes that take advantage of the country’s alpine terrain, providing natural insulation against extreme temperature variations. In the United Kingdom, several earth-sheltered residences and community projects have emerged, often focusing on low-carbon living and integration with green spaces. The United States hosts a variety of earth-sheltered examples, ranging from residential homes to larger institutional buildings, showcasing the versatility of the design approach in different climatic zones.
