Overview

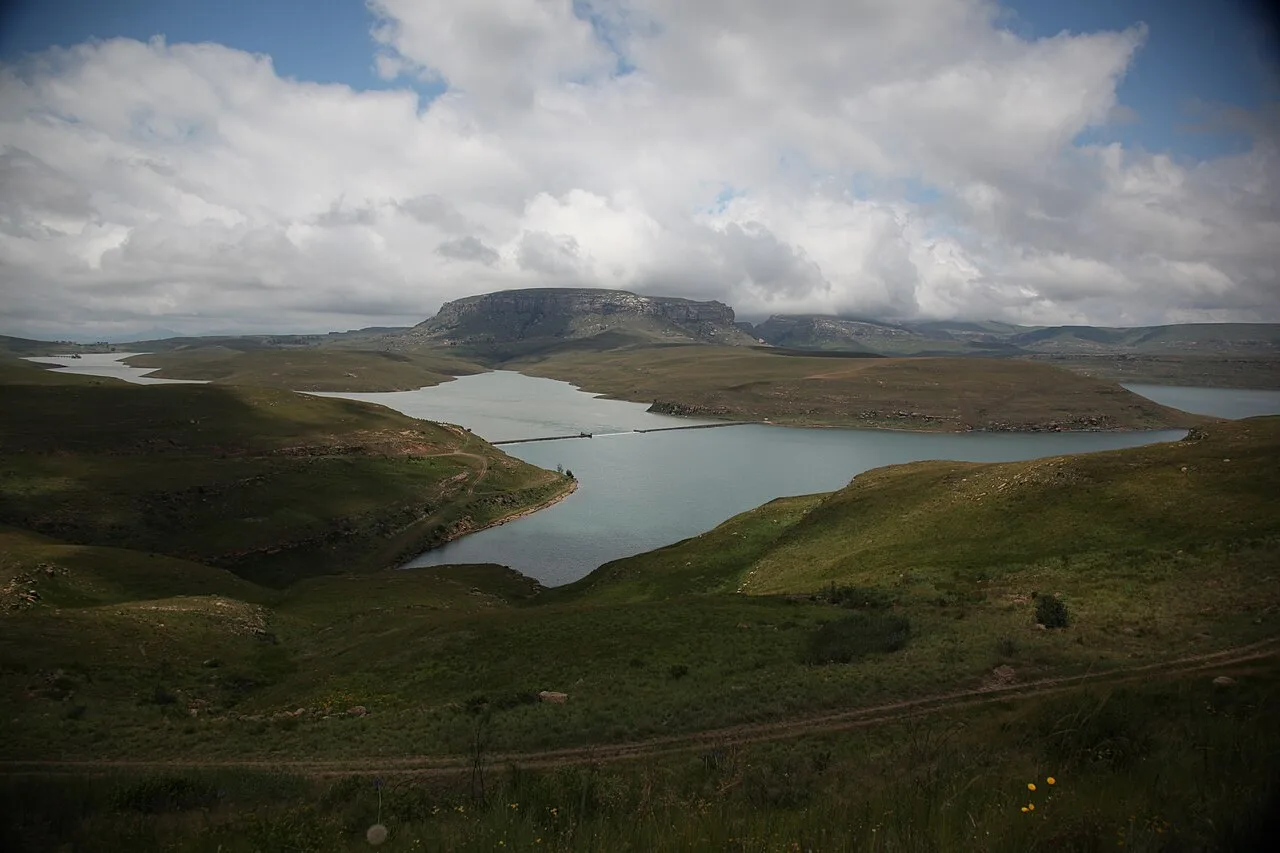

Driekloof Dam is a critical infrastructure component located in the Free State province of South Africa. It functions not as a standalone reservoir, but as a small, isolated section of the larger Sterkfontein Dam reservoir. This specific segment was created through the construction of the Driekloof Dam structure, which separates this portion of the water body from the main reservoir. The isolated section holds a capacity of 35.6 million cubic metres, equivalent to 28,900 acre-feet of water. This precise volume is essential for the operational dynamics of the region's hydroelectric infrastructure.
The dam is an integral part of Eskom's Drakensberg Pumped Storage Scheme and the Tugela-Vaal Water Project. In this configuration, Driekloof Dam works in conjunction with the Kilburn Dam, which is situated almost 500 metres lower in elevation. Together, these two dams facilitate a pumped-storage hydroelectric system that provides up to 27.6 gigawatt-hours of electricity storage. This energy storage capacity is achieved through the movement of 275 million cubic metres of water between the upper and lower reservoirs.
The operational mechanism involves pumping water to the Driekloof Dam during periods of low national power consumption. This process effectively stores energy in the form of potential energy in the upper reservoir. During times of high electricity demand, the water is released back into the Kilburn Dam. This release drives four turbine generators, each with a capacity of 250 megawatts. The system allows for flexible power generation, enabling the grid to balance supply and demand efficiently. The facility remains operational and continues to serve as a key asset in South Africa's energy infrastructure.
Technical Specifications and Infrastructure
Driekloof Dam functions as a critical upper reservoir component within Eskom’s Drakensberg Pumped Storage Scheme, situated in the Free State province of South Africa. The structure is not an entirely independent basin but rather a small, isolated section of the larger Sterkfontein Dam reservoir. This isolation is achieved through the construction of the Driekloof Dam wall, which segments off a specific volume of water to serve the pumped-storage hydroelectric system. The operational design relies on the elevation difference between Driekloof and the lower Kilburn Dam, which sits almost 500 metres (1,600 ft) below. This vertical drop is essential for generating the potential energy required for electricity production during peak demand periods.
Reservoir Capacity and Water Volume
The isolated section of the Sterkfontein Dam that constitutes the Driekloof reservoir has a specific storage capacity of 35.6 million cubic metres (28,900 acre⋅ft). However, the functional water volume utilized for energy storage in the broader scheme is significantly larger. Together with the Kilburn Dam, the system provides for up to 27.6 gigawatt-hours (99 TJ) of electricity storage. The water management strategy involves pumping water to Driekloof during times of low national power consumption, effectively charging the system. When electricity demand peaks, the water is released back into Kilburn, driving the turbine generators.
Power Generation Infrastructure
The energy conversion process is facilitated by four turbine generators, each with a capacity of 250 megawatts (340,000 hp). These units are responsible for converting the kinetic energy of the falling water into electrical power. The total installed capacity of the scheme is therefore 1,000 megawatts, derived from the four 250 MW units. The infrastructure is integral to both the Drakensberg Pumped Storage Scheme and the Tugela-Vaal Water Project, highlighting its dual role in energy generation and regional water management. The system operates under the management of Eskom, leveraging the geographical features of the Free State landscape to optimize energy storage and retrieval.
| Parameter | Value |
|---|---|
| Entity Type | Pumped Storage |
| Operator | Eskom |
| Country | South Africa (ZA) |
| Region | Free State |
| Reservoir Capacity (Isolated Section) | 35.6 million cubic metres (28,900 acre⋅ft) |
| Total Water Volume for Storage | 275 million cubic metres |
| Energy Storage Capacity | 27.6 gigawatt-hours (99 TJ) |
| Number of Turbine Generators | 4 |
| Capacity per Turbine Generator | 250 megawatts (340,000 hp) |
| Elevation Difference to Kilburn Dam | Almost 500 metres (1,600 ft) |
| Commissioned | 1979 |
| Operational Status | Operational |
How does the Drakensberg Pumped Storage Scheme work?
The Drakensberg Pumped Storage Scheme operates as a hydroelectric battery, utilizing the elevation difference between two reservoirs to store and generate electricity. Driekloof Dam serves as the upper reservoir in this system, while Kilburn Dam acts as the lower reservoir, situated almost 500 metres lower in elevation. This vertical separation is critical for the potential energy stored in the water, enabling efficient conversion to electrical power when national demand peaks.
The operational cycle begins during periods of low national power consumption. During these times, water from the lower Kilburn Dam is pumped uphill to the Driekloof reservoir. This process consumes electricity, effectively "charging" the system. The Driekloof reservoir itself has a capacity of 35.6 million cubic metres. However, the combined water volume available for energy storage across the scheme amounts to 275 million cubic metres, providing a total storage capacity of up to 27.6 gigawatt-hours of electricity.
When electricity demand increases, the stored water is released from Driekloof back down to Kilburn Dam. The total installed capacity of the scheme is therefore 250 MW per unit, leveraging the gravitational potential energy of the water. This mechanism allows Eskom to quickly adjust power output to match grid fluctuations, providing stability to the national power supply. The system is integrated into the broader Tugela-Vaal Water Project, highlighting its dual role in water management and energy infrastructure in the Free State region of South Africa.
Integration with the Tugela-Vaal Water Project
Driekloof Dam functions as a critical infrastructure node within Eskom's Drakensberg Pumped Storage Scheme, serving a dual purpose in both regional water augmentation and national electricity storage. The facility is physically integrated with the Tugela-Vaal Water Project, linking the Tugela River basin to the Vaal Dam catchment. This hydrological connection allows water to be transferred across the watershed divide, providing essential flow augmentation for the Vaal system while simultaneously creating the hydraulic head required for power generation.
Water is pumped from the Kilburn reservoir to the Driekloof reservoir during periods of low national power consumption. Together with the water volume in the Kilburn Dam, the scheme provides for up to 27.6 gigawatt-hours of electricity storage, utilizing a total of 275 million cubic metres of water for the cycle.
This flow drives four turbine generators, each rated at 250 megawatts. The release of water not only generates power but also contributes to the continuous flow of water into the Vaal Dam catchment, fulfilling the water augmentation objectives of the Tugela-Vaal Water Project. The system was commissioned in 1979 and remains operational under the management of Eskom, balancing the needs of the South African power grid with regional water security.
Why it matters
Driekloof Dam serves as a critical upper reservoir component within Eskom’s Drakensberg Pumped Storage Scheme, providing essential grid stability for South Africa’s national power network. As a pumped storage facility, it functions as a large-scale battery, storing energy in the form of water to balance supply and demand fluctuations across the grid. The system operates by pumping water to the Driekloof reservoir during periods of low national power consumption, effectively converting surplus electricity into potential energy. When electricity demand peaks, the water is released back down to the lower Kilburn Dam, driving four 250 MW turbine generators to produce up to 27.6 gigawatt-hours of electricity.
Integration with the Tugela-Vaal Water Project
Beyond its primary role in power generation, Driekloof Dam is intricately linked to South Africa’s broader water infrastructure. It forms part of the Tugela-Vaal Water Project, a major initiative designed to transfer water from the Tugela River system to the Vaal River basin. The dam is physically situated as a small section of the larger Sterkfontein Dam in the Free State province. A section of the Sterkfontein Dam reservoir is isolated by the construction of Driekloof Dam, creating a dedicated reservoir with a capacity of 35.6 million cubic metres. This dual-purpose design allows the facility to contribute significantly to regional water security while simultaneously supporting energy production.
Grid Stability and Operational Mechanics
The operational significance of Driekloof lies in its ability to respond rapidly to grid demands. The elevation difference between Driekloof and the Kilburn Dam, located almost 500 metres lower, provides the hydraulic head necessary for efficient power generation. This vertical separation enables the system to store approximately 275 million cubic metres of water in total between the two reservoirs, maximizing the energy storage potential of the scheme. By releasing water through its turbines during high-demand periods, the facility helps stabilize voltage and frequency, preventing blackouts and ensuring a consistent power supply to connected regions. Commissioned in 1979, the dam has remained a vital asset for Eskom, demonstrating the long-term value of pumped storage technology in managing the variability of national power consumption.
History and Commissioning
The Driekloof Dam was commissioned in 1979 as a critical component of Eskom's Drakensberg Pumped Storage Scheme (DPS). This infrastructure project was developed to enhance the operational flexibility of the South African national power grid, specifically within the Free State region. The dam is situated in the Free State province and functions as the upper reservoir for the pumped storage system, working in conjunction with the Kilburn Dam, which serves as the lower reservoir. The two dams are separated by a vertical distance of almost 500 metres (1,600 ft), a topographical feature that is essential for the hydroelectric generation process.
Integration with Regional Water and Power Infrastructure
Upon its commissioning, the Driekloof Dam became an integral part of the broader Tugela-Vaal Water Project. This dual-purpose infrastructure initiative was designed to address both water supply needs and electricity generation capacity in South Africa. The construction of the Driekloof Dam involved isolating a specific section of the larger Sterkfontein Dam reservoir. This engineering decision created a distinct, smaller reservoir with a capacity of 35.6 million cubic metres (28,900 acre⋅ft). This isolated section allows for precise control over water levels, which is crucial for the efficiency of the pumped storage cycle.
The operational model established at commissioning relies on the movement of water between the upper Driekloof reservoir and the lower Kilburn reservoir. When electricity demand peaks, the water is released back down through the system. The infrastructure was designed to handle a total water volume of 275 million cubic metres for storage purposes. This volume provides up to 27.6 gigawatt-hours (99 TJ) of electricity storage, contributing to the stability of the national grid.
The power generation capability of the scheme is delivered through four turbine generators. Each of these units has a capacity of 250 megawatts (340,000 hp), allowing the system to inject significant power into the grid during peak demand periods. The commissioning of Driekloof in 1979 marked the maturation of this specific segment of Eskom's infrastructure, enabling the coordinated operation of the pumped storage units and the associated water management systems in the Drakensberg region.
What distinguishes Driekloof from other South African dams?
Driekloof Dam is distinguished from conventional South African water infrastructure by its primary function as a high-capacity energy storage asset rather than a simple water supply reservoir. Unlike traditional hydroelectric dams that rely on continuous river flow or seasonal rainfall to generate power, Driekloof operates as a critical component of a closed-loop pumped storage system. This facility works in direct tandem with Kilburn Dam, which sits almost 500 metres (1,600 ft) lower in elevation. This significant vertical head is the defining technical characteristic that allows the site to function as a "battery" for the national grid, storing potential energy in the form of water.
Integration with the Drakensberg Pumped Storage Scheme
The operational model of Driekloof is unique because it is not an isolated entity but rather the upper reservoir of Eskom's Drakensberg Pumped Storage Scheme and the Tugela-Vaal Water Project. This structural integration allows for efficient water management without requiring a completely separate catchment area.
The energy storage capability of the combined Driekloof and Kilburn system is substantial, providing for up to 27.6 gigawatt-hours (99 TJ) of electricity storage in the form of 275 million cubic metres of water. This volume is managed through a dynamic pumping and release cycle. When electricity demand peaks, the water is released back down to Kilburn through four 250 megawatts (340,000 hp) turbine generators. This reversible flow mechanism distinguishes Driekloof from static supply dams, as its water levels fluctuate significantly based on real-time grid load rather than seasonal hydrological patterns alone.
