Name: Devils Gate Dam and Power Station
Address: AU

Overview

The Devils Gate Dam is a concrete double-arch dam situated on the Forth River in northern Tasmania, Australia. Located near the town of Barrington, this structure serves as a critical component of the region's hydroelectric infrastructure, specifically within the broader Mersey-Forth hydroelectric scheme. The dam was completed in 1969, establishing Lake Barrington as its primary reservoir. This body of water was created expressly to facilitate the generation of hydroelectricity through the adjacent Devils Gate Power Station, which operates as a run-of-the-river facility. The facility remains operational and is managed by Hydro Tasmania, the state-owned energy company responsible for much of Tasmania’s renewable power output.

With an installed capacity of 63 MW, the Devils Gate Power Station plays a significant role in the energy mix of the island state. The design of the dam as a concrete double-arch structure allows for efficient water retention and flow management, which is essential for the run-of-the-river operation of the power station. This type of hydroelectric generation relies on the natural flow of the Forth River, minimizing the need for massive water storage compared to reservoir-heavy schemes, although the creation of Lake Barrington does provide necessary head and regulation for consistent power generation. The integration of the dam and power station into the Mersey-Forth scheme highlights the strategic planning involved in harnessing Tasmania’s abundant water resources for electricity production.

The commissioning of the dam in 1969 marked a key milestone in the development of Tasmania’s hydroelectric network. The Mersey-Forth scheme itself is one of the most significant hydroelectric projects in Australia, utilizing the catchment areas of the Mersey and Forth rivers to drive multiple power stations. Devils Gate is one of several key nodes in this system, contributing to the reliability and flexibility of the grid. The operational status of the dam and power station continues to support local and regional energy demands, demonstrating the longevity and effectiveness of the engineering solutions implemented nearly six decades ago. The facility’s continued operation under Hydro Tasmania underscores the enduring value of this infrastructure in the state’s energy landscape.

Engineering and Structural Design

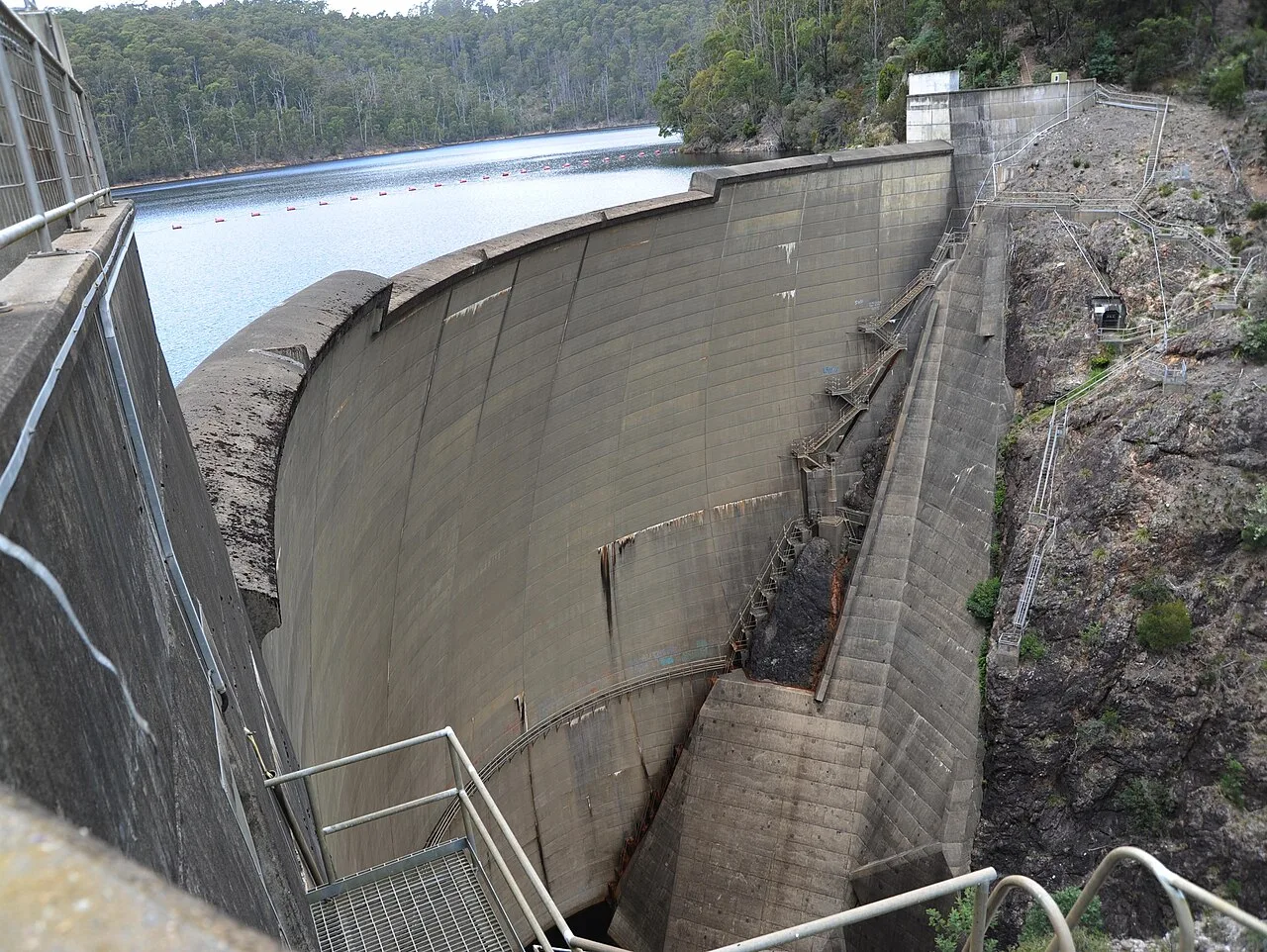

The Devils Gate Dam is a concrete double-arch structure spanning the Forth River in northern Tasmania. Completed in 1969, the dam creates Lake Barrington, which serves as the primary water storage for the adjacent Devils Gate Power Station. The design utilizes a double-arch configuration, a structural form that transfers the hydrostatic load of the reservoir to the abutments on either side of the river valley. This engineering approach allows for a relatively thin profile compared to gravity dams, optimizing material usage while maintaining structural integrity against the pressure of the stored water.

The dam stands 84 meters high and extends 134 meters in length across the river channel. Its thin profile is a notable feature of its construction, ranking it among the thinnest concrete arch dams in the region. The double-arch design provides stability through both vertical and horizontal curvature, distributing stresses efficiently through the concrete mass. The structure is operated by Hydro Tasmania, which manages the flow of water from Lake Barrington to drive the turbines at the run-of-the-river power station, contributing to the 63 MW capacity of the facility.

Dam Specifications

Parameter	Value
Structure Type	Concrete double-arch dam
Height	84 m
Length	134 m
Reservoir	Lake Barrington
River	Forth River
Commissioning Year	1969
Operator	Hydro Tasmania

The dam includes an uncontrolled spillway designed to manage excess water flow during periods of high inflow. This spillway ensures that the water level in Lake Barrington does not exceed the design limits of the reservoir, protecting the structural integrity of the double-arch dam. The spillway capacity is critical for maintaining the balance between water storage for hydroelectric generation and flood control. The precise dimensions and flow rate of the spillway are engineered to handle the specific hydrological characteristics of the Forth River basin, ensuring reliable operation of the Devils Gate Power Station.

Why it matters

The Devils Gate Dam holds a distinct position within Australia's civil engineering heritage, formally recognized as a Historic Engineering Marker by Engineers Australia. This designation underscores the structure's technical innovation and its enduring contribution to the nation's energy infrastructure. The dam is not merely a static concrete barrier; it represents a critical node in the hydroelectric network of northern Tasmania, facilitating the conversion of water resources into reliable electrical power for the region and the broader state grid.

Engineering Significance and Design

Constructed as a concrete double-arch dam, the Devils Gate Dam exemplifies sophisticated hydraulic engineering tailored to the specific topography of the Forth River valley near Barrington. The double-arch design allows for efficient distribution of hydrostatic pressure to the abutments, optimizing material usage while maintaining structural integrity across the river span. Completed in 1969, the project marked a significant advancement in Tasmanian hydroelectric development, leveraging the natural gradient and flow of the Forth River to create Lake Barrington. This reservoir serves as the primary water storage mechanism for the adjacent Devils Gate Power Station, which operates as a run-of-the-river hydroelectric facility. The integration of the dam and power station demonstrates a cohesive engineering approach where civil infrastructure and mechanical generation systems are optimized for mutual efficiency.

Role in Regional Energy Infrastructure

Operated by Hydro Tasmania, the Devils Gate Dam plays a vital role in the operational flexibility of Tasmania's energy mix. With an installed capacity of 63 MW, the facility contributes substantially to the state's baseload and peak power requirements. As a run-of-the-river station, it benefits from the immediate availability of water flow from Lake Barrington, allowing for relatively quick response times to fluctuations in electricity demand. This characteristic is particularly valuable in a grid increasingly influenced by variable renewable energy sources, providing stability and dispatchable power. The dam's continued operational status since its 1969 commissioning highlights the durability of its construction and the sustained relevance of its output in the regional energy landscape. The infrastructure supports not only local consumption in northern Tasmania but also feeds into the broader Hydro Tasmania network, enhancing the reliability of power supply across the island state. The recognition by Engineers Australia serves as a testament to the project's long-term success and its foundational role in modernizing Tasmania's approach to hydroelectric power generation.

Lake Barrington: Reservoir and Recreation

Lake Barrington serves as the primary reservoir for the Devils Gate Dam, created to facilitate hydroelectric generation via the adjacent run-of-the-river power station. The lake is situated on the Forth River, near Barrington in northern Tasmania. It is not merely a functional body of water for energy production but also a significant recreational asset, particularly renowned for its suitability for rowing. The reservoir's calm waters and natural windbreaks provided by the surrounding terrain make it an ideal venue for competitive rowing, earning it international recognition.

Reservoir Statistics

Parameter	Value
Capacity	179.94 GL
Location	Forth River, near Barrington, Tasmania
Primary Use	Hydroelectric generation, Recreation

The lake has a capacity of 179.94 gigalitres, providing a substantial water storage volume for the Devils Gate Power Station's operations. This storage capability allows for consistent water flow to the turbines, supporting the plant's 63 MW capacity. The reservoir's dimensions and depth are well-suited for various water sports, but it is most famous for rowing. The natural topography of the area, with hills surrounding the lake, minimizes wind interference, creating stable water conditions that are crucial for precision rowing.

World-Class Rowing Venue

Lake Barrington achieved global prominence in the sport of rowing when it hosted the 1990 World Rowing Championships. This event highlighted the lake's quality as a competitive venue, attracting rowers from around the world. The course at Lake Barrington is considered world-standard, meeting the rigorous requirements for international rowing competitions. The success of the 1990 Championships helped establish Lake Barrington as a premier training and competition site for rowers. Since then, the lake has continued to host various rowing events, leveraging its natural advantages and established infrastructure.

The combination of its hydroelectric function and recreational value makes Lake Barrington a multifaceted resource for the region. It supports energy production for Tasmania while also offering a high-quality environment for sports and leisure activities. The lake's role in hosting the 1990 World Rowing Championships underscores its significance beyond its immediate utility for power generation, contributing to the local economy and sporting heritage of northern Tasmania. The reservoir remains a key feature of the Devils Gate Dam complex, integrating energy infrastructure with natural beauty and athletic excellence.

How does the Devils Gate Power Station work?

The Devils Gate Power Station operates as a run-of-the-river hydroelectric facility, a design that relies on the natural flow of the Forth River rather than a massive stored volume of water for consistent generation. This operational model is made possible by the concrete double-arch Devils Gate Dam, which creates Lake Barrington to regulate the water supply. The primary function of the dam is to maintain a sufficient head of water to drive the turbines efficiently, ensuring a steady output of 63 MW of electrical power. This capacity is managed by Hydro Tasmania, the operator responsible for the facility's ongoing performance since its commissioning in 1969.

Hydraulic Infrastructure and Penstock System

A critical component of the power station's efficiency is the 150-metre penstock. This large-diameter pipeline channels water from the intake at the base of the dam down to the turbine hall. The length and gradient of the penstock are engineered to convert the potential energy of the elevated water in Lake Barrington into kinetic energy. As water travels through the 150-metre conduit, pressure builds significantly, preparing the flow for high-velocity impact on the turbine blades. This system allows the station to harness the natural topography of northern Tasmania, maximizing energy extraction from the Forth River's flow without requiring excessive pumping or complex storage mechanisms beyond the reservoir created by the double-arch dam.

Turbine and Generator Mechanics

The kinetic energy of the water is captured by a Boving Francis-type turbine. The Francis turbine is a type of reaction turbine widely used in hydroelectric applications due to its versatility and efficiency across a range of heads and flow rates. In the Devils Gate installation, the water enters the turbine radially and exits axially, transferring energy to the runner blades. The Boving brand indicates the specific manufacturer of the turbine unit, reflecting the engineering standards of the late 1960s when the station was completed. The rotation of the turbine shaft drives the generator, converting mechanical energy into electrical energy. This setup is optimized for the specific hydraulic conditions provided by the 150-metre penstock and the regulated flow from Lake Barrington, ensuring reliable generation of the facility's 63 MW capacity.

What is the history of the Mersey-Forth scheme?

The Devils Gate Dam functions as a critical component within the broader Mersey-Forth hydroelectric scheme, a major infrastructure network developed to harness the water resources of northern Tasmania. As the seventh power station commissioned in this extensive scheme, Devils Gate represents a significant phase in the regional expansion of hydroelectric generation capacity. The project was executed by the Hydro Electric Corporation, the predecessor entity to the current operator, Hydro Tasmania, reflecting the long-term strategic planning that characterized the development of Tasmania's renewable energy portfolio during the mid-20th century.

The construction and subsequent completion of the dam in 1969 marked a pivotal moment for the Mersey-Forth scheme. The structure, a concrete double-arch dam, was built across the Forth River near Barrington. Its primary engineering purpose was to create Lake Barrington, a reservoir designed to regulate water flow for hydroelectric generation. This reservoir feeds directly into the adjacent Devils Gate Power Station, which operates as a run-of-the-river facility. This operational model relies on the natural flow of the Forth River, augmented by the storage capacity of Lake Barrington, to drive turbines and generate electricity without the need for massive seasonal drawdowns typical of some other hydro schemes.

The integration of Devils Gate into the Mersey-Forth scheme enhanced the flexibility and output of the regional grid. By adding a 63 MW capacity station, the scheme increased its ability to meet growing energy demands in northern Tasmania. The commissioning in 1969 aligned with broader efforts by the Hydro Electric Corporation to modernize and expand Tasmania's energy infrastructure. This expansion was part of a systematic approach to developing the island's hydrological assets, ensuring that water resources were utilized efficiently for power generation. The dam's location near Barrington also contributed to local economic and environmental dynamics, establishing Lake Barrington as a key geographical feature in the region.

Historical context for the Mersey-Forth scheme highlights the importance of sequential development. Each station added to the scheme, including Devils Gate, built upon the infrastructure and operational experience gained from previous projects. The seventh station's completion in 1969 demonstrated the maturity of the scheme's planning and execution phases. The Hydro Electric Corporation's role in overseeing this development underscores the centralized management approach that facilitated the integration of multiple hydroelectric assets into a cohesive network. This network continues to play a vital role in Tasmania's energy mix, with Devils Gate remaining an operational asset under the stewardship of Hydro Tasmania.

Operational and Environmental Context

The Devils Gate Dam functions as the primary hydraulic control structure for the Lake Barrington reservoir, which is situated on the Forth River in northern Tasmania. As a concrete double-arch dam, it was completed in 1969 to support the adjacent Devils Gate Power Station, a run-of-the-river hydroelectric facility with an installed capacity of 63 MW, operated by Hydro Tasmania. The operational context of the dam is defined by its role in regulating water flow from the Forth River catchment to ensure consistent generation output while managing the reservoir levels of Lake Barrington. The run-of-the-river design implies that the power station relies heavily on the natural flow of the river, supplemented by the storage capacity of the lake, to drive turbines and generate electricity for the Tasmanian grid.

Reservoir Management and Recreation

Lake Barrington, the reservoir created by the dam, serves a dual purpose: it is both a critical component of the hydroelectric generation infrastructure and a significant natural recreation area. The Tasmanian Government has implemented measures to protect the foreshore of the reservoir, balancing the needs of water management with public access and environmental conservation. This protection ensures that the area near Barrington remains a viable space for recreational activities, contributing to the regional economy and quality of life for local communities. The management of the Lake Barrington foreshore involves maintaining the natural character of the landscape while accommodating the operational requirements of the hydroelectric scheme.

The integration of the dam and power station into the northern Tasmanian landscape reflects a broader strategy of utilizing the region's water resources for sustainable energy production. The Forth River, which feeds the reservoir, is part of a larger network of waterways in Tasmania that have been harnessed for hydroelectric power. The operational status of the Devils Gate Dam remains active, continuing to provide reliable power generation since its commissioning in 1969. The protection of the reservoir foreshore underscores the importance of environmental stewardship in the operation of hydroelectric infrastructure, ensuring that the benefits of the dam extend beyond energy production to include ecological and recreational value for the region.
