Cwm Dyli Hydroelectric Power Station

Overview

Cwm Dyli is a hydroelectric power station situated on the southern flank of the Snowdon range in North Wales. Located in the village of Beddgelert, the facility serves as a significant landmark in the history of British energy infrastructure. It is currently operated by North Wales Power Company Limited and maintains an operational status with an installed capacity of 9.8 MW (per North Wales Power Company Limited operational data). The station harnesses the power of water from the local catchment area to generate electricity, contributing to the regional grid.

Historical Significance

Commissioned in 1905, Cwm Dyli holds the distinction of being Britain's oldest power station. At the time of its construction, it was recognized as the largest hydro-electric power station in the United Kingdom. The facility is also believed to be one of the oldest Grid-connected hydro-electric stations in the world, marking a pivotal moment in the transition from isolated generation to interconnected power systems. Its long-standing operation since 1905 underscores its engineering durability and the strategic importance of the Cwm Dyli location for early hydroelectric development.

Location and Infrastructure

The power station is positioned within the Snowdonia National Park, leveraging the steep topography of the southern Snowdon range. The site is accessible from Beddgelert, a village in Gwynedd, Wales. The facility's design integrates with the natural landscape, utilizing the water resources available in the Cwm Dyli valley. As an operational asset, it continues to function as a key component of the North Wales Power Company Limited's portfolio, maintaining its role in the UK's renewable energy mix. The station's historical architecture and mechanical components reflect early 20th-century engineering practices, preserving its heritage while delivering modern electrical output.

History and Development

The Cwm Dyli hydro-electric power station was constructed beginning in 1905 by the Porthmadog, Beddgelert and South Snowdon Railway company. The initial objective of this infrastructure project was to generate electricity to power an electric railway system and support local slate quarries in the region. It is recognized as Britain's oldest power station and is believed to be one of the oldest grid-connected hydro-electric stations in the world.

Early Operations and Expansion

The power station was commissioned in 1906. Following commissioning, the facility began supplying power to the Oakeley, Dinorwic, and Pen-yr-Orsedd quarries. The original operator, the Porthmadog, Beddgelert and South Snowdon Railway company, was later renamed to North Wales Power Company Limited. The electric railway project was eventually abandoned due to funds, though the hydro-electric generation continued to serve industrial demand.

In 1913-14, the Cwm Dyli station expanded its reach by supplying power to Marconi's Carnarvon Long Wave Wireless Telegraph station. This connection highlighted the growing importance of hydro-electric power for communication infrastructure in North Wales during the early 20th century.

Modernization

The facility underwent a significant upgrade in 1990. This modernization effort ensured the continued operational status of the 9.8 MW plant. Today, the Cwm Dyli power station is remotely controlled from Dolgarrog, integrating it into the broader North Wales hydro-electric network. The station remains operational and continues to contribute to the energy infrastructure of the region.

Why it matters

Cwm Dyli holds a pivotal place in the history of global energy infrastructure as Britain's oldest power station. Its establishment on the southern flank of the Snowdon range in North Wales represents a critical milestone in the transition from localized steam power to centralized hydro-electric generation. At the time of its construction, the facility was the largest hydro-electric power station in the United Kingdom, a distinction that underscores the ambition and technical capability of early 20th-century energy planners. The station is also believed to be one of the oldest grid-connected hydro-electric stations in the world, marking a significant moment when water power began to integrate into broader electrical networks rather than serving isolated industrial sites.

The historical significance of Cwm Dyli extends beyond its chronological primacy. It played a foundational role in the early industrial electrification of North Wales. By harnessing the water resources of the region, the station provided a reliable and scalable source of power that supported local industry and residential growth. This early adoption of hydro-electric technology in the Snowdon range demonstrated the viability of renewable energy sources in rugged, mountainous terrains, setting a precedent for future developments in the UK's energy landscape. The station's continuous operation since its commissioning in 1905 highlights the durability and enduring relevance of its original engineering design. Unlike many early power stations that were decommissioned or significantly altered, Cwm Dyli has maintained its operational status, serving as a living monument to the origins of the British grid.

Comparing Cwm Dyli to other UK hydro stations reinforces its status as a pioneer. As the oldest power station in Britain, it predates the widespread electrification efforts that characterized the mid-20th century. Its age places it among the earliest examples of grid-connected hydro-electricity globally, competing with other historic stations in Europe and North America. This longevity is a testament to the strategic location chosen by the North Wales Power Company Limited, which capitalized on the natural water flow of the Cwm Dyli valley. The station's continued operation reflects not only technical robustness but also the sustained value of hydro-electric power in the region's energy mix. It stands as a key reference point for understanding the evolution of renewable energy infrastructure in the United Kingdom, illustrating how early investments in water power laid the groundwork for modern grid stability and renewable integration.

Technical Specifications and Infrastructure

Cwm Dyli draws its water supply from Llyn Llydaw, situated 320 metres above the power station on the southern flank of the Snowdon range. The hydrological infrastructure consists of a tunnel system and two pipelines, each with a diameter of 30 inches (0.762 m) and a length of 2 kilometres (1.2 mi). This configuration channels water from the lake to the generating equipment located at the Cwm Dyli site.

Until 1989, the station’s generating capacity was provided by four Pelton wheels. The original installation included two Ganz Pelton wheels and two Boving Pelton wheels, collectively producing 900 hp (6.619 MW). The electrical output was handled by three Bruce Peebles alternators with individual capacities of 1 MW, 1.5 MW, and 3 MW. These alternators generated a total of 6.5 MW at a voltage of 10 kV.

The current operational configuration features a single turbine capable of producing up to 9.8 MW. This represents the modernized capacity of the facility, which remains under the operation of North Wales Power Company Limited. The station continues to function as a key component of the hydroelectric infrastructure in North Wales.

Technical Specifications

How does the hydroelectric system at Cwm Dyli work?

The hydroelectric system at Cwm Dyli operates on a classic high-head impulse principle, leveraging the significant elevation difference between the water source and the turbine house. The primary water source is Llyn Llydaw, a reservoir situated on the southern flank of the Snowdon range in North Wales. Water is drawn from this lake and conveyed through a network of tunnels and pipelines that traverse the mountainous terrain. This conveyance system is critical for maintaining the pressure head required to drive the specific turbine technology employed at the station.

Turbine Mechanism and Power Generation

The core of the energy conversion process involves Pelton wheels. Unlike reaction turbines that rely on both pressure and kinetic energy, Pelton wheels are impulse turbines designed specifically for high-head, low-flow conditions. As water exits the pipelines, it is directed through nozzles that convert potential energy into high-velocity jets. These jets strike the bucket-shaped blades of the Pelton wheels, transferring kinetic energy to the rotor. This mechanical rotation is then transmitted to the alternators, which convert the mechanical energy into electrical energy. The choice of Pelton wheels reflects the engineering requirements of the site's topography and hydraulic characteristics.

Electrical Transmission and Grid Integration

Once generated, the electricity is stepped up to a voltage level of 10 kV for efficient transmission. This voltage allows the power to be distributed to local industries and integrated into the broader electrical grid. The station's design facilitated early grid connectivity, contributing to its status as one of the oldest grid-connected hydro-electric stations in the world. The transmission infrastructure ensures that the power generated at Cwm Dyli can reach consumers and industrial users with minimal loss, maintaining the reliability of the supply. The operational status of the station remains active, with the North Wales Power Company Limited managing the ongoing maintenance and operation of these systems.

The integration of these components—water conveyance, impulse turbines, and electrical transmission—demonstrates the sophisticated engineering present at Cwm Dyli since its commissioning in 1905. The system's ability to harness the natural flow from Llyn Llydaw and convert it into usable electricity highlights the enduring efficiency of hydroelectric power in the North Wales region.

Cultural Impact and Notable Features

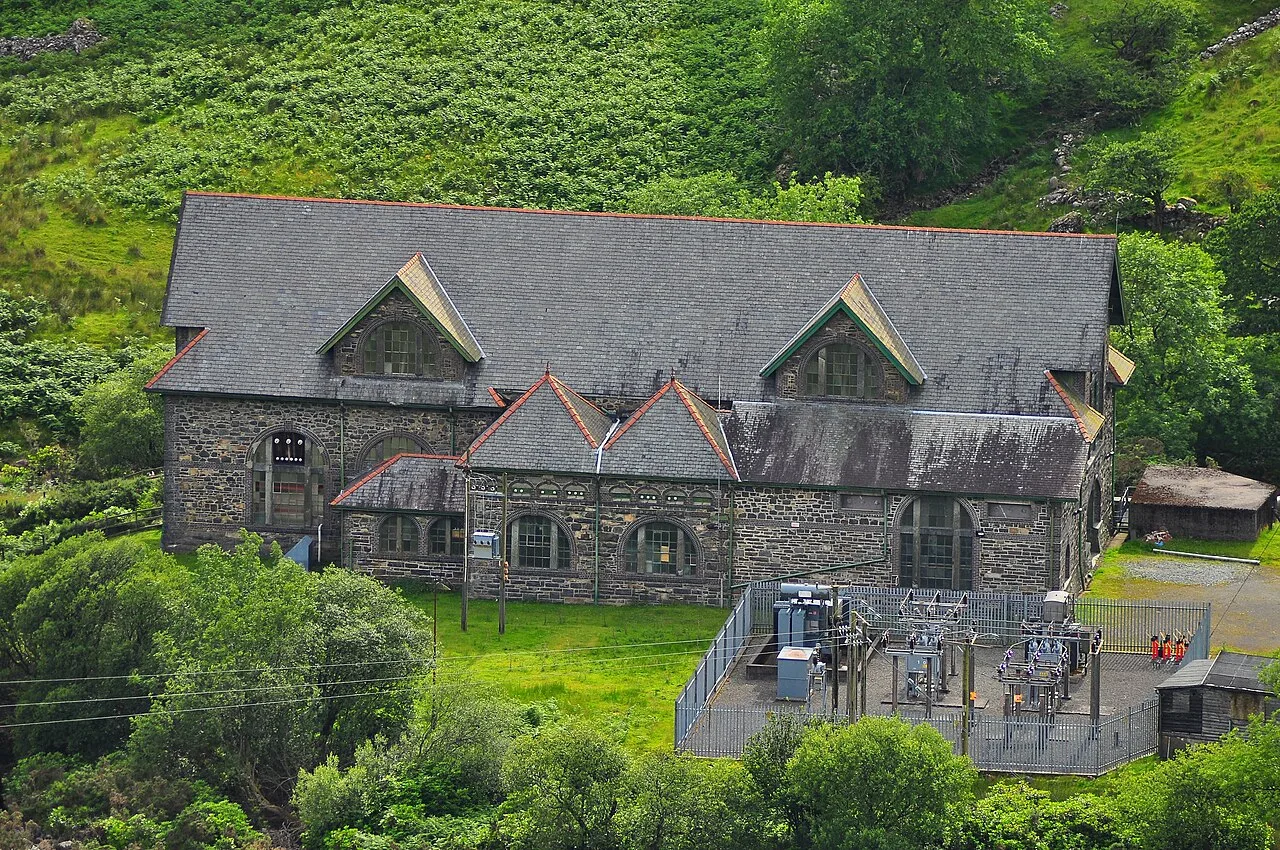

Cwm Dyli holds a distinctive place in the cultural and architectural heritage of North Wales, recognized not only for its engineering longevity but also for its unique physical presence within the Snowdon range. The power station’s exterior design has earned it the local nickname 'Chapel in the valley,' a moniker that reflects its modest, almost ecclesiastical aesthetic against the rugged mountainous backdrop. This architectural character contributes to its status as one of Britain’s oldest power stations and one of the oldest grid-connected hydro-electric stations in the world, preserving a tangible link to the early 20th-century energy infrastructure that first illuminated the region.

Historical Workforce and Operation

The operational history of Cwm Dyli is marked by a relatively small but dedicated workforce. Historically, the station employed 13 men to manage the continuous generation process, a figure that underscores the semi-intensive nature of early hydro-electric management before the widespread adoption of automation. These workers were responsible for monitoring the water intake, maintaining the turbine systems, and ensuring the steady output that fed into the growing national grid. The human element of Cwm Dyli’s operation highlights the transition from manual labor-intensive energy production to the more automated systems that characterize modern hydro-electric facilities.

Cinematic Recognition

Beyond its local architectural nickname, Cwm Dyli has achieved international recognition through its appearance in popular culture. The station’s pipeline was featured in the James Bond film 'The World Is Not Enough,' bringing the remote infrastructure to a global audience. This cinematic inclusion highlights the dramatic landscape surrounding the power station, where the industrial elements of the pipeline intersect with the natural beauty of the Snowdon range. The visual impact of the pipeline against the mountainous terrain provided a compelling backdrop for the film, further cementing Cwm Dyli’s status as a notable landmark in North Wales.

Remote Control from Dolgarrog

Operational management of Cwm Dyli has evolved significantly since its commissioning in 1905. The station is currently under remote control operation from Dolgarrog, a development that illustrates the integration of Cwm Dyli into a broader regional hydro-electric network. This remote management capability allows for efficient coordination with other power stations in the area, optimizing water usage and energy output across the system. The shift from on-site manual operation to remote control from Dolgarrog represents a key technological advancement in the station’s long history, ensuring its continued operational status and relevance in the modern energy landscape.

What distinguishes Cwm Dyli from other UK hydro stations?

Cwm Dyli’s primary distinction lies in its status as Britain’s oldest power station, a title that underscores its foundational role in the nation’s hydroelectric history. This early scale and operational longevity place it among the oldest Grid-connected hydro-electric stations in the world, marking a significant milestone in global energy infrastructure development.

Engineering and Location

The station is situated on the southern flank of the Snowdon range in North Wales, a location that provides critical topographical advantages for hydroelectric generation. The specific engineering of the Cwm Dyli station includes the use of Pelton wheels, a turbine type well-suited for high-head, low-flow water sources typical of mountainous regions. The infrastructure relies on extensive pipelines to channel water from the catchment area to the turbines, leveraging the natural gradient of the Snowdon range to maximize efficiency.

Operational Evolution

Initially, the primary purpose of the Cwm Dyli station was to supply power to local industries, specifically railway operations and quarries in the region. This localized focus was common for early hydro projects, which often served immediate industrial needs before integrating into broader distribution networks. Over time, the station evolved to become a key component of the wider electrical grid, transitioning from a local power source to one of the oldest Grid-connected stations globally. This shift highlights the station’s adaptability and the growing importance of hydroelectric power in the UK’s energy mix.

Today, Cwm Dyli remains operational, maintaining its historical significance while continuing to contribute to the regional energy supply. Its continued operation by the North Wales Power Company Limited ensures that this historic facility remains a functional part of the UK’s energy infrastructure, bridging early 20th-century engineering with modern grid requirements.
