Overview
The Chamera Dam is a major hydroelectric infrastructure project situated in the northern Indian state of Himachal Pradesh. Constructed as a concrete gravity dam, it spans the River Ravi, a significant tributary in the region's hydrological network. The facility is located in close proximity to the town of Dalhousie, within the Chamba district. This strategic placement allows the dam to harness the flow of the Ravi River for power generation, serving as a critical component of the regional energy grid. The project falls under the operational jurisdiction of the National Hydroelectric Power Corporation, which manages the facility's day-to-day functioning and maintenance. The dam's primary function is to generate hydroelectric power, contributing to the energy supply of Himachal Pradesh and surrounding areas.

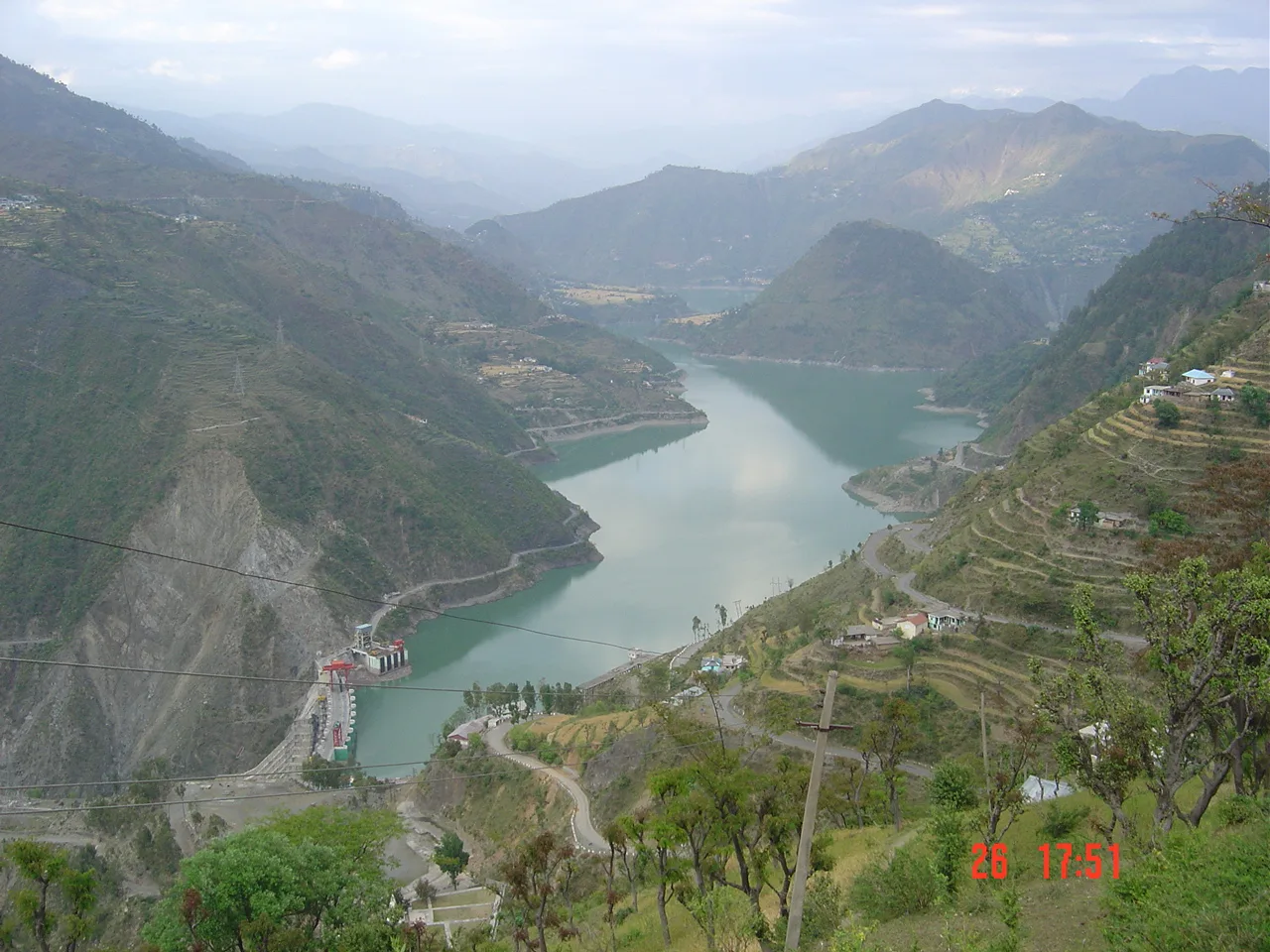

A defining feature of the Chamera Dam project is the creation of the Chamera Lake reservoir. A large proportion of this reservoir lies within the Salooni sub-division of the Chamba district. The establishment of Chamera Lake was specifically designed to optimize hydroelectricity generation by regulating the water flow from the Ravi River. The reservoir not only serves a functional purpose for power production but also forms a significant geographical landmark in the region. The dam was commissioned in 1994, marking the beginning of its operational life. Since its inception, the facility has remained in operational status, providing a consistent source of renewable energy.
The Chamera Dam has a total installed generating capacity of 1071 MW. This capacity reflects the combined output of the hydroelectric units housed within the facility. The National Hydroelectric Power Corporation operates the plant, ensuring that the infrastructure continues to meet the energy demands of the region. The concrete gravity design of the dam provides structural stability, allowing it to withstand the hydrostatic pressure of the water stored in Chamera Lake. The project represents a significant engineering achievement in the state's efforts to develop its water resources for sustainable power generation.
Engineering Specifications and Reservoir Characteristics
The Chamera Dam is constructed as a concrete gravity structure spanning the River Ravi. This design relies on the mass of the concrete to resist the horizontal force of the water, a standard approach for hydroelectric projects in the Himalayan terrain of Himachal Pradesh. The dam is located near the town of Dalhousie in the Chamba district. The primary function of the structure is to create a reservoir, known as Chamera Lake, to facilitate hydroelectric power generation. A significant portion of this reservoir extends into the Salooni sub-division of Chamba.
Structural Dimensions
The engineering specifications define the physical scale of the barrier. The dam reaches a height of 226 metres. The length of the crest is 295 metres. These dimensions allow the structure to hold back a substantial volume of water from the Ravi River. The construction materials and geometric profile are optimized for the local geological conditions and hydraulic loads.
Reservoir and Hydrological Parameters
The reservoir created by the dam, Chamera Lake, has a total storage capacity of 391 gigalitres. The surface area of the reservoir covers 950 hectares. The normal operating elevation of the reservoir is 763 metres. The minimum operating water level is maintained at 747 metres. These levels are critical for ensuring consistent head pressure for the turbines downstream. The catchment area feeding the reservoir is 472.5 square kilometres. This drainage basin collects runoff from the surrounding hills and channels it into the Ravi River before it is impounded by the dam.
| Parameter | Value |
|---|---|
| Dam Type | Concrete Gravity |
| Height | 226 metres |
| Length | 295 metres |
| Reservoir Capacity | 391 gigalitres |
| Surface Area | 950 hectares |
| Elevation | 763 metres |
| Catchment Area | 472.5 square kilometres |
| Minimum Operating Level | 747 metres |
Construction History and Phased Development
The Chamera Dam project represents a multi-decade infrastructure development on the River Ravi in Himachal Pradesh. Construction activities commenced in 1984, marking the beginning of a phased approach to harnessing the hydroelectric potential of the region. The project is operated by the National Hydroelectric Power Corporation, which oversaw the transition from initial gravity dam construction to the establishment of the Chamera Lake reservoir. The first phase of the project focused on the core concrete gravity dam structure, which was completed and commissioned in 1994. This initial stage established the primary storage capacity necessary for power generation, forming the foundation for subsequent expansions. The reservoir, known as Chamera Lake, was established primarily for the purpose of generating hydroelectricity, with a significant portion of the water body lying within the Salooni sub-division of the Chamba district.
Following the success of the initial gravity dam phase, the project expanded through two additional phases, each introducing different hydroelectric methodologies. The second phase was completed in 2003, introducing run-of-the-river hydroelectric methods to complement the conventional storage system. This phase allowed for more flexible power generation by utilizing the natural flow of the River Ravi, reducing the dependency on the stored water volume in Chamera Lake. The third and final phase was completed in 2012, further enhancing the plant's capacity and operational efficiency. The transition from conventional hydroelectric methods in the first phase to run-of-the-river methods in the subsequent phases reflects a strategic adaptation to the geographical and hydrological characteristics of the Ravi River. This phased development allowed for incremental capacity additions and operational learning, ensuring the long-term sustainability of the project.
| Year | Event |
|---|---|
| 1984 | Project commencement |
| 1994 | Phase 1 completion (Conventional hydroelectric) |
| 2003 | Phase 2 completion (Run-of-the-river methods) |
| 2012 | Phase 3 completion |
The entire project, spanning from 1984 to 2012, resulted in a total installed capacity of 1071 MW. The operational status of the Chamera Dam remains active, contributing significantly to the energy grid of Himachal Pradesh. The location near the town of Dalhousie in the Chamba district provides a strategic advantage for water intake and power transmission. The phased approach allowed the National Hydroelectric Power Corporation to manage construction risks and integrate new technologies as they became available. The shift to run-of-the-river methods in later phases also helped in minimizing the environmental impact on the surrounding landscape, particularly in the Salooni sub-division where the reservoir is situated. This development model serves as a reference for other hydroelectric projects in the region, demonstrating the effectiveness of combining storage and flow-based generation methods.
How does the Chamera Hydroelectric Plant generate power?
The Chamera Hydroelectric Plant generates electricity by harnessing the potential energy of the River Ravi through a concrete gravity dam structure. The facility utilizes a multi-phase development strategy to optimize power output from the Chamera Lake reservoir. The generation system is characterized by a combination of conventional and run-of-the-river hydroelectric methods, allowing for flexible energy production based on seasonal water flow and storage levels.
Phase 1 Configuration
The initial phase of the project established the core generation capacity. This stage features three Francis-type turbines, each rated at 180 megawatts. The Francis turbine is a reaction turbine that uses both the pressure and kinetic energy of the water, making it highly efficient for the medium-head conditions provided by the Chamera Dam. These units form the backbone of the plant's initial output, leveraging the significant head difference created by the concrete gravity structure across the river.
Phase 2 Expansion
Subsequent development added a second phase to the hydroelectric complex. This expansion introduced three additional turbines, each with a capacity of 100 megawatts. These units complement the larger Phase 1 turbines, allowing the National Hydroelectric Power Corporation to modulate output more effectively during periods of moderate flow. The integration of these 100-megawatt units enhances the plant's ability to maintain consistent grid supply while managing the reservoir levels in the Salooni sub-division of Chamba.
Phase 3 and Run-of-the-River Integration
The third phase further diversified the generation profile with three turbines rated at 77 megawatts each. This phase incorporates run-of-the-river generation methods, which rely more heavily on the continuous flow of the River Ravi rather than large-scale storage. By combining these smaller 77-megawatt units with the larger conventional storage-driven turbines, the plant achieves a balanced approach to hydroelectricity. This configuration supports the total installed capacity of 1071 megawatts, ensuring operational efficiency since the plant's commissioning in 1994. The mix of turbine sizes and generation types allows for optimized performance across varying hydrological conditions in Himachal Pradesh.
What are the environmental conditions at the Chamera Dam?
The Chamera Dam is situated in a region characterized by significant diurnal temperature variations, a climatic feature typical of the Himalayan foothills in Himachal Pradesh. The local environment experiences distinct fluctuations between day and night temperatures. During the daytime, temperatures can rise to highs of 35 °C, providing warm conditions for the surrounding landscape. In contrast, nighttime temperatures drop significantly, with lows ranging from 18 to 20 °C. This thermal contrast influences local agricultural patterns and the comfort of residents in the nearby town of Dalhousie and the broader Chamba district. The climate supports a diverse ecosystem, though the specific hydrological impact of the reservoir is a more dominant factor in the immediate vicinity of the dam.
Impact of the Chamera Lake Reservoir
The construction of the Chamera Dam has profoundly altered the local geography, particularly within the Salooni sub-division of Chamba. The resultant reservoir, known as Chamera Lake, occupies a large proportion of this sub-division. The establishment of the lake was primarily driven by the need to generate hydroelectricity, with the National Hydroelectric Power Corporation operating the facility since its commissioning in 1994. The reservoir's presence has transformed the landscape, submerging areas and creating a significant body of water that influences local microclimates and water availability. The Salooni sub-division, now partially defined by the lake's boundaries, has seen changes in land use and local hydrology due to the damming of the River Ravi. This geographical shift is a key aspect of the dam's environmental footprint, affecting both natural and human systems in the region.
Significance
The Chamera Dam represents a cornerstone of the energy infrastructure in Himachal Pradesh, functioning as a major hydroelectric asset within the state’s power generation portfolio. As a concrete gravity dam spanning the River Ravi, the facility is strategically located near the town of Dalhousie in the Chamba district. Its primary operational purpose is the generation of hydroelectricity, utilizing the water resources of the Ravi river system to feed power into the regional grid. The resultant reservoir, known as Chamera Lake, is a significant geographical feature, with a large proportion of its area lying within the Salooni sub-division of Chamba. This geographic positioning allows for efficient water management and energy production in the hilly terrain of Himachal Pradesh.
The facility is operated by the National Hydroelectric Power Corporation, a public-listed company that plays a pivotal role in India’s hydropower sector. Under the management of this operator, the Chamera Dam maintains an operational status that has been consistent since its commissioning in 1994. The plant’s combined installed capacity stands at 1071 MW, making it one of the substantial contributors to the state’s energy output. This capacity is derived from the hydroelectric power generated by the flow of the Ravi river through the dam’s infrastructure. The 1071 MW output is a critical component of the power supply for Himachal Pradesh, supporting both local consumption and transmission to neighboring regions.
The significance of the Chamera Dam extends beyond its immediate energy output. As a long-standing operational asset, it provides a stable base load power source, which is essential for balancing the variability of other energy sources in the regional grid. The dam’s location in the Chamba district also contributes to the local economy and infrastructure development, particularly in the Salooni sub-division where the reservoir is situated. The National Hydroelectric Power Corporation’s continued operation of the plant ensures that the 1071 MW capacity remains a reliable part of India’s hydroelectric landscape. The facility exemplifies the integration of large-scale civil engineering, such as the concrete gravity dam structure, with sustainable energy production using water as the primary fuel source. This combination of geographic advantage, corporate management, and technical capacity underscores the dam’s enduring role in the energy infrastructure of Himachal Pradesh.
