Overview

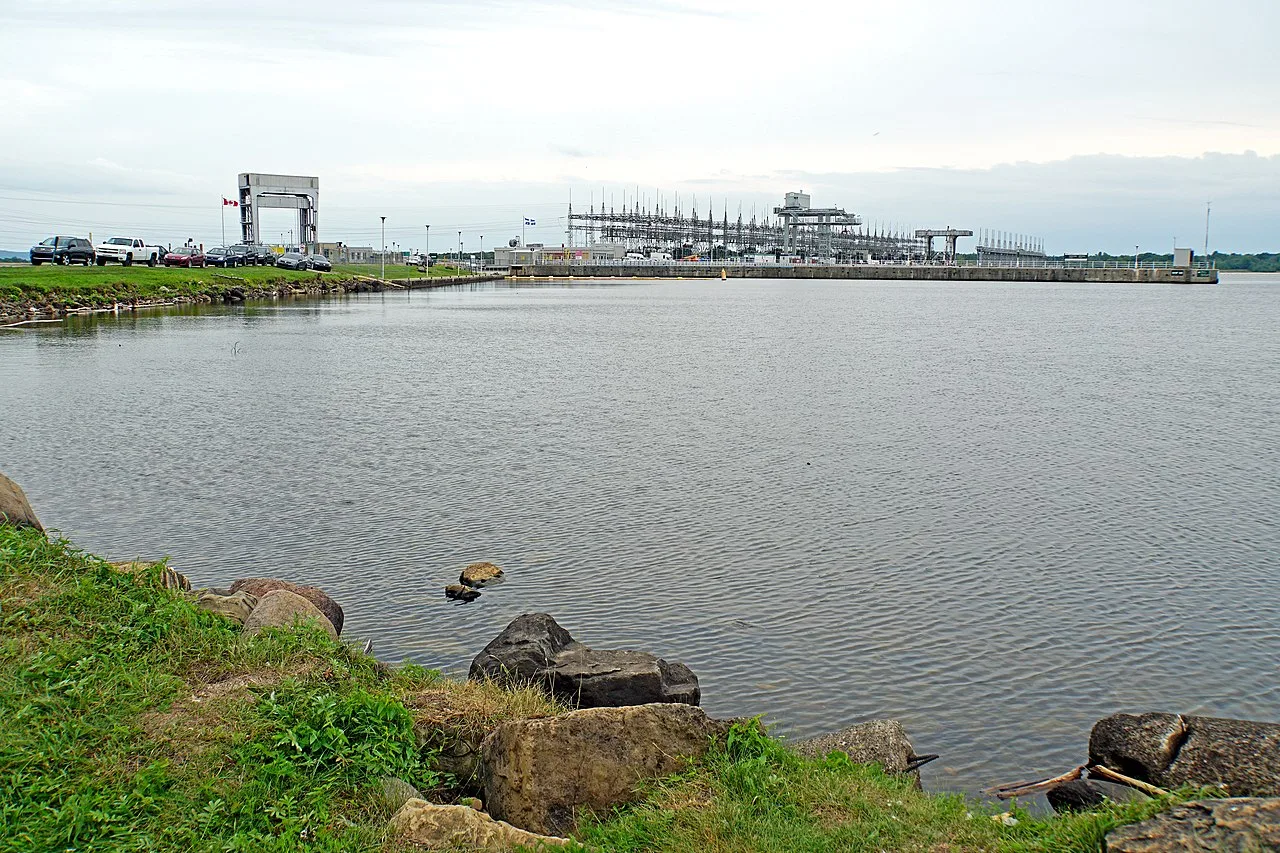

The Carillon generating station is a significant hydroelectric power facility located on the Ottawa River in the province of Quebec, Canada. Situated near the town of Carillon, the station operates as a run-of-river generating plant, a design that leverages the natural flow of the river to produce electricity without requiring a massive upstream reservoir for long-term storage. The facility is managed and operated by Hydro-Québec, the primary electricity utility for the province, and has been in continuous operational status since its initial commissioning in 1964.
Construction of the Carillon station took place between 1959 and 1964, marking a key phase in the development of the Ottawa River's hydroelectric potential. The dam structure spans the river between the communities of Carillon and Pointe-Fortune, Quebec, creating a controlled hydraulic head that drives the turbine generators. As a run-of-river facility, the station plays a specific role in the regional energy grid, providing a consistent base load of power that complements other hydroelectric and thermal sources within Hydro-Québec's network.
Technical Specifications and Infrastructure
The Carillon generating station has an installed capacity of 752 megawatts, which is equivalent to approximately 1,008,000 horsepower. This capacity is harnessed through a hydraulic head of 17.99 meters (59.0 feet), a relatively modest elevation drop that is characteristic of run-of-river stations compared to high-head dam projects. The reservoir created by the dam covers an area of 26 square kilometers (10 square miles), providing sufficient water volume to maintain steady turbine operation while allowing for some flexibility in flow management.
The infrastructure is designed to efficiently convert the kinetic energy of the Ottawa River into electrical power. The station's location between Carillon and Pointe-Fortune allows for effective water diversion and discharge, minimizing environmental disruption while maximizing energy output. Hydro-Québec's operation of the station ensures that the facility remains a reliable contributor to the province's renewable energy portfolio, utilizing the natural water source to generate clean electricity for consumers across the region.
The Carillon station represents an important engineering achievement in Quebec's hydroelectric history. Its construction in the late 1950s and early 1960s reflected the growing demand for electricity in the province and the strategic importance of the Ottawa River as a power source. Today, the station continues to operate effectively, demonstrating the longevity and reliability of well-designed hydroelectric infrastructure. The facility remains a key component of the Ottawa River's hydroelectric chain, working in tandem with other stations to optimize energy production and grid stability.
History
The Carillon hydroelectric generating station was constructed between 1959 and 1964, marking a significant phase in the development of the Ottawa River's hydropower potential. The project was managed and operated by Hydro-Québec, which oversaw the transformation of the river's natural flow to harness energy for the regional grid. The construction period spanned five years, culminating in the station's commissioning in 1964. This timeline reflects the engineering efforts required to establish a run-of-river generating station capable of delivering an installed capacity of 752 megawatts (1,008,000 hp). The project involved substantial civil works to span the Ottawa River between Carillon and Pointe-Fortune, Quebec, creating a reservoir covering 26 square kilometers (10 sq mi) with a head of 17.99 meters (59.0 ft).
Transformation of the Long-Sault Rapids
A central aspect of the Carillon project was the modification of the Long-Sault rapids, a historically significant section of the Ottawa River. The construction of the dam altered the hydrological characteristics of the rapids, integrating them into the run-of-river system that defines the Carillon station. This transformation was essential to achieving the station's operational parameters, including its 752 MW capacity and the creation of the 26 square kilometer reservoir. The dam spans the river between Carillon and Pointe-Fortune, effectively managing the flow that previously characterized the Long-Sault area. The engineering work completed in 1964 established the current configuration of the river in this section, balancing energy production with the natural flow regime typical of run-of-river stations. The project did not eliminate the rapids entirely but rather incorporated their hydraulic potential into the broader hydroelectric infrastructure managed by Hydro-Québec.
The completion of the Carillon station in 1964 represented the culmination of the construction efforts initiated in 1959. The station has remained operational since its commissioning, continuing to contribute to the energy supply of the region. The historical significance of the project lies not only in its technical specifications but also in its impact on the local geography, particularly the Long-Sault rapids. The transformation of this section of the Ottawa River enabled the efficient extraction of hydroelectric power, with the station's 17.99-meter head and 752 MW capacity reflecting the engineering decisions made during the 1959–1964 construction period. The reservoir created by the dam covers 26 square kilometers, providing the necessary water storage to maintain consistent power generation. Hydro-Québec's management of the station has ensured its continued operation, maintaining the balance between energy production and the modified river environment established during the initial construction phase.
Technical specifications
The Carillon hydroelectric generating station is classified as a run-of-river facility, a design choice that optimizes for the flow characteristics of the Ottawa River. This operational mode relies on the natural discharge of the river rather than large-scale storage, allowing for flexible power generation. The station is managed and operated by Hydro-Québec, which oversees its technical performance and integration into the regional grid. The infrastructure spans the river between the municipalities of Carillon and Pointe-Fortune in Quebec, Canada, creating a strategic crossing point for both hydrological management and energy production.
Engineering Parameters
The technical specifications of the Carillon station reflect its role as a significant contributor to the Ottawa River's hydroelectric potential. The installed capacity of the station is 752 megawatts, which is equivalent to 1,008,000 horsepower. This capacity is achieved through a specific hydraulic head of 17.99 meters, or 59.0 feet. The relatively modest head is characteristic of run-of-river stations on major river systems, where flow volume often compensates for elevation drop. The reservoir created by the dam covers an area of 26 square kilometers, which corresponds to approximately 10 square miles. This surface area provides sufficient storage to manage short-term fluctuations in river flow while maintaining the necessary head for turbine efficiency.
| Parameter | Value | Unit |
|---|---|---|
| Installed Capacity | 752 | MW |
| Installed Capacity (Horsepower) | 1,008,000 | hp |
| Hydraulic Head | 17.99 | m |
| Hydraulic Head (Feet) | 59.0 | ft |
| Reservoir Area | 26 | km² |
| Reservoir Area (Square Miles) | 10 | sq mi |
| Operational Type | Run-of-river | — |
The dam structure itself spans the Ottawa River between Carillon and Pointe-Fortune. This geographical positioning is critical for the station's hydraulic performance, as it defines the intake and outlet conditions for the water flow. The construction of the station took place between 1959 and 1964, a period that saw significant expansion in Quebec's hydroelectric infrastructure. The engineering design ensures that the station can handle the variable flow rates typical of the Ottawa River while maintaining a consistent head for power generation. The 17.99-meter head is maintained by the dam's ability to regulate the water level upstream, creating the 26-square-kilometer reservoir that serves as the primary storage mechanism for the run-of-river system.
Hydro-Québec's operation of the station involves continuous monitoring of these technical parameters to optimize energy output. The 752 MW capacity is a key metric for the station's contribution to the regional energy mix, providing a reliable source of renewable power. The specific combination of head, capacity, and reservoir area makes Carillon a distinct entity within the broader Ottawa River hydroelectric complex. The station's design reflects the engineering priorities of the mid-20th century, balancing structural integrity with hydraulic efficiency to maximize the energy yield from the Ottawa River's flow.
Impact on the Ottawa River
The construction of the Carillon generating station fundamentally altered the hydrological regime of the Ottawa River, transforming a dynamic riverine system into a managed run-of-river reservoir. The dam, spanning the river between Carillon and Pointe-Fortune, Quebec, created a reservoir covering 26 square kilometers (10 sq mi). This inundation significantly raised water levels in the immediate vicinity of Carillon and extended upstream to affect the hydrology around Grenville. The creation of this reservoir required the submersion of significant stretches of the riverbed, most notably the historic Long-Sault rapids.
Inundation of the Long-Sault Rapids
The Long-Sault rapids, once a prominent feature of the Ottawa River, were among the most significant geographical features affected by the Carillon project. Located near the site of the future dam, these rapids were characterized by a series of rocky outcrops and turbulent water flows that had influenced navigation and local ecology for centuries. The construction of the Carillon dam, which took place between 1959 and 1964, resulted in the partial or complete submersion of these rapids, depending on the operational water levels maintained by Hydro-Québec. The head of the station is 17.99 meters (59.0 ft), a measure that reflects the elevation difference created by the dam to drive the turbines with an installed capacity of 752 megawatts. This hydraulic head was achieved by raising the water level upstream, effectively smoothing out the natural gradient of the river at this location.
The inundation of the Long-Sault rapids had immediate and long-term effects on the local landscape. The rocky formations that defined the rapids were either submerged beneath the reservoir or exposed only during periods of low water drawdown. This change altered the flow dynamics of the river, reducing the turbulence and increasing the depth of the water in this section. The transformation from a rapid-filled stretch to a more uniform reservoir surface impacted the local microclimate, vegetation, and wildlife habitats that had adapted to the previous hydrological conditions. The reservoir's surface area of 26 square kilometers represents a significant expansion of the water body compared to the pre-dam river width, creating a new aquatic environment for fish and other aquatic species.
Hydrological Changes and Water Level Management
As a run-of-river generating station, the Carillon plant operates by regulating the flow of the Ottawa River to maintain a consistent power output. This operation involves managing the water levels in the reservoir, which in turn affects the water levels downstream and upstream. The reservoir's water level is influenced by seasonal variations in precipitation, snowmelt, and the operational needs of the 752 MW capacity plant. Hydro-Québec, the operator of the station, manages these water levels to optimize energy production while mitigating the impacts on the river ecosystem and surrounding communities.
The rise in water levels at Carillon and the extension of the reservoir towards Grenville have had implications for the local geography and land use. Areas that were previously dry land or low-lying riverbanks are now part of the reservoir, affecting local drainage patterns and potentially influencing the water table in the surrounding region. The management of the reservoir also involves balancing the needs of navigation, recreation, and ecological health. The smoothing of the river flow due to the dam has reduced the natural variability of the water levels, which can have both positive and negative effects on the river's ecological balance. For instance, the more stable water levels can provide a more predictable environment for certain species, while the reduction in flow variability can affect the natural spawning cycles of fish that rely on fluctuating water levels.
The hydrological changes brought about by the Carillon generating station are a testament to the significant impact that hydroelectric infrastructure can have on river systems. The transformation of the Ottawa River at this location, from a rapid-filled stretch with significant elevation changes to a managed reservoir with a controlled head of 17.99 meters, illustrates the trade-offs involved in harnessing water for energy production. The inundation of the Long-Sault rapids and the creation of a 26 square kilometer reservoir represent a permanent alteration of the river's natural state, managed by Hydro-Québec to deliver 752 MW of power to the grid. These changes continue to shape the hydrological and ecological characteristics of the Ottawa River in the Carillon and Grenville areas.
Navigation and the Carillon Lock
The Carillon generating station serves as a critical node in the navigation infrastructure of the Ottawa River, integrating hydroelectric power generation with maritime transit through the Carillon Lock. This modern lock facility is designed to facilitate the movement of vessels along the St. Lawrence Seaway system, connecting the Great Lakes to the Atlantic Ocean. The lock is an essential component of the Carillon Canal, which manages the water levels and flow required for both power generation and efficient boat passage. By maintaining a consistent head of 17.99 meters (59.0 ft) across the dam, the station ensures that the reservoir, covering an area of 26 square kilometers (10 sq mi), provides the necessary water volume to support these dual functions without disrupting the operational capacity of the 752 MW plant. The integration of the lock with the run-of-river generating station allows for continuous traffic flow, minimizing delays for commercial and recreational vessels traversing the stretch between Carillon and Pointe-Fortune, Quebec. This infrastructure highlights the strategic planning involved in the station's construction between 1959 and 1964, where Hydro-Québec, the managing operator, balanced energy production with regional transportation needs. The Carillon Lock enables ships to navigate the elevation changes created by the dam, ensuring that the Ottawa River remains a viable commercial waterway. The design of the lock system is tailored to handle the specific hydraulic conditions of the river, supporting the installed capacity of 1,008,000 hp by regulating water release. This synergy between hydroelectric infrastructure and navigation aids underscores the importance of the Carillon site in the broader context of Canadian energy and transport networks. The operational status of the station as a functional hydroelectric powerplant relies on the seamless coordination between the turbine operations and the lock mechanisms, ensuring that water levels are optimized for both energy output and vessel transit. The Carillon Canal, in conjunction with the lock, plays a vital role in maintaining the navigability of the Ottawa River, facilitating trade and connectivity in the region. The infrastructure reflects the engineering achievements of the mid-20th century, where multi-purpose water management became a key feature of large-scale hydroelectric projects. The lock's ability to handle varying vessel sizes and traffic volumes contributes to the economic vitality of the areas surrounding the Ottawa River. Hydro-Québec's management of the station ensures that the navigation facilities remain efficient and reliable, supporting the ongoing operational status of the powerplant. The integration of the Carillon Lock into the regional transport network demonstrates the strategic value of combining energy infrastructure with maritime routes. This approach not only enhances the utility of the hydroelectric station but also supports the broader economic goals of the province and the country. The Carillon generating station thus stands as a testament to the effective integration of energy production and navigation infrastructure, serving as a model for future multi-purpose water management projects. The lock continues to play a crucial role in the daily operations of the Ottawa River, facilitating the smooth passage of vessels while supporting the generation of renewable energy. The ongoing maintenance and operation of the Carillon Lock by Hydro-Québec ensure that the facility remains a key component of the region's infrastructure, contributing to both energy security and economic development. The synergy between the hydroelectric plant and the navigation system highlights the importance of integrated planning in maximizing the benefits of water resources. The Carillon Lock remains an essential feature of the Ottawa River's navigation network, supporting the continued growth and connectivity of the region. The facility's design and operation reflect the advanced engineering standards of its time, ensuring long-term functionality and efficiency. The integration of the lock with the generating station underscores the strategic importance of the Carillon site in the broader context of Canadian infrastructure. The Carillon generating station and its associated lock facility continue to serve as a vital link in the transportation and energy networks of Quebec and Canada.
Why it matters
The Carillon generating station occupies a critical position within the broader hydroelectric infrastructure of Quebec, serving as a key component in the management of the Ottawa River’s flow. As a run-of-river facility, its operational significance lies not merely in its power output but in its strategic location between Carillon and Pointe-Fortune, Quebec. This positioning allows for the regulation of water levels and the optimization of energy generation across the river system, contributing to the stability of the regional grid.
Managed and operated by Hydro-Québec, the station exemplifies the province’s long-term commitment to harnessing water resources for energy production. With an installed capacity of 752 megawatts (1,008,000 hp), Carillon provides a substantial and reliable source of electricity for the region. The station’s ability to generate power with a head of 17.99 meters (59.0 ft) demonstrates the efficiency of its design, maximizing energy extraction from the river’s natural gradient. This capacity is vital for meeting the fluctuating energy demands of Quebec’s industrial and residential sectors.
The construction of the Carillon generating station between 1959 and 1964 marked a significant milestone in the development of Quebec’s hydroelectric network. The creation of a reservoir covering 26 square kilometers (10 sq mi) further enhanced the station’s operational flexibility, allowing for better control over water flow and sediment management. This infrastructure investment has had lasting impacts on the local environment and economy, supporting job creation and fostering growth in the surrounding areas.
In the context of Quebec’s hydroelectric infrastructure, the Carillon station plays a pivotal role in balancing energy production and environmental stewardship. Its run-of-river design minimizes the ecological footprint compared to large reservoir-based stations, while still delivering substantial power output. This balance is crucial for maintaining the health of the Ottawa River ecosystem while ensuring a steady supply of clean energy. The station’s continued operation underscores the importance of strategic planning and engineering excellence in sustainable energy management.
How does the Carillon station compare to other Ottawa River dams?
The Carillon generating station functions as a central component of the Ottawa River hydroelectric system, a series of run-of-river dams developed primarily by Hydro-Québec to harness the river’s flow between the Great Lakes and the Atlantic Ocean. As a run-of-river facility, Carillon relies on the natural flow of the Ottawa River rather than a massive storage reservoir, a characteristic it shares with other major stations in the system such as Labelle and Des Cèdres. Its operational parameters are defined by a head of 17.99 meters and a reservoir area of 26 square kilometers, which allows for significant power generation with relatively modest water storage compared to upstream reservoirs like the Gatineau or Labelle reservoirs. The station’s installed capacity of 752 megawatts places it among the larger generating stations on the Ottawa River, though it is not the largest. For context, the downstream Des Cèdres station and the upstream Labelle station also contribute substantially to the system’s total output. The Carillon dam spans the river between the municipalities of Carillon and Pointe-Fortune, Quebec, creating a strategic choke point that regulates water levels for navigation and power generation. The construction period of 1959 to 1964 aligns with the broader mid-20th-century expansion of Hydro-Québec’s network, which sought to integrate the Ottawa River basin into the provincial grid.| Station | Capacity (MW) | Type | Key Feature |
|---|---|---|---|
| Carillon | 752 | Run-of-river | 17.99 m head; 26 km² reservoir |
| Labelle | 770 | Run-of-river | Upstream neighbor |
| Des Cèdres | 442 | Run-of-river | Downstream neighbor |
What are the key engineering challenges of run-of-river stations?
Run-of-river hydroelectric stations present distinct engineering challenges compared to reservoir-heavy schemes, primarily revolving around the optimization of hydraulic head and flow regulation. The Carillon generating station exemplifies these constraints, operating with a relatively modest head of 17.99 meters (59.0 ft) while managing a reservoir surface area of 26 square kilometers (10 sq mi). This configuration requires precise civil engineering to balance water storage capacity against the structural demands of the dam, which spans the Ottawa River between Carillon and Pointe-Fortune, Quebec.
Hydraulic Head and Turbine Efficiency
The limited head at Carillon dictates specific turbine selection and intake design. With only 17.99 meters of vertical drop, the station relies on high-volume water flow to achieve its installed capacity of 752 megawatts (1,008,000 hp). Engineers must ensure that the penstocks and turbine runners are optimized for this specific pressure differential to maximize efficiency. Unlike high-head dams that store potential energy in elevation, run-of-river plants like Carillon depend heavily on the kinetic energy of the flowing water. This necessitates a wide intake structure to capture sufficient volume from the Ottawa River, ensuring that seasonal variations in river flow do not disproportionately impact power output.
Reservoir Management and Flow Regulation
Managing the 26 square kilometer reservoir at Carillon involves balancing upstream water levels to maintain the 17.99-meter head while minimizing the "pondage" effect on the river ecosystem. The reservoir serves as a temporary storage buffer, allowing the station to smooth out short-term fluctuations in river flow. However, because the reservoir is relatively small compared to major storage dams, the station is more sensitive to seasonal changes in the Ottawa River's discharge. Hydro-Québec, the operator, must coordinate flow releases to maintain optimal turbine performance throughout the year, ensuring that the water levels between Carillon and Pointe-Fortune remain within engineered limits. This requires continuous monitoring of inflow rates and strategic gate operations to prevent both flooding and excessive drawdown, which could expose the dam's foundation and affect the efficiency of the 752 MW installation.
