Overview
A carbon dioxide scrubber is a specialized piece of equipment designed to absorb carbon dioxide (CO2) from circulated gas streams. The primary function of this device is to reduce the concentration of CO2 in a given atmosphere or exhaust flow, ensuring that the gas composition remains within desired parameters for specific operational or biological needs. These systems are critical components in environments where the accumulation of carbon dioxide can lead to suffocation, chemical instability, or thermal inefficiency. The term "scrubber" in this context refers to the process of "washing" or filtering the gas through an absorbent medium, which captures the CO2 molecules, thereby purifying the remaining gas mixture.
Industrial and Process Applications
In industrial settings, carbon dioxide scrubbers are primarily employed to treat exhaust gases emitted from various plants and processing units. Industrial processes often generate significant volumes of CO2 as a byproduct of combustion or chemical reactions. Without effective scrubbing, these gases can contribute to atmospheric pollution or interfere with downstream processing stages. The scrubbers facilitate carbon capture and storage (CCS) processes, which are increasingly vital in the energy sector for mitigating greenhouse gas emissions. By integrating scrubbers into the exhaust treatment line, industrial facilities can isolate CO2 for subsequent compression, transport, and geological storage, or for reuse in other industrial applications such as enhanced oil recovery or carbonated beverage production.
Life Support Systems
Beyond industrial exhaust treatment, carbon dioxide scrubbers are indispensable in life support systems where the volume of air is limited and recirculated. In spacecraft, submersible craft, and airtight chambers, the exhaled air from occupants contains elevated levels of CO2. If left unmanaged, this carbon dioxide can accumulate to toxic levels, leading to hypercapnia. Scrubbers in these environments typically utilize an absorbent canister containing a chemical agent, such as lithium hydroxide or soda lime, which reacts with the CO2 to form stable compounds. This process ensures that the recirculated air remains breathable for the crew or occupants over extended periods. Rebreathers, used by divers and military personnel, also rely on compact scrubber units to remove CO2 from the exhaled breath before it is re-inhaled, allowing for efficient use of oxygen supplies.
Controlled Atmosphere Storage
Carbon dioxide scrubbers are also utilized in controlled atmosphere (CA) storage facilities. In CA storage, the composition of the air surrounding stored products, such as fruits, vegetables, or electronic components, is carefully regulated to extend shelf life or preserve quality. Excess CO2 can accelerate ripening, cause fermentation, or induce corrosion. Scrubbers help maintain the optimal gas balance by continuously removing CO2 as it is released by the stored items or introduced through ventilation. This application highlights the versatility of CO2 scrubbing technology, which extends from large-scale industrial plants to precise environmental controls in storage and life support contexts.
How do amine scrubbers work?
Amine scrubbing utilizes organic amine solutions to chemically bind carbon dioxide from gas streams. This method is widely implemented in coal-fired power plants and nuclear submarines, with operational history dating back to the late 1950s. The process relies on the reaction between CO2 and amines, such as monoethanolamine (MEA), to form stable compounds that can be separated from the exhaust gas.
Chemical Binding Process
In the absorber column, the exhaust gas flows upward while the amine solution flows downward. Carbon dioxide reacts with the amine to form carbamates or bicarbonates, depending on the amine concentration and temperature. This chemical binding allows for high selectivity of CO2 compared to other gases like nitrogen and oxygen. The reaction is exothermic, releasing heat as the CO2 binds to the amine molecules.
| Reaction Type | Chemical Equation |
|---|---|
| Carbamate Formation | 2 RNH2 + CO2 ⇌ RNHCOO− + RNH3+ |
| Bicarbonate Formation | RNH2 + CO2 + H2O ⇌ RNH3+ + HCO3− |
After absorption, the rich amine solution is pumped to a stripper column where heat is applied to reverse the reaction. This regeneration step releases pure CO2 for storage or utilization and returns the lean amine solution to the absorber. The efficiency of the process depends on factors such as amine concentration, temperature, and pressure. In nuclear submarines, compact amine scrubbers are essential for maintaining breathable air by removing exhaled CO2 from the enclosed atmosphere.
The implementation of amine scrubbers in coal-fired power plants has evolved since the late 1950s, with continuous improvements in energy efficiency and solvent stability. These systems are critical for carbon capture and storage processes, enabling the reduction of CO2 emissions from industrial sources. The chemical binding mechanism ensures effective separation of CO2, making amine scrubbing a cornerstone technology in modern carbon management strategies.
What are the main types of CO2 scrubbers?
Carbon dioxide scrubbers utilize various chemical and physical absorption methods depending on the application environment, ranging from industrial exhaust treatment to spacecraft life support systems. The choice of absorbent material dictates the efficiency, regeneration requirements, and byproduct handling of the scrubbing process.
Mineral and Zeolite Absorption
Mineral carbonation involves reacting CO2 with metal oxides to form stable carbonates. This method is prominent in carbon capture and storage (CCS) processes. Minerals such as serpentinite and olivine are used to sequester CO2 through carbonate looping mechanisms. These natural minerals react with carbon dioxide to form solid carbonate compounds, offering a long-term storage solution. Zeolites, which are microporous aluminosilicate minerals, are also employed for their high surface area and affinity for CO2 molecules, making them effective in pressure swing adsorption systems.
Sodium Hydroxide and the Zeman-Lackner Method
Chemical absorption using sodium hydroxide (NaOH) is a widely used technique, particularly in the Zeman and Lackner method. In this process, exhaust gases pass through a bed of sodium hydroxide pellets, where CO2 is absorbed to form sodium carbonate. The reaction can be represented as:
2 NaOH + CO2 → Na2CO3 + H2O
The sodium carbonate is then subjected to a causticization process, often involving a lime kiln process, to regenerate the sodium hydroxide and release concentrated CO2. This regeneration step is crucial for the continuous operation of the scrubber, allowing the absorbent to be reused. The lime kiln process involves heating calcium carbonate to produce calcium oxide, which reacts with sodium carbonate to regenerate NaOH.
Activated Carbon
Activated carbon is another common absorbent used in CO2 scrubbers, particularly in controlled atmosphere (CA) storage and smaller-scale life support systems. Activated carbon works through physical adsorption, where CO2 molecules adhere to the vast internal surface area of the carbon granules. This method is effective in environments where high humidity and temperature variations are present. Activated carbon scrubbers are often used in rebreathers and spacecraft due to their lightweight and high efficiency in removing CO2 from exhaled air.
| Absorbent Material | Primary Mechanism | Typical Application | Regeneration Method |
|---|---|---|---|
| Serpentinite/Olivine | Mineral Carbonation | Carbon Capture and Storage | Thermal or Chemical Looping |
| Sodium Hydroxide (NaOH) | Chemical Absorption | Industrial Exhaust, Zeman-Lackner | Causticization/Lime Kiln |
| Activated Carbon | Physical Adsorption | Rebreathers, CA Storage | Pressure Swing/Temperature Swing |
| Zeolites | Physical/Chemical Adsorption | Pressure Swing Adsorption | Pressure/Temperature Swing |
Lithium hydroxide and spacecraft applications
Lithium hydroxide (LiOH) serves as a primary chemical absorbent for carbon dioxide removal in confined life support systems, including spacecraft and medical anesthesia circuits. In these environments, the material is typically packed into canisters where exhaled air or exhaust gas passes through the bed, facilitating efficient gas-liquid or gas-solid contact. The fundamental mechanism involves an acid-base reaction where the alkaline lithium hydroxide reacts with acidic carbon dioxide to form lithium carbonate and water. This process effectively reduces partial pressure of CO2, preventing hypercapnia in occupants.
The chemical reaction for lithium hydroxide scrubbing is represented as: 2LiOH + CO2 → Li2CO3 + H2O. This stoichiometry indicates that two moles of lithium hydroxide are required to neutralize one mole of carbon dioxide. The resulting lithium carbonate is a solid precipitate, which simplifies the separation process in closed-loop systems compared to liquid absorbents that may require regeneration cycles. In spacecraft applications, such as those utilized during the Apollo program, the compactness and high mass efficiency of LiOH canisters were critical for managing cabin atmosphere over multi-day missions. The canisters are often designed to be replaceable, allowing for modular maintenance without complex mechanical pumps, relying instead on fan-driven airflow through the granular bed.
In medical anesthesia machines, lithium hydroxide canisters are used within the circle system to remove CO2 from the patient's exhaled breath, allowing for the reuse of anesthetic gases and oxygen. The choice of LiOH is driven by its relatively low hygroscopicity compared to other alkali hydroxides, which helps control the humidity of the returned gas and minimizes the drying effect on the patient's respiratory tract. However, the heat generated by the exothermic reaction must be managed to prevent thermal burns or excessive drying of the mucous membranes.
Alternative lithium-based compounds have been explored for CO2 scrubbing to optimize mass and volume efficiency. Lithium peroxide (Li2O2) reacts with CO2 to form lithium carbonate and releases oxygen, making it attractive for life support systems requiring simultaneous CO2 removal and O2 generation. The reaction is: 2Li2O2 + 2CO2 → 2Li2CO3 + O2. This dual function can reduce the need for separate oxygen tanks, though the management of the released oxygen and the heat of reaction presents engineering challenges. Lithium orthosilicate (Li4SiO4) has also been investigated, particularly for high-temperature applications. It offers a higher CO2 uptake capacity per unit mass at elevated temperatures, making it suitable for spacecraft with waste heat availability. The reaction involves the formation of lithium carbonate and lithium metasilicate: Li4SiO4 + CO2 → Li2CO3 + Li2SiO3. These alternatives highlight the trade-offs between mass efficiency, thermal management, and system complexity in the design of carbon dioxide scrubbers for specialized environments.
Regenerative carbon dioxide removal system
The Regenerative Carbon Dioxide Removal System (RCRS) was the primary method for managing cabin air quality aboard the Space Shuttle. Unlike simple absorbent canisters used in earlier missions, the RCRS utilized a two-bed system designed to continuously remove carbon dioxide (CO2) from the cabin atmosphere while allowing for the periodic regeneration of the sorbent material. This system was critical for maintaining a breathable environment during the typical seven-day orbital missions.
System Architecture and Sorbent Material

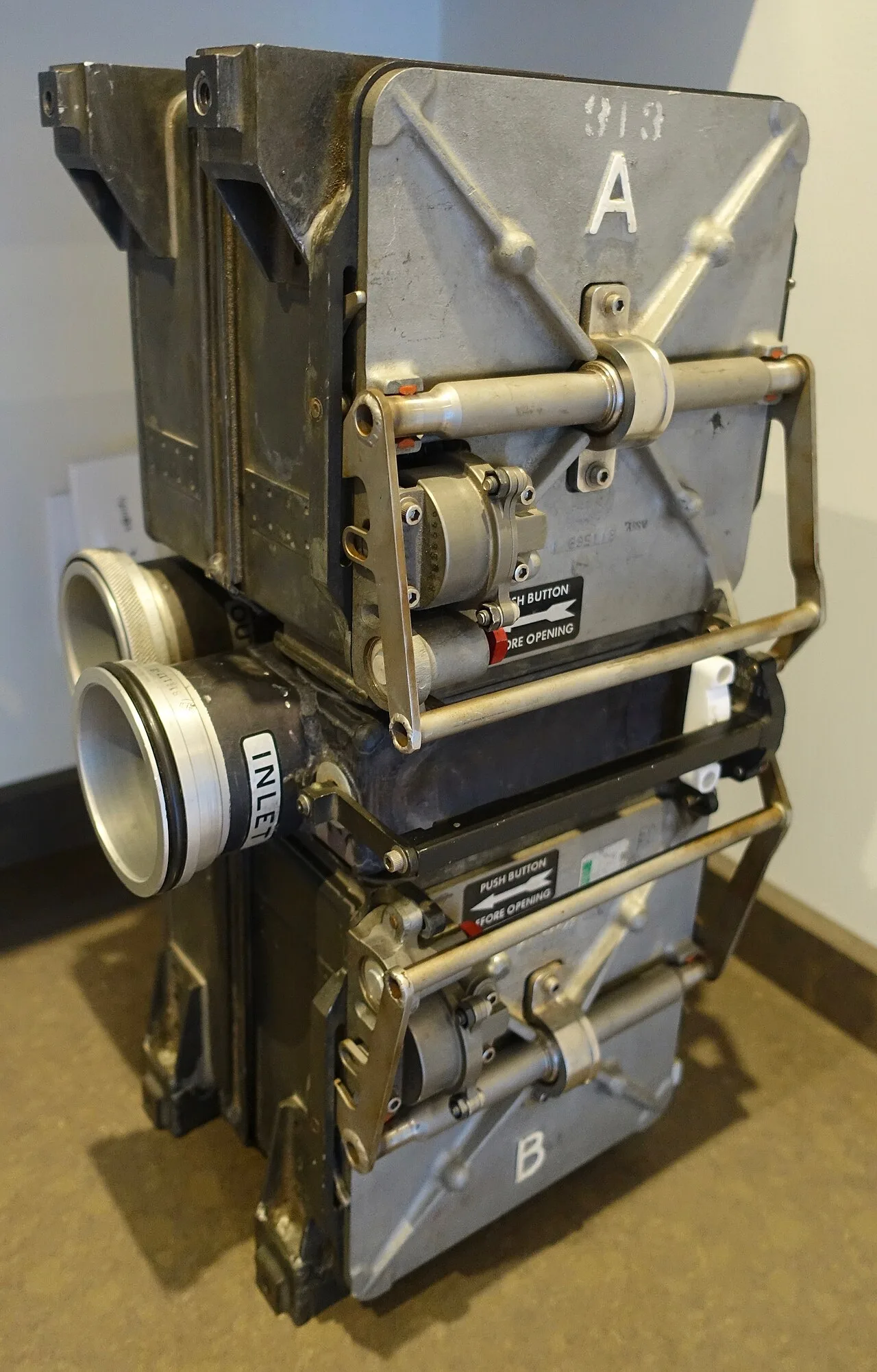

The RCRS consisted of two identical beds containing metal-oxide sorbent canisters. The primary sorbent material was lithium hydroxide (LiOH) mixed with a metal oxide, typically aluminum oxide, to enhance surface area and flow dynamics. As cabin air was drawn through one bed, the CO2 molecules were chemically absorbed by the sorbent. The system operated on a cycle where one bed was actively scrubbing CO2 while the other was undergoing regeneration or standing by. This dual-bed configuration ensured continuous operation, minimizing the risk of CO2 buildup during the transition phases.
Regeneration Process and Thermal Cycle
The regeneration process was thermal in nature. After a bed had absorbed a sufficient amount of CO2, it was isolated from the main cabin airflow. The bed was then heated to approximately 200 °C. This temperature was critical for driving the chemical equilibrium, causing the metal-oxide sorbent to release the absorbed CO2. The released gas was then vented overboard through the cabin air thermal control system. Once the bed was cooled back to cabin temperature, it was reactivated and returned to service. This cycle allowed the same canisters to be used multiple times, reducing the mass penalty compared to single-use lithium hydroxide canisters.
System Parameters
| Parameter | Value |
|---|---|
| System Type | Two-bed regenerative |
| Sorbent Material | Metal-oxide (LiOH/Al2O3) |
| Regeneration Temperature | 200 °C |
| Primary Function | CO2 absorption and thermal venting |
| Application | Space Shuttle Orbiter |
The flow rates were calibrated to maintain cabin CO2 partial pressure within safe limits for the crew. The system’s efficiency depended on the precise control of the thermal cycle and the integrity of the metal-oxide sorbent. Any deviation in temperature or flow could affect the desorption efficiency, potentially leading to higher CO2 concentrations in the cabin. The RCRS represented a significant advancement in life support technology, balancing mass, volume, and operational complexity for long-duration spaceflight.
Emerging technologies and other methods
Research into next-generation carbon dioxide capture focuses on materials and methods that reduce the energy penalty associated with traditional amine-based scrubbing. Metal-organic frameworks (MOFs) represent a significant advancement in this domain. These crystalline materials consist of metal ions or clusters coordinated to organic ligands, forming porous structures with high surface areas. MOFs offer tunable pore sizes and chemical functionalities, allowing for precise optimization of CO2 affinity and selectivity. This tunability can lead to higher separation efficiency compared to conventional zeolites or activated carbons, particularly in mixed-gas streams such as flue gas from power plants or exhaust from spacecraft life support systems.
The energy cost of regenerating the absorbent is a critical metric for economic viability. Traditional thermal swing adsorption using monoethanolamine (MEA) often requires significant heat input, typically in the range of 3.5 to 4.5 GJ per tonne of CO2 captured. Emerging MOF-based systems aim to lower this threshold through mechanisms such as pressure swing adsorption (PSA) or temperature swing adsorption (TSA), potentially reducing energy consumption by leveraging weaker binding energies. The capture process can be modeled using adsorption isotherms, such as the Langmuir equation: θ=1+KPKP, where θ is the fractional coverage, K is the Langmuir constant, and P is the partial pressure of CO2. Optimizing K allows engineers to balance capture capacity against regeneration energy.
Biological and Membrane Separation Methods
Beyond solid adsorbents, biological methods utilize algae bioreactors for carbon capture. Microalgae photosynthesize CO2, converting it into biomass which can be harvested for biofuels or bioproducts. This method integrates carbon capture with value-added product generation, potentially offsetting operational costs. Algal systems can achieve high CO2 removal efficiency, often exceeding 90% in optimized photobioreactors, though they require significant land or water area and light exposure compared to compact mechanical scrubbers.
Membrane gas separation offers another alternative, utilizing semi-permeable membranes to separate CO2 based on solubility and diffusivity differences. Polymeric membranes, such as polyimides, and inorganic membranes, like silica or zeolites, are commonly used. This method is modular and requires less energy than thermal regeneration, making it suitable for low-pressure streams. However, membrane systems often face trade-offs between permeability and selectivity, known as the Robeson upper bound. Combining membranes with other methods, such as a hybrid membrane-amine process, is an active area of research to maximize overall system efficiency and reduce the footprint of carbon capture installations.
Applications in life support and industry
Carbon dioxide scrubbers are critical components in closed-loop life support systems where the continuous removal of exhaled CO2 is essential for maintaining breathable air quality. In these applications, the equipment functions by absorbing carbon dioxide from the ambient atmosphere, preventing toxic accumulation that can lead to hypercapnia in occupants. The technology is deployed across diverse environments, including spacecraft, submersible craft, and various airtight chambers, where the volume of air is finite and natural ventilation is often limited or non-existent.
Rebreathers and Extend Air Cartridges
In personal life support systems, such as rebreathers used by divers and firefighters, carbon dioxide scrubbers are typically integrated into an absorbent canister. These canisters contain a chemical absorbent that reacts with exhaled CO2, allowing the user to re-breathe the same volume of air multiple times. This process significantly extends the duration of the air supply compared to open-circuit systems. The efficiency of these scrubbers is vital for missions relying on "extend air cartridges," where the weight and volume of the gas supply are constrained. The scrubber ensures that the partial pressure of CO2 remains within safe physiological limits, thereby enhancing operational endurance and safety for the user.
Spacecraft and Submersible Craft
Spacecraft and submersible craft utilize sophisticated carbon dioxide scrubbers to manage the atmospheric composition in confined living and working quarters. In these environments, the scrubber treats the exhaled air from the crew, removing CO2 before it is recirculated back into the cabin. This process is essential for maintaining a stable and habitable atmosphere during long-duration missions. The design of these scrubbers must account for the specific environmental conditions, such as microgravity in spacecraft or high pressure in submersibles, to ensure consistent performance. The integration of these systems into the broader life support infrastructure allows for efficient resource management and prolonged mission capabilities.
Controlled Atmosphere Storage
Beyond life support, carbon dioxide scrubbers play a significant role in industrial applications, particularly in controlled atmosphere (CA) storage. This technology is widely used in the agricultural sector for the preservation of fruits and other perishable goods. In CA storage facilities, the concentration of CO2 is carefully regulated to slow down the respiration rate of the produce, thereby extending its shelf life and maintaining quality. The scrubbers remove excess CO2 generated by the stored fruits, ensuring that the atmospheric composition remains optimal for preservation. This application highlights the versatility of carbon dioxide scrubbing technology in maintaining specific environmental conditions for industrial and commercial purposes.
