Overview

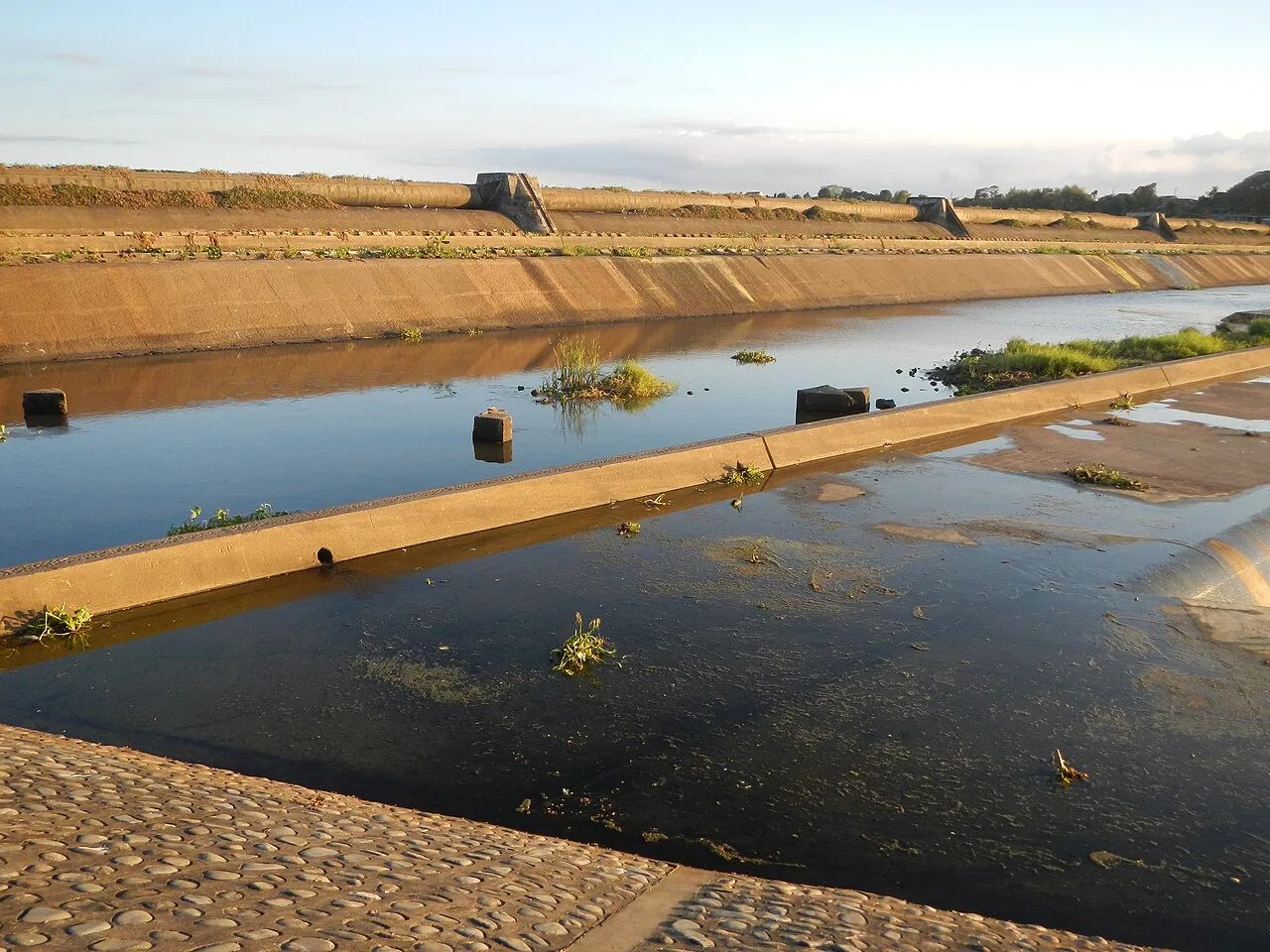

Bustos Dam, also known as the Angat Afterbay Regulator Dam, is a small irrigation dam located in the municipality of Bustos, Bulacan, Philippines. The facility is situated in Barangay Tibagan and is served by the Angat River. Despite its distinct identity as an afterbay regulator, the structure is frequently mistaken by locals for the nearby Angat Dam due to its close proximity to the town of Angat. The dam was commissioned in 1926 and remains operational under the management of the National Irrigation Administration. Its primary function is to regulate water flow for irrigation and water supply infrastructure in the region.
Technical Specifications and Design
The main dam structure stands approximately 18 meters above sea level. The dam features a 2.5-meter high, six-span design that incorporates a rubber body that is both deflatable and inflatable. This specific construction method provides several operational advantages, including resistance to sedimentation, economic efficiency, and an auto-deflation system. These features allow for flexible water management and maintenance capabilities compared to traditional concrete or earth-fill dams.
Operational Context
As an afterbay regulator, the Bustos Dam plays a critical role in the broader Angat water system. It helps manage the water released from the main Angat Dam, ensuring consistent flow for downstream irrigation needs. The National Irrigation Administration oversees its operations, leveraging the dam's unique rubber-body design to optimize water distribution across the agricultural lands of Bulacan. The dam's continued operation since 1926 highlights its enduring importance to the local water infrastructure.
Engineering Design and Rubber Dam Technology
The structural configuration of the Bustos Dam diverges significantly from conventional concrete or earth-fill embankments, utilizing a specialized inflatable rubber body design. This engineering approach was selected to provide a compact, economical solution for irrigation regulation while offering distinct advantages in sediment management and operational flexibility. The dam is situated at an elevation of approximately 18 meters above sea level, serving as a critical afterbay regulator for the Angat River system.
Technical Specifications and Dimensions
The main structure is characterized by its relatively low profile and modular span arrangement. The dam features a total height of 2.5 meters and is divided into six individual spans. This multi-span configuration allows for segmented control of water flow, enabling operators to isolate sections for maintenance or to adjust discharge rates with greater precision than a single-gate system would permit. The rubber body itself is designed to be both deflatable and inflatable, a dual-state capability that defines its operational lifecycle.
| Parameter | Value |
|---|---|
| Dam Height | 2.5 meters |
| Number of Spans | 6 |
| Elevation Above Sea Level | 18 meters |
| Primary Material | Inflatable Rubber Body |
| Operational Mechanism | Auto-deflation system |
Rubber Dam Technology and Operational Mechanics
The core innovation of the Bustos Dam lies in its use of an inflatable rubber bladder. When inflated, typically with water or air, the rubber body rises to its full 2.5-meter height, creating a barrier that regulates the upstream water level for irrigation intake. This method provides a smooth, adjustable crest that can be tailored to specific hydraulic needs. The design incorporates an auto-deflation system, which serves as a mechanical safeguard. In the event of a power failure or a sudden surge in upstream flow, the system can automatically deflate the rubber body, allowing water to flow over or through the dam, thereby reducing hydrostatic pressure and minimizing the risk of structural rupture.
Sedimentation resistance is another critical feature of this design. In traditional low-head dams, silt and debris often accumulate against the face of the structure, requiring frequent dredging. The inflatable nature of the rubber dam allows it to be fully deflated, exposing the riverbed and allowing sediments to be flushed downstream during high-flow periods. This self-cleaning capability reduces long-term maintenance costs and extends the functional lifespan of the irrigation infrastructure. The National Irrigation Administration operates the facility, leveraging these technical attributes to maintain efficient water distribution in the Bulacan region.
History of Construction and Expansion
The Bustos Dam, also designated as the Angat Afterbay Regulator Dam, was commissioned in 1926, establishing a critical node in the hydroelectric and irrigation infrastructure of Bulacan (per entity grounding data). Located in Barangay Tibagan, the facility serves the Angat River and is operated by the National Irrigation Administration. The dam is situated in close proximity to the town of Angat, a geographic adjacency that frequently leads to local confusion between the two distinct structures, although the Bustos Dam functions specifically as an afterbay regulator rather than the primary reservoir dam.
Structural Evolution and Gate Installation
The original construction in 1926 established the foundational hydraulic capacity of the site. Decades later, significant structural modifications were undertaken to enhance operational flexibility. In 1967, steel sector gates were installed at the facility. This upgrade was part of a broader effort to modernize the dam’s flow control mechanisms. The dam itself is characterized by a 2.5-meter height and a six-span configuration. These structural dimensions support the dam’s role in regulating water release from the upstream Angat Dam reservoir.
Technological Features
The design of the Bustos Dam incorporates specific engineering features aimed at efficiency and maintenance. The structure utilizes a rubber body that is both deflatable and inflatable, a technology choice that provides resistance to sedimentation, which is a common challenge in riverine irrigation systems. This design is noted for its economic advantages and includes an auto-deflation system to streamline operational procedures. These technical attributes allow the National Irrigation Administration to manage water flow with greater precision, adapting to varying agricultural demands along the Angat River.
Expansion of the Irrigation Service Area
The operational history of the Bustos Dam is inextricably linked to the expansion of the Angat-Maasim Rivers Irrigation System. As the service area of this extensive irrigation network grew, the role of the Bustos Dam as an afterbay regulator became increasingly vital. The dam facilitates the controlled release of water to downstream agricultural lands, ensuring consistent supply for crops in Bulacan. The integration of the steel sector gates in 1967 supported this expanded service area by allowing for more granular control over water volume and timing. This expansion underscores the dam’s enduring relevance in the region’s agricultural infrastructure, maintaining its operational status since its 1926 commissioning (per entity grounding data).
Why it matters
The Bustos Dam holds a distinct position in global hydraulic engineering history as the longest rubber dam in Asia and the second largest rubber dam in the world. This structural classification is defined by its unique construction methodology, which utilizes an inflatable rubber body rather than traditional concrete or earth-fill materials. The dam’s primary function is to serve as an afterbay regulator for the Angat River system, a critical component in the broader water management infrastructure of the Philippines. Located in Barangay Tibagan, Bustos, Bulacan, the facility is operated by the National Irrigation Administration (NIA) and has been operational since its commissioning in 1926.
Engineering Significance of Rubber Dam Technology
The significance of the Bustos Dam lies in its innovative use of inflatable rubber technology, which offers specific advantages for sedimentation-prone river systems. The dam features a six-span structure with a height of 2.5 meters, positioned approximately 18 meters above sea level. This design incorporates an auto-deflation system, allowing for rapid water release during flood events or maintenance periods. The inflatable rubber body provides resistance to sedimentation, a common challenge in tropical river systems where silt accumulation can reduce reservoir capacity over time. This feature ensures that the dam can maintain its regulatory function without the need for extensive dredging operations, making it an economical solution for long-term water management.
The auto-deflation system is a critical safety and operational feature. In the event of a puncture or emergency, the rubber bladder can deflate quickly, allowing water to flow through the dam structure with minimal obstruction. This reduces the risk of upstream flooding and structural damage compared to rigid concrete dams. The ease of deflation also facilitates maintenance, as the rubber body can be lowered to allow boats and debris to pass through the channel. This flexibility is particularly valuable in the Angat River, which experiences seasonal variations in water flow and sediment load.
Regional Water Management and Irrigation Impact
As the Angat Afterbay Regulator Dam, the Bustos Dam plays a vital role in the regional water management strategy for Bulacan and Pampanga. It regulates the flow of water from the main Angat Dam, ensuring a steady supply for irrigation, domestic use, and hydroelectric power generation. The dam helps to stabilize water levels in the Angat River, which is essential for the agricultural productivity of the surrounding areas. By controlling the release of water, the NIA can optimize irrigation schedules for farmers in the Angat-Iba Irrigation System, one of the largest irrigation networks in the Philippines.
The dam’s location in Bustos, Bulacan, places it at a strategic point in the Angat River basin. It serves as a buffer between the main Angat Reservoir and the downstream communities in Pampanga. This position allows for the management of water quality and quantity, ensuring that downstream users receive a consistent supply of water. The dam also helps to mitigate the impact of floods during the rainy season, protecting low-lying areas in Bulacan and Pampanga from excessive water levels. The integration of the Bustos Dam into the broader Angat River system demonstrates the importance of coordinated water management infrastructure in supporting regional development and agricultural stability.
How has the dam been rehabilitated over time?
The operational history of the Bustos Dam, also recognized as the Angat Afterbay Regulator Dam, is defined by its strategic location in Barangay Tibagan, Bustos, Bulacan, and its susceptibility to environmental stressors. Situated along the Angat River, this small irrigation dam serves a critical role in the regional water management system, often confused with the larger Angat Dam due to geographic proximity. The structure, standing approximately 18 meters above sea level, features a distinctive 2.5-meter high, six-span design. Its engineering highlights include an easily deflatable and inflatable rubber body, resistance to sedimentation, economic efficiency, and an auto-deflation system, characteristics that necessitate specific rehabilitation protocols following hydrological events.
1997 Reconstruction by Kurimoto, LTD.
A pivotal moment in the dam's structural integrity occurred in 1997, when significant reconstruction efforts were undertaken by the Japanese engineering firm Kurimoto, LTD. This intervention was critical in restoring the functionality of the dam's unique rubber body and auto-deflation mechanisms. The involvement of Kurimoto, LTD. introduced advanced technical standards to the infrastructure, ensuring that the six-span dam could withstand the pressures exerted by the Angat River. The reconstruction focused on maintaining the dam's core features, including its resistance to sedimentation, which is vital for the longevity of irrigation infrastructure in the region. This phase of rehabilitation marked a transition from initial operational challenges to a more robust structural configuration, aligning with the National Irrigation Administration's goals for efficient water regulation.
Subsequent Funding from JICA and the World Bank
Following the 1997 reconstruction, the Bustos Dam benefited from sustained financial support from international development agencies, specifically the Japan International Cooperation Agency (JICA) and the World Bank. These funding streams were instrumental in addressing ongoing maintenance needs and mitigating damage caused by recurring typhoons that impact the Bulacan region. The financial contributions facilitated continuous upgrades to the dam's inflatable rubber body and auto-deflation system, ensuring that the structure remained operational despite environmental pressures. The collaboration with JICA and the World Bank underscored the strategic importance of the Angat Afterbay Regulator Dam within the broader National Irrigation Administration network. These efforts ensured that the dam continued to serve its primary function of irrigation support, maintaining its status as an operational asset in the Philippine energy and water infrastructure landscape. The integration of international funding with local operational management by the National Irrigation Administration has been key to the dam's enduring functionality since its initial commissioning in 1926.
Regional Impact and Water Supply
The Bustos Dam functions as a critical node in the regional water management infrastructure of the Philippines, specifically serving as the Angat Afterbay Regulator Dam. Its primary operational mandate, under the National Irrigation Administration, is to regulate the flow of water from the Angat River to support extensive agricultural activities. The dam’s location in Barangay Tibagan, Bustos, Bulacan, places it strategically within a major agricultural belt. The structure is designed to serve a wide service area that includes farmers in Bulacan and Pampanga. By controlling the release of water, the dam ensures consistent irrigation supplies for these provinces, which are key contributors to the country’s rice production. The afterbay regulator function is essential for smoothing out the hydrological variations from the main Angat Dam, thereby providing a more stable water supply to downstream irrigation networks.
Beyond its agricultural role, the Bustos Dam plays a significant part in the water supply systems for nearby urban centers. The regulated water flow contributes to the supply for cities such as Real, Quezon, and Antipolo. These municipalities rely on the Angat River system for their domestic and municipal water needs. The dam’s ability to maintain water levels and control sedimentation helps ensure the quality and quantity of water reaching these areas. The infrastructure supports the growing population in these regions by providing a reliable source of freshwater. The integration of the Bustos Dam into the broader Angat River system highlights its importance in balancing agricultural demands with urban water consumption.
The technical design of the dam supports its regional impact through efficient water management features. The rubber body of the dam allows for easy deflation and inflation, which facilitates maintenance and adapts to changing water levels. This flexibility is crucial for managing sedimentation, a common challenge in riverine infrastructure. The auto-deflation system further enhances operational efficiency, reducing the need for manual intervention. These features contribute to the economic viability of the project, ensuring that the water supply remains consistent for both farmers and urban residents. The dam’s resilience to sedimentation helps maintain the capacity of the afterbay, ensuring long-term effectiveness in water regulation.
The proximity of the Bustos Dam to the town of Angat often leads to local confusion with the main Angat Dam. However, the distinct roles of the two structures are clear. The Bustos Dam acts as a regulator, while the main Angat Dam serves as the primary storage facility. This distinction is important for understanding the water distribution dynamics in the region. The coordinated operation of both dams ensures that water is efficiently allocated to various sectors, including agriculture, domestic use, and hydroelectric power generation. The Bustos Dam’s contribution to this system underscores its value in the regional water infrastructure. Its continued operation supports the economic and social well-being of the communities in Bulacan, Pampanga, and surrounding areas.
