Overview

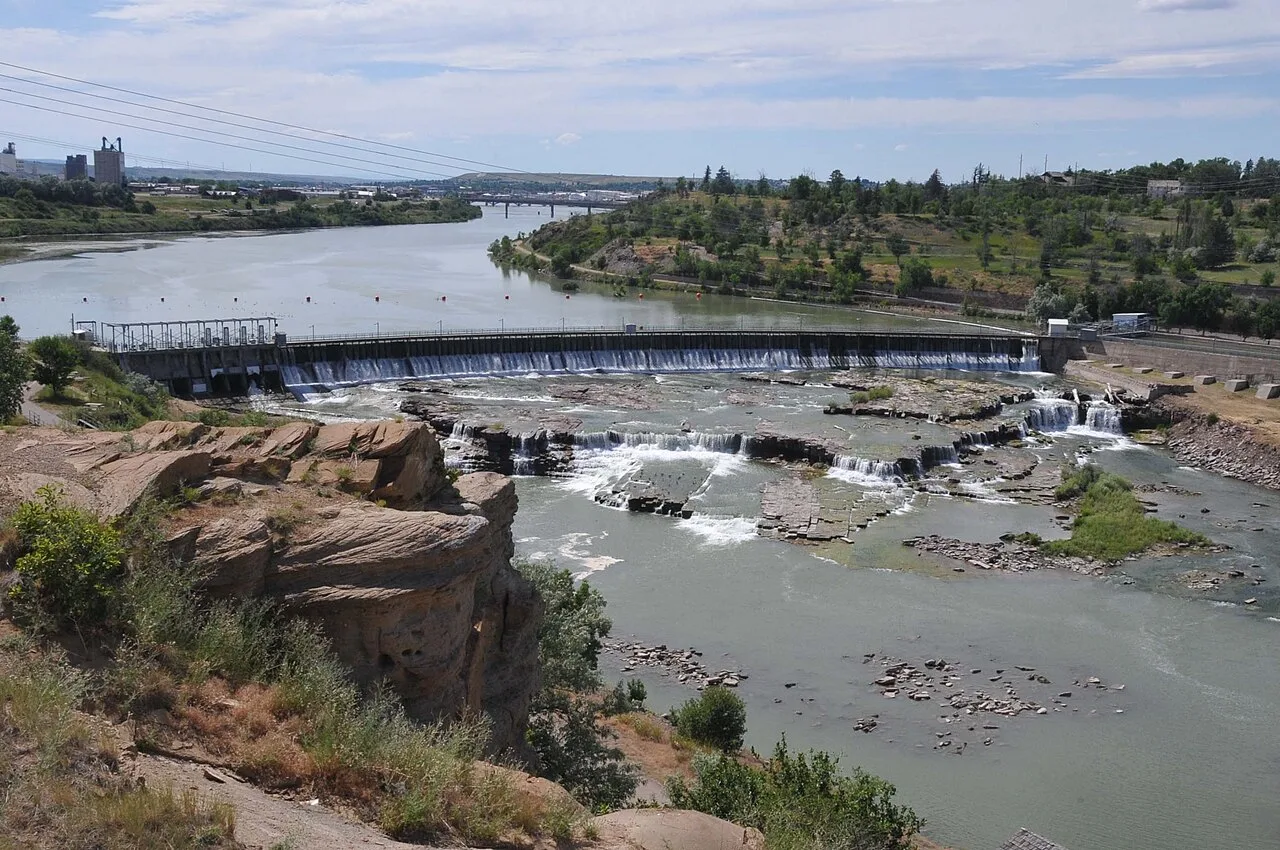

Black Eagle Dam is a hydroelectric gravity weir dam situated on the Missouri River within the city of Great Falls, Montana, US. It serves as a key energy infrastructure asset in the region, currently operated by NorthWestern Corporation. The facility is recognized historically as the first hydroelectric dam built in Montana and the first constructed on the Missouri River. Its early development was instrumental in earning Great Falls the nickname "The Electric City," establishing a long-standing connection between the river’s flow and the city’s industrial growth. The dam functions as a run-of-the-river hydroelectric facility, harnessing the natural gradient of the Missouri River to generate power for local consumption.

The current structure, commissioned in 1927, replaced an earlier timber-and-rock crib dam that had been built and opened in 1890. The original 1890 structure was not removed; it remains submerged in the reservoir behind the modern concrete dam. The 1927 concrete dam has remained almost unchanged since its construction. It measures 238 m (782 feet) in length and stands 10.5 m (34.5 feet) high. The powerhouse contains three turbines, each capable of generating 7 MW of power, resulting in a maximum power output of 18 MW. The reservoir behind the dam, historically known as the Long Pool, is approximately 3.2 km (2 miles) long and holds a storage capacity between 2,110,000 m³ (1,710 acre-feet) and 2,240,000 m³ (1,820 acre-feet) of water.

Property Value
Entity Type Hydroelectric Power Plant
Location Great Falls, Montana, US
River Missouri River
Operator NorthWestern Corporation
Commissioned 1927
Capacity 18 MW
Length 238 m
Height 10.5 m
Status Operational

Geological and Historical Context of Black Eagle Falls

The Black Eagle Dam is situated on the Missouri River within the city of Great Falls, Montana, a location defined by the dramatic topography of the Great Falls of the Missouri. This natural feature consists of a series of cascades, including Black Eagle Falls, which were formed by the geological interaction of the river with the regional bedrock. The area is characterized by the Kootenai Formation, a geological structure that creates a fall line unconformity, forcing the Missouri River to drop significantly over a relatively short distance. This natural gradient has historically provided significant potential for hydroelectric power generation, making the site a prime location for early energy infrastructure development in the region.

Discovery and Naming

The natural setting of the falls was first documented by European explorers during the Lewis and Clark Expedition. In 1805, the expedition encountered the Great Falls, including the specific cascade known as Black Eagle Falls. The naming of the falls is attributed to this expedition, which played a crucial role in mapping the Missouri River and identifying its potential for transportation and resource extraction. The discovery of the falls was significant for early settlement patterns, as the reliable water flow and natural drop provided an immediate source of mechanical power for mills and later, electricity. This natural advantage contributed to the growth of Great Falls, which eventually earned the nickname "The Electric City" due to the early adoption of hydroelectric power generated from these falls.

Geological Significance

The geological context of Black Eagle Falls is central to understanding the location's suitability for dam construction. The Kootenai Formation, composed of sedimentary rocks, creates a resistant layer that the Missouri River must erode through, resulting in the steep drop characteristic of the falls. This fall line unconformity not only shaped the landscape but also influenced the engineering decisions made during the construction of the first and subsequent dams at the site. The natural reservoir formed behind the falls, known historically as the Long Pool, benefits from this geological structure, providing a stable water source for power generation. The interplay between the river's flow and the bedrock has remained a defining feature of the area, supporting the long-term operational status of the Black Eagle Dam.

Engineering the 1926 Concrete Dam

The expansion of Great Falls, driven by industrial growth including a smelter's zinc plant, necessitated an upgrade to the city's hydroelectric infrastructure. The original timber-and-rock crib dam, while pioneering, required replacement to meet increasing power demands. Montana Power Company undertook the construction of a new concrete gravity weir dam, which was built in 1926 and officially opened in 1927. This new structure replaced the first dam, which remained submerged in the reservoir rather than being fully removed.

Construction and Specifications

The new dam is a concrete gravity weir, measuring 782 feet (238 m) in length and 34.5 feet (10.5 m) in height. This design has remained almost unchanged since its completion in 1926. The powerhouse contains three turbines, each capable of generating seven megawatts (MW) of power, resulting in a maximum power output of 18 MW for the facility. The reservoir behind the dam, historically known as the Long Pool, is approximately 2 miles (3.2 km) long and holds between 1,710 and 1,820 acre-feet (2,110,000 to 2,240,000 m3) of water.

Turbines and Generators

The dam's power generation relies on three Kaplan turbines. These turbines are paired with Allis-Chalmers generators, which were selected for their efficiency and reliability in hydroelectric applications. The combination of these components allows the dam to maintain its 18 MW maximum output, supporting the energy needs of the city and surrounding industries.

Labor Dispute and Material Choice

During the construction of the new dam, a labor dispute influenced the choice of materials for the powerhouse. Initially, there was consideration for using brick, but the dispute led to the decision to construct the powerhouse with concrete. This change not only addressed the immediate labor issues but also contributed to the durability and longevity of the structure, which has remained largely intact since 1926.

Ownership Transitions

The ownership of Black Eagle Dam has shifted among major energy entities over the last century. The second, current concrete structure was originally built by the Montana Power Company. In 1997, PPL Corporation acquired the asset, integrating it into its broader regional portfolio. Subsequently, in 2014, NorthWestern Corporation purchased the dam from PPL Corporation, establishing its current operational control. These transactions reflect the broader consolidation trends within the Western United States' electric utility sector during the late 20th and early 21st centuries.

The dam's location on the Missouri River has been central to significant legal battles regarding state versus federal jurisdiction and property rights. The entity was involved in the landmark Supreme Court case PPL Montana v. Montana, which addressed the ownership of riverbeds and the resulting taxation implications. The dispute centered on whether the state of Montana held title to the riverbeds under the Equal Footing Doctrine or if the federal government retained ownership, affecting the tax base for utilities like PPL Montana, the predecessor to the current owner. The Supreme Court's ruling in this case clarified the boundaries of state ownership over navigable waterways, impacting the financial and legal framework governing the dam's operation and the surrounding reservoir area.

Licensing and Public Referendums

Operational licensing under the Federal Power Act has also been a source of contention. The Montana Power Company faced legal challenges from the Federal Power Commission, reflecting the ongoing regulatory scrutiny of hydroelectric projects on major waterways. In 2002, the local community engaged directly in the dam's future through a ballot initiative. This referendum allowed residents of Great Falls to vote on the continuation of the dam's operation, balancing the historical significance of the "Electric City" nickname and the 1890 origin of the site against modern environmental and recreational concerns. The successful passage of the initiative ensured the dam's continued operation and maintenance, preserving the 18 MW capacity that has powered the region since the 1927 commissioning of the concrete structure.

Why it matters

Black Eagle Dam holds a foundational position in the history of North American hydropower. It was the first hydroelectric dam constructed in Montana and the first built on the Missouri River. The initial structure, a timber-and-rock crib dam opened in 1890, established the site as a critical energy source for the region. This early infrastructure helped earn Great Falls the nickname "The Electric City". The dam's ability to harness the Missouri River's flow provided the reliable power necessary to drive local industrial growth, particularly supporting copper smelting operations that defined the city's early economic landscape.

The current concrete gravity weir dam replaced the original structure in 1927. It remains almost unchanged since its construction in 1926. The dam is 238 m long and 10.5 m high. Its powerhouse contains three turbines, each capable of generating 7 MW, for a maximum power output of 18 MW. This design reflects the engineering standards of the late 1920s, prioritizing durability and efficient water flow management. The original 1890 crib dam was not removed and lies submerged in the reservoir, serving as a physical record of the site's evolution.

Black Eagle Dam serves as a historic engineering landmark that integrates industrial infrastructure with urban recreation. The reservoir behind the dam, historically known as the Long Pool, is 3.2 km long. It has a storage capacity of 2,110,000 m3 to 2,240,000 m3 of water. This water body supports various recreational activities, blending the dam's functional role with the city's quality of life. The dam's long operational history, spanning from 1927 to the present, highlights its enduring utility. Ownership has transitioned from Montana Power Company to PPL Corporation in 1997, and finally to NorthWestern Corporation in 2014. These changes reflect the broader trends in regional energy market consolidation.
