Overview

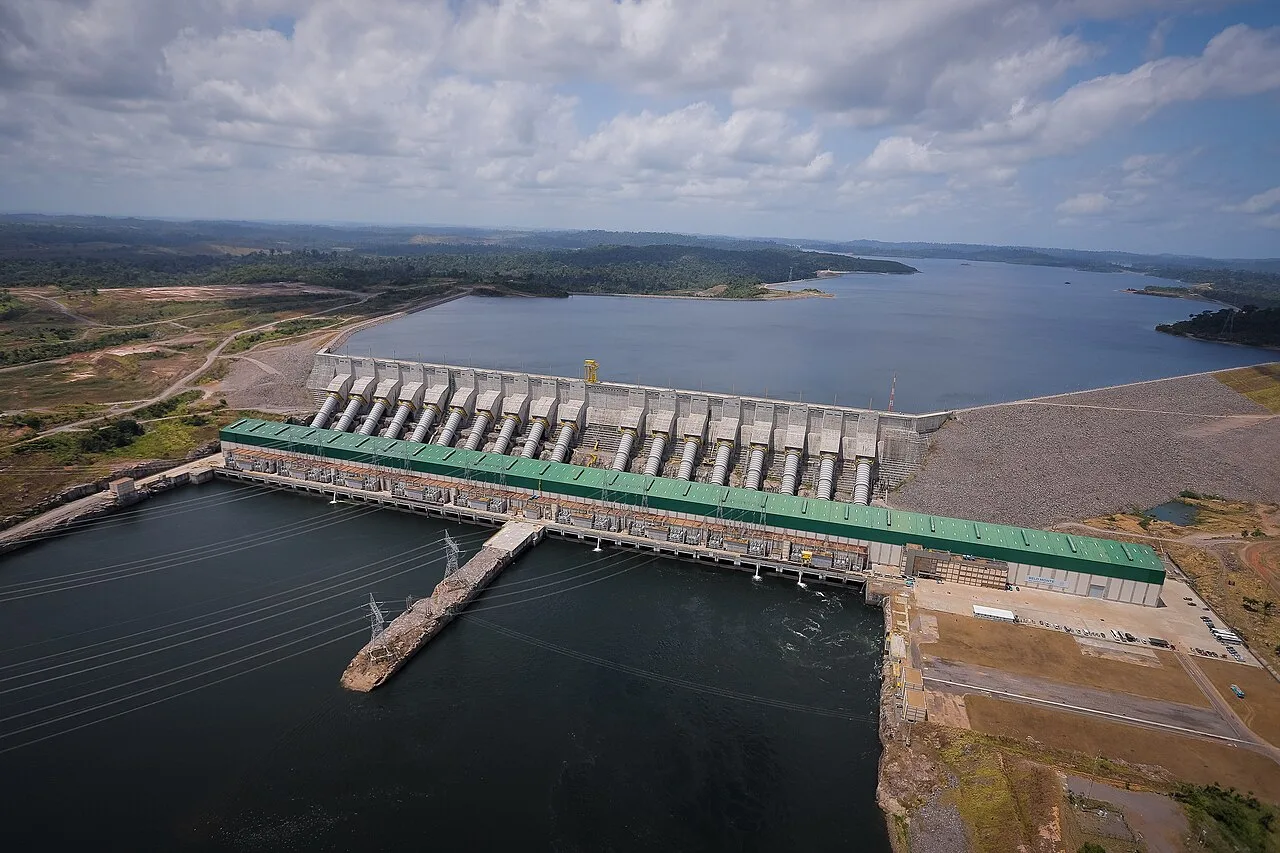

The Belo Monte Dam is a major hydroelectric powerplant located in the northern part of the Xingu River in the state of Pará, Brazil. Operated by Norte Energia, the facility represents one of the most significant energy infrastructure projects in South America. The dam complex is currently operational and serves as a critical component of Brazil's power grid, leveraging the substantial water flow of the Xingu River to generate electricity for domestic and regional consumption.
The installed capacity of the dam complex is 11,233 MW, a figure achieved after the installation of its 18th turbine in November 2019. This capacity makes the Belo Monte Dam the second largest hydroelectric dam complex in Brazil. On a global scale, it ranks as the fifth largest hydroelectric dam complex in the world by installed capacity. The only larger facilities are the Three Gorges Dam, the Baihetan Dam, and the Xiluodu Dam in China, along with the Brazilian-Paraguayan Itaipu Dam.
While the maximum installed capacity is 11,233 MW, the actual power generation varies significantly due to the natural oscillations of river flow. The guaranteed minimum capacity generation from the Belo Monte Dam measures 4,571 MW. This guaranteed output represents 39% of the dam's maximum installed capacity, highlighting the variability inherent in hydroelectric generation in the region. The facility's design and operational parameters are tailored to manage these fluctuations, ensuring a consistent baseline contribution to the national energy supply despite seasonal changes in the Xingu River's water levels.
History of the Project
Initial studies for the hydroelectric complex on the Xingu River began in 1975 during the Brazilian military dictatorship. The project was originally designated as the Kararaô Dam. In 1989, significant indigenous protests led to the renaming of the project to Belo Monte. A major redesign of the project occurred in 2002.
The licensing and auction process took place between 2010 and 2011. The Brazilian Institute of Environment and Renewable Natural Resources (IBAMA) and the consortium Norte Energia were key entities involved in this phase. Norte Energia became the operator of the facility.
Engineering Design and Specifications
The Belo Monte hydroelectric complex utilizes a run-of-the-river design strategy, minimizing reservoir surface area while maximizing flow through a series of structural components. The system is anchored by the main Belo Monte dam, which diverts approximately 80% of the Xingu River's flow into a powerhouse. This diversion is managed through a series of intake gates and channels that feed the generating units. The remaining 20% of the river flow continues through the natural riverbed, maintaining ecological connectivity downstream of the main dam structure.
The complex comprises three primary dam structures: the main Belo Monte dam, the Pimental dam, and the Bela Vista dam. These structures work in concert to regulate water levels and direct flow to the turbine generators. The reservoir created by the dam has a total capacity of 41.5 billion cubic meters, with a live storage capacity of approximately 20 billion cubic meters. This design allows for significant power generation with a relatively smaller water storage volume compared to traditional reservoir dams.
Turbine Configuration
The installed capacity of 11,233 MW is generated by 18 turbine-generators. The turbine selection includes both Francis and Kaplan bulb types to optimize efficiency across varying flow rates. The Francis turbines are typically used for higher head conditions, while the Kaplan bulb turbines are suited for lower head, high-flow conditions. This mixed configuration allows the plant to maintain high efficiency during both peak and off-peak flow periods of the Xingu River.
Technical Specifications
| Parameter | Value |
|---|---|
| Installed Capacity | 11,233 MW |
| Guaranteed Minimum Capacity | 4,571 MW |
| Number of Turbines | 18 |
| Turbine Types | Francis and Kaplan Bulb |
| Reservoir Capacity | 41.5 billion m³ |
| Live Storage | 20 billion m³ |
| River | Xingu River |
| Location | Pará, Brazil |
| Operator | Norte Energia |
| Commissioning Year | 2016 |
| Full Turbine Installation | November 2019 |
Why it matters
The Belo Monte Dam holds a prominent position in global energy infrastructure as the fifth largest hydroelectric dam complex in the world by installed capacity. With a total capacity of 11,233 MW, it ranks behind only the Three Gorges Dam, Baihetan Dam, and Xiluodu Dam in China, and the Itaipu Dam on the Brazil-Paraguay border. Within Brazil, it is the second largest hydroelectric complex, underscoring its critical role in the national grid’s output.
This scale of generation is central to Brazil’s energy security strategy. The dam’s location on the Xingu River in Pará allows it to harness significant water flow, contributing substantially to the country’s renewable energy mix. The operational status of the plant, fully commissioned with its 18th turbine in November 2019, ensures a steady power supply to the Norte Energia operator and the broader Brazilian market. The completion of the 18th turbine marked the final stage of its initial capacity expansion, solidifying its output potential.
However, the dam’s significance extends beyond mere megawatts, as it remains a controversial model for large-scale Amazonian hydropower. While its maximum capacity is 11,233 MW, the guaranteed minimum capacity generation is 4,571 MW, which represents 39% of its maximum output. This disparity highlights the oscillations of river flow inherent to the Amazon basin, challenging the reliability of hydroelectric dependence in the region. The project has sparked extensive debate regarding environmental impact, indigenous rights, and the sustainability of relying on such large-scale infrastructure in a biodiversity-rich area. As a flagship project, Belo Monte serves as a case study for the trade-offs between rapid energy expansion and ecological preservation in the Amazon, influencing future hydropower decisions in Brazil and globally.
What are the environmental impacts of the Belo Monte Dam?
The construction and operation of the Belo Monte Dam have significantly altered the ecological dynamics of the Xingu River basin in Pará, Brazil. The project involved the flooding of approximately 668 square kilometres of forest, leading to substantial habitat loss and fragmentation within the Amazon rainforest. This inundation submerged large tracts of terra firme forest, which typically remain dry during the dry season, thereby affecting terrestrial and riparian biodiversity. The alteration of the river's natural flow regime has disrupted the seasonal flooding cycles that many species rely on for breeding and feeding.
Impact on Aquatic Biodiversity
The dam has profoundly impacted the aquatic ecosystem of the Xingu River. The installation of turbines and the diversion of water flow have affected the migration patterns of numerous fish species. Notably, the zebra pleco (Panaque nigrolineatus) and other endemic species have faced challenges due to changes in water velocity and temperature. The reduction in the 'Big Bend' region's water flow has decreased the availability of shallow, nutrient-rich waters that are critical for fish spawning. This has led to a decline in fish populations, affecting both local biodiversity and the livelihoods of riverine communities that depend on fishing.
Greenhouse Gas Emissions
Despite being a hydroelectric source, the Belo Monte Dam contributes to greenhouse gas emissions, primarily methane (CH4) and carbon dioxide (CO2). The decomposition of flooded vegetation releases significant amounts of methane, a potent greenhouse gas, into the atmosphere. Studies indicate that the emissions from the reservoir can be substantial, particularly in the initial years following the dam's commissioning in 2016. The guaranteed minimum capacity generation of 4,571 MW, which is 39% of its maximum capacity of 11,233 MW, reflects the variability in river flow and the resulting fluctuations in energy output and emissions.
Alteration of River Flow
The Belo Monte Dam has altered the natural flow of the Xingu River, particularly in the 'Big Bend' region. The diversion of water through the dam's turbines has reduced the flow in this section, affecting the river's hydrological balance. This change in flow has impacted the sediment transport and water quality, influencing the overall health of the river ecosystem. The reduction in flow has also affected the navigation and water availability for downstream communities, highlighting the complex interplay between energy production and environmental sustainability.
How did indigenous communities and social groups react?
The construction and operation of the Belo Monte Dam have triggered significant social and environmental controversy, primarily centered on the displacement of local populations and the impact on indigenous territories in the Xingu River basin. The project resulted in the displacement of over 20,000 people, including riverine communities and indigenous groups, fundamentally altering the social fabric of the region in the state of Pará, Brazil (per project social impact assessments). The dam complex, operated by Norte Energia and commissioned in 2016, affects the livelihoods of approximately 25,000 indigenous people across various tribes in the Xingu basin, raising concerns about cultural preservation and land rights.
Indigenous Rights and International Scrutiny
Human rights organizations and international bodies have closely monitored the social effects of the hydroelectric powerplant. The United Nations and the International Labour Organization (ILO) have raised specific concerns regarding the consultation processes and the adequacy of compensation for the displaced communities. Critics argue that the guaranteed minimum capacity generation of 4,571 MW, which is 39% of the maximum capacity of 11,233 MW, does not fully account for the ecological and social costs borne by the local population (per ILO and UN reports on the Xingu basin). The installation of the 18th turbine in November 2019 marked the completion of the dam complex, but social tensions have persisted regarding the long-term sustainability of the region's human and natural resources.
The Altamira Gathering and Economic Debates
One of the most notable social responses to the project was the Altamira Gathering, a large-scale assembly of indigenous leaders, social groups, and policymakers that highlighted the divergent perspectives on development in the Amazon. This event underscored the deep divisions between economic modernization and traditional land use. The economic viability of the Belo Monte Dam has also been debated, with scrutiny directed at the financial structures involving pension funds and the Brazilian Development Bank (BNDES). These institutions played a crucial role in financing the project, leading to questions about the long-term returns on investment versus the social and environmental externalities. The dam remains the second largest hydroelectric dam complex in Brazil and the fifth largest in the world by installed capacity, yet its social license to operate continues to be a subject of intense analysis and debate among engineers, sociologists, and energy analysts.
Legal Challenges and Court Battles
The development of the Belo Monte Dam was accompanied by a protracted series of legal challenges and court battles that spanned from 2010 to 2016. These judicial interventions significantly impacted the project's timeline, involving multiple federal judges and the Brazilian Institute of Environment and Renewable Natural Resources (IBAMA). The core of the legal conflict centered on the constitutional requirements for the prior consultation of indigenous peoples and the validity of the environmental licenses granted to the operator, Norte Energia.
Suspension of Licenses and Judicial Intervention
Between 2010 and 2016, federal judges issued several rulings that temporarily suspended the construction and operation licenses of the dam complex. IBAMA, the primary environmental licensing authority, faced intense scrutiny regarding its approval process. Critics argued that the environmental impact assessment did not adequately account for the hydrological changes to the Xingu River and the social impact on local communities. The court cases questioned whether the licensing procedures complied with federal environmental laws and international treaties ratified by Brazil.
Indigenous Consultation and Constitutional Arguments
A central argument in the legal battles was the failure to conduct a free, prior, and informed consultation with the indigenous populations living along the Xingu River, as mandated by the Brazilian Constitution and the International Labour Organization’s Convention 169. Legal representatives for the indigenous groups argued that the construction of the 11,233 MW complex proceeded without their full consent, violating their territorial rights and cultural preservation. The courts had to balance the national interest in energy infrastructure against the constitutional protections afforded to indigenous communities.
Final Rulings and Operational Status
Despite the repeated suspensions, the federal judiciary eventually issued rulings that allowed the construction and subsequent operation of the Belo Monte Dam. The final judicial decisions affirmed the validity of the environmental licenses, provided that certain mitigation measures were implemented. These rulings cleared the path for the installation of the final turbines, leading to the dam's full operational status with an installed capacity of 11,233 MW. The legal precedent set during this period continues to influence environmental licensing procedures for large-scale hydroelectric projects in Brazil.
Economic Viability and Alternatives
The Belo Monte Dam project represents one of the most significant capital expenditures in Brazilian energy history, with total costs estimated at upwards of $16 billion. This massive financial outlay has been a central point of contention regarding the project's overall economic viability. Critics argue that the high upfront investment must be weighed against the operational realities of the hydroelectric complex, particularly concerning its efficiency relative to its installed capacity.
A key metric in this debate is the dam's capacity factor. While the installed capacity reaches 11,233 MW, the guaranteed minimum capacity generation is significantly lower, measuring 4,571 MW. This figure represents approximately 39% of the maximum capacity, reflecting the natural oscillations of the Xingu River's flow. The disparity between installed and guaranteed capacity has led analysts to question the return on investment, suggesting that the dam operates at a fraction of its theoretical potential for much of the year.
Operational efficiency is further complicated by the need for upstream infrastructure. The performance of the Belo Monte complex is heavily dependent on the regulation of the river flow, which has spurred discussions about the necessity of additional dams, such as the Altamira Dam. Without these upstream regulators, the variability of the Xingu River can lead to fluctuations in power output, potentially requiring more frequent use of complementary energy sources to stabilize the grid.
Alternative energy proposals have also emerged as part of the economic critique. Some energy analysts and environmental groups have suggested that a combination of wind power and improved energy efficiency measures could provide a more cost-effective solution. Wind energy, in particular, has been highlighted as a potentially less capital-intensive alternative that could complement the existing hydroelectric grid without the same level of ecological disruption. These alternatives challenge the assumption that large-scale hydroelectric dams are the only viable path for expanding Brazil's energy infrastructure, prompting a broader re-evaluation of energy investment strategies.
