BORAX experiments: Safety testing and the first grid-connected nuclear power

Overview

The BORAX experiments constituted a significant series of safety tests focused on boiling water nuclear reactors. Conducted by Argonne National Laboratory, these experiments took place at the National Reactor Testing Station located in eastern Idaho. The program spanned the 1950s and 1960s, utilizing five distinct BORAX reactors that were specifically designed and built by Argonne. These reactors used uranium as the primary fuel source and are now considered decommissioned. The experiments were pivotal in understanding the behavior of boiling water reactors under various operational and safety conditions.

A key milestone in the BORAX series was achieved by BORAX-III. In 1955, BORAX-III became the first nuclear reactor to supply electrical power to the grid in the United States. This achievement marked an important step in the early development of nuclear power generation. The work done at the National Reactor Testing Station provided valuable data that influenced the design and operation of subsequent boiling water reactors. Argonne National Laboratory's role as the operator and designer of these reactors highlights the institution's contribution to nuclear engineering during this period.

History of the BORAX reactor series

The BORAX experiments constituted a pivotal series of safety tests on boiling water nuclear reactors, conducted by Argonne National Laboratory during the 1950s and 1960s. These tests took place at the National Reactor Testing Station in eastern Idaho, utilizing five distinct BORAX reactors designed and built by Argonne. The program was instrumental in defining the operational parameters and safety margins for early BWR technology.

Chronological Development

Reactor	Key Milestone	Primary Experimental Focus
BORAX-I	Early 1950s	Stability proof
BORAX-II	1950s	Prompt critical test
BORAX-III	1955	First grid power supply
BORAX-IV	1950s	Thorium cycle exploration
BORAX-V	1950s-1960s	Superheater tests

BORAX-I was the first in the series, primarily focused on proving the stability of the boiling water reactor design. Following this, BORAX-II underwent a significant prompt critical test, providing crucial data on reactor kinetics under rapid power excursions. This event marked a transition from experimental operation to practical power generation. Subsequent reactors expanded the scope of investigation. BORAX-IV was utilized for the exploration of the thorium fuel cycle, assessing its viability as an alternative to standard uranium fuel. Finally, BORAX-V focused on superheater tests, examining the thermal efficiency and steam quality achievable in advanced BWR configurations. The collective data from these five units provided a robust foundation for the commercialization of boiling water reactor technology.

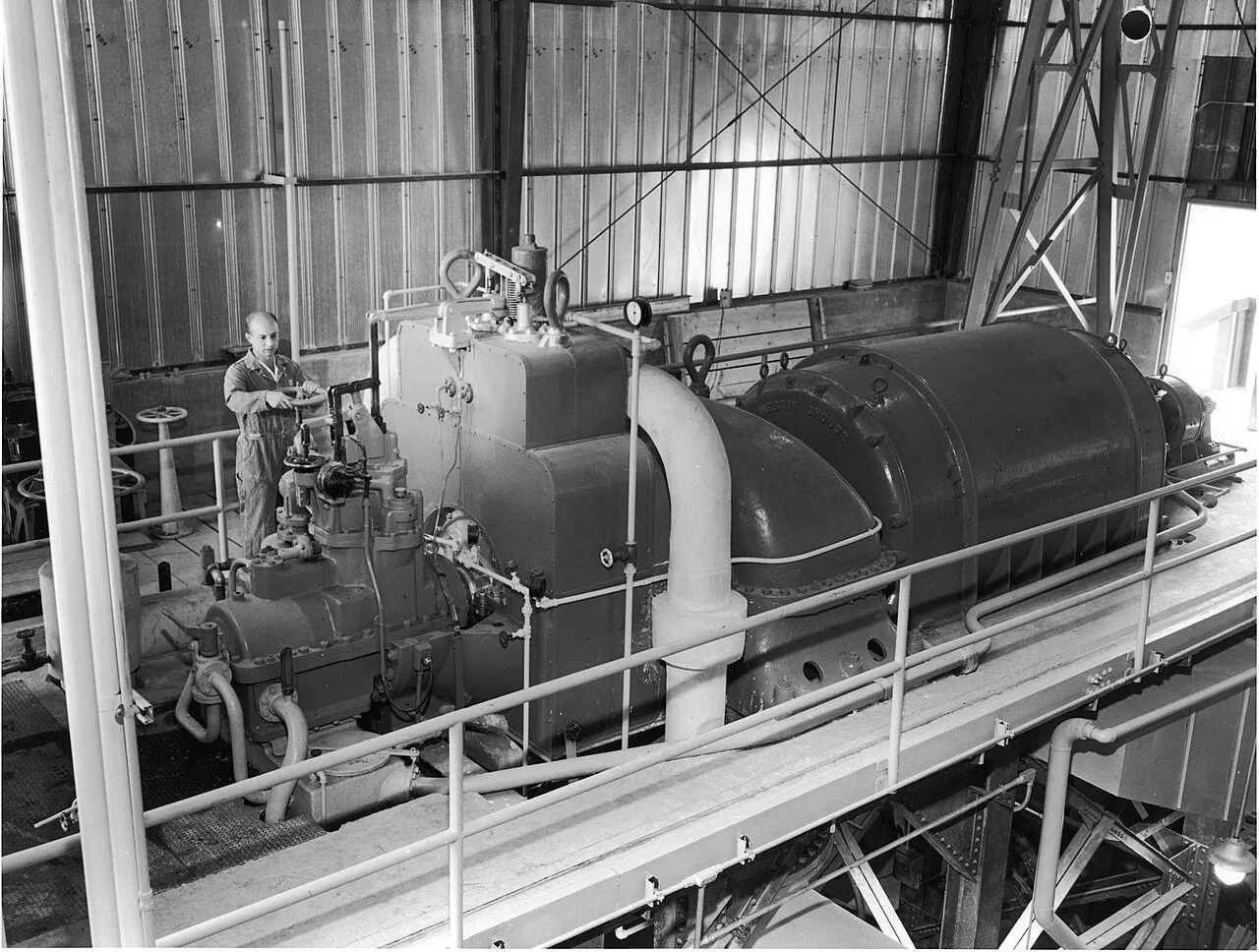

How did BORAX-III connect to the electrical grid?

On 17 July 1955, the BORAX-III reactor achieved a historic milestone in nuclear energy by becoming the first reactor to supply electrical power to a grid in the United States. This event marked a transition from experimental generation to practical utility, demonstrating the viability of boiling water reactor technology for municipal and industrial consumption. The power generated by BORAX-III was distributed to the nearby town of Arco, Idaho, and the National Reactor Testing Station facilities, establishing a direct link between nuclear fission and local electrical infrastructure.

Power Distribution and Load

The electrical output during this initial grid connection was carefully managed to test stability and load capacity. The power distribution was divided among three primary recipients. The town of Arco received 500 kW of electrical power, making it the first community in the world to be powered solely by nuclear energy. This supply was sufficient to illuminate streets and power homes, providing a tangible demonstration of nuclear power's potential for residential use. Simultaneously, the National Reactor Testing Station itself consumed 500 kW for its operational needs, ensuring that the experimental infrastructure remained functional during the test. Additionally, another 1000 kW was directed to the station, likely for auxiliary systems or further experimental loads, bringing the total distributed capacity to 2000 kW. This distribution pattern highlighted the flexibility of the BORAX-III design, which could handle varied load profiles while maintaining reactor stability.

Significance of the Arco Connection

The connection to Arco was not merely a technical achievement but a symbolic one. By powering an entire community, the BORAX-III experiment provided public visibility for nuclear energy, moving it from the laboratory to the living room. The event demonstrated that nuclear reactors could integrate with existing electrical grids, a crucial step for the commercialization of nuclear power. The success of this 1955 test encouraged further investment in nuclear technology and paved the way for larger-scale nuclear power plants in the following decades. The BORAX experiments, conducted by Argonne National Laboratory, thus laid the groundwork for the modern nuclear industry, with BORAX-III serving as the pioneer in grid-connected nuclear power generation.

What were the findings of the BORAX-I destructive test?

The BORAX-I destructive test, conducted in 1954, stands as a landmark event in nuclear safety engineering, providing critical insights into the transient behavior of boiling water reactors (BWRs). The experiment was designed to evaluate the reactor's response to a rapid power surge, specifically focusing on the reactivity insertion caused by control rod movement. The test sequence involved the deliberate ejection of the fifth control rod into the core. This rod was ejected in approximately 0.2 seconds, introducing a significant positive reactivity worth into the system. The rapid insertion triggered a prompt criticality event, causing the reactor power to spike dramatically within a fraction of a second.

The resulting energy release was intense enough to generate a visible and audible explosion, often described as a "steam hammer" effect. The sudden expansion of steam within the core region created a shockwave that propagated through the reactor vessel and surrounding structures. This mechanical stress, combined with the thermal shock from the rapid temperature rise, led to an unexpected core meltdown. The fuel elements, primarily composed of uranium, experienced severe deformation and partial vaporization, marking one of the first observed instances of core melting in a BWR under transient conditions.

Radiation monitoring following the test revealed significant off-site exposure levels. Measurements indicated radiation levels of 25 mr/hr at a distance of half a mile from the reactor core. This prompted the evacuation of personnel from the immediate vicinity of the National Reactor Testing Station in eastern Idaho. The evacuation highlighted the importance of emergency response protocols and the potential for rapid dose accumulation during unexpected transients. The data collected from the BORAX-I test, including the radiation profiles and mechanical stress measurements, contributed substantially to the understanding of BWR dynamics and influenced subsequent reactor designs and safety margins.

Environmental impact and site remediation

The BORAX-I experiment, conducted in 1952, resulted in significant radioactive contamination at the National Reactor Testing Station in eastern Idaho. This incident necessitated extensive environmental remediation efforts to manage the distribution of contaminants across the site. The contamination affected an area spanning 2 acres, requiring careful assessment and cleanup to mitigate long-term environmental impacts.

Contamination Distribution and Cleanup

The cleanup process involved covering an 84,000-square foot area with gravel to contain the radioactive debris. This measure was part of a broader strategy to isolate the contaminated zone. Debris from the BORAX-I test was buried 2730 feet from the Experimental Breeder Reactor-1 (EBR-1), ensuring that the primary reactor operations were not immediately compromised by the spill. The aerial distribution of contaminants was carefully mapped to guide these remediation efforts.

EPA Superfund Classification

The site was later classified under the Environmental Protection Agency's (EPA) Superfund program as Operable Unit 6-01. This classification highlighted the need for a structured and monitored remediation approach. In 1995, the EPA implemented a remedy focused on containment by capping the contaminated area. This capping strategy aimed to prevent further spread of radioactive materials and to stabilize the site for future monitoring and potential reuse. The Superfund classification ensured that the site remained under federal oversight, allowing for continued assessment of the environmental impact and the effectiveness of the remediation measures.

Why it matters

The BORAX experiments represent a foundational pillar in the development of modern nuclear safety engineering, particularly for boiling water reactor (BWR) technology. Conducted by Argonne National Laboratory during the 1950s and 1960s, these trials provided the first rigorous empirical data on reactor behavior under transient conditions. The experiments were critical in validating the mathematical models used to predict core performance, moving nuclear design from theoretical approximation to data-driven precision. The insights gained directly influenced the safety margins and operational protocols adopted by subsequent commercial BWRs across the United States and globally.

The BORAX-I Meltdown and Mathematical Validation

A pivotal moment in the program was the controlled meltdown of the BORAX-I reactor. This experiment allowed engineers to observe the physical phenomena of a core excursion in real-time, providing rare visibility into fuel rod behavior under extreme thermal stress. The data collected significantly improved the accuracy of neutronic and thermal-hydraulic models. By correlating the observed physical changes with theoretical predictions, scientists refined the equations governing reactivity coefficients and heat transfer rates. This validation was essential for establishing confidence in the design of larger, more complex reactor cores.

Understanding the SL-1 Accident

The findings from the BORAX series also proved instrumental in analyzing the fatal SL-1 reactor accident in 1961. BORAX-I served as a technological precursor to the SL-1 plant, sharing similar design characteristics and operational parameters. When the SL-1 reactor suffered a power excursion resulting in the death of three operators, engineers used the comparative data from BORAX-I to reconstruct the sequence of events. This analysis helped clarify the role of control rod withdrawal speed and the resulting positive reactivity insertion. The correlation between the BORAX data and the SL-1 incident underscored the importance of precise control mechanisms and operator training, leading to immediate improvements in safety procedures for similar reactor designs.

Worked examples

The BORAX experiments provided critical empirical data on boiling water reactor (BWR) physics, specifically focusing on the negative void coefficient and prompt criticality. These tests were conducted using reactors designed by Argonne National Laboratory, utilizing uranium fuel. The following examples illustrate the scale and physical principles demonstrated in BORAX-I and BORAX-II.

BORAX-I: Negative Void Coefficient

The BORAX-I experiment, with a thermal capacity of 1.4 MW, was designed to demonstrate the negative void coefficient of reactivity. In a BWR, as water boils into steam (voids), the density of the moderator decreases. For BORAX-I, this reduction in moderator density led to a decrease in reactivity, providing inherent stability. The test confirmed that as power increased, steam formation naturally reduced the neutron moderation, thereby limiting further power rise without immediate control rod intervention.

BORAX-II: Prompt Criticality

The BORAX-II experiment, operating at a higher thermal capacity of 6 MW, investigated the prompt critical state. Prompt criticality occurs when the neutron population increases primarily due to prompt neutrons, rather than delayed neutrons. In this test, the reactor was driven to a state where the reactivity insertion exceeded the delayed neutron fraction. The data from BORAX-II showed the rapid power excursion characteristic of this state, highlighting the importance of control rod speed and reactor kinetics in managing sudden reactivity changes.

Comparison of Experimental Scales

The difference in thermal capacity between BORAX-I (1.4 MW) and BORAX-II (6 MW) allowed researchers to observe similar physical phenomena at different scales. The larger capacity of BORAX-II provided more pronounced data on thermal-hydraulic interactions during power excursions. Both experiments contributed to the understanding of BWR behavior, which was later applied to the design of commercial reactors, including BORAX-III, which supplied power to the grid in 1955.

Applications and legacy

The BORAX experiments provided critical empirical data that influenced the evolution of light water reactor technology. The findings from BORAX-IV were particularly significant for the thorium fuel cycle. These tests demonstrated the behavior of uranium-233 and evaluated the performance of damaged fuel plates under boiling water conditions. The data helped engineers understand fuel cladding integrity and heat transfer characteristics in high-flux environments, informing the design of subsequent thorium-based reactor concepts.

BORAX-V introduced a novel approach by utilizing a superheater to generate steam at higher temperatures than typical boiling water reactors. This configuration allowed researchers to assess the thermodynamic efficiency of direct-cycle systems. The superheater tests provided insights into the thermal stress on fuel assemblies and the stability of the steam-water mixture, contributing to the optimization of steam dome designs in later BWR models.

Site Transition

The National Reactor Testing Station, where the BORAX reactors were located in eastern Idaho, served as a primary testbed for nuclear research. The site was operated by Argonne National Laboratory during the 1950s and 1960s. After decades of expansion and the addition of numerous other reactor units, the facility underwent a major administrative change. In 2004, the National Reactor Testing Station was renamed the Idaho National Laboratory. This transition reflected the site's growing role in national energy infrastructure and nuclear fuel cycle research. The legacy of the BORAX experiments remains integral to the historical record of the Idaho National Laboratory, marking the early stages of US nuclear power development.
