BECCS: Bio-energy with carbon capture and storage

Overview

Bioenergy with carbon capture and storage (BECCS) represents a distinct class of negative emission technologies designed to remove carbon dioxide (CO2) from the atmosphere. The process integrates the biological sequestration capabilities of biomass with industrial carbon capture infrastructure. As defined by authoritative references, BECCS is the process of extracting bioenergy from biomass and capturing and storing the carbon dioxide (CO2) that is produced. This definition underscores the dual function of the technology: generating usable energy while simultaneously reducing the net concentration of greenhouse gases in the atmosphere.

Operational Mechanism

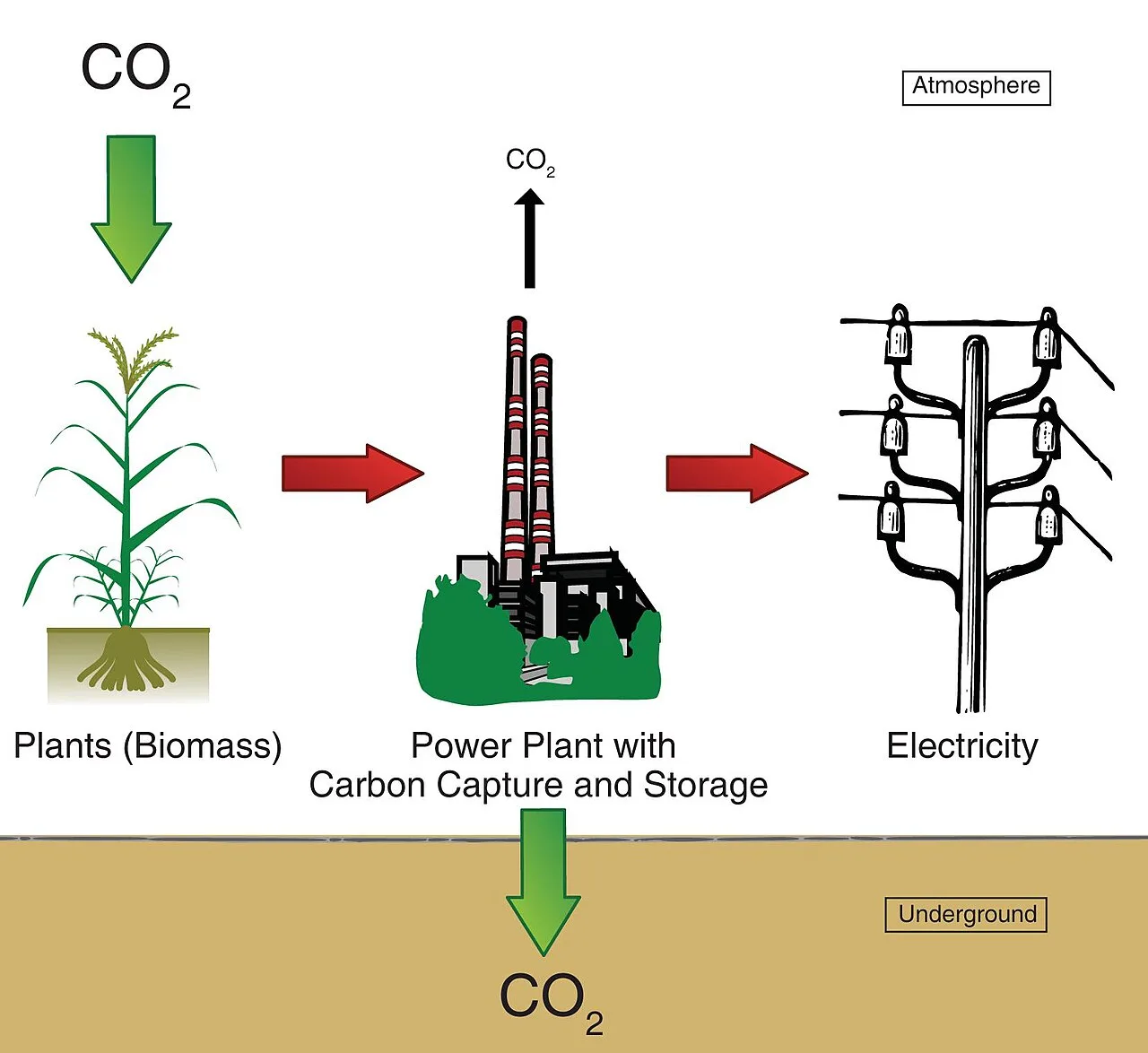

The fundamental premise of BECCS relies on the carbon cycle dynamics of plant life. During photosynthesis, plants absorb CO2 from the atmosphere and convert it into organic matter. When this biomass is harvested and used for energy production—through combustion, gasification, or fermentation—CO2 is released back into the atmosphere. In a traditional bioenergy system, this release is often considered "carbon neutral" over short timeframes because the CO2 emitted was recently absorbed. However, BECCS adds a critical step: the captured CO2 is not merely released but is transported and stored permanently underground, typically in geological formations such as depleted oil and gas fields or saline aquifers.

This storage phase is what transforms the process from carbon neutral to carbon negative. By locking the atmospheric CO2 away for centuries or millennia, the net effect is a reduction in atmospheric carbon levels. The technology thus serves as a bridge between renewable energy generation and long-term carbon sequestration, offering a pathway to mitigate climate change beyond simple emissions reduction.

Strategic Role in Energy Infrastructure

Within the broader context of global energy infrastructure, BECCS is increasingly viewed as a flexible solution for decarbonizing various sectors. Unlike solar or wind power, which are variable renewable energy sources, bioenergy can provide dispatchable power and thermal energy. When coupled with carbon capture and storage, BECCS offers a mechanism to achieve net-negative emissions, which is particularly valuable in scenarios where hard-to-abate sectors, such as heavy industry or aviation, require significant carbon removal to offset residual emissions.

The implementation of BECCS requires a coordinated infrastructure network. This includes biomass supply chains, energy conversion facilities equipped with carbon capture units, and transport and storage infrastructure for CO2. The efficiency and scalability of BECCS depend on the integration of these components, making it a complex but potentially powerful tool in the global energy transition. As energy systems evolve, BECCS provides a method to leverage existing biomass resources while addressing the critical need for permanent carbon storage.

How does BECCS work?

Bioenergy with carbon capture and storage (BECCS) operates as a multi-stage thermodynamic and biological cycle designed to extract carbon dioxide (CO2) from the atmosphere and sequester it subterraneously. The process begins with the cultivation of biomass, which acts as the primary fuel source. During photosynthesis, plants absorb atmospheric CO2 and convert it into organic carbon compounds. This initial stage effectively draws greenhouse gases from the air, creating a temporary carbon sink. The mechanism relies on the continuous renewal of this biomass to maintain the flow of carbon from the atmosphere into the energy system.

Energy Conversion and Carbon Capture

Once harvested, the biomass is converted into usable energy through various thermochemical or biochemical processes. Common methods include combustion, gasification, or anaerobic digestion. In a typical combustion scenario, the biomass is burned to generate heat, which produces steam to drive turbines for electricity generation or provides direct thermal energy. During this conversion, the carbon originally absorbed by the plants is released back into the system as CO2. To prevent this CO2 from immediately re-entering the atmosphere, a carbon capture technology is applied. This step isolates the CO2 from the flue gases or process streams, resulting in a concentrated stream of carbon dioxide ready for transport. The efficiency of this capture phase is critical, as it determines how much of the biogenic carbon is successfully removed from the immediate atmospheric cycle.

Subterranean Storage and Net-Negative Impact

The final stage involves transporting the captured CO2 to suitable geological formations for long-term storage. These formations, such as depleted oil and gas fields or saline aquifers, provide a stable environment where the CO2 can be injected and retained for centuries or millennia. By storing the CO2 underground, the carbon is effectively removed from the active atmospheric cycle. Because the biomass absorbed CO2 during growth and the subsequent energy production released it, the net effect depends on the balance of emissions. If the CO2 is stored rather than released, the process can result in "net-negative" emissions, meaning more carbon is removed from the atmosphere than is added. This mechanism makes BECCS a distinctive tool in energy infrastructure planning, as it combines renewable fuel utilization with geological sequestration to actively reduce atmospheric greenhouse gas concentrations. The entire workflow integrates biological carbon uptake with industrial energy conversion and geological engineering.

What distinguishes BECCS from other carbon removal methods?

Bioenergy with carbon capture and storage (BECCS) is distinguished from other carbon removal methods by its unique integration of biological carbon uptake and geological sequestration. Unlike standard carbon capture and storage (CCS), which typically captures CO₂ emitted from fossil fuel combustion or industrial processes, BECCS specifically utilizes biomass as the primary fuel source. This distinction is critical because biomass absorbs atmospheric CO₂ during its growth phase through photosynthesis. When this biomass is subsequently burned or processed to generate energy, the stored carbon is released. If this released CO₂ is captured and stored permanently underground, the net effect can be negative emissions, meaning more carbon is removed from the atmosphere than is added.

The Role of Biomass in Carbon Cycling

The 'bio-energy' aspect of BECCS relies on the continuous cycle of growing plants. Plants act as natural carbon sinks, drawing down CO₂ from the atmosphere to build their cellular structures. This biological process is distinct from mechanical air capture methods, which use chemical sorbents to pull CO₂ directly from the ambient air. In BECCS, the carbon source is the biomass itself, which must be cultivated, harvested, and transported to the energy conversion facility. This introduces land-use considerations that are less prominent in other CCS applications, such as those applied to natural gas power plants or cement factories. The efficiency of this biological capture depends on the type of biomass used, the growth rate of the plants, and the agricultural practices employed.

Permanent Underground Storage

The 'permanent underground' storage component ensures that the captured CO₂ does not immediately re-enter the atmosphere. In standard bioenergy systems without capture, the CO₂ released during combustion is considered part of the short-term carbon cycle, as new plants will absorb an equivalent amount of CO₂. However, in BECCS, the CO₂ is compressed and injected into deep geological formations, such as depleted oil and gas fields or saline aquifers. This geological sequestration locks the carbon away for centuries or millennia, creating a net reduction in atmospheric CO₂ levels. This permanence is what allows BECCS to be classified as a carbon dioxide removal (CDR) technology rather than merely a mitigation strategy. The process can be conceptually represented as: CO₂_absorbed_by_biomass - CO₂_emitted_during_combustion + CO₂_stored_geologically = Net_Negative_Emissions.

Comparison with Other Carbon Removal Methods

BECCS differs significantly from direct air capture (DAC) and afforestation. While DAC also aims for negative emissions, it relies on mechanical fans and chemical filters to extract CO₂, often requiring substantial energy inputs that may not be derived from biomass. Afforestation, on the other hand, stores carbon in living trees and soil, but this storage can be reversible due to fires, pests, or land-use changes. BECCS offers a hybrid approach, combining the biological efficiency of plant growth with the geological permanence of underground storage. This makes BECCS a versatile tool in the energy infrastructure landscape, capable of providing both renewable energy and long-term carbon removal. The integration of these two processes allows for a more flexible deployment strategy, particularly in regions with abundant biomass resources and suitable geological formations for CO₂ storage.

Applications

Bioenergy with carbon capture and storage (BECCS) serves as a critical mechanism for climate mitigation, distinguished by its potential to achieve negative emissions. Unlike conventional fossil fuel combustion, which releases ancient carbon into the atmosphere, BECCS leverages the carbon cycle of biomass. Plants absorb CO2 from the atmosphere during growth. When this biomass is burned for energy, that CO2 is released. If the released CO2 is captured and stored, the net effect can be a removal of carbon from the atmosphere.

Atmospheric Carbon Removal

The primary application of BECCS lies in its role as a carbon dioxide removal (CDR) technology. In climate models, BECCS is often required to offset residual emissions from hard-to-abate sectors, such as aviation, shipping, and heavy industry. The concept relies on the balance between carbon uptake by biomass and carbon release during energy extraction. If the storage is permanent, the atmosphere loses a net amount of CO2. This makes BECCS one of the few scalable technologies capable of driving global temperatures below the pre-industrial baseline, a scenario often referred to as "overshoot" mitigation.

The effectiveness of BECCS depends on the efficiency of the carbon capture process and the stability of the storage medium. If the CO2 is stored in geological formations, such as depleted oil and gas fields or saline aquifers, the carbon can remain sequestered for centuries or millennia. The net negative emission can be expressed conceptually as:

Net Emissions = (CO2 emitted during combustion) - (CO2 captured and stored) - (CO2 absorbed by biomass growth)

When the captured and stored CO2 exceeds the emissions from the energy extraction process, the result is a negative value. This negative emission is crucial for sustainability goals, particularly in scenarios where limiting global warming to 1.5°C or 2°C requires not just stabilization but a reduction in atmospheric CO2 concentrations.

Sustainability and Land Use

The sustainability of BECCS is heavily influenced by land use patterns. Biomass requires land for cultivation, which can compete with food production and natural forests. If forests are cleared to grow energy crops, the initial carbon debt can offset the benefits of BECCS for decades. Therefore, the choice of biomass source is critical. Sustainable sources include agricultural residues, dedicated energy crops on marginal lands, and forestry by-products. The integration of BECCS into broader sustainability frameworks requires careful management of these land-use changes to ensure that the carbon removal benefits are not negated by deforestation or soil carbon loss.

In summary, BECCS is not merely an energy source but a climate intervention tool. Its application is centered on the strategic removal of atmospheric carbon to complement decarbonization efforts across various sectors. The technology's viability hinges on the efficient capture of CO2 from biomass combustion and the long-term stability of the storage solutions employed.

Worked examples

The BECCS mechanism relies on the temporal displacement of carbon. Biomass absorbs CO₂ from the atmosphere during growth. When that biomass is converted into energy, the CO₂ is released. If this specific CO₂ stream is captured and stored geologically, the net atmospheric effect can be negative. The following theoretical examples illustrate the mass balance and energy yield of this cycle.

Example 1: Hardwood Biomass for District Heating

Consider a theoretical district heating plant using 100 tonnes of dry hardwood. The biomass contains approximately 50% carbon by mass. The plant captures 90% of the emitted CO₂.

Step 1: Calculate carbon mass. 100 tonnes × 0.50 = 50 tonnes of carbon.

Step 2: Calculate CO₂ mass. Carbon (atomic weight 12) combines with Oxygen (atomic weight 16) to form CO₂ (molecular weight 44). The conversion factor is 44/12 ≈ 3.67. 50 tonnes C × 3.67 = 183.5 tonnes of CO₂ emitted.

Step 3: Calculate captured mass. 183.5 tonnes × 0.90 = 165.15 tonnes of CO₂ captured.

Step 4: Determine net atmospheric impact. The plant releases 183.5 - 165.15 = 18.35 tonnes of CO₂. However, the 100 tonnes of hardwood originally absorbed 183.5 tonnes of CO₂ from the atmosphere. The net change is 18.35 (released) - 183.5 (absorbed) = -165.15 tonnes of CO₂. This represents a net removal of 165.15 tonnes of CO₂ from the atmosphere.

Example 2: Sugarcane Ethanol for Transport

Consider a theoretical bio-refinery processing 1,000 tonnes of sugarcane. The process yields ethanol and captures CO₂ from fermentation.

Step 1: Estimate ethanol yield. Assume a yield of 70 litres of ethanol per tonne of cane. 1,000 tonnes × 70 L/t = 70,000 litres of ethanol.

Step 2: Calculate CO₂ from fermentation. Fermentation converts sugar (C₆H₁₂O₆) into ethanol (C₂H₅OH) and CO₂. For every mole of ethanol produced, one mole of CO₂ is released. The mass ratio of CO₂ to ethanol is approximately 0.5. 70,000 L ethanol ≈ 54,600 kg ethanol (density ~0.78 kg/L). 54,600 kg × 0.5 = 27,300 kg of CO₂ released.

Assume 80% capture efficiency. 27,300 kg × 0.80 = 21,840 kg of CO₂ captured.

The sugarcane absorbed CO₂ during growth. The 27,300 kg of CO₂ released during fermentation was originally absorbed. By capturing 21,840 kg, the net removal is 21,840 kg of CO₂. The remaining 5,460 kg is released, but this is offset by the initial absorption, resulting in a net negative emission of 21,840 kg.

Challenges and Considerations

Implementing Bioenergy with carbon capture and storage (BECCS) at a scale sufficient to influence global climate targets introduces significant logistical and environmental complexities. The primary constraint is the sheer volume of biomass required to generate meaningful energy output while simultaneously sequestering carbon. This demand places intense pressure on global land use, potentially triggering competition between food production, natural habitat preservation, and energy crop cultivation.

Land Use and Resource Competition

The efficiency of BECCS is heavily dependent on the type of biomass utilized and the land management practices employed. If dedicated energy crops such as miscanthus or switchgrass are grown, they require arable land that could otherwise support food security or existing forest cover. This phenomenon, often referred to as indirect land-use change (ILUC), can result in the conversion of carbon-rich ecosystems, such as peatlands or tropical forests, into agricultural fields. Such conversions can release stored carbon, potentially offsetting the negative emissions achieved by the BECCS process itself.

Furthermore, the water and nutrient requirements for large-scale biomass cultivation can strain local ecosystems. Intensive farming practices may lead to soil degradation, reduced biodiversity, and increased runoff of fertilizers into water bodies. Ensuring that the biomass supply chain is truly sustainable requires careful planning to avoid displacing other critical land uses or degrading the ecological integrity of the source regions.

Permanence and Storage Integrity

The "storage" component of BECCS relies on injecting captured carbon dioxide (CO2) into deep geological formations, such as depleted oil and gas fields, saline aquifers, or unmineable coal seams. A critical consideration is the long-term permanence of this storage. Unlike the relatively rapid carbon cycle of biomass, which absorbs CO2 over decades, geological storage aims to lock away carbon for centuries or even millennia.

However, the integrity of these underground reservoirs is not absolute. Potential leakage pathways include faults, fractures, and abandoned wells. If CO2 escapes back into the atmosphere, the net negative emission benefit of the BECCS project is reduced. Monitoring systems must be robust and long-lasting to detect and quantify any leakage. Additionally, the capacity of suitable geological formations varies globally, meaning that not all regions with abundant biomass have adequate nearby storage sites, necessitating extensive CO2 transportation infrastructure.

The interplay between land use efficiency and storage permanence defines the practical limits of BECCS. Without rigorous lifecycle assessments and careful site selection, the technology risks becoming a complex solution with hidden environmental costs.

Future Outlook

Bioenergy with carbon capture and storage (BECCS) is increasingly recognized as a critical component in global climate strategies, particularly due to its potential to achieve negative emissions. As a technology for atmospheric carbon removal, BECCS offers a unique pathway to offset residual greenhouse gas emissions from sectors that are difficult to decarbonize, such as aviation, heavy industry, and agriculture. The process involves extracting bioenergy from biomass and capturing and storing the carbon dioxide (CO2) that is produced, thereby removing CO2 from the atmosphere over the life cycle of the biomass.

The integration of BECCS into future energy systems is driven by the need to meet the targets set by international climate agreements, such as the Paris Agreement. Climate models and integrated assessment models (IAMs) frequently project that BECCS will play a significant role in limiting global warming to 1.5°C or 2°C above pre-industrial levels. These projections are based on the assumption that biomass will continue to be a major source of renewable energy, and that the captured CO2 will be stored geologically for long-term sequestration.

The potential for BECCS to contribute to climate mitigation is contingent upon several factors, including the availability of sustainable biomass resources, the efficiency of carbon capture technologies, and the capacity for geological storage. Sustainable biomass production is crucial to ensure that the carbon cycle remains balanced, with the CO2 absorbed by the biomass during growth roughly equaling the CO2 released during energy extraction and storage. The efficiency of carbon capture technologies, such as post-combustion capture, pre-combustion capture, and oxy-fuel combustion, will determine the amount of CO2 that can be captured and stored.

The capacity for geological storage is a key factor in the scalability of BECCS, as it determines the amount of CO2 that can be sequestered over time. The selection of suitable storage sites requires detailed geological surveys and monitoring to ensure the long-term integrity of the stored CO2.

The economic viability of BECCS is another critical consideration for its future deployment. The cost of BECCS is influenced by the price of biomass, the capital and operational costs of carbon capture and storage infrastructure, and the value of the carbon credits generated. Policy mechanisms, such as carbon pricing, subsidies, and tax incentives, can help to reduce the cost of BECCS and make it more competitive with other low-carbon energy technologies.

In conclusion, BECCS has the potential to play a significant role in future climate strategies, particularly as a technology for atmospheric carbon removal. The success of BECCS will depend on the availability of sustainable biomass resources, the efficiency of carbon capture technologies, the capacity for geological storage, and the economic viability of the technology. Further research and development, as well as policy support, will be necessary to realize the full potential of BECCS in the global effort to mitigate climate change.
