Overview
The Awe Hydro-Electric Scheme is an operational hydroelectric power complex located in Argyll and Bute, on the southern edge of the Scottish Highlands in Great Britain. Developed by the North of Scotland Hydro-Electric Board, it was the penultimate major scheme undertaken by the Board before the formation of the Scottish Hydro-Electric Corporation. The scheme centres around Loch Awe and was completed in 1965, establishing a significant capacity of 440 MW to feed into the national grid. It is currently operated by Scottish Power, maintaining its role in the region's energy infrastructure.
Constituent Power Stations
The scheme comprises three distinct power stations that work in conjunction to manage water flow and energy storage. Two of these are conventional hydro-electric stations: the Nant power station and the Inverawe power station. These facilities utilize the natural gradient of the River Awe and its tributaries to generate electricity through traditional turbine rotation driven by gravitational water flow.
The third component is the Cruachan power station, which serves as the scheme's pumped storage facility. Cruachan was the first large pumped storage scheme built by the North of Scotland Hydro-Electric Board. This technology allows for the storage of energy by pumping water from a lower reservoir to an upper reservoir during periods of low electricity demand, which is then released through turbines during peak demand. This integration of conventional and pumped storage hydro-electricity provides flexibility and stability to the power supply, making the Awe scheme a critical asset in the Scottish energy mix.
History of the North of Scotland Hydro-Electric Board
The Awe Hydro-Electric Scheme represents the culmination of a specific era of state-led energy infrastructure development in Scotland. It was the penultimate scheme developed by the North of Scotland Hydro-Electric Board, an entity created to harness the water resources of the Scottish Highlands for national power generation. The Board’s work was rooted in the political and engineering vision of Tom Johnston, whose advocacy led to the legislative framework that enabled the construction of major hydro-electric projects in the region. This legislative foundation, often associated with the 1943 Act, provided the authority and funding necessary to transform the landscape of Argyll and Bute and the surrounding highlands into a complex network of reservoirs and power stations.
The engineering strategy of the North of Scotland Hydro-Electric Board evolved significantly over time, moving from simple run-of-the-river schemes to more complex storage and pumped storage technologies. The Awe Scheme itself is a prime example of this technological maturation. It centres around Loch Awe and consists of three distinct power stations: two conventional hydro-electric stations and the Cruachan power station. The inclusion of Cruachan was particularly significant, as it was the first large pumped storage scheme built by the Board. This technology allowed for greater flexibility in power output, storing energy by pumping water to upper reservoirs during periods of low demand and releasing it to generate electricity during peak times.
The development of the Awe Scheme followed earlier projects such as the Sloy and Shira schemes, which served as engineering precursors and learning grounds for the Board. These earlier projects helped refine the techniques required for constructing large-scale hydro-electric infrastructure in the rugged terrain of the Scottish Highlands. The completion of the Awe Scheme in 1965 marked a major milestone in this progression, solidifying the Board’s reputation for delivering complex, high-capacity energy projects. The scheme’s 440 MW capacity, operated by Scottish Power, continues to play a role in the region’s energy mix, reflecting the long-term strategic planning initiated decades earlier. The legacy of the North of Scotland Hydro-Electric Board is thus embedded in both the physical infrastructure of the Awe Valley and the broader history of Scottish energy policy.
Engineering Design and Construction Challenges
The Awe Hydro-Electric Scheme represents a significant engineering achievement by the North of Scotland Hydro-Electric Board, integrating three distinct power stations to utilize the water resources of Loch Awe in Argyll and Bute. The scheme, completed in 1965, combines conventional hydro-electric generation with the innovative use of pumped storage technology. The system centers around Loch Awe, located on the southern edge of the Scottish Highlands, and includes the Nant and Inverawe conventional stations alongside the Cruachan pumped storage station.
Station Specifications
The scheme consists of three main power stations. The Cruachan power station is notable as the first large pumped storage scheme built by the Board. The total installed capacity of the Awe Hydro-Electric Scheme is 440 MW. The system is operated by Scottish Power. The following table summarizes the key technical specifications of the three stations.
| Power Station | Type | Location | Key Feature |
|---|---|---|---|
| Cruachan | Pumped Storage | Loch Awe | First large pumped storage scheme by the Board |
| Nant | Conventional Hydro | Loch Awe | Conventional generation |
| Inverawe | Conventional Hydro | Loch Awe | Conventional generation |
Construction and Engineering Features

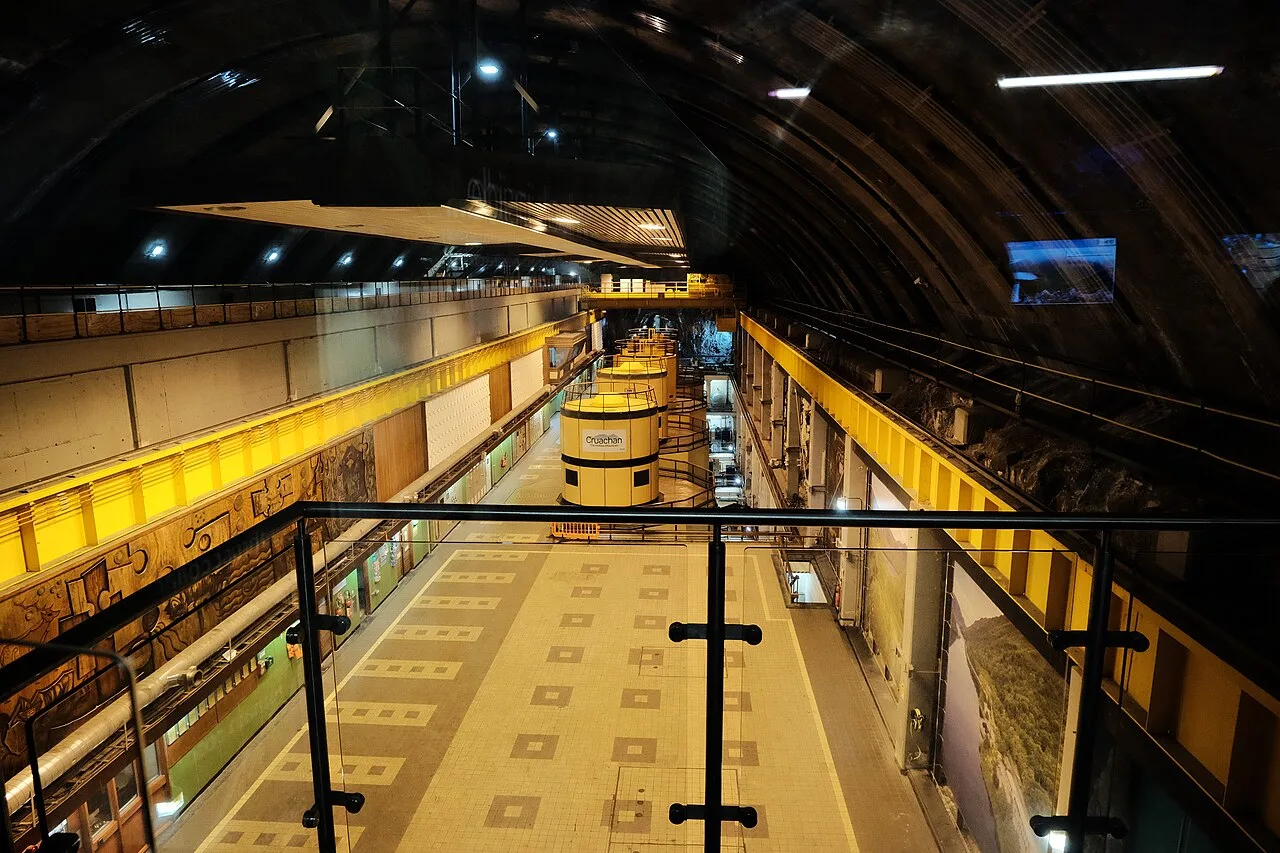

The construction of the Awe Hydro-Electric Scheme involved significant civil engineering works. The Cruachan station required the excavation of extensive caverns within the mountainous terrain surrounding Loch Awe. The scheme includes a barrage at the Pass of Brander to regulate water flow. The engineering design incorporated a buttress dam to manage the water levels and pressure. These structures were essential for the efficient operation of the three power stations. The integration of the conventional and pumped storage components allowed for flexible energy generation and storage. The completion of the scheme in 1965 marked the penultimate development by the North of Scotland Hydro-Electric Board. The system remains operational and is a key part of the Scottish Power network. The use of Loch Awe as the central reservoir provided a strategic location for the hydro-electric infrastructure. The engineering challenges were addressed through careful planning and execution, resulting in a robust and efficient power generation system.
Why it matters
The Awe Hydro-Electric Scheme holds a distinct position in the history of British energy infrastructure, primarily due to the inclusion of the Cruachan power station. This facility was not merely an addition to the hydroelectric capacity but a strategic innovation designed to manage the variability of power generation and consumption across the region.
Technological Innovation and Pumped Storage
The core significance of the Cruachan component lies in its role as a pioneer of reversible pump-turbine technology in Britain. Unlike conventional hydro stations that primarily generate power during peak flow, pumped storage systems allow for the storage of energy in the form of potential energy in upper reservoirs. The North of Scotland Hydro-Electric Board utilized this technology to create a flexible asset that could respond rapidly to grid demands. This innovation was critical for stabilizing the grid, allowing excess electricity to be used to pump water uphill during periods of low demand, only to be released to generate power during peak hours.
Integration into the Scottish Grid
Completed in 1965, the Awe Scheme, with its total capacity of 440 MW, became a cornerstone of the Scottish energy grid. The scheme centers around Loch Awe in Argyll and Bute, leveraging the natural topography of the southern edge of the Scottish Highlands. The integration of two conventional hydro-electric stations with the Cruachan pumped storage unit created a synergistic system. This configuration allowed the North of Scotland Hydro-Electric Board to optimize water usage and power output, providing a reliable baseload and peak-shaving capability for the growing industrial and residential sectors in Scotland. The operational status remains active under the operator Scottish Power, continuing to contribute to the regional energy mix.
How does the Cruachan pumped storage system work?
The Cruachan power station operates as a pumped-storage hydroelectric facility, functioning as the dynamic core of the Awe Hydro-Electric Scheme. Unlike conventional run-of-the-river stations that rely primarily on natural inflow, Cruachan utilizes a reversible mechanism to store and release energy, effectively acting as a giant battery for the Scottish grid. The system’s operational mechanics depend on the interplay between an upper reservoir, a significant vertical head, and specialized turbine-generator units.
Reservoir Dynamics and Vertical Head
The upper reservoir for the pumped-storage system is formed by extending the natural loch. Water is drawn from this upper body and forced down through a series of penstocks to the lower reservoir, which is situated at the base of the mountain. The vertical distance, or head, between the upper and lower water levels is approximately 1198 feet. This substantial elevation difference provides the gravitational potential energy required to drive the turbines during peak demand periods.
Reversible Turbine Mechanics
The heart of the Cruachan station consists of reversible turbine-generator units. These machines can operate in two distinct modes. During periods of high electricity demand, water flows from the upper reservoir down through the turbines, spinning them to generate electricity. In this generation mode, the units function as standard hydro-turbines, converting the kinetic energy of the falling water into electrical power. Conversely, during periods of low demand, typically at night or when wind output is high, the grid supplies electricity to the units. The turbines then act as pumps, drawing water from the lower reservoir and pushing it back up to Loch Awe. This process stores energy for later use, allowing the scheme to respond quickly to fluctuations in the national grid. The North of Scotland Hydro-Electric Board designed this configuration to maximize the efficiency of the 440 MW total capacity of the Awe scheme, integrating Cruachan with two other conventional hydro-electric stations to create a cohesive power generation network completed in 1965.
