Overview

The Aswan Low Dam, also known as the Old Aswan Dam, is a gravity masonry buttress dam situated on the Nile River in Aswan, Egypt. This hydroelectric powerplant is operated by the General Authority for the High Dam and Aswan Reservoir and has been operational since its initial commissioning in 1902. The facility plays a critical role in the region's energy infrastructure, providing a total installed capacity of 550 MW. It serves as a vital component of Egypt's water management system, designed to store annual floodwater and augment dry season flows to support extensive irrigation development and population growth in the lower Nile basin.

The dam is located approximately 1000 km up-river and 690 km south-southeast of Cairo, positioned at the site of the former first cataract of the Nile. Constructed by the British between 1899 and 1902, the structure was unprecedented in scale at the time of its completion, standing as the largest masonry dam in the world. Its primary engineering objective was to regulate the Nile's hydrology to enhance agricultural productivity and support demographic expansion in the lower Nile regions. The dam's design reflects early 20th-century hydraulic engineering, utilizing a gravity masonry buttress system to withstand the river's flow and maintain reservoir levels.

Over its operational history, the Aswan Low Dam has undergone significant modifications to meet increasing irrigation demands. The original structure was raised twice: first between 1907 and 1912, and again between 1929 and 1933. Despite these heightenings, storage capacity remained inadequate for planned development, leading to a near over-topping incident in 1946 when efforts were made to maximize pool elevation. This limitation ultimately spurred the investigation and subsequent construction of the Aswan High Dam, located 6 kilometres upstream. The Aswan Low Dam continues to function as a key hydroelectric and irrigation facility, contributing to the energy and agricultural stability of the Aswan region.

Construction of the Original Dam

Construction of the Aswan Low Dam was initiated by the British administration following their military victory in the 1882 Anglo-Egyptian War. The project began in 1898, aiming to harness the Nile's annual floodwaters to support irrigation development and population growth in the lower Nile region. The dam was designed by Sir William Willcocks, with significant involvement from Sir Benjamin Baker and Sir John Aird. Financing for the ambitious project was largely secured by Ernest Cassel.

Engineering and Scale

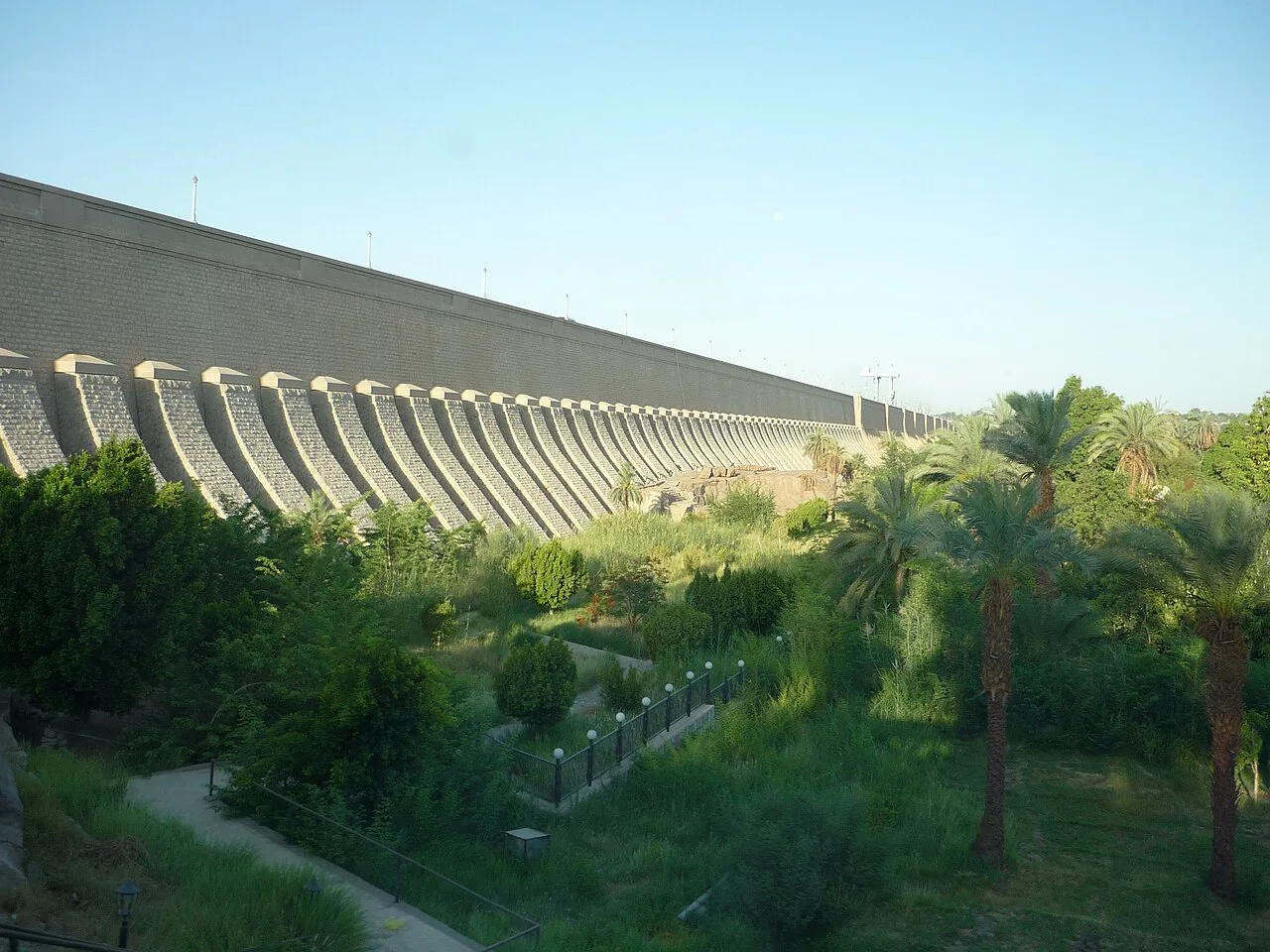

The Aswan Low Dam is a gravity masonry buttress dam. When initially constructed between 1899 and 1902, the scale of the project was unprecedented. Upon its completion, it stood as the largest masonry dam in the world. The original design was limited in height due to conservation concerns, but it functioned as intended, providing storage of annual floodwater and augmenting dry season flows. Despite its success, the initial structure provided inadequate storage capacity for the planned development in the region.

Commissioning and Early History

The dam was officially opened on 10 December 1902 by Prince Arthur, Duke of Connaught and Strathearn. The construction marked a significant milestone in the region's infrastructure, yet the initial capacity soon proved insufficient. Even after these heightenings, the storage capacity remained a challenge, leading to a near over-topping incident in 1946.

Why it matters

The Aswan Low Dam, also known as the Old Aswan Dam, holds profound historical and engineering significance as the first major hydraulic structure constructed on the Nile River. Completed between 1899 and 1902 under British administration, it represented an unprecedented engineering feat for its time. Upon completion, it stood as the largest masonry dam in the world, marking a pivotal moment in global civil engineering and Nile hydrology. Its primary function was to regulate the annual floodwaters of the Nile, providing essential storage to augment dry season flows. This regulation was critical for supporting expanded irrigation development and sustaining population growth in the lower Nile region, effectively transforming the agricultural potential of Egypt’s agricultural heartland.

Despite its initial success, the Aswan Low Dam faced significant capacity limitations due to conservation concerns that originally restricted its height. The structure required two major heightenings to meet growing irrigation demands: first between 1907 and 1912, and again between 1929 and 1933. Even after these expansions, the dam’s storage capacity remained inadequate for the planned development of the lower Nile. The structural and operational limits of the Low Dam became critically apparent in 1946, when the dam was nearly over-topped in an effort to maximize pool elevation. This near-catastrophic event highlighted the insufficiency of the existing infrastructure and directly triggered the investigation and subsequent construction of the Aswan High Dam, located 6 kilometres upstream.

The legacy of the Aswan Low Dam is thus defined by its role as the foundational prototype for Nile regulation. It demonstrated the viability of large-scale masonry damming on the river while simultaneously exposing the limitations of early 20th-century hydraulic engineering in the face of growing agricultural and demographic pressures. The transition from the Low Dam to the High Dam represents a critical evolution in Egypt’s water management strategy, underscoring the Low Dam’s enduring importance in the historical narrative of Nile hydroelectricity and irrigation infrastructure.

How were the heightenings of the Aswan Low Dam executed?

The initial construction of the Aswan Low Dam, completed in 1902, was designed to provide storage of annual floodwater and augment dry season flows to support greater irrigation development and population growth in the lower Nile. However, the dam was originally limited in height by conservation concerns, and while it worked as designed, it provided inadequate storage capacity for the planned development. This insufficiency necessitated two major heightening campaigns to increase the reservoir's volume and extend the irrigation season.

First Heightening (1907–1912)

The first phase of raising the dam was executed between 1907 and 1912. During this period, the structure was raised by 5 metres. This engineering effort was supervised by Sir Benjamin Baker, a prominent British engineer known for his work on major Victorian infrastructure projects. The primary objective was to increase the storage capacity to meet the growing agricultural demands of the Nile Valley, which the original 1902 structure could no longer fully sustain. This initial modification demonstrated the flexibility of the gravity masonry buttress design, allowing for vertical expansion without compromising the structural integrity of the original foundation.

Second Heightening (1929–1933)

Despite the first modification, irrigation demands continued to outpace the dam's capacity. Consequently, a second, more substantial heightening was undertaken between 1929 and 1933. This phase added 9 metres to the dam's height. The project was designed and supervised by Sir M MacDonald & Partners, a leading British engineering firm. This second raising significantly increased the reservoir's volume, allowing for better regulation of the Nile's annual flood and extending the irrigation period for crops in the lower Nile region. The engineering challenges of this phase were considerable, requiring precise coordination to ensure the new masonry integrated seamlessly with the existing structure.

Final Dimensions and Operational Context

Following the completion of the second heightening in 1933, the Aswan Low Dam reached its final dimensions. The structure has a total length of 1950 metres, with a crest level situated 36 metres above the original riverbed. These dimensions reflected the culmination of decades of engineering adaptation to the hydrological characteristics of the Nile. However, even after these significant modifications, the dam's storage capacity remained insufficient for the expanding agricultural and population needs of Egypt. The inadequacy of the Low Dam's storage was starkly illustrated in 1946, when the dam was nearly over-topped in an effort to maximize pool elevation. The Aswan Low Dam, now often referred to as the Old Aswan Dam, continues to operate as a key component of the region's hydroelectric and irrigation infrastructure, complementing the larger High Dam.

What is the hydroelectric capacity of the Aswan Low Dam?

The Aswan Low Dam generates electricity through two distinct hydroelectric power stations, collectively contributing to the facility's total installed capacity of 550 MW. The primary generating unit, known as Aswan I, was commissioned in 1960. This station is equipped with seven generators, each rated at 40 MW, resulting in a sub-total capacity of 280 MW. These units utilize the head difference created by the dam to drive turbines, providing a significant portion of the local power supply for Upper Egypt.

To further expand the hydroelectric output, a second power station, Aswan II, was added later. Construction of this facility took place between 1985 and 1986. Aswan II features four generators, each with a capacity of 67.5 MW, adding 270 MW to the total installed capacity. The combination of the 280 MW from Aswan I and the 270 MW from Aswan II results in the total capacity of 550 MW for the Aswan Low Dam complex.

Impact of the Aswan High Dam

The operational characteristics of the Aswan Low Dam were significantly altered by the construction of the Aswan High Dam, located 6 km upstream. The High Dam, built to address the inadequate storage capacity of the Low Dam, fundamentally changed the hydrological regime of the Nile at this location. One major consequence was the loss of sediment passing ability. Previously, the Low Dam allowed a substantial amount of silt to pass through during the annual flood, which was crucial for agricultural fertility downstream. The High Dam traps most of this sediment in Lake Nasser, meaning the water released to the Low Dam is now largely sediment-free.

Additionally, the lock serviceability of the Aswan Low Dam was affected. The Low Dam originally featured a navigation lock to allow river traffic to bypass the structure. However, the changes in water levels and flow patterns introduced by the upstream High Dam have impacted the efficiency and operational requirements of these locks. The coordination between the two dams is now essential for managing both power generation and navigation on the Nile River in this region.

Impact on Philae Temple and Navigation

The construction of the Aswan Low Dam was originally limited in height due to conservation concerns regarding the Philae Temple complex. These concerns prioritized the preservation of the historic site, which sits on an island in the Nile River near the dam's location. The initial design, completed between 1899 and 1902, reflected a compromise between hydraulic engineering needs and archaeological preservation, resulting in a structure that was the largest masonry dam in the world at the time of its completion. However, this height limitation contributed to inadequate storage capacity for planned irrigation development, leading to two subsequent raisings of the dam between 1907 and 1912, and again between 1929 and 1933. Despite these modifications, the dam's impact on the surrounding hydrology remained a critical factor in regional planning, eventually contributing to the decision to construct the Aswan High Dam 6 kilometres upstream.

The Aswan Low Dam incorporates a navigation lock on the western bank of the Nile River, which facilitates shipping traffic to the second cataract. This infrastructure is essential for maintaining commercial and logistical connectivity along the river, allowing vessels to bypass the dam's elevation change. The lock system supports the movement of goods and passengers, integrating the dam into the broader transportation network of the region. Today, the dam area serves as a main route for traffic between the city of Aswan and the airport, highlighting its continued operational significance beyond its primary hydroelectric and irrigation functions. The integration of transport routes with the dam's infrastructure underscores the multi-functional role of the Aswan Low Dam in supporting both energy production and regional mobility.
