Overview

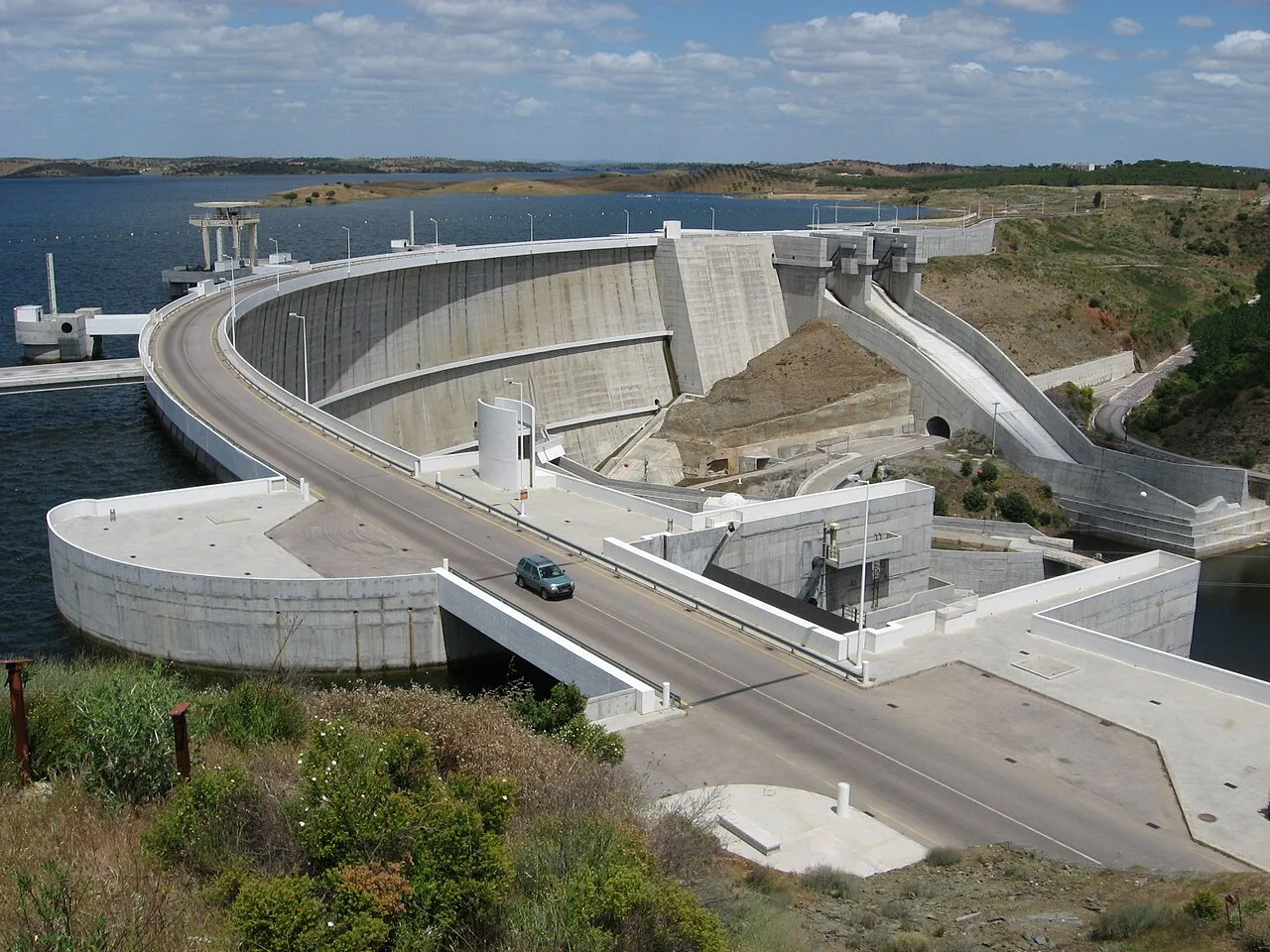

The Alqueva Dam is an arch dam that serves as the centrepiece of the Alqueva Multipurpose Project, located in southern Portugal. It impounds the River Guadiana, situated on the border of the Beja and Évora Districts. The structure takes its name from the town of Alqueva, which lies on the right bank of the river. As the largest dam and artificial lake in Western Europe, the Alqueva Dam represents a major infrastructure achievement in the region's energy and water management landscape. The project is primarily operated by Energias de Portugal, which manages the facility's hydroelectric power generation capabilities. The dam creates a large reservoir with significant inter-annual regulation capacity, allowing water to be distributed throughout the surrounding region for various uses. This regulatory function is critical for managing water resources in the Alentejo area, supporting agriculture, industry, and domestic consumption. The hydroelectric power station associated with the dam has an installed capacity of 518.4 MW, contributing substantially to Portugal's renewable energy mix. The facility was completed in 2002, marking the end of the main construction phase for the dam structure itself. However, the power station was commissioned in two distinct stages to optimize operational efficiency and integration with the grid. Stage I of the power station was commissioned in 2004, followed by Stage II in 2013, which brought the full 518.4-megawatt capacity online. The reservoir reached its full level for the first time in 2010, a key milestone that demonstrated the dam's ability to store and regulate water effectively over inter-annual cycles. This delayed full filling was due to the gradual accumulation of water from the Guadiana River and its tributaries, allowing for careful monitoring of the dam's structural integrity and the surrounding ecosystem. The Alqueva Multipurpose Project encompasses not only the dam and power station but also a network of canals, pumping stations, and distribution channels that extend the benefits of the reservoir to a wide area. The project's design emphasizes the dual role of the dam as both a hydroelectric generator and a water regulation hub, addressing the semi-arid climate conditions of southern Portugal. The arch dam design was chosen for its structural efficiency and ability to withstand the hydrostatic pressure of the large reservoir, making it a suitable choice for the Guadiana River's flow characteristics. The facility remains operational, continuing to provide reliable power generation and water supply to the region. The Alqueva Dam's significance extends beyond its technical specifications, influencing regional development, tourism, and environmental management in the Alentejo district. The reservoir has created a large artificial lake that supports recreational activities and has altered the local microclimate, providing additional benefits to the surrounding communities. The project exemplifies the integration of hydroelectric infrastructure with broader water resource management strategies, highlighting the importance of multi-purpose dams in modern energy and environmental planning. The ongoing operation of the Alqueva Dam by Energias de Portugal ensures that the facility continues to deliver on its dual mandate of power generation and water regulation, serving as a critical asset for southern Portugal's infrastructure. The dam's location on the border of Beja and Évora Districts also facilitates regional cooperation in water management and energy distribution, strengthening the economic and social ties between these administrative areas. The Alqueva Dam stands as a testament to the engineering capabilities and strategic planning involved in large-scale hydroelectric projects in Western Europe, setting a benchmark for future developments in the region. The facility's ability to regulate water inter-annually provides a buffer against droughts and floods, enhancing the resilience of the local water supply system. The power station's staged commissioning allowed for a gradual integration into the national grid, minimizing disruption and maximizing the efficiency of the energy output. The Alqueva Multipurpose Project continues to play a vital role in the sustainable development of southern Portugal, balancing energy production with water conservation and regional growth. The dam's status as the largest in Western Europe underscores its importance in the continent's hydroelectric landscape, offering valuable insights into the design and operation of large-scale arch dams. The ongoing monitoring and management of the reservoir ensure that the Alqueva Dam remains a reliable source of renewable energy and water for the region, supporting the economic and environmental needs of the communities it serves. The project's success highlights the potential of integrated water and energy infrastructure to address the challenges of a changing climate and growing population in southern Europe. The Alqueva Dam remains a key component of Portugal's energy infrastructure, contributing to the country's goals of increasing renewable energy capacity and enhancing water security in the Alentejo region.

History and Construction

The Alqueva Multipurpose Project represents a major hydroelectric and irrigation infrastructure initiative in southern Portugal. The structure is named after the town of Alqueva, which lies on the river’s right bank. The project aims to create a large reservoir with inter-annual regulation capacity, allowing water distribution throughout the region. The dam was completed in 2002, and its reservoir reached its full level for the first time in 2010.

Project Timeline and Decision-Making

The conception of the Alqueva Dam dates back to the 1950s, during the era of Prime Minister António de Salazar. Feasibility studies were conducted to evaluate the potential of the River Guadiana for hydroelectric power and irrigation. Following the political shifts of the mid-20th century, efforts continued between 1974 and 1978, though the project faced various economic and political challenges. A firm decision to proceed with the construction was made in the 1990s, leading to the formalization of the Alqueva Multipurpose Project.

Construction and Joint Venture

The construction of the Alqueva Dam involved a joint venture between several key entities. The project was executed by a consortium that included major Portuguese and international construction firms. The dam is an arch dam, which is a specific type of concrete dam that curves upstream to transfer the water load to the abutments on either side. The construction process was complex and required significant engineering efforts to manage the River Guadiana's flow and the surrounding terrain.

Commissioning and Reservoir Filling

The Alqueva Dam was completed in 2002, marking a significant milestone in the project. The closure of the floodgates in 2002 allowed the reservoir to begin filling. However, the reservoir did not reach its full level until 2010. The 518.4-megawatt power station was commissioned in two stages. Stage I was completed in 2004, and Stage II was finished in 2013. The Alqueva Dam is recognized as the largest dam and artificial lake in Western Europe.

Relocation of Aldeia da Luz

One of the notable aspects of the Alqueva Dam project was the relocation of the village of Aldeia da Luz. The village was moved to higher ground to make way for the expanding reservoir. This relocation was a significant social and logistical undertaking, involving the preservation of the village's historic character while ensuring the inhabitants' transition to their new location. The move of Aldeia da Luz is often cited as a key example of the human impact of large-scale hydroelectric projects.

Hydroelectric Power Station and Pumped Storage

The Alqueva hydroelectric power station is the primary energy generation component of the Alqueva Multipurpose Project. With a total installed capacity of 518.4 MW, it stands as a critical infrastructure asset for the energy grid in southern Portugal. The facility utilizes four reversible Francis turbines to convert the potential energy of the River Guadiana into electricity. These turbines are designed to operate in both generating and pumping modes, allowing for flexible energy management depending on demand and water availability. The commissioning of the power station occurred in two distinct stages, reflecting the phased approach to the broader dam project. Stage I was completed in 2004, bringing the initial set of turbines online and beginning the flow of power to the regional grid. This initial phase allowed for early operational testing and revenue generation while the surrounding infrastructure continued to develop. Stage II followed nearly a decade later, in 2013, completing the full installation of the four turbine units. This second phase marked the full realization of the power station's designed capacity, ensuring that all four Francis turbines were operational and synchronized. The power station functions as a pumped-storage facility, leveraging the significant elevation difference between the main Alqueva reservoir and a lower reservoir. This lower reservoir is formed by the Pedrógão Dam, located downstream along the Guadiana River. During periods of low electricity demand, typically at night or on weekends, the reversible turbines operate in reverse. They pump water from the Pedrógão reservoir back up to the main Alqueva reservoir, effectively storing energy in the form of gravitational potential. When electricity demand peaks, the water is released from the Alqueva reservoir, flowing through the turbines to generate power before settling into the Pedrógão reservoir. This mechanism allows the Alqueva system to act as a giant battery, balancing the grid by storing excess energy and releasing it when most needed. The inter-annual regulation capacity of the large reservoir further enhances this flexibility, allowing water to be held over multiple years to optimize both hydroelectric generation and regional water distribution.

Why it matters

The Alqueva Dam holds a distinctive position in European infrastructure as the largest dam and the largest artificial lake in Western Europe. This scale is not merely geographical; it represents a strategic intervention in the hydrology and economy of southern Portugal. Located on the River Guadiana, on the border of Beja and Évora Districts, the structure serves as the centrepiece of the Alqueva Multipurpose Project. Its primary function extends beyond power generation to address chronic water shortfalls in the Alentejo region, transforming a historically arid landscape into a regulated water basin.

Strategic Water Reserves

The dam creates a reservoir with significant inter-annual regulation capacity. This feature allows water to be stored during wet periods and distributed throughout the region during dry spells, providing critical strategic water reserves for the south of Portugal. The reservoir reached its full level for the first time in 2010, marking the maturation of this water storage system. For the Alentejo region, this regulation mitigates the impact of seasonal variability, ensuring a more reliable water supply for domestic, industrial, and agricultural use.

Economic Development and Irrigation

The Alqueva Multipurpose Project supports regional economic development primarily through irrigation. The availability of regulated water has enabled the expansion of agriculture in the Alentejo, supporting crops that require consistent hydration in a Mediterranean climate. This agricultural boost contributes to the local economy, creating jobs and stabilizing land use. Additionally, the large artificial lake has become a focal point for tourism. The reservoir attracts visitors for recreational activities, leveraging the dam’s status as a major landmark in Western Europe. The combination of irrigation and tourism helps diversify the regional economy, reducing dependence on traditional sectors.

Power Generation Context

While water management is a primary goal, the dam also contributes to the energy mix. Operated by Energias de Portugal, the facility provides hydroelectric power to the grid. The dam was completed in 2002, establishing the physical infrastructure that supports both the energy output and the water regulation functions. The integration of power generation with water storage enhances the flexibility of the regional energy system, allowing for pumped storage or run-of-river adjustments depending on demand and water levels.

Environmental and Cultural Impacts

The construction of the Alqueva Dam, the largest dam in Western Europe, triggered significant environmental and cultural transformations across the Beja and Évora Districts of southern Portugal. The creation of the reservoir, which reached its full level for the first time in 2010, submerged vast tracts of land along the River Guadiana. This hydrological shift directly impacted the habitats of several endangered species, most notably the Iberian lynx. The fragmentation of the landscape and the alteration of riparian zones required careful ecological assessment to mitigate the pressure on local biodiversity. Culturally, the project necessitated extensive archaeological interventions. The rising waters threatened numerous historical sites, leading to the excavation and preservation of artifacts from 1,200 sites. Among the most significant losses were prehistoric engravings and a Roman fort, which were either relocated or documented before submersion. These efforts highlighted the tension between modern energy infrastructure and the preservation of the region’s deep historical record. The town of Alqueva, from which the dam takes its name, was also affected, with parts of its right bank landscape altered by the expanding reservoir. Despite the strategic importance of the Alqueva Multipurpose Project for water regulation and energy production, the economic viability of the associated irrigation schemes has faced criticism. Analysts have questioned the profitability of the irrigated land, suggesting that the high capital costs and operational expenses may not always align with agricultural yields. This debate reflects broader challenges in large-scale hydroelectric developments, where environmental and cultural costs must be weighed against long-term economic benefits. The dam remains a central feature of Portugal’s energy infrastructure, operated by Energias de Portugal with a capacity of 518.4 MW.

What are the benefits of the Alqueva Multipurpose Project?

The Alqueva Multipurpose Project serves as a comprehensive development strategy for southern Portugal, centered on the Alqueva Dam. This infrastructure initiative addresses multiple regional needs by integrating water management, energy production, and economic growth. The project's primary objective is to provide a reliable water supply for the population, industrial sectors, and agriculture in the Beja and Évora Districts. By impounding the River Guadiana, the dam creates a large reservoir with inter-annual regulation capacity, allowing for efficient water distribution throughout the region. A significant component of the project is the expansion of agricultural productivity. The initiative introduced 120,000 hectares of irrigated crops, transforming the local landscape and enhancing food security. This large-scale irrigation system supports various agricultural activities, contributing to the economic stability of the Alentejo region. The availability of consistent water resources enables farmers to diversify their crops and improve yields, fostering a more resilient agricultural sector. In addition to water supply and agriculture, the Alqueva Dam plays a crucial role in renewable energy production. The 518.4-megawatt power station, commissioned in two stages in 2004 and 2013, provides a significant source of hydroelectric power for Portugal. This renewable energy output helps reduce the region's carbon footprint and contributes to the national energy mix. The dam's operational status ensures a steady supply of electricity, supporting both local consumption and broader grid stability. Environmental preservation is another key benefit of the Alqueva Multipurpose Project. The creation of the largest dam and artificial lake in Western Europe has led to the establishment of a unique ecosystem. The reservoir supports diverse flora and fauna, enhancing biodiversity in the area. Efforts to manage water levels and maintain ecological balance have helped preserve the natural habitat, making the region a vital area for environmental conservation. The project has also promoted quality tourism and employment in the region. The scenic beauty of the Alqueva Reservoir attracts visitors, boosting the local tourism industry. This influx of tourists creates jobs in hospitality, recreation, and services, further stimulating the regional economy. The combination of natural attractions and improved infrastructure makes the Alqueva area a desirable destination for both domestic and international travelers. Overall, the Alqueva Multipurpose Project delivers substantial benefits, driving sustainable development and enhancing the quality of life in southern Portugal.
