Wind pump: History, technology and global deployment

Overview

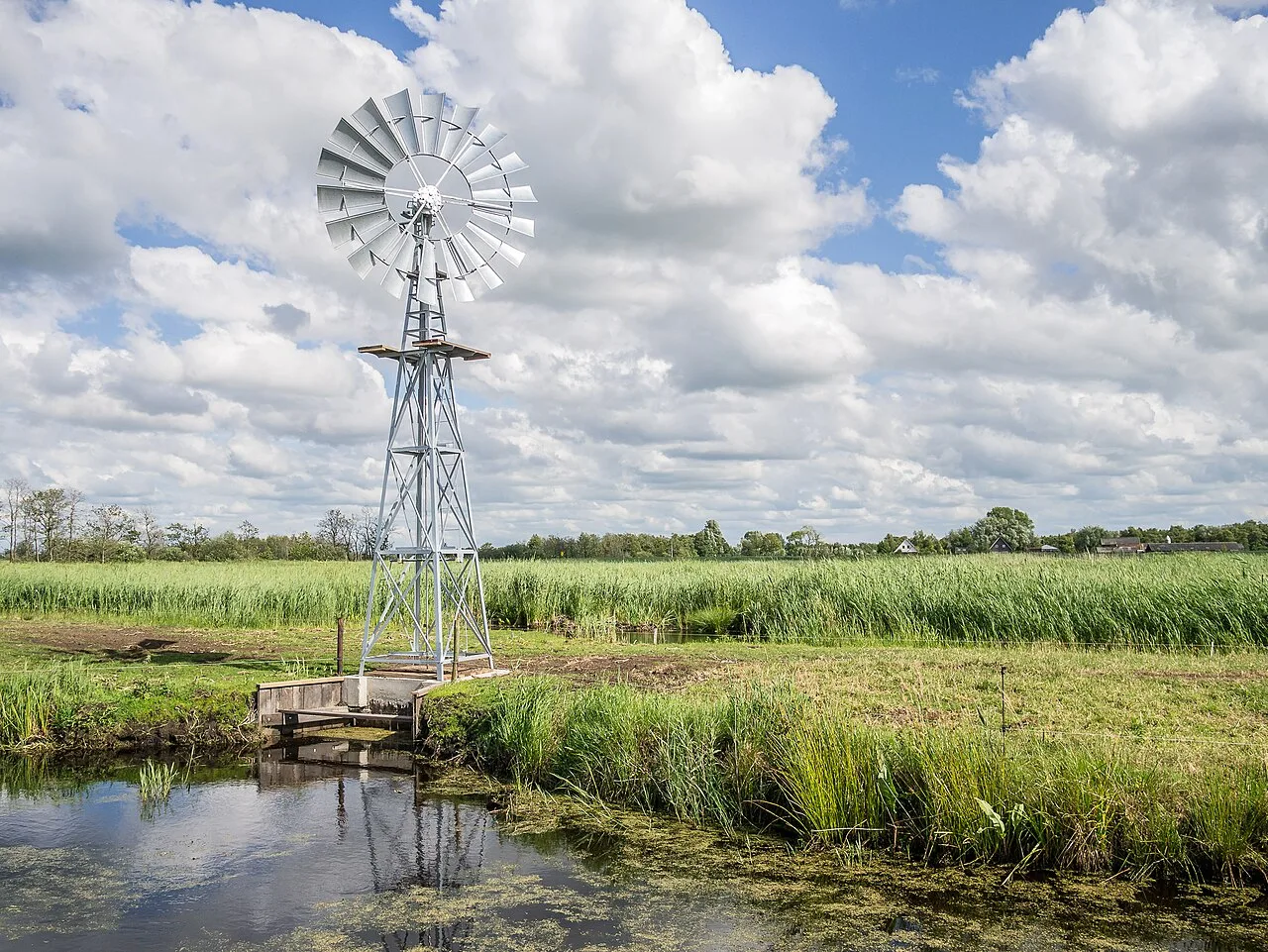

A windpump is a mechanical device that harnesses the kinetic energy of the wind to lift water from a source, such as a well, river, or reservoir, to a higher elevation. Unlike modern wind turbines, which are primarily designed to generate electricity through rotational motion converted by a generator, a windpump is a direct-drive system. Its primary function is hydro-mechanical: the wind turns the blades, which rotate a shaft that operates a piston or diaphragm pump to move water. This distinction is critical in energy infrastructure classification. While a wind turbine produces electrical power that may or may not be used for pumping (often requiring a motor and control systems), a windpump converts wind energy directly into hydraulic energy with minimal intermediate conversion losses. This direct mechanical linkage makes windpumps particularly efficient for low-head, low-flow applications where electricity generation might be over-engineered or less cost-effective.

Basic Operating Principle

The operation of a windpump relies on the aerodynamic lift generated by the rotor blades. As wind flows over the curved surfaces of the blades, a pressure differential is created, causing the rotor to spin. This rotational energy is transferred through a main shaft to a pumping mechanism. In the most common configuration, the shaft connects to a crank mechanism that drives a piston up and down within a cylinder. As the piston moves, it creates suction and pressure differentials that open and close valves, drawing water from the source and pushing it into a delivery pipe. The efficiency of this system depends on several factors, including the number of blades, the pitch of the blades, and the speed of the wind. Typically, windpumps are designed with a large number of blades (often between 16 and 24) to maximize torque at lower wind speeds, ensuring consistent water flow even when the wind is not strong. This contrasts with electricity-generating turbines, which often have fewer blades (typically three) to achieve higher rotational speeds suitable for electrical generation.

Distinction from Wind Turbines

It is essential to distinguish windpumps from wind turbines, despite their visual similarities. A wind turbine is an electromechanical system. Its primary output is electricity, which is generated by a generator connected to the rotor shaft. This electricity can then be used to power a submersible pump, a surface pump, or other electrical loads. In contrast, a windpump is a purely mechanical system. Its primary output is water flow. The water is lifted directly by the mechanical action of the pump, which is driven by the rotor. This means that a windpump can continue to pump water even if the electrical grid fails or if the generator in a wind turbine system breaks down, provided the wind is blowing. This reliability makes windpumps a popular choice for remote locations, agricultural irrigation, and livestock watering, where simplicity and durability are paramount. Additionally, windpumps often require less maintenance than wind turbines because they have fewer moving parts and do not rely on complex electrical components such as inverters, batteries, and generators. The direct mechanical connection between the wind rotor and the water pump simplifies the system, reducing the potential points of failure.

History of wind pumps

Wind pumps have a long and diverse history, originating as a simple yet effective mechanism for harnessing wind energy to pump water. The earliest known wind pumps date back to the 9th century in Afghanistan, Iran, and Pakistan. These early devices were characterized by vertical-axis rotors, which allowed them to capture wind from various directions without needing to be reoriented. This innovation spread throughout the Muslim world, influencing the development of wind technology in regions such as China and India. In these areas, wind pumps were adapted to local conditions, often featuring unique designs suited to the regional wind patterns and water needs.

European Adoption and Innovation

In Europe, wind pumps became particularly prominent in the Netherlands and East Anglia. The Dutch, known for their mastery of water management, utilized wind pumps extensively to drain marshlands and manage water levels. In 1586, Simon Stevin, a Flemish mathematician and engineer, patented a design for a wind pump, further refining the technology. Stevin's innovations contributed to the widespread adoption of wind pumps in Europe, where they played a crucial role in agriculture and land reclamation.

Expansion to the United States

The use of wind pumps expanded to the United States, particularly in the Great Plains region. In 1854, Daniel Halladay invented a more efficient wind pump design, which became widely adopted across the American frontier. Halladay's wind pump featured a multi-bladed rotor and a simple gear mechanism, making it highly effective for pumping water from wells. By the early 20th century, wind pumps had become an essential tool for farmers and ranchers, providing a reliable source of water in areas with limited access to rivers and streams.

Peak Usage and Decline

The peak usage of wind pumps occurred in the 1930s, with approximately 600,000 units in operation and a total capacity of 150 MW. This period marked the height of wind pump technology before the advent of electric motors and diesel engines, which offered alternative solutions for water pumping. Despite their decline in popularity, wind pumps remained in use in rural areas and continued to be valued for their simplicity and reliability. Today, wind pumps are still employed in various parts of the world, particularly in regions where wind energy is abundant and water resources are scarce.

How do multi-bladed wind pumps work?

Multi-bladed wind pumps utilize a high-solidity rotor design, typically featuring between eight and twenty blades, to optimize performance for water lifting. This configuration contrasts sharply with the low-solidity rotors found in electrical generation turbines. The primary engineering objective is to maximize starting torque at low wind speeds, ensuring the pump begins moving water even when winds are gentle. The blades are often designed with a significant camber and may be hinged or set at a fixed pitch angle to capture kinetic energy efficiently. This design results in a high drag-to-lift ratio, which translates into a steady, pulsating force ideal for driving a reciprocating mechanism.

Aerodynamic Characteristics and Rotor Types

The efficiency of a wind pump rotor is heavily dependent on its solidity, defined as the ratio of the total blade area to the swept area of the rotor. High-solidity rotors are characterized by a large number of narrow blades, which provide high starting torque but operate at a lower tip-speed ratio compared to low-solidity rotors. This makes them particularly suitable for direct mechanical drive systems where the load varies with the water head and flow rate. In contrast, low-solidity rotors, with fewer and broader blades, are optimized for high rotational speeds and are more common in wind turbines driving electrical generators.

Mechanical Transmission and Pumping Action

The rotational motion generated by the rotor is transmitted to the pump mechanism through a gearbox. This gearbox reduces the rotational speed while increasing the torque, matching the output of the wind rotor to the requirements of the piston pump. The output shaft of the gearbox is connected to a crankshaft, which converts the continuous rotary motion into the reciprocating linear motion needed to drive the piston. As the piston moves within the cylinder, it creates pressure differentials that draw water from the source and force it through the delivery pipe. The self-regulating nature of the system means that as wind speed increases, the piston moves faster, increasing the flow rate, while the mechanical resistance of the water column helps to naturally limit the rotor's speed, preventing excessive stress on the components.

What are the fundamental problems of multi-bladed wind pumps?

Multi-bladed wind pumps face inherent aerodynamic and mechanical challenges that limit their overall efficiency and operational smoothness. The primary issue lies in the rotor's aerodynamic performance. While single-bladed or two-bladed rotors can achieve higher tip-speed ratios, multi-bladed designs, typically featuring six to twelve blades, operate at lower tip-speed ratios to maximize starting torque. This design choice results in a lower coefficient of performance (Cp​). The grounding data indicates an efficiency of approximately 30% for these rotors, compared to a potential 40% for optimized designs. This discrepancy arises because the blades operate in the wake of the preceding blades, causing aerodynamic interference and reducing the lift-to-drag ratio. The large number of blades increases the frontal area, leading to greater form drag, which becomes significant at higher wind speeds. Consequently, the rotor captures a smaller fraction of the available kinetic energy in the wind stream.

Load Matching Challenges

A second fundamental problem is the mismatch between the wind energy supply and the pump's mechanical demand. Wind power (Pwind​) is proportional to the cube of the wind speed (v), expressed as Pwind​∝v3. In contrast, the power required by a typical reciprocating pump is roughly linear with respect to the wind speed, as the stroke frequency increases linearly with v. This cubic-linear disparity means that at low wind speeds, the pump may underutilize the available energy, while at high wind speeds, the pump demand can exceed the rotor's output, leading to stalling or excessive stress on the linkage. This poor load matching necessitates additional mechanical or aerodynamic regulation, such as banding or gating, to prevent over-speeding and to optimize the energy transfer from the rotor to the water column.

Cyclic Torque Variation

Multi-bladed wind pumps also suffer from significant cyclic torque variation. As each blade passes through the tower shadow and the varying wind profile across the rotor disk, the torque output fluctuates periodically. This cyclic variation induces vibrations in the drive train and the pump mechanism, leading to increased wear and fatigue on components such as the crankshaft, connecting rods, and the piston. The irregular torque profile can also cause the water flow to be less steady, which may be critical in applications requiring a consistent head pressure. These mechanical stresses reduce the lifespan of the pump and increase maintenance requirements, particularly in remote locations where access to spare parts and skilled labor is limited. Addressing these issues often involves adding flywheels to smooth the torque output or using more complex gear systems, which in turn adds weight and cost to the overall assembly.

Development of improved wind pumps

Technological advancements in wind pumping have evolved significantly, moving from basic mechanical designs to sophisticated systems capable of handling variable wind conditions and higher power outputs. Early innovations laid the groundwork for modern efficiency, with Elmo G. Harris securing a patent in 1899 that contributed to the foundational mechanics of wind-driven water extraction. Decades later, Don E. Avery filed a patent in 1983, introducing refinements that addressed operational challenges in diverse climatic zones. These historical milestones established a trajectory for continuous improvement in aerodynamic and hydraulic performance.

USDA Experiments and Canadian Innovations

Between 1988 and 1990, the United States Department of Agriculture (USDA) conducted extensive experiments to optimize wind pump performance for agricultural use. These studies focused on enhancing the reliability of wind-driven systems in rural settings, where consistent water supply is critical for livestock and crop irrigation. The USDA’s research highlighted the importance of blade design and gear ratios in maximizing water output under fluctuating wind speeds. Concurrently, innovations emerged in Canada, where engineers developed "fluttering" windpumps. These devices utilized a unique mechanical response to wind gusts, allowing the pump to maintain operation during variable wind conditions that often stalled traditional multi-blade rotors. This adaptation proved particularly effective in regions with inconsistent wind patterns, reducing downtime and improving overall water yield.

Turkish Variable Stroke Designs

In 2004, Turkish engineers introduced variable stroke designs that significantly increased the capacity of wind pumps. These systems achieved a capacity of 30 kW, marking a substantial leap in power generation for wind-driven water pumping. The variable stroke mechanism allowed the pump to adjust its piston movement in response to wind speed, optimizing efficiency across a broader range of conditions. This innovation enabled the extraction of larger volumes of water, making wind pumps viable for small-scale agricultural and municipal water supply systems. The 30 kW capacity demonstrated that wind pumps could compete with other renewable energy solutions for water extraction, particularly in arid regions where solar and wind resources are abundant. These advancements underscore the potential for continued innovation in wind pump technology, leveraging historical patents and modern engineering to enhance performance and reliability.

What are the different types of wind pumps?

Wind pumps utilize diverse mechanical configurations to convert kinetic wind energy into hydraulic head, tailored to specific geographical and hydrological contexts. These systems range from simple artisanal constructions to complex industrial drainage mechanisms.

Vertical Axis and Tjasker Systems

Vertical Axis Wind Pumps (VAWP) represent a distinct class of wind-driven devices. Unlike traditional horizontal-axis rotors, VAWPs feature a vertical rotation axis, allowing them to capture wind from any direction without a yaw mechanism. This configuration is particularly advantageous in turbulent wind regimes or where space constraints limit the sweep area of horizontal rotors. The mechanical advantage of VAWPs often involves direct drive systems, reducing the need for complex gearing.

In the Netherlands, the Tjasker drainage mill exemplifies a specialized application of wind power for water management. These mills utilize an Archimedean screw mechanism to lift water from lower-lying polders to higher canals or seas. The Archimedean screw, a helical surface enclosed within a cylinder, rotates within a trough, trapping water in the pockets between the helix and the cylinder wall. As the screw rotates, the water is lifted incrementally. This system is highly efficient for moving large volumes of water over relatively small vertical distances, making it ideal for the flat topography of the Dutch lowlands. The Tjasker's design integrates the wind rotor directly with the screw mechanism, often through a simple gear train to optimize torque and rotational speed.

Artisanal and Rope Pump Combinations

In Southeast Asia, particularly in Thailand, bamboo windpumps offer a low-cost, sustainable solution for rural water supply. These devices utilize locally sourced bamboo to construct both the tower and the rotor blades. The pumping mechanism typically involves a paddle pump or a simple reciprocating piston driven by the wind rotor. The paddle pump consists of a series of paddles attached to a vertical shaft, which, when rotated by the wind, push water upward through a pipe. This system is valued for its simplicity, ease of maintenance, and minimal material costs.

Rope pump combinations integrate a flexible rope with a series of cups or disks that are pulled upward by a wind-driven pulley system. As the rope moves, the cups or disks trap water and lift it to the surface. This mechanism is particularly effective for shallow wells and can be easily adjusted for varying water levels. The rope pump's simplicity allows for easy repair and replacement of components, making it a popular choice in regions with limited technical infrastructure.

The efficiency of these systems can be analyzed using basic fluid dynamics and mechanical power equations. The power extracted from the wind is given by P=21​ρAv3Cp​, where ρ is the air density, A is the swept area of the rotor, v is the wind speed, and Cp​ is the power coefficient. The hydraulic power delivered to the water is Ph​=ρw​gQH, where ρw​ is the water density, g is the acceleration due to gravity, Q is the flow rate, and H is the head. The overall efficiency η is the ratio of hydraulic power to wind power: η=PPh​​. Understanding these relationships helps in optimizing the design and placement of wind pumps for maximum performance.

Global deployment and applications

Windpumps remain a critical infrastructure component for decentralized water management, particularly in regions where grid connectivity is intermittent or absent. The technology is deployed globally, with significant concentrations in North America, Southern Africa, and East Africa. These installations serve diverse functions, ranging from agricultural irrigation and livestock watering to municipal supply and polder drainage systems.

Deployment Statistics

The United States represents one of the largest markets for windpump technology. According to available deployment data, there are approximately 60,000 windpump units in operation across the country (per US windpump deployment statistics). These units are often found in rural areas, supporting agricultural operations and remote residential properties.

In Southern Africa, windpumps are a staple of water infrastructure. Thousands of units are in active service in South Africa and Namibia, providing reliable water access for cattle and small-scale irrigation (per South Africa and Namibia deployment data). The region's consistent wind patterns make this technology particularly efficient for long-term, low-maintenance water extraction.

East Africa has seen targeted expansion through specialized engineering firms. Bobs Harries Engineering Ltd has deployed 300 Kijito pumps in the region (per Bobs Harries Engineering Ltd deployment records). The Kijito pump is designed for local conditions, offering durability and ease of repair in remote East African sites.

Primary Applications

Windpumps are utilized in several key applications:

• Remote Sites: In areas far from the electrical grid, windpumps provide a self-sustaining water source. They are commonly used in rural homesteads, small villages, and isolated industrial sites.
• Irrigation: Agricultural operations use windpumps to draw groundwater for crop irrigation. This is particularly valuable in arid regions where solar or diesel-powered pumps may be cost-prohibitive or less reliable.
• Cattle Watering: Livestock farming relies on windpumps to provide consistent water access for cattle. This application is widespread in the US, South Africa, and Namibia, where large pastures require distributed water points.
• Polder Drainage: In low-lying coastal or inland areas, windpumps are used to drain excess water from polders. This helps maintain land usability for agriculture or settlement by managing groundwater levels.

The versatility of windpumps allows them to adapt to various water sources, including wells, rivers, and lakes. Their mechanical simplicity ensures long operational life with minimal maintenance, making them an enduring solution for global water management.

Construction and maintenance

Effective operation of a windpump relies on the precise mechanical coupling between the wind-driven rotor and the pumping mechanism. The rotor must be sized and configured to match the specific hydraulic requirements of the pump, ensuring that the torque generated by the wind is sufficient to drive the piston or impeller against the water column's resistance. This matching process considers factors such as the depth of the water source, the desired flow rate, and the local wind speed profile. An improperly matched system may result in the rotor spinning too slowly to generate adequate pressure or spinning too rapidly, causing mechanical stress and inefficiency. The design often involves a gear train that translates the rotational speed of the rotor into the optimal stroke rate for the pump cylinder.

Maintenance Requirements

Regular maintenance is essential to ensure the longevity and efficiency of a windpump system. One of the most critical routine tasks is the annual change of gearbox oil. The gearbox, which connects the rotor shaft to the pump rod, is subject to continuous mechanical stress and friction. Fresh oil lubricates the gears, reduces wear, and dissipates heat, preventing premature failure of the mechanical components. Neglecting this annual maintenance can lead to increased friction, overheating, and eventual seizure of the gear train, resulting in costly repairs or complete system downtime. In addition to the gearbox, the bearings, rotor blades, and pump cylinder require periodic inspection and lubrication to maintain smooth operation.

Suitability for Remote Sites

Windpumps are particularly well-suited for remote sites with limited access to electric power. In areas where extending the electrical grid is economically prohibitive or technically challenging, windpumps provide a reliable and sustainable method for lifting water. They are commonly used in rural agriculture, livestock watering, and domestic water supply in regions with consistent wind resources. The simplicity of the mechanical design, combined with the availability of wind as a free energy source, makes windpumps an attractive option for off-grid water management. Their ability to operate independently of fuel deliveries or complex electrical infrastructure enhances their reliability in isolated locations, providing a continuous water supply with minimal operational intervention.
