Overview
Photovoltaic (PV) micro-inverters represent a significant evolution in solar energy conversion technology, shifting the point of power conversion from the module level to the string or central inverter level. This architectural change addresses several inefficiencies inherent in traditional string inverter systems, particularly regarding mismatch losses and the impact of shading on overall array performance. The scholarly article 'PV Micro-Inverter Topology Using LLC Resonant Converter' investigates a specific circuit topology designed to optimize the efficiency, reliability, and power density of these module-level power electronics. The LLC resonant converter is highlighted for its ability to achieve zero-voltage switching (ZVS) and zero-current switching (ZCS) for both primary and secondary side switches, thereby reducing switching losses and electromagnetic interference.
The core of this research focuses on the integration of the LLC resonant tank circuit within the micro-inverter architecture. The LLC topology utilizes a series inductor (Ls), a series capacitor (Cs), and a leakage inductor (Lm) to shape the current waveform and facilitate soft switching. This configuration allows the micro-inverter to operate efficiently across a wide input voltage range, which is critical for PV modules that experience fluctuating irradiance and temperature conditions. The article details the design methodology, including the selection of resonant components to ensure optimal gain characteristics and minimal conduction losses.
Key performance metrics evaluated in the study include conversion efficiency, power factor, and total harmonic distortion (THD) of the output current. The use of resonant conversion helps in achieving a near-unity power factor, which is essential for grid-tied PV systems to minimize reactive power exchange with the utility grid. Additionally, the topology’s inherent current-source behavior on the secondary side simplifies the output filter design, contributing to a more compact and cost-effective micro-inverter unit. The research also addresses thermal management and reliability, which are critical for the long-term deployment of micro-inverters exposed to outdoor environmental conditions.
What is a PV micro-inverter?
A PV micro-inverter is a compact power electronic device designed to convert direct current (DC) generated by individual photovoltaic modules into alternating current (AC) suitable for grid connection or local load consumption. Unlike traditional string inverters, which aggregate the DC output of multiple series-connected modules before conversion, micro-inverters are mounted directly to the back of each solar panel. This architectural shift decentralizes the maximum power point tracking (MPPT) process, allowing each module to operate at its optimal voltage and current independently. The fundamental role of the micro-inverter is to maximize energy harvest efficiency in environments where module-level variations in irradiance, temperature, or soiling are common.
Technical Operation and MPPT
The core function of a micro-inverter involves two primary stages: DC-to-DC conversion for MPPT and DC-to-AC inversion. The MPPT algorithm continuously adjusts the operating point of the solar module to extract the maximum available power, defined by the product of voltage (V) and current (I). In a string inverter system, the current is often limited by the weakest module, a phenomenon known as the "Christmas light effect." Micro-inverters mitigate this by isolating the electrical performance of each module. If one panel is partially shaded or degraded, its reduced output does not significantly drag down the performance of adjacent panels. The DC-to-AC stage then converts the optimized DC voltage into a sinusoidal AC waveform, typically synchronized with the grid frequency and voltage phase.
System Architecture and Benefits
Micro-inverters contribute to system reliability by eliminating single points of failure. In a string inverter configuration, a fault in one module can affect the entire string. With micro-inverters, a failure is localized to a single panel, preserving the output of the remainder of the array. This modularity also simplifies system expansion and maintenance, as additional panels can be added without significant rewiring. Furthermore, micro-inverters enable module-level monitoring, providing granular data on the performance of each panel. This data is crucial for diagnosing issues such as inverter faults, module degradation, or environmental obstructions. The technology is particularly advantageous in complex roof geometries, where varying orientations and tilts cause significant differences in solar irradiance across the array. By optimizing each module individually, micro-inverters enhance the overall energy yield and financial return of the photovoltaic installation.
How does the LLC resonant converter work?
The LLC resonant converter is a widely adopted topology in PV micro-inverters due to its ability to achieve high efficiency and soft-switching characteristics across a broad load range. This circuit configuration consists of a primary-side half-bridge or full-bridge inverter, a resonant tank, and a secondary-side rectifier. The resonant tank is composed of a series inductor (Ls), a parallel inductor (Lp), and a resonant capacitor (Cr). This specific arrangement allows the converter to operate with either Zero Voltage Switching (ZVS) for the primary switches or Zero Current Switching (ZCS) for the secondary diodes, significantly reducing switching losses and electromagnetic interference (EMI).
Resonant Tank Operation
The operation of the LLC converter is governed by the interaction between the series inductance, parallel magnetizing inductance, and the resonant capacitance. The resonant frequency (fr) is determined by the series inductor and capacitor, while the parallel inductor primarily influences the gain at frequencies near fr. The converter typically operates above the resonant frequency to achieve ZVS for the primary MOSFETs. The voltage gain (M) of the LLC converter is a function of the normalized frequency (fn=fsw/fr), the quality factor (Q), and the inductance ratio (Ln=Lp/Ls). This relationship allows for precise control of the output voltage by adjusting the switching frequency (fsw).
Advantages in Micro-Inverter Applications
In the context of PV micro-inverters, the LLC topology offers several distinct advantages. First, the soft-switching nature reduces stress on the semiconductor devices, enabling the use of silicon carbide (SiC) or gallium nitride (GaN) devices for even higher efficiency. Second, the transformer in the LLC converter can be designed with a smaller core size due to the high-frequency operation, which is critical for the compact form factor of micro-inverters. Additionally, the LLC converter provides inherent isolation between the DC input from the solar panel and the AC output, enhancing safety and simplifying grounding requirements. The ability to maintain high efficiency over a wide input voltage range makes the LLC converter particularly suitable for the variable output characteristics of photovoltaic modules.
Applications in solar energy systems

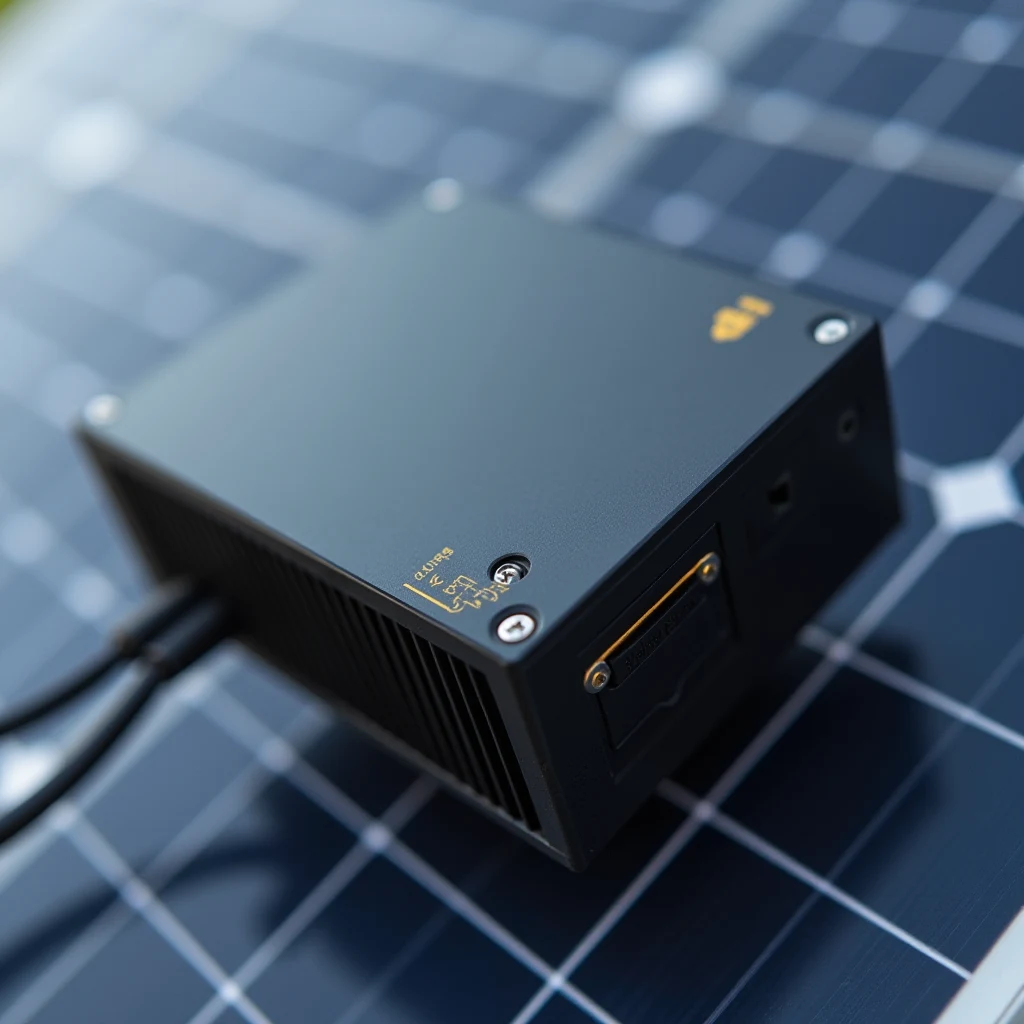

PV micro-inverters utilizing LLC resonant converters are primarily deployed in residential solar energy systems to maximize energy harvest at the module level. In these installations, the micro-inverter is mounted directly to the back of each photovoltaic panel, converting direct current (DC) to alternating current (AC) locally. This architecture mitigates the "mismatch loss" common in string inverter systems, where the performance of a single shaded or soiled panel can drag down the entire string. The LLC resonant converter topology is favored for its high efficiency and soft-switching characteristics, which reduce electromagnetic interference (EMI) and thermal stress on the power semiconductor devices.
Residential and Commercial Rooftop Integration
In residential applications, the modular nature of micro-inverters simplifies system expansion and maintenance. If one panel fails, the remaining modules continue to operate independently, ensuring partial power production. The LLC converter's ability to achieve zero-voltage switching (ZVS) for the primary side switches and zero-current switching (ZCS) for the secondary side diodes enhances overall system reliability. This is critical for rooftop installations where access for maintenance can be cumbersome. The compact size of the micro-inverter allows for flexible mounting on various roof types, including flat and pitched roofs, without requiring extensive wiring runs to a central inverter unit.
Utility-Scale and Large Commercial Deployments
While traditionally associated with residential use, micro-inverters with LLC resonant converters are increasingly adopted in utility-scale and large commercial solar farms. In these settings, the granular monitoring capability of micro-inverters provides operators with detailed performance data for each module, facilitating predictive maintenance and rapid fault detection. The AC-coupled nature of micro-inverters also simplifies integration with battery energy storage systems (BESS), allowing for flexible DC or AC coupling depending on the system design. The high efficiency of the LLC topology contributes to a higher levelized cost of energy (LCOE) by reducing conversion losses over the system's lifetime.
The use of LLC resonant converters in micro-inverters addresses key challenges in power electronics, including thermal management and electromagnetic compatibility. By minimizing switching losses, the converter generates less heat, which is crucial for the longevity of the micro-inverter in harsh environmental conditions. This technology supports the growing demand for scalable, efficient, and reliable solar energy solutions across diverse installation sizes.
What are the advantages of LLC topology?
LLC resonant topology is widely adopted in microinverters because it delivers high efficiency across a broad load range, which is critical for solar modules that rarely operate at their rated peak power. Unlike conventional hard-switched converters, the LLC structure enables Zero Voltage Switching (ZVS) for primary side switches and Zero Current Switching (ZCS) for secondary rectifiers. This soft-switching behavior significantly reduces switching losses, allowing the converter to maintain high efficiency even at light loads, a common condition in early morning or late afternoon solar generation.
Comparison with Other Topologies
Compared to the traditional Full-Bridge (FB) converter, the LLC topology simplifies the magnetic design. The FB converter typically requires a larger transformer to achieve isolation and voltage transformation, whereas the LLC uses a series-inductor and a parallel-capacitor tank that integrates with the transformer's leakage inductance and magnetizing inductance. This integration reduces the overall size and cost of the magnetic components, a key advantage for space-constrained microinverter designs mounted directly behind solar panels.
When compared to the Phase-Shifted Full-Bridge (PS-FB) converter, the LLC offers superior light-load efficiency. PS-FB converters suffer from significant reverse recovery losses in the secondary rectifiers, especially at higher frequencies. The LLC topology mitigates this by ensuring that the secondary current naturally crosses zero before the rectifiers switch, eliminating reverse recovery losses. This results in a flatter efficiency curve, often exceeding 95% efficiency from 20% to 100% of the rated load.
Performance Benefits
The LLC converter provides inherent galvanic isolation and voltage gain capability through frequency modulation. The voltage gain M is determined by the normalized frequency fn=fs/fr, the quality factor Q, and the inductance ratio Ln. By adjusting the switching frequency fs, the microinverter can regulate the output voltage while maintaining ZVS, ensuring stable performance despite variations in solar irradiance and temperature. This flexibility allows for optimized Maximum Power Point Tracking (MPPT) algorithms that can dynamically adjust the switching frequency to maximize power extraction from each individual solar module.
Furthermore, the LLC topology generates lower electromagnetic interference (EMI) due to the sinusoidal current waveforms in the resonant tank. This reduces the need for bulky EMI filters, further compacting the microinverter's form factor. The combination of high efficiency, compact size, and reliable soft-switching performance makes the LLC resonant converter a dominant choice in modern microinverter designs for residential and commercial solar installations.
Technical specifications and parameters
Microinverters are power conversion devices that convert direct current (DC) from individual photovoltaic modules into alternating current (AC) for grid integration. Unlike central inverters, each module has a dedicated unit, optimizing energy harvest at the module level. Key technical parameters define their performance and compatibility with PV systems.
Voltage and Current Parameters
Input voltage ranges typically span 12 to 50 VDC, depending on the PV module type. Standard silicon modules operate at 18 to 24 VDC at maximum power point (MPP). The inverter must handle the module’s open-circuit voltage (Voc), often reaching 40 to 50 VDC in cold conditions. Input current varies with irradiance and temperature, commonly ranging from 3 to 12 ADC. The inverter’s MPPT (Maximum Power Point Tracking) algorithm adjusts the DC input to maximize power extraction.
Output voltage is standardized to match grid requirements. In North America, the nominal AC output is 120 VAC (single-phase) or 240 VAC (split-phase). In Europe and many other regions, it is 230 VAC (single-phase) or 400 VAC (three-phase). The output current depends on the inverter’s rated power, typically 250 W to 400 W per unit. For a 250 W microinverter at 120 VAC, the output current is approximately 2.1 AAC (assuming 0.95 power factor).
Frequency and Power Quality
Output frequency is synchronized with the grid, typically 50 Hz or 60 Hz. The microinverter must maintain frequency stability within ±0.5 Hz under normal conditions. Power factor is a critical parameter, often adjustable between 0.8 lagging and 0.8 leading to optimize reactive power delivery. Total Harmonic Distortion (THD) is usually kept below 5% to ensure clean AC output.
Efficiency is another key metric. Modern microinverters achieve peak efficiencies of 95% to 97%, with European efficiency (weighted average) ranging from 93% to 96%. Efficiency varies with load and temperature, with derating occurring at higher temperatures due to semiconductor losses.
Technical Specifications Table
| Parameter | Typical Value | Notes |
|---|---|---|
| Input Voltage Range | 12–50 VDC | Depends on PV module type |
| Input Current | 3–12 ADC | Varies with irradiance |
| Output Voltage | 120 VAC / 230 VAC | Grid-standardized |
| Output Frequency | 50 Hz / 60 Hz | Synchronized with grid |
| Power Factor | 0.8–0.95 | Adjustable for reactive power |
| Total Harmonic Distortion | <5% | Ensures clean AC output |
| Peak Efficiency | 95–97% | Depends on load and temperature |
Future developments in micro-inverter technology
Future research in photovoltaic micro-inverter technology is increasingly focused on the optimization of LLC resonant converters to address efficiency, thermal management, and cost-effectiveness. The LLC topology is favored for its ability to achieve zero-voltage switching (ZVS) for primary side switches and zero-current switching (ZCS) for secondary side diodes, which significantly reduces switching losses. Current advancements aim to refine the resonant tank design to broaden the frequency modulation range, allowing for more precise maximum power point tracking (MPPT) under partial shading conditions.
Efficiency and Thermal Optimization
Researchers are developing advanced control algorithms to minimize conduction and switching losses in LLC-based micro-inverters. By dynamically adjusting the switching frequency, the system can maintain high efficiency across a wider range of input power levels. This is particularly critical for micro-inverters, where thermal dissipation is constrained by the compact form factor mounted directly behind the PV module. Improved thermal management strategies, including the integration of high-conductivity substrates and optimized heat sink geometries, are being explored to enhance the reliability and lifespan of the power electronics.
Integration of Power Factor Correction
A significant area of development involves integrating active power factor correction (PFC) directly into the LLC resonant converter stage. Traditional designs often require a separate boost converter for PFC, adding complexity and cost. New topologies aim to combine the PFC and DC-AC inversion functions within a single LLC stage, reducing the component count and improving overall system efficiency. This integration helps in achieving a near-unity power factor, which is essential for grid compliance and reducing reactive power losses.
Smart Grid and Communication Capabilities
As micro-inverters become more intelligent, the integration of communication protocols such as Power Line Communication (PLC) and wireless modules is advancing. These features enable real-time monitoring of individual PV modules, facilitating precise fault detection and performance analysis. Future developments also focus on enhancing the grid-forming capabilities of micro-inverters, allowing them to provide essential grid services like voltage regulation and frequency support, thereby increasing the penetration of solar energy in distribution networks.
