Combined cycle gas turbine: Technology, efficiency and operational configurations

Overview

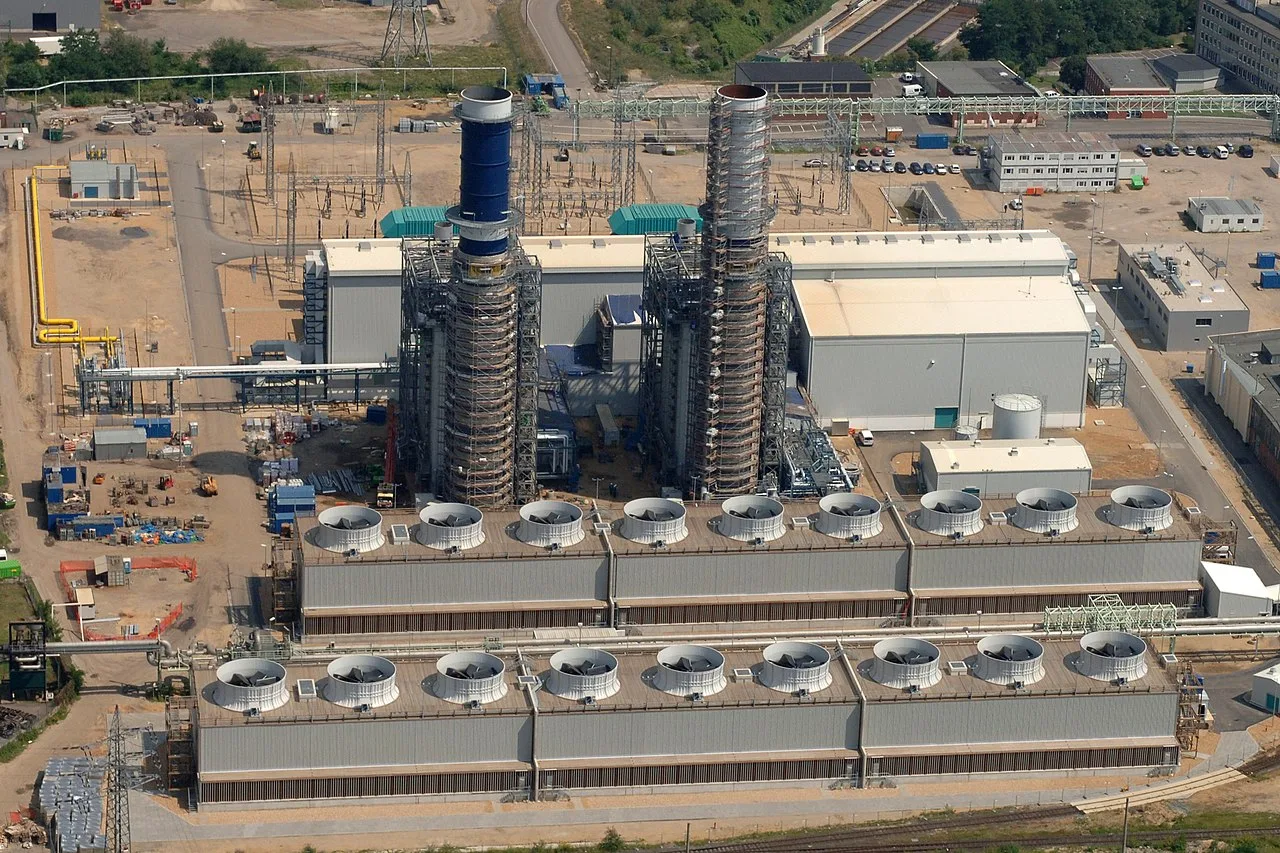

A combined-cycle gas turbine (CCGT) plant is an assembly of heat engines that work in tandem from the same source of heat, converting it into mechanical energy. On land, when used to make electricity, the most common type is called a combined-cycle gas turbine (CCGT) plant, which is a kind of gas-fired power plant. The same principle is also used for marine propulsion, where it is called a combined gas and steam (COGAS) plant. Combining two or more thermodynamic cycles improves overall efficiency, which reduces fuel costs.

Basic Principle

The CCGT configuration utilizes a topping cycle and a bottoming cycle to maximize energy extraction from the fuel. The primary heat engine, typically a gas turbine, operates in the topping cycle. It compresses air, mixes it with natural gas, and combusts the mixture to drive the turbine. The exhaust gases from this process, still containing significant thermal energy, are then directed to a heat recovery steam generator (HRSG). In the HRSG, the waste heat is used to produce steam, which drives a secondary steam turbine in the bottoming cycle. This integration allows the plant to capture energy that would otherwise be lost to the atmosphere in a simple cycle gas turbine.

Efficiency Benefits

By combining these two thermodynamic cycles, CCGT plants achieve significantly higher overall efficiency compared to single-cycle power plants. The gas turbine typically operates at higher temperatures, while the steam turbine captures the lower-temperature residual heat. This staged energy conversion reduces the total fuel consumption per unit of electricity generated, leading to lower operational costs. The improved efficiency also translates to reduced emissions per megawatt-hour of electricity produced, making CCGT plants a key component in modern energy infrastructure. The operational status of these plants is generally characterized by their reliability and flexibility, allowing them to respond quickly to changes in electricity demand while maintaining high thermal efficiency.

How does a combined cycle power plant work?

A combined-cycle gas turbine (CCGT) plant operates by coupling two thermodynamic cycles to maximize energy extraction from a single fuel source, primarily natural gas. This configuration is the most common form of combined-cycle power generation on land. The system integrates a gas turbine operating on the Brayton cycle and a steam turbine operating on the Rankine cycle. This tandem arrangement significantly improves overall efficiency and reduces fuel costs compared to single-cycle plants.

Brayton Cycle: Gas Turbine Operation

The primary energy conversion occurs in the gas turbine, which follows the Brayton cycle. Air is compressed, mixed with natural gas, and combusted to produce high-temperature exhaust gases. These gases expand through the turbine blades, driving a generator to produce electricity. The thermodynamic efficiency of this stage depends on the pressure ratio and the turbine inlet temperature.

Rankine Cycle: Steam Turbine Operation

The secondary stage utilizes the residual heat from the gas turbine exhaust. This heat drives a steam turbine operating on the Rankine cycle. Water is heated to produce steam, which expands through the steam turbine to generate additional mechanical energy. This integration ensures that waste heat is converted into useful work rather than being lost to the atmosphere.

Heat Recovery Steam Generator (HRSG)

The critical component linking these two cycles is the Heat Recovery Steam Generator (HRSG). The HRSG captures thermal energy from the hot exhaust gases of the gas turbine. This heat is transferred to water, converting it into high-pressure steam for the Rankine cycle. The HRSG acts as a boiler without direct fuel combustion, maximizing the thermal efficiency of the combined system.

This combined approach allows CCGT plants to achieve higher efficiency than individual cycles. The principle is also applied in marine propulsion as Combined Gas and Steam (COGAS) plants. By converting more heat into mechanical energy, the system reduces overall fuel consumption per unit of electricity generated.

What are the different CCGT configurations?

Combined-cycle gas turbine (CCGT) plants utilize specific thermodynamic configurations to maximize efficiency by integrating gas and steam cycles. The primary architectural distinction lies in the mechanical coupling of the turbine units, categorized into single-shaft and multi-shaft systems. In a single-shaft configuration, the gas turbine compressor, the gas turbine expander, and the steam turbine are all mounted on a single rotating shaft connected to the generator. This arrangement simplifies the mechanical layout and allows for rapid synchronization, though it can complicate the start-up sequence. Conversely, multi-shaft systems feature separate shafts for the gas turbine and the steam turbine, which may drive individual generators or a common generator via a gearbox. This modular approach offers operational flexibility, allowing the gas turbine to operate independently during peak demand periods or for maintenance.

Supplementary Firing and Boiler Design

Efficiency is further enhanced through supplementary firing, also known as duct burning. This process involves injecting additional natural gas into the exhaust duct between the gas turbine and the heat recovery steam generator (HRSG). The combustion increases the exhaust temperature, thereby producing more steam for the downstream steam turbine. This is particularly useful during peak load conditions or when the gas turbine output is modulated. The HRSG itself can be configured as a single-pressure or dual-pressure system. Dual-pressure boilers extract steam at two distinct pressure levels (high and intermediate), allowing for better heat recovery from the exhaust gas temperature profile, reducing the exergy loss compared to a single-pressure cycle.

Advanced Cycles: The Cheng Cycle

Beyond standard Rankine-Brayton combinations, advanced configurations like the Cheng cycle integrate a bottoming organic Rankine cycle (ORC) or a secondary steam cycle to capture low-grade heat. The Cheng cycle specifically aims to optimize the temperature match between the gas turbine exhaust and the working fluid, minimizing irreversibility. The overall thermal efficiency ηCCGT​ is governed by the interplay of the gas turbine efficiency ηGT​ and the steam cycle efficiency ηSC​, often approximated as ηCCGT​≈ηGT​+ηSC​−(ηGT​×ηSC​). These configurations are selected based on site-specific fuel costs, load profiles, and capital expenditure constraints.

Efficiency records and technological advancements

Combined-cycle gas turbine (CCGT) plants achieve superior thermodynamic efficiency by coupling a gas turbine (Brayton cycle) with a steam turbine (Rankine cycle). This tandem operation captures waste heat from the gas turbine exhaust to generate steam, thereby converting more fuel energy into mechanical work and electricity. The integration of these cycles significantly reduces fuel costs and overall thermal losses compared to simple-cycle gas plants.

Efficiency Benchmarks and Records

Technological advancements have pushed CCGT efficiency records higher over recent decades. Notable installations such as Baglan Bay in the United Kingdom, Irsching in Germany, and Bouchain in France serve as key benchmarks for industry performance. These plants demonstrate the practical application of high-pressure steam cycles and advanced turbine aerodynamics. The following table outlines representative efficiency records associated with these major facilities.

Turbine Inlet Temperatures and Manufacturer Claims

A critical driver of CCGT efficiency is the turbine inlet temperature (TIT). Higher TIT allows the gas turbine to extract more energy from the combustion process. Major manufacturers, including GE, Siemens, and Mitsubishi, continuously refine blade materials and cooling technologies to withstand these extreme thermal loads. These advancements enable higher pressure ratios and improved specific output. The theoretical efficiency gain can be approximated by analyzing the combined cycle efficiency formula, where the overall efficiency ηCC​ is influenced by the gas turbine efficiency ηGT​ and the steam turbine efficiency ηST​.

Manufacturer claims for newer CCGT units often cite net efficiencies exceeding previous generations, driven by these thermal and mechanical improvements. The competition among GE, Siemens, and Mitsubishi has accelerated the deployment of ultra-supercritical steam parameters and larger frame gas turbines, further optimizing the energy conversion process for natural gas-fired power generation.

Advanced variants: IGCC and ISCC

Integrated Gasification Combined Cycle (IGCC) technology extends the combined-cycle principle by gasifying solid fuels, such as coal or biomass, into synthesis gas (syngas) before combustion. This process allows for greater fuel flexibility and often improved emissions control compared to traditional pulverized coal plants. In an IGCC plant, the fuel is converted into a combustible gas mixture primarily consisting of hydrogen and carbon monoxide. This syngas is then cleaned and fed into a gas turbine, with the exhaust heat used to generate steam for a secondary steam turbine, mirroring the thermodynamic efficiency gains of standard CCGT configurations.

Integrated Solar Combined Cycle (ISCC)

Integrated Solar Combined Cycle (ISCC) plants combine solar thermal energy with natural gas to enhance output and efficiency. Solar collectors heat water or working fluid, which is then integrated into the steam cycle of a standard CCGT plant. This hybrid approach allows for increased electricity generation during peak solar hours and provides thermal inertia to stabilize output. Notable ISCC implementations include the Archimede plant in Italy and the Kuraymat plant in Egypt.

These variants demonstrate the adaptability of combined-cycle technology beyond simple natural gas combustion. By integrating additional heat sources or fuel preprocessing steps, IGCC and ISCC plants optimize energy conversion efficiency. The fundamental thermodynamic advantage remains the utilization of waste heat from the primary gas turbine to drive a secondary steam turbine, thereby extracting more mechanical energy from the same initial heat source. This modular approach continues to influence modern power generation strategies, particularly in regions seeking to diversify fuel inputs or integrate renewable thermal energy into existing gas infrastructure.

Economic and operational considerations

Combined-cycle gas turbine (CCGT) plants represent a significant capital investment, characterized by higher upfront costs compared to simple-cycle gas turbines but offering superior long-term economic performance through enhanced thermal efficiency. The economic viability of a CCGT facility is primarily driven by the levelized cost of energy (LCOE), a metric that averages the total lifetime costs of building and operating the plant against its total energy output. According to data from the Fraunhofer Institute for Solar Energy Systems (Fraunhofer ISE), CCGT plants generally exhibit one of the lowest LCOE figures among fossil-fuel-based generation technologies, particularly in regions with competitive natural gas pricing.

The LCOE calculation accounts for capital expenditures (CAPEX), operational expenditures (OPEX), fuel costs, and the discount rate over the plant's expected lifespan. While exact figures vary by geographic location and market conditions, the high efficiency of CCGT units—often exceeding 60% in newer installations—means that a larger proportion of the fuel's energy content is converted into electricity, thereby reducing the fuel cost component of the LCOE. This efficiency gain is a direct result of the thermodynamic synergy between the gas turbine's Brayton cycle and the steam turbine's Rankine cycle, where waste heat from the gas turbine is captured by a heat recovery steam generator (HRSG) to drive the steam turbine.

Economies of scale play a crucial role in reducing the per-megawatt capital cost of CCGT plants. Larger units, typically ranging from 50 MW to over 150 MW per gas turbine block, benefit from standardized manufacturing processes and bulk purchasing of key components such as compressors, combustors, and turbines. Additionally, the modular nature of CCGT technology allows for phased expansion, enabling operators to match capacity additions with demand growth, thus optimizing capital deployment. However, larger plants also require more extensive infrastructure, including larger heat recovery steam generators and more complex piping networks, which can increase maintenance complexity.

Maintenance factors significantly influence the operational economics of CCGT plants. Regular maintenance is essential to sustain high efficiency and reliability, with key components such as the gas turbine blades, HRSG tubes, and steam turbine rotors requiring periodic inspection and overhaul. Preventive maintenance strategies, including hot and cold inspections, help minimize unplanned downtime and extend the lifespan of critical components. The operational flexibility of CCGT plants, allowing for quick start-up and load-following capabilities, also adds value in electricity markets with increasing shares of variable renewable energy, further enhancing their economic attractiveness.
