Overview
Anaerobic digestion (AD) is a complex biochemical process in which microorganisms break down biodegradable material in the absence of oxygen. This process is primarily applied to biomass, including agricultural waste, sewage sludge, and energy crops, to produce biogas and digestate. The scholarly investigation into anaerobic digestion process parameter identification focuses on the critical variables that govern the efficiency, stability, and output quality of the system. Understanding these parameters is essential for optimizing the conversion of biomass into renewable energy sources, particularly methane-rich biogas.

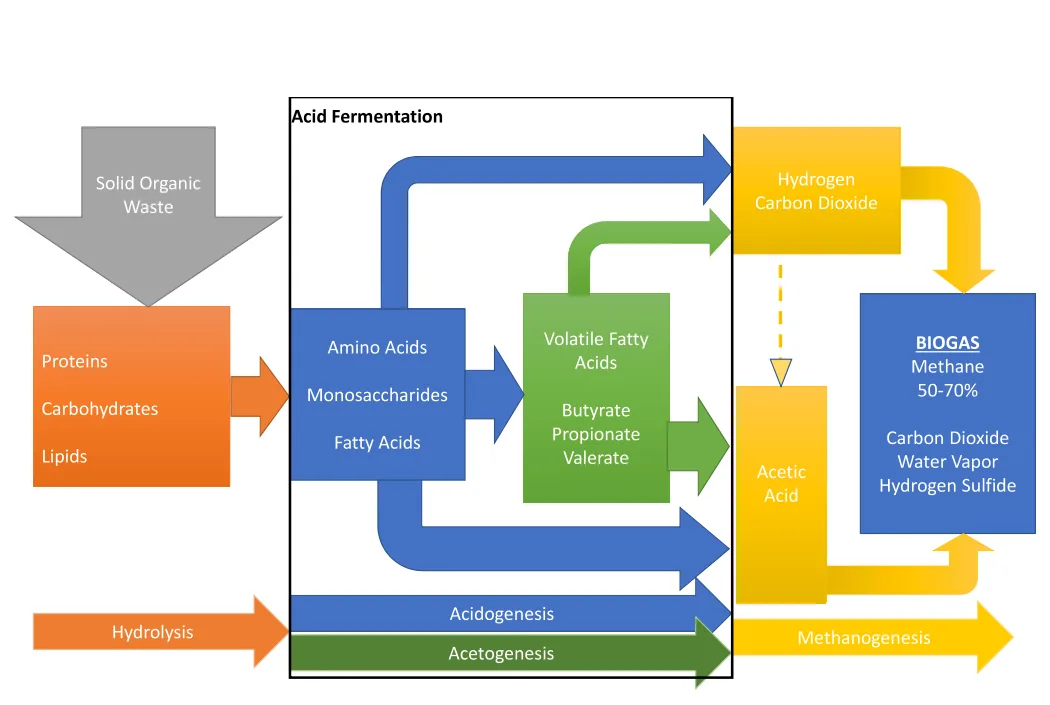

The anaerobic digestion process occurs in four distinct stages: hydrolysis, acidogenesis, acetogenesis, and methanogenesis. Each stage is influenced by specific operational parameters. Hydrolysis, often the rate-limiting step, involves the breakdown of complex organic polymers into soluble monomers. Acidogenesis converts these monomers into volatile fatty acids, alcohols, and hydrogen. Acetogenesis further processes these intermediates into acetic acid, hydrogen, and carbon dioxide. Finally, methanogenesis produces methane and carbon dioxide. The identification of key parameters at each stage allows for precise control over the microbial community and the overall reaction kinetics.
Critical parameters in anaerobic digestion include temperature, pH, organic loading rate (OLR), and hydraulic retention time (HRT). Temperature significantly affects microbial activity, with mesophilic (30–40°C) and thermophilic (50–60°C) ranges being the most common. pH levels typically need to be maintained between 6.5 and 7.5 to ensure optimal methanogen activity. The organic loading rate determines the amount of biomass fed into the digester per unit volume per day, while the hydraulic retention time defines how long the substrate remains in the reactor. Identifying the optimal values for these parameters is crucial for maximizing biogas yield and minimizing process instability.
Parameter identification also involves monitoring the composition of the biogas, primarily methane (CH₄) and carbon dioxide (CO₂), as well as trace gases like hydrogen sulfide (H₂S). The digestate, the residual material after digestion, serves as a valuable fertilizer due to its nutrient content. Accurate parameter identification enables the optimization of these outputs, enhancing the economic and environmental benefits of anaerobic digestion. This scholarly approach ensures that the process is not only efficient but also adaptable to various types of biomass and operational scales.
What is the methodology for parameter identification in anaerobic digestion?
Parameter identification in anaerobic digestion (AD) models is critical for translating biological kinetics into predictive engineering tools. The methodology typically relies on multivariate steady-state analysis and bootstrap statistical methods to resolve the non-linear relationships between substrate inputs and biogas outputs. These approaches allow engineers to distinguish between kinetic parameters, such as the maximum specific growth rate and half-saturation coefficients, and structural parameters like yield factors.
Multivariate Steady-State Analysis
Multivariate steady-state analysis involves operating the anaerobic digester under controlled conditions where input flows and concentrations are varied systematically while maintaining a constant hydraulic retention time. By collecting data across multiple operating points, researchers can construct a dataset that captures the system's response to changes in biomass loading. This method assumes that the system has reached equilibrium, meaning that the rate of biomass growth equals the rate of biomass washout. The analysis often employs non-linear regression techniques to fit experimental data to mathematical models, such as the Monod or Andrews equations. For instance, the specific growth rate (μ) can be expressed as a function of substrate concentration (S) using the formula μ=μmaxKs+SS, where μmax is the maximum specific growth rate and Ks is the half-saturation constant. By analyzing the covariance between multiple variables, such as volatile solids, chemical oxygen demand, and methane yield, the method identifies the most significant parameters influencing process stability.
Bootstrap Methods for Parameter Uncertainty
Bootstrap methods are employed to quantify the uncertainty and variability of the identified parameters. This resampling technique involves drawing multiple random samples with replacement from the original dataset to create numerous "bootstrap" datasets. Each bootstrap dataset is then used to re-estimate the model parameters, resulting in a distribution of values for each parameter. This distribution provides a robust measure of parameter confidence intervals, which is particularly useful in AD processes where biological variability can lead to significant fluctuations in kinetic rates. The standard error of a parameter estimate can be calculated from the bootstrap distribution, allowing engineers to assess the reliability of the model predictions. This statistical rigor ensures that the identified parameters are not merely artifacts of a single experimental run but are representative of the underlying biological processes. The integration of multivariate analysis with bootstrap resampling enhances the predictive accuracy of AD models, facilitating better design and operational control of biomass-to-energy systems.
Worked examples
The anaerobic digestion process converts biomass into biogas through four distinct biochemical stages. The following examples illustrate the material and energy balances for municipal and agricultural feedstocks, demonstrating the methodology for estimating biogas yield and energy content.
Example 1: Municipal Sludge Digestion
Consider a municipal wastewater treatment plant processing 100 tonnes of dry solids (DS) of primary sludge per day. The sludge has a Volatile Solids (VS) to Total Solids (TS) ratio of 0.80. The specific biogas yield is 0.35 m³ of biogas per kg of VS added. The biogas composition is 65% methane (CH₄) and 35% carbon dioxide (CO₂).
First, calculate the mass of Volatile Solids: 100 tonnes DS × 0.80 = 80 tonnes VS, or 80,000 kg VS. Next, determine the total biogas volume: 80,000 kg VS × 0.35 m³/kg VS = 28,000 m³ of biogas per day. Finally, calculate the methane content: 28,000 m³ × 0.65 = 18,200 m³ of CH₄. Assuming a standard calorific value of 35.8 MJ/m³ for methane, the daily energy potential is 18,200 m³ × 35.8 MJ/m³ = 651,560 MJ/day.
Example 2: Agricultural Co-Digestion
An agricultural digester processes a mixture of cattle manure and maize silage. The daily input is 50 tonnes of wet manure with 15% dry matter content and 30 tonnes of wet maize silage with 30% dry matter content. The manure VS/TS ratio is 0.75, and the silage VS/TS ratio is 0.85. The specific biogas yields are 0.25 m³/kg VS for manure and 0.40 m³/kg VS for silage.
Calculate the dry solids for each: Manure DS = 50 t × 0.15 = 7.5 t DS. Silage DS = 30 t × 0.30 = 9.0 t DS. Calculate the volatile solids: Manure VS = 7.5 t × 0.75 = 5.625 t VS (5,625 kg). Silage VS = 9.0 t × 0.85 = 7.65 t VS (7,650 kg). Determine biogas production: Manure biogas = 5,625 kg × 0.25 m³/kg = 1,406.25 m³. Silage biogas = 7,650 kg × 0.40 m³/kg = 3,060 m³. Total biogas yield is 1,406.25 + 3,060 = 4,466.25 m³/day. If the methane content averages 60%, the methane volume is 4,466.25 × 0.60 = 2,679.75 m³ CH₄/day.
Example 3: Energy Balance and Retention Time
A digester with a working volume of 500 m³ processes organic waste with a total solids concentration of 5%. The hydraulic retention time (HRT) is 20 days. Calculate the daily feed volume and the mass of dry solids input. Daily feed volume = Working Volume / HRT = 500 m³ / 20 days = 25 m³/day. Assuming a sludge density of 1,020 kg/m³, the daily wet mass is 25 m³ × 1,020 kg/m³ = 25,500 kg/day. The dry solids input is 25,500 kg × 0.05 = 1,275 kg DS/day. This calculation determines the loading rate, critical for maintaining stable methanogenesis and preventing acidification in the reactor.
What are the limitations of the current approach?
Current methodologies for parameter identification in anaerobic digestion models face significant constraints that limit their predictive accuracy and operational robustness. A primary limitation is the high degree of parameter correlation, particularly between kinetic rates and biomass concentrations. This multicollinearity often results in non-unique solutions during optimization, where different parameter sets yield nearly identical fits to the output data, making it difficult to isolate the true physical meaning of each variable.
Data Quality and Sensor Noise
The reliability of identified parameters is heavily dependent on the quality of input data, which is often compromised by sensor noise and time lags. In typical continuous stirred-tank reactors (CSTR), key variables such as volatile fatty acids (VFA) and dissolved methane are subject to measurement errors. These errors propagate through the identification algorithm, leading to biased estimates. Furthermore, the dynamic response of anaerobic digestion is often slow, requiring long experimental runs to capture steady-state behavior, during which environmental conditions may fluctuate, introducing unmodeled disturbances.
Computational Complexity and Local Optima
Most identification processes rely on non-linear optimization techniques, such as the Levenberg-Marquardt algorithm or genetic algorithms. These methods are computationally intensive and prone to converging to local minima rather than the global optimum. The objective function, often defined as the sum of squared residuals between measured and simulated outputs, can exhibit multiple valleys in the parameter space. Without robust initialization or hybrid optimization strategies, the identified parameters may not represent the most accurate model configuration.
Model Structure Uncertainty
Parameter identification assumes a fixed model structure, yet anaerobic digestion involves complex biochemical pathways. Simplifications in models, such as the widely used Anaerobic Digestion Model No. 1 (ADM1), may omit intermediate steps or lump parameters together. This structural uncertainty means that identified parameters are often "effective" values that compensate for model simplifications, reducing their transferability across different feedstocks or reactor configurations. Improving this area requires integrating more detailed mechanistic insights with data-driven approaches to reduce structural bias.
