Windcatcher: Passive Cooling Architecture and Climate Adaptation

Overview

A windcatcher, also known as a wind tower or wind scoop, is a traditional architectural element designed to facilitate cross ventilation and passive cooling within buildings. This structure captures ambient air and channels it into interior spaces, creating a natural draft that reduces the reliance on mechanical heating, ventilation, and air conditioning systems. The term "badgir" is frequently used to describe this feature, particularly in the context of Middle Eastern and Persian architecture, where it has served as a cornerstone of thermal comfort for centuries.

The operational principle of a windcatcher relies on the manipulation of local meteorological conditions to drive airflow. These structures are not limited to wind-dependent operation; despite their name, windcatchers can also function effectively in the absence of significant wind by utilizing temperature differentials to induce convection currents. The design of each windcatcher is highly specific to its geographical and climatic context. Engineers and architects must consider whether local prevailing winds are unidirectional, bidirectional, or multidirectional. Additionally, the structural configuration must account for how wind patterns change with altitude, the daily temperature cycle, ambient humidity levels, and the necessity for dust removal.

The versatility of the windcatcher allows it to adapt to diverse environmental challenges. In regions with unidirectional winds, the tower may feature a single opening facing the dominant wind direction. In areas with bidirectional or multidirectional winds, multiple openings are employed to capture airflow from various angles. The integration of these elements ensures that the building maintains a consistent internal climate, leveraging natural forces to achieve thermal regulation. This approach not only enhances energy efficiency but also contributes to the overall sustainability of the architectural design.

History and Regional Origins

The architectural concept of the windcatcher, also known as a wind tower or wind scoop, represents one of the earliest forms of passive cooling technology in built environments. Historical evidence suggests that these structures were utilized in prehistory to harness natural airflow for thermal regulation. The precise origins of the windcatcher remain a subject of scholarly debate, with strong claims of invention emerging from Egypt, Iran, and the United Arab Emirates. Each region points to distinct architectural traditions and climatic adaptations that may have given rise to the technology independently or through gradual diffusion.

In Egypt, early wind towers were integrated into residential and public buildings to combat intense desert heat. These structures were designed to capture prevailing winds and channel them downward into living spaces, creating a continuous flow of air that enhanced evaporative cooling. The design evolved to accommodate local wind patterns, with variations in height, orientation, and internal geometry to maximize efficiency.

Iran is often cited as a central hub in the development of the windcatcher, particularly in the city of Yazd, where wind towers became a defining feature of traditional architecture. Iranian windcatchers, known locally as "badgirs," were engineered to handle multidirectional winds and varying humidity levels. The complexity of these structures reflects a sophisticated understanding of aerodynamics and thermal mass, allowing buildings to maintain comfortable temperatures with minimal energy input.

The United Arab Emirates also boasts a rich history of windcatcher usage, with examples found in ancient settlements across the region. These structures were adapted to the unique climatic conditions of the Arabian Peninsula, where dust removal and humidity control were critical considerations. The design of Emirati windcatchers often included internal screens and water features to enhance cooling and filtration.

Over time, the windcatcher spread across North Africa, West Asia, and South Asia, adapting to local materials, construction techniques, and environmental conditions. In North Africa, wind towers were incorporated into medinas and rural dwellings, providing relief from the scorching sun. In West Asia, the technology was refined to address the diverse microclimates found in the region, from coastal areas to inland deserts. In South Asia, windcatchers were integrated into traditional homes and public buildings, contributing to the region's architectural heritage.

The versatility of the windcatcher lies in its ability to function effectively even in the absence of strong winds. By leveraging temperature differentials and stack effects, these structures can create cross-ventilation and passive cooling in a variety of settings. This adaptability has ensured the enduring relevance of the windcatcher in both historical and contemporary architectural practices.

How do windcatchers work?

Windcatchers function by harnessing natural airflow forces to achieve passive cooling and cross-ventilation. The primary mechanisms are wind pressure and the stack effect, driven by buoyancy and convection. These forces operate simultaneously or independently, depending on local climatic conditions.

Wind Pressure

Wind pressure is the dominant force when prevailing winds are strong and unidirectional. As wind strikes the open face of the tower, it creates a high-pressure zone that forces air into the building. Simultaneously, the leeward side of the tower creates a low-pressure zone (suction) that draws air out. This pressure differential pushes air through the interior spaces and out through the opposite openings. The effectiveness depends on the orientation of the tower relative to the prevailing wind direction.

Stack Effect and Buoyancy

When wind is minimal, the stack effect becomes the primary driver. This phenomenon relies on the temperature difference between the warm indoor air and the cooler outdoor air. Warm air inside the building rises due to buoyancy, creating a low-pressure zone at the floor level. This draws cooler air from outside or from lower openings, which then rises through the windcatcher shaft. The convection current continues as long as the temperature gradient persists. This mechanism allows windcatchers to function effectively even in still air, leveraging the daily temperature cycle and humidity levels.

Force	Primary Driver	Key Mechanism	Dependency
Wind Pressure	Wind Velocity	High/Low pressure zones on tower faces	Prevailing wind direction and speed
Buoyancy (Stack Effect)	Temperature Difference	Rising warm air, sinking cool air	Indoor vs. outdoor temperature gradient

The interaction of these forces can be described by simplified fluid dynamics principles. The pressure difference ΔP due to wind is proportional to the square of the wind velocity v, often expressed as ΔP=Cp⋅21ρv2, where ρ is air density and Cp is the pressure coefficient. The stack effect pressure ΔPstack is proportional to the temperature difference ΔT and the height H of the tower: ΔPstack=ρgH(Tout1−Tin1). Designs vary to optimize these forces based on whether local winds are unidirectional, bidirectional, or multidirectional, and on the need to remove dust or manage humidity.

What are the main types of windcatchers?

Windcatchers are not monolithic structures; their geometry is strictly determined by local climatic variables. The design process evaluates prevailing wind directionality, altitude changes, daily temperature cycles, humidity levels, and dust load. These factors dictate whether a structure should prioritize wind capture or passive stack ventilation. The architectural response varies significantly between arid deserts and humid coastal zones.

Classification by Geometry and Function

Traditional designs fall into distinct typologies based on wind dynamics. The malqaf is a triangular, bidirectional design. It is optimized for regions where wind shifts between two primary directions. The triangular cross-section allows for efficient airflow capture from either side, minimizing dead zones within the structure. This design is common in areas with predictable, alternating wind patterns.

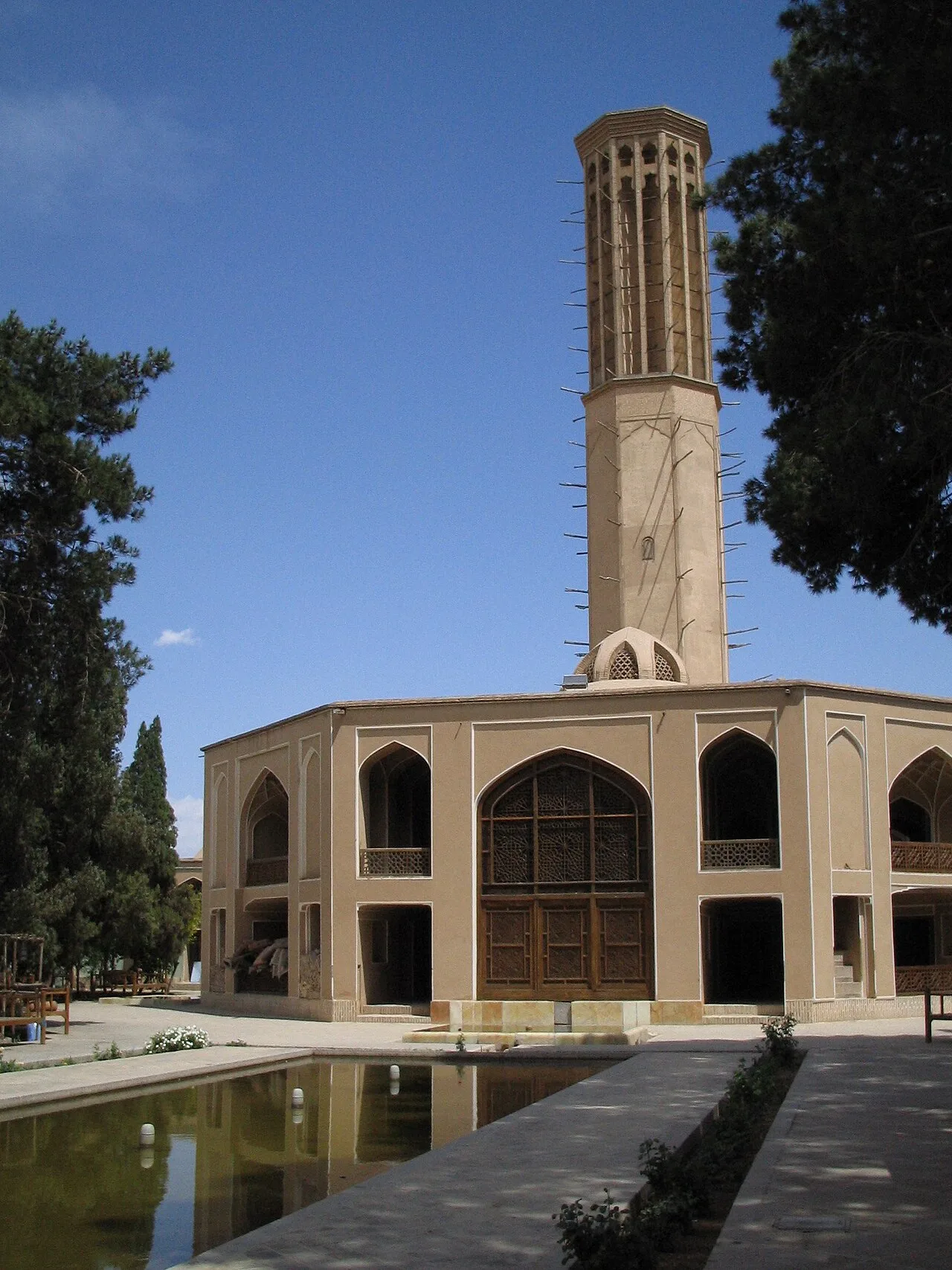

The badgir is a multisided, tall tower. This configuration is multidirectional, allowing it to catch wind from multiple angles. The height of the badgir is critical for creating pressure differentials. Taller structures enhance the stack effect, drawing hot air up and out while pulling cooler air in from lower openings. This design is prevalent in regions with complex wind patterns or where wind speed increases significantly with altitude.

Type	Geometry	Wind Directionality	Primary Function
Malqaf	Triangular	Bidirectional	Capture alternating winds
Badgir	Multisided	Multidirectional	Stack ventilation and multi-angle capture

Climatic Adaptations

Design variations address specific environmental challenges. In high-humidity regions, windcatchers may incorporate water features or evaporative cooling elements. The air passes over water, reducing temperature before entering the living space. In dusty environments, the internal geometry includes baffles or settling chambers. These features remove particulate matter before the air reaches the interior, preventing dust accumulation.

Windcatchers can function without wind. In still conditions, the stack effect dominates. Warm air rises through the central shaft, creating negative pressure at the base. This draws cooler air from shaded courtyards or underground qanats. The efficiency of this passive cooling depends on the temperature differential between the interior and the exterior air mass. The design must balance wind capture area with the volume of the internal shaft to optimize airflow velocity.

Cooling Methods and Thermal Dynamics

Windcatchers utilize distinct thermodynamic mechanisms to achieve passive cooling, adapting to local climatic variables such as humidity, dust load, and prevailing wind direction. These systems do not rely solely on airflow; they manipulate temperature differentials through subterranean, evaporative, and nocturnal strategies to regulate indoor thermal comfort.

Night Flushing and Thermal Mass

Night flushing leverages the diurnal temperature cycle. During the day, building materials with high thermal mass absorb heat, keeping interiors cool. At night, when outdoor air temperatures drop below the internal temperature, windcatchers draw in cooler air. This airflow circulates through the building, flushing out accumulated heat stored in walls and floors. The process relies on the temperature gradient between the exterior air and the building’s thermal mass. As the night progresses, the interior cools, preparing the space for the following day’s heat gain. This method is most effective in arid climates where the difference between day and night temperatures is significant.

Subterranean Cooling via Qanats

In regions with extensive underground water channels, known as qanats, windcatchers integrate with these subterranean systems. A shaft extends from the windcatcher down to the qanat. As warm air descends, it passes over the relatively cool water surface or the moist earth surrounding the channel. The air is cooled through conduction and convection before being distributed into the building. This method provides a stable, low-temperature air source, independent of daily wind fluctuations. The depth of the qanat determines the baseline temperature of the incoming air, offering consistent cooling even during peak daytime heat.

Evaporative Cooling and Salsabil

Evaporative cooling introduces moisture into the airflow to lower its temperature. The salsabil is a specific architectural feature that facilitates this process. It consists of a series of small, perforated pipes or channels that distribute water over a porous surface, often made of clay or stone. As air passes through the salsabil, water evaporates, absorbing latent heat from the air. This process reduces the dry-bulb temperature of the incoming air. The efficiency of evaporative cooling depends on the relative humidity of the outdoor air; it is most effective in drier climates where the air can absorb more moisture. The cooled air is then drawn into the living spaces, providing a refreshing effect.

Passive Downdraught Evaporative Cooling (PDEC)

Passive Downdraught Evaporative Cooling (PDEC) is a more complex system that combines evaporative cooling with the natural buoyancy of air. In PDEC, warm air is drawn down through a windcatcher equipped with an evaporative media. As the air cools and becomes denser, it sinks into the building. Simultaneously, warmer, less dense air rises and exits through a separate vent or windcatcher. This creates a continuous circulation loop driven by temperature and density differences. The system can significantly reduce indoor temperatures without mechanical fans or compressors. The effectiveness of PDEC is influenced by the temperature difference between the incoming and outgoing air, as well as the efficiency of the evaporative media. This method is particularly useful in hot, dry climates where the latent heat of evaporation can be maximized.

Windcatchers and Climate Change

Windcatchers serve as critical passive cooling mechanisms in the context of climate change, offering both mitigation and adaptation strategies for building energy efficiency. By harnessing natural airflow, these architectural elements reduce reliance on mechanical ventilation systems, thereby lowering overall energy consumption. Studies indicate that windcatchers can achieve an energy use reduction of up to 23.3% in buildings, significantly contributing to the decrease in carbon emissions associated with heating, ventilation, and air conditioning (HVAC) systems. This reduction is particularly impactful in regions experiencing rising temperatures and increased humidity due to global warming.

Adaptation Through Passive Cooling

In addition to energy savings, windcatchers provide a temperature drop of 8 to 12 °C within indoor spaces, enhancing thermal comfort without excessive energy expenditure. This capability is vital for adapting to hotter climates, where traditional HVAC systems may struggle to maintain consistent temperatures. The passive nature of windcatchers makes them resilient to power outages, a growing concern in areas affected by climate-induced extreme weather events. Their ability to function effectively even in the absence of wind further underscores their adaptability, as they can still facilitate air circulation through thermal buoyancy effects.

Comparison with HVAC Systems

When compared to conventional HVAC systems, windcatchers offer a more sustainable alternative, especially in regions with abundant sunlight and moderate to strong winds. HVAC systems, while effective, often consume significant amounts of electricity, contributing to higher operational costs and greater greenhouse gas emissions. In contrast, windcatchers leverage natural forces, minimizing energy input while maintaining comfortable indoor environments. The integration of windcatchers with modern HVAC systems can also lead to hybrid solutions, where mechanical systems supplement passive cooling during peak demand periods, optimizing energy use.

The effectiveness of windcatchers can be quantified using basic thermodynamic principles. For instance, the rate of heat transfer through a windcatcher can be approximated by the formula:

Q=h⋅A⋅ΔT where Q is the heat transfer rate, h is the convective heat transfer coefficient, A is the surface area of the windcatcher, and ΔT is the temperature difference between the inside and outside environments. This relationship highlights the importance of design parameters such as surface area and material properties in maximizing cooling efficiency.

As climate change continues to intensify, the role of windcatchers in sustainable architecture becomes increasingly prominent. Their ability to reduce energy consumption, lower indoor temperatures, and adapt to varying climatic conditions positions them as a valuable tool in the global effort to mitigate and adapt to the impacts of a warming planet.
