Overview

Trafford power station was a coal-fired electricity generating facility located in the Trafford Park area of Greater Manchester, United Kingdom. The plant operated from 1929 to 1976, serving as a critical energy infrastructure asset for the region. During its operational life, the station supplied electricity to the local communities of Trafford and Stretford, while also feeding power into the broader national grid. The facility was constructed and initially operated by the Stretford and District Electricity Board, which managed the station's output and distribution networks. In 1948, the British electricity supply industry underwent nationalisation, which transferred the operational control of the power station from the local board to the nationalised utility structure. The core generating capacity of the station was 60 MW, derived from its coal-fired boiler and turbine arrangements. This capacity provided a steady baseload of power for the industrial and residential consumers in the Greater Manchester area. The station's location in Trafford Park placed it within a key industrial zone, facilitating efficient transmission of electricity to nearby factories and homes. The use of coal as the primary fuel source was typical for power stations of this era, reflecting the dominant energy mix of the United Kingdom during the early to mid-20th century. The plant continued to operate for several decades after its initial commissioning, adapting to changes in demand and technology. In 1952, the station was supplemented with an experimental 15 MW gas turbine generating set, adding a layer of technological innovation to the primarily coal-based infrastructure. This gas turbine addition represented an early attempt to diversify the generating mix and improve efficiency. The station remained in service until 1976, when it was finally decommissioned. Its long operational history reflects the evolving nature of the British power sector, from local board management to nationalised control and eventual integration into a more complex grid system. The decommissioning in 1976 marked the end of an era for local power generation in Trafford Park, as newer and larger facilities began to take over the regional supply responsibilities.

Early history and site development

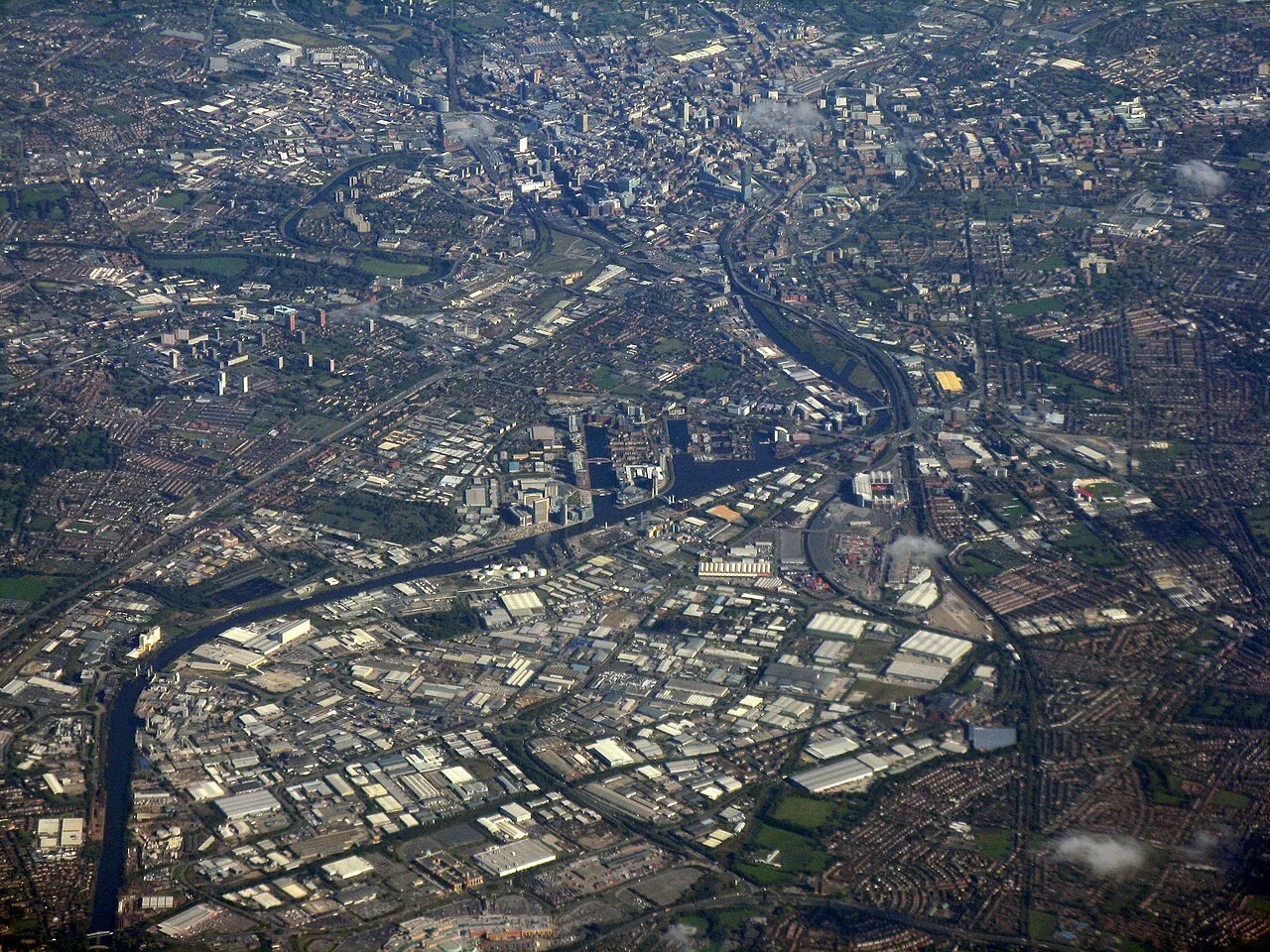

The development of the Trafford power station was rooted in the earlier electrification efforts of the Trafford Park industrial estate. Prior to the construction of the main generating station, the area was served by Trafford Power and Light Supply Limited. This earlier entity played a crucial role in establishing the electrical infrastructure for the 1100 acre Trafford Park site, which was one of the largest industrial estates in the United Kingdom at the time.

Early Supply Statistics

Data from 1902 illustrates the scale of the early electricity demand in the region. During this period, the maximum demand recorded was 2,620 kW. The annual generation for the supply network reached 8,000 MWh. These figures highlight the significant industrial load that the local grid had to support before the larger coal-fired station came online. The early infrastructure was designed to handle the fluctuating demands of the various factories and warehouses located within the park.

Corporate Restructuring

The supply infrastructure underwent a corporate change with the takeover by The Trafford Power and Light Supply (1902) Limited. This restructured entity had a clear strategic intent to expand the utility offerings to local businesses. The company aimed to supply not only electric lighting and power but also fuel gas. This multi-utility approach was common in the early 20th century, as industrial consumers often required both electrical and thermal energy sources for their operations. The expansion of services by The Trafford Power and Light Supply (1902) Limited laid the groundwork for the subsequent development of the larger Trafford power station.

Construction and nationalisation

The development of the Trafford power station was formally advanced by the Stretford and District Electricity Board, which secured legislative authority through the Stretford and District Electricity Board Act 1928. This statutory framework enabled the Board to promote and construct a dedicated public supply station to serve the growing energy demands of the Trafford and Stretford areas within Greater Manchester. The generating station was subsequently opened and commissioned in 1929, marking the beginning of its operational history as a key regional energy asset. The facility was strategically located at Trafford Park, a site selected for its significant logistical advantages that facilitated efficient fuel delivery and waste management. The station benefited from direct access to both rail networks and canals, which were critical for the transport of coal to the boilers and the removal of ash byproducts. Additionally, the proximity to the Manchester Ship Canal provided a reliable source of cooling water, essential for maintaining the thermodynamic efficiency of the coal-fired generating units. The Stretford and District Electricity Board operated the 60 megawatt station from its inception, managing its integration into the local supply network and its contributions to the emerging national grid infrastructure.

Nationalisation and corporate restructuring

The operational landscape for the Trafford power station underwent a fundamental transformation following the passage of the Electricity Act 1947, which initiated the nationalisation of the British electricity supply industry. This legislative change culminated in 1948 with the formal dissolution of the Stretford and District Electricity Board, ending its era of independent ownership and management. As part of the restructuring process, ownership of the generating station was transferred to the newly formed public bodies, including the British Electricity Authority, the Central Electricity Authority, and subsequently the Central Electricity Generating Board (CEGB). These entities assumed responsibility for the generation and transmission aspects of the station's output. Concurrently, the distribution of electricity to end-users in the region was assigned to the North Western Electricity Board (NORWEB), creating a more centralized administrative structure for the regional power supply. This transition aligned the Trafford power station with the broader national strategy for energy production, integrating its 60 megawatt capacity into the coordinated operations of the national grid system under state control.

Steam plant specifications

Boiler systems

The steam plant at Trafford power station was designed to handle the evolving load demands of the Trafford and Stretford areas. The core of the generation capability relied on two distinct types of Babcock & Wilcox boilers. The station utilized units with a steam output of 150,000 lb/h. Additionally, the plant incorporated larger Babcock & Wilcox boilers rated at 220,000 lb/h to support higher capacity operations. These boilers operated at a pressure of 425 psi, which is equivalent to 29.3 bar. The steam temperature for these units was maintained at 825 °F, or 440 °C. This configuration allowed for efficient thermal conversion in the coal-fired setup.

Turbo-alternators

The station housed two major turbo-alternator sets, each contributing 30 MW to the total 60 MW capacity. The first unit was a 30 MW Parsons turbo-alternator. This unit was commissioned in December 1941. It operated at a voltage of 33 kV. The second major unit was a 30 MW Metropolitan-Vickers turbo-alternator. It also operated at 33 kV. These two units formed the backbone of the station's output until the later addition of experimental gas turbine sets.

Component	Specification	Details
Boiler Type 1	Babcock & Wilcox	150,000 lb/h
Boiler Type 2	Babcock & Wilcox	220,000 lb/h
Operating Pressure	425 psi	29.3 bar
Steam Temperature	825 °F	440 °C
Turbo-alternator 1	30 MW Parsons	Commissioned December 1941, 33 kV
Turbo-alternator 2	30 MW Metropolitan-Vickers	Commissioned December 1947, 33 kV

The first British gas turbine generator

In 1952, the Trafford power station was supplemented with an experimental 15 MW gas turbine generating set, marking a significant technological addition to the facility. This unit was the first gas turbine constructed for the British Electricity Authority and was built by Metropolitan-Vickers. The turbine represented an early attempt to integrate gas turbine technology into the broader electricity supply industry, which was undergoing nationalisation in 1948.

Technical Configuration

The gas turbine featured a complex technical configuration designed to optimize efficiency. The system included a low pressure compressor, an inter-cooler, and a high pressure compressor. Following the compression stages, the air passed through a heat exchanger and then into the combustion chamber. The expanded gases drove a high pressure turbine, followed by a reheat combustion chamber, and then a low pressure turbine before exiting through an exhaust feed-back system.

This turbine was directly coupled to a 15 MW generator operating at 6.6 kV and 50 Hz. The direct coupling simplified the mechanical transmission between the turbine and the electrical generator, allowing for a more compact installation within the existing power station infrastructure.

Operational History

Although the gas turbine generating set was commissioned on 6 August 1952, it did not achieve full commercial service until 1957. The five-year gap between commissioning and commercial operation suggests a period of testing and refinement to integrate the new technology with the existing coal-fired infrastructure. The unit remained in operation until it was decommissioned by 1967, serving for approximately a decade as a commercial asset. This experimental addition provided valuable operational data for the British Electricity Authority as they evaluated the potential of gas turbines in the national grid.

Why it matters

Trafford power station holds a distinct place in the history of British energy infrastructure, primarily due to its role as the site of a significant technical experiment. In 1952, the station was supplemented with an experimental 15 megawatt gas turbine generating set. This addition represented a forward-looking integration of gas turbine technology into a predominantly coal-fired environment, marking an early step in the diversification of generation methods within the UK's electricity supply industry. The installation of this gas turbine unit at Trafford demonstrated the industry's willingness to test new technologies to enhance capacity and efficiency during the mid-20th century.

Beyond its technical innovations, Trafford power station illustrates the broader structural transformation of the British electricity sector. The generating station was originally built and operated by the Stretford and District Electricity Board from its commissioning in 1929. This local board operated the 60 megawatt coal-fired station for nearly two decades before the nationalisation of the British electricity supply industry in 1948. The transition from local board operation to national control at Trafford mirrors the wider shift in the UK, where fragmented local authorities were consolidated into a more unified national grid system. This nationalisation process was crucial for coordinating power distribution and integrating diverse generation sources, including the experimental gas turbine at Trafford.

The station's operational life, spanning from 1929 to 1976, covered a critical period of growth and change in Greater Manchester's energy landscape. It supplied electricity to the Trafford and Stretford areas as well as contributing to the national grid, highlighting the dual role of local power stations in serving immediate regional demand while feeding into the broader national network. The eventual decommissioning of the station in 1976 marked the end of an era for this specific facility, but its legacy remains in the early adoption of gas turbine technology and its embodiment of the transition from localised energy production to a nationalised system.

Decommissioning and legacy

Trafford power station ceased operations on 25 October 1976, marking the end of its nearly five-decade contribution to the electricity supply of Greater Manchester. The facility had served the Trafford and Stretford areas, as well as the broader national grid, since its initial commissioning in 1929. Its decommissioning represented the final stage in a long operational history that began with the Stretford and District Electricity Board and continued through the nationalisation of the British electricity supply industry in 1948.

Operational Timeline and Steam Station Data

The station's operational lifespan is documented through specific periods of activity. The primary steam generating units were active from 1946 to 1972, a period that captures the core of the station's mid-century output. This 26-year span for the steam station aligns with the broader operational window of 1929 to 1976, suggesting that the final years of the plant's life may have involved a transition in primary generation methods or a gradual phase-out of the original steam infrastructure.

This addition indicates that the plant was not static; it evolved to incorporate newer technology to meet changing demand or to test efficiency improvements. The presence of this gas turbine set likely influenced the operational dynamics of the station in the decades following its installation, potentially extending its relevance as the national grid expanded.

Legacy and Site Transition

Following its decommissioning in 1976, the site transitioned from an active energy infrastructure hub to a post-industrial landscape. The station had been a key local asset, operated by the Stretford and District Electricity Board before becoming part of the nationalised system. Its closure reflected broader trends in the UK energy sector, where older, smaller coal-fired stations were often retired in favour of larger, more efficient generating plants or the integration of diverse energy sources.

The legacy of Trafford power station is tied to its role in powering the growth of the Trafford and Stretford areas during the 20th century. From its start in 1929 to its end in 1976, the station provided consistent electricity supply, adapting its technology with the addition of the gas turbine set in 1952. The specific operational data for the steam station (1946–1972) highlights the period of most intensive steam-based generation, a critical phase in the plant's history that supported the region's industrial and residential needs during the post-war era and beyond.
