Supercritical water reactor: Design, efficiency, and development

Overview

The supercritical water reactor (SCWR) is a concept Generation IV reactor, designed as a light water reactor (LWR) that operates at supercritical pressure. The term critical in this context refers to the critical point of water, and should not be confused with the concept of criticality of the nuclear reactor.

History and development

Early Subcritical Experiments

Initial investigations into water behavior under extreme thermodynamic conditions began in the mid-20th century. Research during the 1950s and 1960s focused on subcritical experiments to understand the phase transitions and heat transfer characteristics of water approaching its critical point. These early studies established the foundational thermodynamic data necessary for projecting reactor performance at pressures exceeding 22.064 MPa. The experiments demonstrated that operating above the critical point could eliminate the phase change from liquid to vapor, potentially simplifying the steam cycle and improving thermal efficiency compared to conventional pressurized water reactors.

Modern Development and International Collaboration

Formal development of the SCWR as a distinct Generation IV concept gained momentum in the 1990s. International collaboration became a central feature of the technology’s maturation, with multiple national research programs converging on common design parameters. The Generation IV International Forum (GIF) identified the SCWR as one of six advanced nuclear energy systems, driving coordinated research efforts across several countries. These collaborative frameworks facilitated the sharing of neutronic data, materials science findings, and thermal-hydraulic models. The focus shifted from basic thermodynamic validation to integrated system design, addressing challenges such as corrosion resistance at high temperatures and the behavior of uranium fuel under supercritical conditions.

Recent SMR Adaptations

In recent years, the SCWR concept has been adapted for Small Modular Reactor (SMR) applications. These adaptations aim to leverage the high thermal efficiency of supercritical water to reduce the overall footprint and capital cost of nuclear power plants. Modern designs explore simplified balance-of-plant components and standardized manufacturing processes. The integration of SCWR technology with SMR architectures represents a strategic direction for next-generation nuclear energy, aiming to enhance economic competitiveness while maintaining the operational safety features inherent to light water reactor designs. Current research continues to refine the integration of supercritical steam cycles with compact reactor cores.

How does a supercritical water reactor work?

In this design, the term "critical" refers specifically to the thermodynamic critical point of water, distinct from the nuclear physics concept of criticality. The SCWR aims to simplify the plant layout and improve thermal efficiency by eliminating the phase change between liquid and vapor.

Thermodynamic Cycle and Phase Transition

In conventional light water reactors, water undergoes a phase transition from liquid to steam. In a pressurized water reactor (PWR), water remains subcritical and liquid in the core, requiring separate steam generators. In a boiling water reactor (BWR), water boils within the core, creating a two-phase mixture. The SCWR operates above the critical point of water, where the distinction between liquid and vapor phases disappears. At supercritical pressure, water density changes gradually with temperature, avoiding the latent heat of vaporization. This allows for a single-phase flow through the core, reducing thermal stresses and simplifying the thermodynamic cycle.

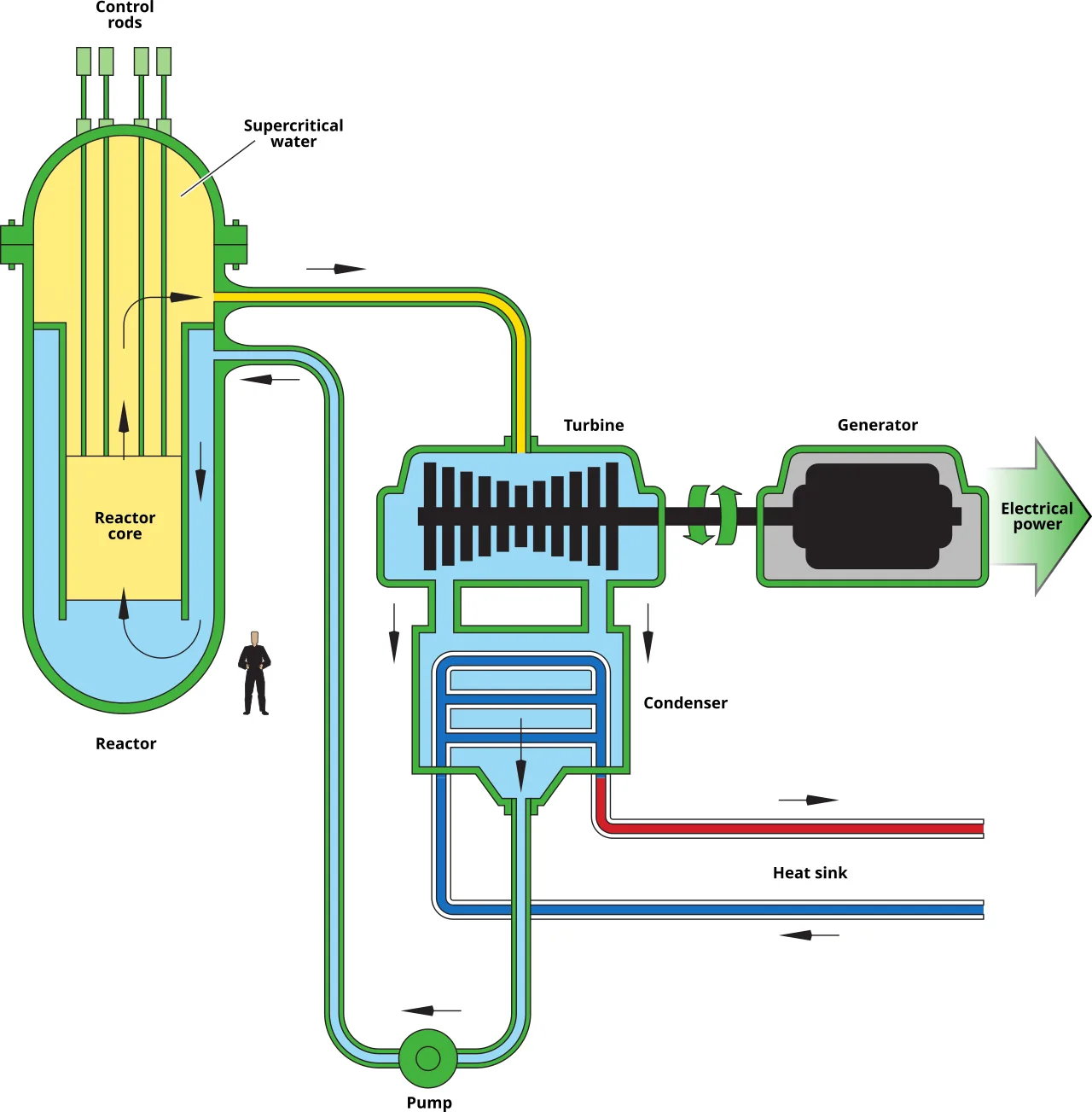

Direct-Cycle Design

The SCWR utilizes a direct-cycle design, similar to the BWR but with key differences. In a BWR, steam is generated in the core and sent directly to the turbine, but it is a two-phase mixture. In an SCWR, the coolant enters the core as a dense, subcritical liquid and exits as supercritical steam. This supercritical steam drives the turbine directly, eliminating the need for steam generators used in PWRs. The direct cycle reduces the number of components and potential leak paths, enhancing simplicity and potentially improving reliability. The high temperature and pressure of the supercritical water allow for higher thermal efficiency compared to traditional LWRs.

Comparison with PWR and BWR

Compared to PWRs, the SCWR eliminates the secondary loop and steam generators, reducing capital costs and complexity. PWRs operate at high pressure to prevent boiling, but the coolant remains subcritical. In contrast, the SCWR operates above the critical pressure, allowing for a more efficient heat transfer process. Compared to BWRs, the SCWR avoids the two-phase flow instability and void coefficient challenges associated with boiling within the core. The single-phase supercritical flow provides more stable hydrodynamics and allows for higher operating temperatures, leading to improved thermal efficiency. The SCWR concept leverages these advantages to offer a potentially more economical and efficient nuclear power generation option.

What are the main design types of SCWRs?

Two primary design architectures have been developed to achieve these operating conditions: the LWR-type pressure vessel design and the CANDU-type pressure tube design. These approaches differ fundamentally in how they manage the moderator-coolant coupling, which directly influences the neutron spectrum and thermal efficiency of the system.

LWR-Type Pressure Vessel Design

In the LWR-type configuration, the reactor core is housed within a single large pressure vessel. This design typically utilizes a thermal neutron spectrum, similar to conventional Pressurized Water Reactors (PWRs) and Boiling Water Reactors (BWRs). The coolant water serves a dual role as both the primary heat transfer medium and the neutron moderator. Because the water is at supercritical pressure, its density and thus its moderating power can be adjusted by varying the temperature. This allows for inherent reactivity feedback mechanisms. However, the coupling of moderator and coolant means that changes in coolant density directly impact the neutron flux distribution. This design prioritizes simplicity and leverages existing LWR manufacturing supply chains, but requires robust materials to withstand the high pressure and temperature gradients within the single vessel.

CANDU-Type Pressure Tube Design

The CANDU-type design employs a pressure tube configuration, where each fuel channel is enclosed in an individual tube. This architecture offers greater flexibility in achieving a fast neutron spectrum. By using heavy water or a separate moderator tank, the coupling between the coolant density and the neutron moderation can be decoupled. This allows the reactor to operate with a harder neutron spectrum, which can improve fuel utilization and waste transmutation capabilities. The pressure tube design also facilitates on-line refueling, a hallmark of CANDU reactors, and allows for more precise control over the local thermal-hydraulic conditions of each fuel channel. This approach is particularly advantageous for integrating with advanced fuel cycles and for achieving higher thermal efficiencies due to the optimized temperature profiles.

Feature	LWR-Type (Pressure Vessel)	CANDU-Type (Pressure Tube)
Core Structure	Single large pressure vessel	Individual pressure tubes
Neutron Spectrum	Primarily Thermal	Thermal or Fast
Moderator-Coolant Coupling	Tightly Coupled	Decoupled (via separate moderator)
Refueling	Typically On-line or Off-line	On-line
Primary Advantage	Simplicity, LWR heritage	Spectrum flexibility, fuel utilization

Materials and engineering challenges

The supercritical water reactor (SCWR) concept demands advanced material solutions to withstand the combined thermal, mechanical, and radiative stresses of supercritical pressure operation. Since the coolant operates above the critical point of water, the thermodynamic properties of the fluid—density, viscosity, and heat capacity—change drastically with small variations in temperature and pressure. This creates significant engineering challenges for the core internal components, particularly the fuel cladding and the steam generator, which must maintain integrity under high-temperature radiation environments.

Material Requirements and Radiation Effects

Conventional stainless steels and zirconium alloys used in traditional light water reactors (LWRs) face limitations at the elevated temperatures targeted by Generation IV SCWR designs. The primary challenge is maintaining mechanical strength and corrosion resistance while minimizing neutron absorption. Researchers evaluate materials using stress-strain relationships, where the yield strength σy must exceed the hoop stress σh induced by the supercritical pressure P and tube radius r: σh=tPr, where t is the wall thickness. Radiation-induced swelling and embrittlement further complicate material selection, requiring alloys that retain ductility under high neutron flux.

Water Chemistry and Corrosion Mitigation

Water chemistry management in an SCWR is critical to control corrosion rates and minimize radioactive activation products. Unlike subcritical LWRs, where a distinct phase change occurs, the SCWR operates in a single-phase fluid state, making the solubility of oxygen and hydrogen more sensitive to temperature gradients. Precise control of the coolant’s pH and dissolved oxygen content is necessary to form stable oxide layers on metal surfaces. Stress corrosion cracking (SCC) remains a primary failure mode, particularly in welds and crevices where tensile stress and corrosive media converge. Mitigation strategies involve optimizing the water chemistry to reduce chloride and sulfate concentrations, which are known to accelerate SCC in austenitic steels. The interplay between thermal gradients and chemical composition requires continuous monitoring to prevent localized thinning of the pressure boundary components.

Advantages and disadvantages

The supercritical water reactor (SCWR) concept offers significant improvements in thermal efficiency compared to conventional light water reactors (LWRs). By operating the coolant at pressures above the critical point of water, the SCWR eliminates the phase change from liquid to vapor. This allows the system to function similarly to a combined-cycle gas turbine plant, potentially achieving thermal efficiencies of approximately 45% to 50%, compared to the typical 33% to 35% of pressurized water reactors (PWRs) and boiling water reactors (BWRs). Higher efficiency translates to reduced fuel consumption and lower specific capital costs per unit of electricity generated.

System Simplicity and Fuel Economy

A primary advantage of the SCWR design is its simplified balance of plant. Because the water remains in a single phase throughout the core and steam generator, the need for large, complex steam drums and extensive piping networks is reduced or eliminated. This simplification can lower maintenance requirements and reduce the overall footprint of the reactor island. Additionally, the high-temperature steam output is well-suited for direct integration with conventional steam turbines, enhancing fuel economy. The flexibility in fuel cycle options, including the potential use of uranium or mixed oxide (MOX) fuels, further supports its status as a versatile Generation IV concept.

Challenges: Water Inventory and Mechanical Stresses

Despite these benefits, the SCWR faces distinct engineering challenges. The lower water inventory in the core and primary circuit, resulting from the single-phase flow, reduces the inherent thermal inertia of the system. This can lead to faster power transients, requiring more responsive control systems to maintain stability during load changes. Furthermore, operating at supercritical pressures (typically around 25 MPa) and high temperatures (approximately 500–550 °C) imposes severe mechanical stresses on core components and the primary pressure boundary. Materials must exhibit excellent corrosion resistance and creep strength to withstand the aggressive supercritical water environment, which is denser and more oxidizing than subcritical water. These material requirements drive research into advanced stainless steels and nickel-based superalloys, adding complexity to the manufacturing and licensing processes.

Feature	SCWR Advantage/Challenge
Thermal Efficiency	Higher (45–50%) due to single-phase flow and high outlet temperature.
System Complexity	Reduced; eliminates steam drum and simplifies primary loop.
Water Inventory	Lower; reduces thermal inertia, increasing transient response speed.
Mechanical Stress	Higher; requires advanced materials for 25 MPa and ~550 °C operation.
Fuel Flexibility	Supports uranium and MOX fuels, enhancing fuel economy.

Safety and control systems

The safety and control systems of the supercritical water reactor (SCWR) are fundamentally shaped by its operation at pressures exceeding the critical point of water (22.064 MPa). In this state, the distinction between liquid and vapor phases disappears, leading to unique thermodynamic behaviors that influence reactivity feedback mechanisms. The void coefficient of reactivity is a critical parameter in SCWR design. Unlike subcritical light water reactors where voids typically introduce negative reactivity, the high density of supercritical water means that void formation can have complex effects on neutron moderation and absorption. Effective management of the void coefficient is essential for maintaining stability during transient events. Control rod insertion remains a primary active control mechanism, utilizing materials such as boron carbide or hafnium to absorb neutrons and adjust the core’s reactivity. The speed and precision of rod insertion are designed to compensate for rapid changes in coolant density and temperature.

Accident scenarios, particularly the Loss of Coolant Accident (LOCA), present distinct challenges due to the high pressure of the primary loop. In a LOCA, the rapid depressurization of the core can lead to a quick transition from supercritical to subcritical states, potentially causing significant thermal stresses on fuel cladding. Passive safety features are increasingly integrated into Small Modular Reactor (SMR) variants of the SCWR, often referred to as SCW-SMRs. These features rely on natural circulation, gravity-driven cooling, and heat exchangers to remove decay heat without active pump operation. For instance, passive residual heat removal systems can utilize natural convection currents in the secondary loop to transfer heat to external condensers or cooling towers. This reduces reliance on external power sources and active mechanical components, enhancing overall system reliability. The design ensures that even in the event of a station blackout, the core temperature remains within safe limits for an extended period, preventing fuel meltdown.

Applications and future outlook

The supercritical water reactor (SCWR) is positioned as a Generation IV nuclear concept designed to enhance thermal efficiency and simplify plant architecture. Unlike conventional light water reactors (LWRs) that operate at subcritical pressures, the SCWR functions above the critical point of water, where the distinction between liquid and vapor phases diminishes. This operational regime allows for higher thermal efficiency, potentially reaching levels comparable to modern fossil-fuel combined-cycle plants. The primary fuel source remains uranium, consistent with established LWR technology, facilitating a smoother transition for existing nuclear supply chains and operator expertise.

Power Generation and Process Heat

In power generation, the SCWR offers a streamlined design by eliminating the steam generator, a major component in pressurized water reactors (PWRs). This reduction in components lowers capital costs and increases reliability. The high-temperature output of the SCWR also makes it highly suitable for process heat applications. Industries such as desalination, hydrogen production, and petrochemical refining require stable, high-grade thermal energy. The SCWR’s ability to deliver heat at temperatures exceeding 500°C enables efficient coupling with these industrial processes, potentially reducing the carbon footprint of heavy industry.

Breeder Capabilities and Fuel Flexibility

The SCWR concept supports breeder capabilities, allowing for the conversion of fertile isotopes into fissile fuel. This feature enhances fuel utilization and extends the lifespan of uranium resources. The reactor can operate with various fuel types, including uranium oxide, uranium nitride, and even thorium-based fuels. This flexibility allows the SCWR to adapt to different resource availabilities and economic conditions. The potential for breeding also contributes to waste reduction, as more of the fuel is fissioned, leaving fewer long-lived actinides in the spent fuel.

Market Competitiveness and Innovation

The market competitiveness of the SCWR hinges on its ability to deliver higher thermal efficiency and lower levelized cost of energy (LCOE) compared to existing LWRs. The simplified design reduces maintenance requirements and potential points of failure. However, the high-pressure and high-temperature environment poses material challenges, requiring advanced alloys and coatings to withstand corrosion and radiation damage. Ongoing research focuses on optimizing these materials to ensure long-term reliability. Innovation in fuel design and core geometry also plays a crucial role in maximizing performance and safety.

The future outlook for the SCWR is promising, with several international research initiatives exploring its potential. As the energy sector seeks to decarbonize and increase efficiency, the SCWR represents a compelling option for next-generation nuclear power. Its ability to integrate with industrial processes and support fuel breeding positions it as a versatile and sustainable energy solution. Continued development and demonstration projects will be essential to validate its technical and economic viability.
