Overview
Stornorrfors Hydroelectric Power Station is a major hydroelectric facility located on the Ume River in Västerbotten County, Sweden. The plant is situated approximately 15 km northwest of the city of Umeå, serving as a critical node in the regional energy infrastructure. Operated by Vattenfall, the station has been in continuous operation since its commissioning in 1958, establishing itself as one of the longest-running and most productive hydroelectric assets in the country.
Ownership and Operational Structure
The ownership structure of Stornorrfors is shared between the national energy operator Vattenfall and the local Umeå Municipality. This public-private partnership model ensures that the benefits of the hydroelectric generation are distributed between national grid stability and local municipal revenue. Vattenfall manages the day-to-day operations and technical maintenance of the facility, leveraging its extensive experience in Swedish hydropower management. The involvement of Umeå Municipality reflects the strategic importance of the Ume River basin to the local economy and energy security.
Capacity and National Significance
With an installed capacity of 599 MW, Stornorrfors is a substantial contributor to Sweden's renewable energy mix. It holds the distinction of being the country's top annual generator among hydroelectric power stations, underscoring its efficiency and the consistent flow of the Ume River. The plant's operational status remains active, continuing to deliver reliable baseload and peaking power to the Swedish grid. Its long history of operation since 1958 demonstrates the durability of its engineering design and the sustained value of the Ume River's hydrological potential for energy production.
History and Development
Hydroelectric development on the Ume River predates the Stornorrfors station by several decades, beginning with the Klabböle Power Plant, which commenced operations in 1899. This early infrastructure laid the groundwork for the modernization of the river’s energy potential, eventually leading to the construction of the Stornorrfors facility. The Stornorrfors Hydroelectric Power Station is located in Västerbotten County, Sweden, on the Ume River, approximately 15 km northwest of the city of Umeå. The site was selected to harness the river’s flow for significant power generation, becoming a key asset for the regional grid.
The main structure of the Stornorrfors station was commissioned in 1958. This initial phase established the core capacity of the plant, which is currently operated by Vattenfall. The station has a total installed capacity of 599 MW. The 1958 commissioning marked a significant expansion of hydroelectric output in the region, leveraging the natural head of the Ume River to drive turbine generators. The operational status of the plant remains active, contributing to Sweden’s renewable energy mix.
Following the initial commissioning, the station underwent further technical enhancements to optimize output. A fourth turbine was added to the facility in 1982. This expansion allowed for greater flexibility in power generation and increased the overall efficiency of the station’s hydraulic systems. The addition of the fourth turbine represents the most recent major structural modification to the plant’s generating units, solidifying its role in the long-term energy infrastructure of Västerbotten County.
| Year | Event |
|---|---|
| 1899 | Klabböle Power Plant commences operations on the Ume River. |
| 1958 | Stornorrfors Hydroelectric Power Station is commissioned. |
| 1982 | Fourth turbine is added to the Stornorrfors station. |
Infrastructure and Dam Structure

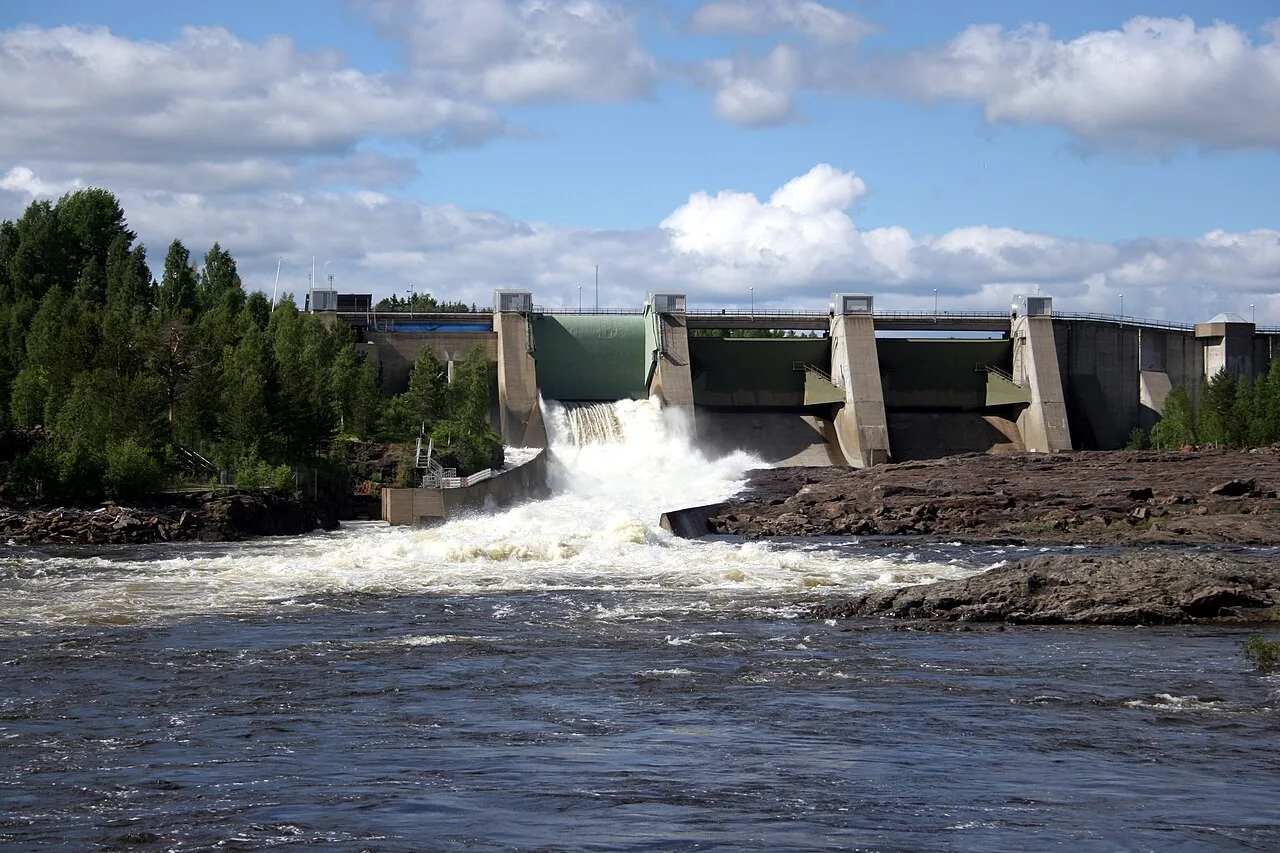

The infrastructure of the Stornorrfors Hydroelectric Power Station is characterized by a separation between the primary water retention structure and the generating hall, a design choice that optimizes the hydraulic efficiency of the facility on the Ume River. The core of the water management system is a concrete gravity dam, which serves as the primary barrier regulating the flow of the river. This dam is not immediately adjacent to the turbine hall but is situated approximately 4 km upstream from the power station itself. This spatial arrangement allows for a controlled release of water, creating a distinct reservoir area that feeds into the generating units through a dedicated conveyance system.
Dam and Conveyance System
The concrete gravity dam relies on its mass to resist the horizontal force of the water, providing a stable and durable structure for long-term operation. Located 4 km from the power station, the dam creates the necessary backwater effect to elevate the water level, thereby establishing the potential energy required for power generation. From the dam, water is channeled toward the power station via a connecting canal. This canal acts as the primary conduit, transporting the regulated flow from the reservoir to the intake structures of the hydroelectric plant. The design ensures that the water reaches the turbines with minimal turbulence and consistent volume, which is critical for the steady output of the facility.
Hydraulic Head and Efficiency
A key technical parameter of the Stornorrfors facility is its hydraulic head, which stands at 75 m. This significant vertical drop between the water intake at the dam and the turbine outlets at the power station is a major contributor to the plant's total installed capacity of 599 MW. The 75 m head provides substantial kinetic energy to the water as it descends, allowing the turbines to rotate with high torque. This configuration is typical for large-scale hydroelectric projects on major Scandinavian rivers, where the terrain allows for a considerable elevation change over a relatively short horizontal distance. The combination of the 4 km canal length and the 75 m head represents a balanced engineering solution that maximizes energy extraction from the Ume River's flow. The operational status of the plant, maintained by Vattenfall since its commissioning in 1958, reflects the durability of this concrete gravity dam and canal infrastructure. The system continues to function effectively, leveraging the natural gradient of the river in Västerbotten County to produce renewable energy for the Swedish grid. The separation of the dam and the power station also allows for flexible maintenance schedules, as the canal can be partially closed or the dam gates adjusted without completely halting generation, depending on the specific hydraulic conditions of the Ume River.
Technical Specifications and Turbines
The Stornorrfors Hydroelectric Power Station utilizes four Francis turbine-generator units to convert the hydraulic energy of the Ume River into electricity. The station’s total installed capacity is 599 MW (per Vattenfall operational data). The turbine configuration is not uniform; the first three units share similar specifications, while the fourth unit represents a later expansion with distinct technical characteristics.
Turbine Units and Manufacturers
The initial development of the power station involved three identical generator sets. Each of these first three units has a capacity of 131 MW (per Vattenfall technical records). These units were manufactured by NOHAB, a prominent Swedish engineering firm. The use of three 131 MW units accounts for 393 MW of the station’s total output. These turbines are designed to handle the specific flow and head conditions of the Ume River at the Stornorrfors location, situated approximately 15 km northwest of Umeå.
The fourth unit was added to increase the station’s overall generating capability. This unit has a capacity of 187 MW (per Vattenfall technical records). It was manufactured by Kværner, a major industrial group. The inclusion of the larger Kværner unit brings the total installed capacity to 599 MW. The difference in manufacturer and capacity between the first three units and the fourth unit reflects the phased development and technological updates applied to the power station since its initial commissioning in 1958 (per Vattenfall).
| Unit | Manufacturer | Capacity (MW) | Type |
|---|---|---|---|
| 1 | NOHAB | 131 | Francis |
| 2 | NOHAB | 131 | Francis |
| 3 | NOHAB | 131 | Francis |
| 4 | Kværner | 187 | Francis |
The Francis turbine is a type of reaction turbine, commonly used in hydroelectric power stations with medium head and flow conditions. The specific design of the turbines at Stornorrfors is optimized for the Ume River’s hydrological profile. The station remains operational under the management of Vattenfall (per Vattenfall).
Why it matters
Stornorrfors Hydroelectric Power Station holds a distinct and critical position within the Swedish energy infrastructure landscape, primarily defined by its exceptional annual energy output. As the hydroelectric facility in Sweden that generates the most electricity per year, it serves as a cornerstone of the national power grid's reliability and volume. This status as the top annual producer underscores the plant's efficiency and the significant hydraulic potential of the Ume River, which flows through Västerbotten County. The station's operational consistency allows it to outproduce other major hydro facilities in terms of total gigawatt-hours delivered annually, making it a vital asset for balancing the Swedish electricity market.
While Stornorrfors leads in annual generation, its ranking by nameplate capacity presents a nuanced technical profile. It is the second largest hydroelectric power station in Sweden by nameplate capacity, trailing only Harsprånget. This distinction highlights the difference between installed power potential and actual energy yield. With a total capacity of 599 MW, the plant represents a substantial concentration of generating units. The operator, Vattenfall, has maintained the station's operational status since its commissioning in 1958, ensuring that the infrastructure continues to deliver on its high-capacity promise. The proximity to Umeå, located about 15 km southeast, further integrates the plant into the regional economic and logistical framework of northern Sweden.
The significance of Stornorrfors extends beyond simple metrics. Its role as the highest annual generator reflects the strategic importance of the Ume River basin in Sweden's hydroelectric portfolio. The plant's ability to sustain high output levels year after year demonstrates the enduring value of early-mid 20th-century hydro investments. As Sweden continues to refine its energy mix, facilities like Stornorrfors provide the baseload and flexible generation necessary to support variable renewable sources. The contrast between its second-place ranking in nameplate capacity and first-place ranking in annual generation illustrates the complex interplay between turbine size, water flow volume, and operational hours that defines hydroelectric efficiency. This dynamic makes Stornorrfors a key case study in the optimization of large-scale hydro infrastructure in a mature energy market.
How does the Stornorrfors canal system work?
The hydraulic infrastructure of the Stornorrfors Hydroelectric Power Station is defined by a distinct separation between the primary dam structure and the generating units. This layout utilizes a canal system to convey water from the reservoir to the turbines, optimizing the topographical gradient along the Ume River in Västerbotten County, Sweden. The design creates a strategic distance of 4 km between the dam and the power station, allowing for a controlled flow path that maximizes energy extraction efficiency.
Canal System and Water Flow
The canal connection serves as the critical link in the hydroelectric cycle, transporting water from the upstream reservoir created by the dam to the downstream power house. This infrastructure manages the hydraulic head necessary to drive the turbines operated by Vattenfall. The system is engineered to handle significant volumetric throughput, with a maximum flow rate of 975 m³/s. This capacity ensures that the plant can effectively utilize the water resources of the Ume River to maintain its operational status and generate its rated capacity of 599 MW.
The 4 km span is not merely a linear distance but a carefully graded channel that maintains optimal water velocity and pressure. By separating the dam from the power station, the engineering design mitigates potential sedimentation issues at the turbine intakes and allows for more flexible maintenance schedules. The canal system works in concert with the broader hydroelectric network on the Ume River, contributing to the regional energy grid in northern Sweden. The proximity to Umeå, located about 15 km southeast of the power station, further integrates this infrastructure into the local energy landscape.
This configuration reflects standard practices in large-scale hydroelectric engineering, where the physical separation of intake and generation facilities can enhance operational resilience. The maximum flow rate of 975 m³/s indicates the system's ability to handle peak water volumes, ensuring consistent power output even during high-inflow periods. The entire setup, commissioned in 1958, continues to operate effectively, demonstrating the durability of the canal and dam infrastructure.
Ownership and Operational Management
The ownership structure of the Stornorrfors Hydroelectric Power Station is characterized by a shared equity arrangement between the national utility giant and the local municipal authority. According to the provided grounding data, Vattenfall holds a 75% stake in the facility, establishing it as the majority owner and the primary driver of strategic investment and capital expenditure. The remaining 25% share is held by Umeå Municipality, ensuring that the local government retains a significant financial interest in the energy production occurring on the Ume River, just 15 km northwest of the city center.
Vattenfall as Operator
Vattenfall serves as the operational manager for the plant, responsible for the day-to-day technical performance, maintenance scheduling, and grid integration of the 599 MW capacity. As the operator, Vattenfall manages the hydrological inputs from the Ume River to optimize power generation, balancing the needs of the local municipality with the broader Swedish grid requirements. The operational status of the station is currently listed as operational, reflecting Vattenfall's ongoing management since the plant's initial commissioning in 158. The company’s role extends beyond simple mechanical oversight to include environmental monitoring and infrastructure upkeep along the river corridor in Västerbotten County.
Municipal Partnership
The 25% ownership by Umeå Municipality provides a direct link between local civic interests and the energy infrastructure. This partnership model is common in Swedish hydropower development, allowing municipalities to benefit from the renewable energy resources within their administrative boundaries. The municipality’s stake ensures that a portion of the revenue generated by the 599 MW output is reinvested into local services or infrastructure projects. This collaborative ownership structure supports the long-term sustainability of the Stornorrfors facility, aligning the commercial objectives of Vattenfall with the regional development goals of Umeå. The operational management by Vattenfall ensures that the technical expertise required for modern hydroelectric generation is applied, while the municipal ownership guarantees local economic participation.
