Steam generator (nuclear power)

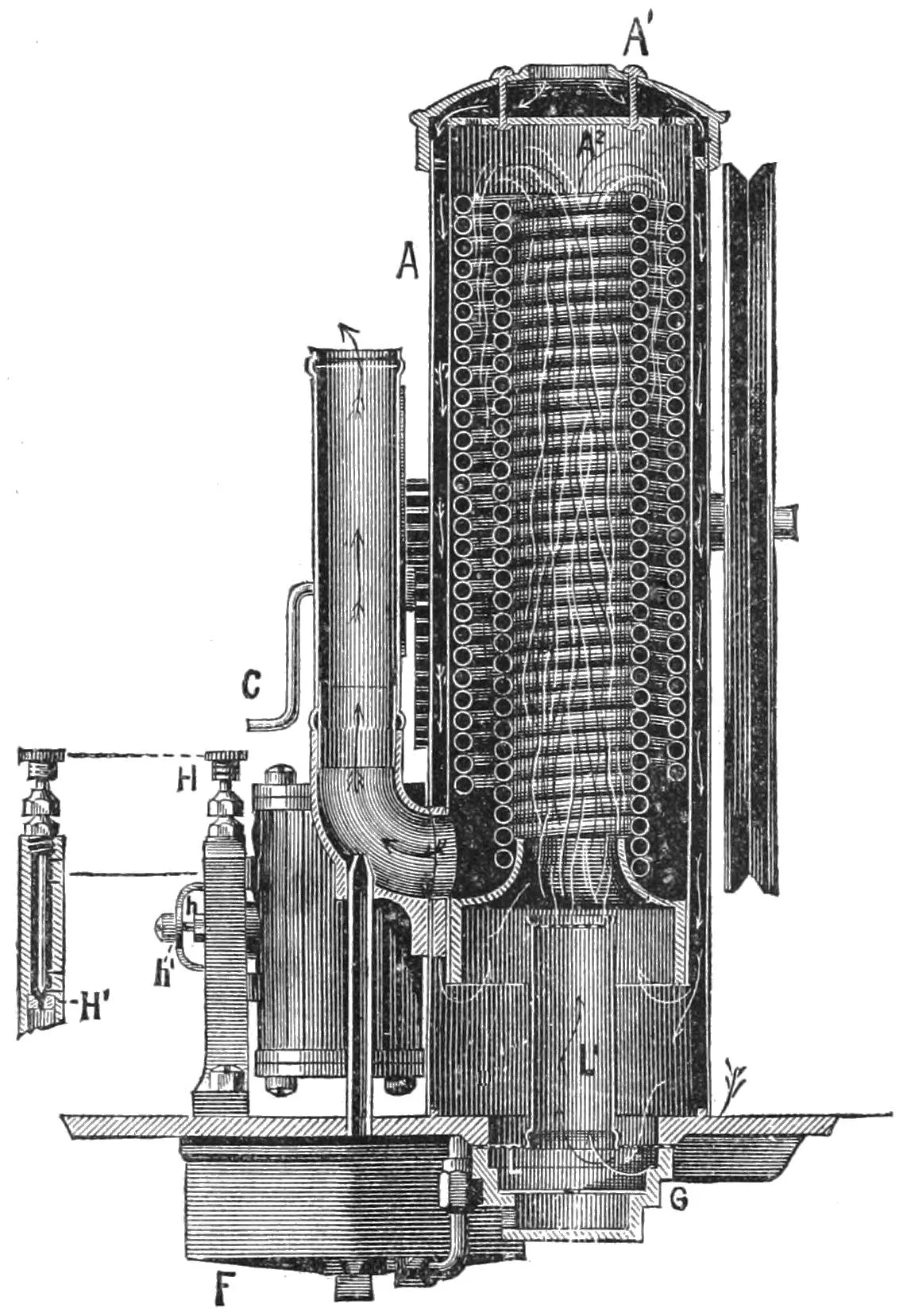

Overview

A steam generator is a critical heat exchanger component in nuclear power infrastructure, designed to convert water into steam utilizing thermal energy produced within a nuclear reactor core. This device serves as the primary interface between the reactor's internal heat source and the turbine-driven power generation system. The primary fuel source for these systems is uranium, which undergoes fission to release the necessary thermal energy. The operational status of these units is generally classified as operational within active nuclear facilities. The concept of the nuclear steam raising plant (NSRP) encompasses the steam generator and its associated piping and auxiliary systems, which collectively manage the phase change of water to steam.

Role in Reactor Types

Steam generators are integral to several major classes of nuclear reactors. They are most prominently used in pressurized water reactors (PWRs), where they bridge the primary and secondary coolant loops. In this configuration, the steam generator ensures that the radioactive primary coolant does not directly contact the turbine, thereby maintaining a barrier against radiation leakage into the secondary system. Beyond PWRs, steam generators are also utilized in liquid metal cooled reactors (LMRs), pressurized heavy-water reactors (PHWRs), and gas-cooled reactors (GCRs). In each of these reactor types, the fundamental function remains the transfer of heat from the primary working fluid to the secondary water loop to produce steam for power generation.

Primary and Secondary Loop Separation

The separation of primary and secondary loops is a defining characteristic of systems employing steam generators. The primary loop contains the coolant that directly absorbs heat from the uranium fuel rods in the reactor core. This coolant is typically under high pressure to prevent boiling within the core itself. The secondary loop consists of water that flows through the steam generator tubes or surfaces, absorbing heat from the primary side without mixing with it. This heat transfer process converts the secondary water into steam, which then drives the turbine generator. This physical separation enhances operational safety and simplifies maintenance by isolating the radioactive primary fluid from the mechanical components of the turbine hall.

How does a steam generator work in a PWR?

In pressurized water reactors (PWRs), the steam generator serves as the critical interface between the primary and secondary coolant loops, facilitating heat transfer without mixing the two fluid systems. The primary loop, containing water pressurized to approximately 155 bar to prevent boiling, circulates through the reactor core where it absorbs thermal energy from the uranium fuel assemblies. This superheated primary water, typically exiting the core at temperatures around 325 °C, enters the steam generator and flows through thousands of thin-walled metal tubes, usually made of Inconel or stainless steel.

Thermal-Hydraulic Process

Heat transfer occurs via conduction through the tube walls. The primary coolant flows inside the tubes, while the secondary side water surrounds the tubes in the shell side. As the primary water releases its thermal energy, the secondary water absorbs the heat, causing it to boil and convert into saturated steam. This phase change is essential for driving the turbine-generator set. The secondary loop operates at a lower pressure, approximately 65–70 bar, allowing the water to boil at around 280 °C. The resulting steam is then directed to the turbine, expanding to produce mechanical work before being condensed back into water in the condenser, completing the tertiary cooling cycle.

Typical Operating Conditions

Parameter	Primary Side	Secondary Side
Pressure	~155 bar	~65–70 bar
Temperature (Inlet/Outlet)	~325 °C / ~290 °C	~275 °C (saturated steam)
Fluid State	Subcooled Liquid	Mixture of Water and Steam
Heat Transfer Mechanism	Convection	Boiling (Phase Change)

The efficiency of this process relies on maintaining the temperature difference between the two loops. The primary water exits the steam generator cooler than it entered, returning to the reactor core to be reheated. Meanwhile, the secondary steam rises to the dryer section of the generator to remove entrained water droplets, ensuring high-quality dry steam reaches the turbine blades. This separation of loops is vital for radiation containment; while the primary water is slightly radioactive due to neutron activation, the secondary steam remains largely non-radioactive, simplifying turbine maintenance.

Why are steam generators used instead of boiling water reactors?

Pressurized water reactors (PWRs) utilize steam generators to separate the primary and secondary coolant loops, a design choice that offers distinct advantages over boiling water reactors (BWRs), where water boils directly in the reactor core. The primary motivation for this separation in PWRs involves managing neutron activation and optimizing maintenance accessibility.

Neutron Activation and Radiation Management

In a BWR, the reactor coolant passes directly through the turbine hall. High-energy neutrons from the core interact with oxygen-16 (16O) in the water, producing nitrogen-16 (16N) through the nuclear reaction 16O(n,p)16N. Nitrogen-16 is a short-lived isotope with a half-life of approximately 7 seconds, emitting high-energy gamma rays (up to 6.13 MeV) as it decays back to oxygen-16.

This gamma radiation significantly increases the radiation levels in the turbine hall and secondary piping, requiring heavier shielding and limiting personnel access during operation. In contrast, the PWR design confines the primary coolant, containing the neutron flux and the resulting 16N activation within the reactor vessel and primary loop. The secondary loop water, heated by the steam generator but not directly exposed to the core’s neutron flux, remains relatively less radioactive, reducing shielding requirements in the turbine hall.

Maintenance and Accessibility

The separation of loops in PWRs also enhances maintenance flexibility. In a BWR, the turbine and its associated piping are directly exposed to the reactor’s neutron flux and carry the activated coolant. This necessitates more extensive shielding and can complicate maintenance schedules due to higher radiation doses. The PWR’s steam generator acts as a thermal bridge, allowing the secondary loop to operate with lower radioactivity levels. This separation simplifies the design of the turbine hall and reduces the radiation exposure for maintenance crews working on the secondary side components.

What are the main types of nuclear steam generators?

Nuclear steam generators are critical heat exchangers that transfer thermal energy from the primary coolant loop to the secondary loop, converting water into steam. Design configurations vary significantly by reactor type and manufacturer, primarily categorized into vertical U-tube, horizontal, and once-through systems. Vertical U-tube designs are the most prevalent in pressurized water reactors (PWRs). This configuration features tubes bent into a U-shape, allowing thermal expansion and simplifying tube-to-header connections. Major manufacturers of vertical U-tube steam generators include Westinghouse, Combustion Engineering, and international variants from Canadian, Japanese, French, and German engineering firms. These designs are favored for their compactness and reliability in standard PWR layouts.

Horizontal steam generators are characteristically used in Russian VVER reactors. In this design, the tubes run horizontally, requiring a larger footprint but offering distinct advantages in tube support and maintenance access. This configuration aligns with the specific thermal-hydraulic requirements of the VVER primary circuit. Once-through steam generators represent a different operational approach, primarily associated with Babcock & Wilcox designs. Unlike drum-type generators, once-through units pass water through the tubes in a single pass, converting it to steam without a large steam drum. This design is often utilized in boiling water reactors (BWRs) or specific PWR configurations where space and weight are critical factors.

Design Type	Primary Application	Key Manufacturers/Origins
Vertical U-tube	PWRs	Westinghouse, Combustion Engineering, Canadian, Japanese, French, German
Horizontal	VVER reactors	Russian manufacturers
Once-through	BWRs, specific PWRs	Babcock & Wilcox

The selection of steam generator design impacts the overall plant efficiency, maintenance schedules, and thermal-hydraulic performance. Vertical U-tube designs dominate the global PWR fleet due to their proven track record and modular construction. Horizontal designs remain a staple in Russian nuclear engineering, tailored to the VVER's specific operational parameters. Once-through systems offer a streamlined approach, reducing the need for large steam drums and simplifying the secondary loop architecture. Each design addresses the fundamental challenge of efficiently transferring heat from the radioactive primary loop to the secondary loop while maintaining structural integrity under high pressure and temperature conditions.

Materials and construction of steam generators

Steam generator construction demands materials capable of withstanding high thermal gradients, mechanical stress, and corrosive environments within PWRs and other reactor types. The tube material selection is critical for long-term integrity. Historically, Inconel Alloy 600 was the standard, offering a composition of approximately 72% nickel and 15% chromium. This alloy provides good thermal conductivity and resistance to stress corrosion cracking (SCC). However, Alloy 600 tubes are susceptible to primary water stress corrosion cracking (PWSCC) and secondary side SCC, particularly at the tube-to-tube sheet joint. To mitigate these issues, Inconel Alloy 690 has become the preferred material for modern units and retrofits. Alloy 690 contains higher chromium content, approximately 27%, and reduced carbon, which enhances grain boundary stability and significantly improves resistance to SCC compared to Alloy 600. The transition from Alloy 600 to Alloy 690 often involves heat treatment processes to optimize the microstructure and relieve residual stresses.

Alternative Alloys and Stainless Steel

Stainless steel 316 is another common material, particularly for older designs or specific secondary loop conditions. It offers a balanced cost-performance ratio with good general corrosion resistance due to its chromium and nickel content, typically around 16% and 10% respectively. However, it is more prone to intergranular corrosion and SCC in chloride-rich secondary water compared to nickel-based superalloys. Inconel Alloy 400 (Monel) and Alloy 800Mod are also utilized in specific applications. Alloy 400, a nickel-copper alloy, offers excellent resistance to chloride stress corrosion cracking and is often used in gas-cooled reactors or specific PHWR designs. Alloy 800Mod, a nickel-iron-chromium alloy, provides enhanced resistance to carbide precipitation and SCC, making it suitable for high-temperature gas-cooled reactors (HTGRs) and advanced LMRs. The choice among these materials depends on the specific reactor type, coolant chemistry, and operational temperature profiles. Proper heat treatment, such as solution annealing and aging, is essential to achieve the desired mechanical properties and corrosion resistance for each alloy. These construction details ensure the steam generator effectively transfers heat from the primary to the secondary loop while maintaining structural integrity over decades of operation.

Degradation and maintenance challenges

Steam generators in pressurized water reactors (PWRs) are critical heat exchangers that separate the radioactive primary coolant loop from the secondary steam loop. Over time, the tubes within these units are subject to various degradation mechanisms that threaten structural integrity and thermal efficiency. One of the most significant challenges involves the use of Alloy 600, a nickel-chromium-iron superalloy historically favored for its thermal conductivity and resistance to stress-corrosion cracking. However, Alloy 600 tubes are prone to specific forms of degradation, including denting and wall thinning, which can compromise the barrier between the primary and secondary sides.

Denting often results from mechanical interactions between the tubes and the surrounding support plates or baffles, particularly under thermal cycling conditions. Thinning, on the other hand, is frequently driven by erosion-corrosion, where high-velocity steam and water flow gradually wear away the tube walls. These defects reduce the effective surface area for heat transfer and increase the risk of tube rupture, which can lead to primary-to-secondary leaks and potential radioactive contamination of the secondary loop.

To mitigate these issues, rigorous water chemistry controls are essential. Maintaining optimal pH levels, dissolved oxygen content, and impurity concentrations in both the primary and secondary loops helps minimize corrosion rates. For instance, controlling the concentration of boron and lithium in the primary coolant can reduce the susceptibility of Alloy 600 to intergranular stress-corrosion cracking (IGSCC). Similarly, managing chloride and sulfate levels in the secondary side can prevent localized pitting and erosion.

Eddy-current testing is the primary non-destructive evaluation (NDE) method used to detect tube defects. This technique involves passing an alternating current through a probe coil, which induces eddy currents in the conductive tube walls. Variations in the eddy current patterns, caused by changes in wall thickness or the presence of cracks, are detected as changes in the coil's impedance. This method allows for the precise location and sizing of defects without removing the steam generator from service.

When defects exceed acceptable limits, tube plugging is often employed as a remedial measure. This involves inserting plugs at both ends of the affected tube to isolate it from the coolant flow. While effective, excessive plugging can reduce the overall heat transfer area, potentially impacting the reactor's thermal-hydraulic performance. In cases where a significant number of tubes are plugged or where widespread degradation is observed, mid-life replacement of the entire steam generator may be necessary. This major maintenance activity involves removing the old unit and installing a new one, often with upgraded materials such as Alloy 690 or X-750, which offer improved resistance to corrosion and fatigue.

History of nuclear steam generator development

The development of nuclear steam generators is intrinsically linked to the evolution of the pressurized water reactor (PWR) design, where they serve as the critical heat exchanger between the primary and secondary coolant loops. The foundational application of this technology occurred with the USS Nautilus (SSN-571), the world's first nuclear-powered submarine. The Nautilus utilized a PWR design that necessitated a compact steam generator to convert water into steam from the heat produced in the nuclear reactor core, demonstrating the viability of nuclear propulsion for marine vessels. This early implementation established the basic thermal-hydraulic principles that would govern subsequent land-based reactor designs.

Early Commercial and Experimental Deployments

Following the naval success, the technology transitioned to commercial and experimental power stations. The Shippingport Atomic Power Station, operational in the mid-1950s, represented a pivotal moment in nuclear energy history. Shippingport served as a primary testbed for PWR technology, validating the steam generator's role in large-scale electricity generation. Concurrently, Westinghouse and Babcock & Wilcox emerged as dominant forces in the design and manufacturing of these components. Their competing designs influenced the standardization of PWR plants across the United States and globally. The Yankee Rowe Nuclear Power Station, which began operation in 1960 with a capacity of 100 MWe, further refined the engineering of steam generators for continuous commercial output. These early plants demonstrated the reliability of the heat exchanger in maintaining the separation of the radioactive primary loop from the secondary turbine loop.

Evolution to Modern High-Capacity Units

As nuclear power expanded, steam generator designs evolved to accommodate larger reactor cores and higher thermal outputs. The transition from early 100 MWe units to modern plants exceeding 1100 MWe required significant advancements in materials science and thermal efficiency. Modern steam generators are engineered to handle increased pressure and temperature differentials, ensuring optimal heat transfer from the primary coolant to the secondary side. This evolution has been critical in maintaining the efficiency of PWRs, which remain the most common type of nuclear reactor worldwide. The fundamental principle remains unchanged: the steam generator converts water into steam from heat produced in a nuclear reactor core, enabling the drive of turbine generators in the secondary loop. This technology is also utilized in other reactor types, including liquid metal cooled reactors (LMRs), pressurized heavy-water reactors (PHWRs), and gas-cooled reactors (GCRs), though the PWR application remains the most prevalent. The continuous refinement of these heat exchangers has been essential for the operational status and longevity of nuclear power facilities.

Worked examples

The following conceptual examples illustrate the scale of heat transfer and geometry within PWR steam generators. These calculations demonstrate why tube count and surface area are critical design parameters.

Example 1: Total Heat Transfer Surface Area

Consider a steam generator with 3000 tubes, each with a 19 mm diameter. To find the total external surface area available for heat exchange, we first calculate the surface area of a single tube per meter of length. The circumference of a 19 mm (0.019 m) tube is approximately 0.0597 m. For a 1-meter length, the surface area is 0.0597 m². Multiplying this by the 3000 tubes yields a total surface area of roughly 179 m² per meter of tube length. If the tubes are 15 meters long, the total heat transfer surface area approaches 2,685 m². This large area is necessary to efficiently transfer heat from the primary coolant to the secondary water.

Example 2: Primary Coolant Flow Velocity

Assume a primary coolant flow rate of 15,000 kg/s distributed across the 3000 tubes. Each tube carries approximately 5 kg/s of coolant. Using a 19 mm internal diameter, the cross-sectional area of one tube is about 0.000283 m². Assuming a coolant density of 15 kg/m³ (typical for high-pressure water), the volumetric flow per tube is roughly 0.333 m³/s. Dividing this by the cross-sectional area gives a linear velocity of approximately 1,177 m/s. This high velocity ensures turbulent flow, which enhances the convective heat transfer coefficient between the primary coolant and the tube wall, reducing thermal resistance.

Example 3: Secondary Side Steam Production

If the steam generator transfers 1,000 MW of thermal power to the secondary side, we can estimate the steam production rate. The latent heat of vaporization for water at typical secondary pressures (e.g., 6 MPa) is approximately 1,900 kJ/kg. Dividing the total thermal power (1,000,000 kJ/s) by the latent heat (1,900 kJ/kg) yields a steam mass flow rate of about 526 kg/s. This means the secondary loop converts roughly 526 kilograms of water into steam every second to drive the turbine generator, highlighting the massive throughput required to convert nuclear heat into mechanical energy.

Applications in different reactor types

Steam generators are fundamental components in several major nuclear reactor designs, functioning as the critical interface between the heat source and the working fluid. In pressurized water reactors (PWRs), the steam generator separates the radioactive primary coolant loop from the non-radioactive secondary loop, converting water into steam to drive the turbine. This principle of thermal exchange extends to other reactor types, including liquid metal cooled reactors (LMRs), pressurized heavy-water reactors (PHWRs), and gas-cooled reactors (GCRs), each with distinct thermodynamic and material requirements.

Pressurized Heavy-Water Reactors (PHWRs)

In PHWR designs, such as the CANDU reactor, the primary coolant is heavy water (deuterium oxide), which serves as both the moderator and the primary heat transfer medium. The steam generator in a CANDU unit transfers heat from the primary heavy water loop to the secondary light water loop. This separation allows the primary circuit to maintain high pressure and temperature while producing steam in the secondary side. The use of heavy water in the primary loop influences the thermal conductivity and specific heat capacity of the coolant, affecting the design of the heat exchanger surfaces to ensure efficient energy transfer from the uranium fuel core.

Liquid Metal Cooled Reactors (LMRs)

Liquid metal cooled reactors, such as the BN-600, utilize liquid sodium as the primary coolant. Sodium offers excellent thermal conductivity and allows the reactor core to operate at lower pressures compared to water-cooled systems. In these reactors, the steam generator transfers heat from the hot sodium primary loop to the secondary loop. Due to the chemical reactivity of sodium with water and air, the steam generator design must incorporate robust sealing and often an intermediate sodium loop to isolate the radioactive primary sodium from the secondary water-steam circuit. This tertiary loop configuration enhances safety by minimizing the risk of a direct sodium-water reaction within the heat exchanger tubes.

Gas-Cooled Reactors (GCRs)

Gas-cooled reactors use a gas, typically carbon dioxide or helium, as the primary coolant. The steam generator in a GCR transfers heat from the hot gas flowing through the reactor core to the water in the secondary loop. The lower density of gas compared to liquid coolants requires larger heat exchanger surfaces or higher flow velocities to achieve comparable heat transfer rates. The design of the steam generator in GCRs must account for the specific thermal expansion coefficients of the materials used, as well as the pressure drop across the gas path, to maintain efficient operation and structural integrity over the reactor's lifespan.

Comparative Analysis of Cooling Loops

While the primary coolants differ significantly across PWRs, PHWRs, LMRs, and GCRs, the secondary cooling systems share commonalities. In all these reactor types, the secondary loop typically consists of light water that is converted into steam to drive a conventional steam turbine. This similarity allows for the use of standardized turbine-generator sets across different reactor technologies. The efficiency of the steam generator is a key factor in the overall thermal efficiency of the nuclear power plant, influencing the temperature and pressure at which the steam is produced. The heat transfer process can be described by the fundamental equation Q = U * A * ΔT, where Q is the heat transfer rate, U is the overall heat transfer coefficient, A is the heat transfer area, and ΔT is the temperature difference between the primary and secondary fluids. Optimizing these parameters is essential for maximizing power output and minimizing fuel consumption in the nuclear reactor core.
