Overview
The Statpipe pipeline is a critical natural gas transmission system located in Norway, serving as a primary conduit for energy transport in the North Sea region. Operated by Gassco, this infrastructure links several major gas fields in the northern North Sea directly to Norway’s broader gas export system. Commissioned in 1985, Statpipe has remained operational for decades, playing a central role in the country’s energy logistics and export capabilities. The system is designed to aggregate gas from multiple upstream sources, ensuring a steady flow of natural gas to downstream processing and export terminals.
Connected Gas Fields
Statpipe draws natural gas from a diverse group of significant North Sea fields. These include Statfjord, Gullfaks, Heimdal, Veslefrikk, Snorre, Brage, and Tordis. Each of these fields contributes to the overall volume transported through the pipeline, making Statpipe a vital artery for northern North Sea production. The integration of these fields into a single transmission system allows for efficient management of gas flows, reducing the need for multiple separate export lines and optimizing the use of existing infrastructure.
Role in Norway’s Export System
By connecting these northern fields to Norway’s gas export system, Statpipe facilitates the movement of natural gas to international markets. This connection is essential for Norway’s position as a major natural gas exporter, particularly to European markets. The pipeline’s design and operation by Gassco ensure that gas from remote offshore locations can be reliably transported to onshore terminals, where it is further processed or loaded onto ships for export. The system’s longevity and continued operation highlight its importance in maintaining energy security and economic stability for Norway.
History and Development
The Statpipe pipeline project originated with Statoil, which spearheaded the development of the natural gas transmission system to connect northern North Sea fields to the broader Norwegian export network. The strategic initiative received formal political backing when the Storting approved the project on 10 June 1981, setting the stage for extensive offshore infrastructure deployment.
Construction and Early Commissioning
Infrastructure installation progressed rapidly following parliamentary approval. A critical component of the system, the Draupner S riser platform, was installed in 1984. This platform served as a vital interface for gathering and directing gas flows from the upstream fields toward the main trunk line.
The pipeline system entered service in two distinct phases during 1985. The rich gas pipeline became operational on 25 March 1985, initiating the initial flow of natural gas from fields such as Statfjord, Gullfaks, Heimdal, Veslefrikk, Snorre, Brage, and Tordis. Later that year, the dry gas pipeline commenced operations on 15 October 1985, enhancing the system's capacity and flexibility in handling different gas compositions.
Integration and Corporate Evolution
As Norway's gas export infrastructure expanded, Statpipe was integrated into a larger network. In 1998, the pipeline was connected to the Norpipe system, facilitating more efficient routing of gas to European markets. This physical integration was followed by a significant corporate restructuring. On 1 January 2003, the pipeline became part of the Gassled partnership, with Gassco assuming the role of operator. This consolidation streamlined management of Norway's major gas export infrastructure, ensuring coordinated operation of the Statpipe system alongside other key trunk lines.
Technical Specifications and Infrastructure
The Statpipe natural gas transmission system spans 890 km (550 mi), linking northern North Sea gas fields to Norway’s gas export infrastructure. The system integrates multiple pipeline segments to transport natural gas from fields including Statfjord, Gullfaks, Heimdal, Veslefrikk, Snorre, Brage, and Tordis.Pipeline Segments
The infrastructure comprises four primary pipeline legs with distinct capacities and diameters:| Segment | Length | Diameter | Capacity |
|---|---|---|---|
| Rich Gas Pipeline | 308 km | 30 inches (760 mm) | 9.7 bcm/yr |
| Dry Gas Pipeline Leg 1 | 228 km | 28 inches (710 mm) | 7.6 bcm/yr |
| Dry Gas Pipeline Leg 2 | 155 km | 36 inches (910 mm) | 11 bcm/yr |
| Section to Norpipe | 213 km | 36 inches (910 mm) | Includes 15.8 km Ekofisk bypass |
How does the Statpipe system integrate with the Norpipe?

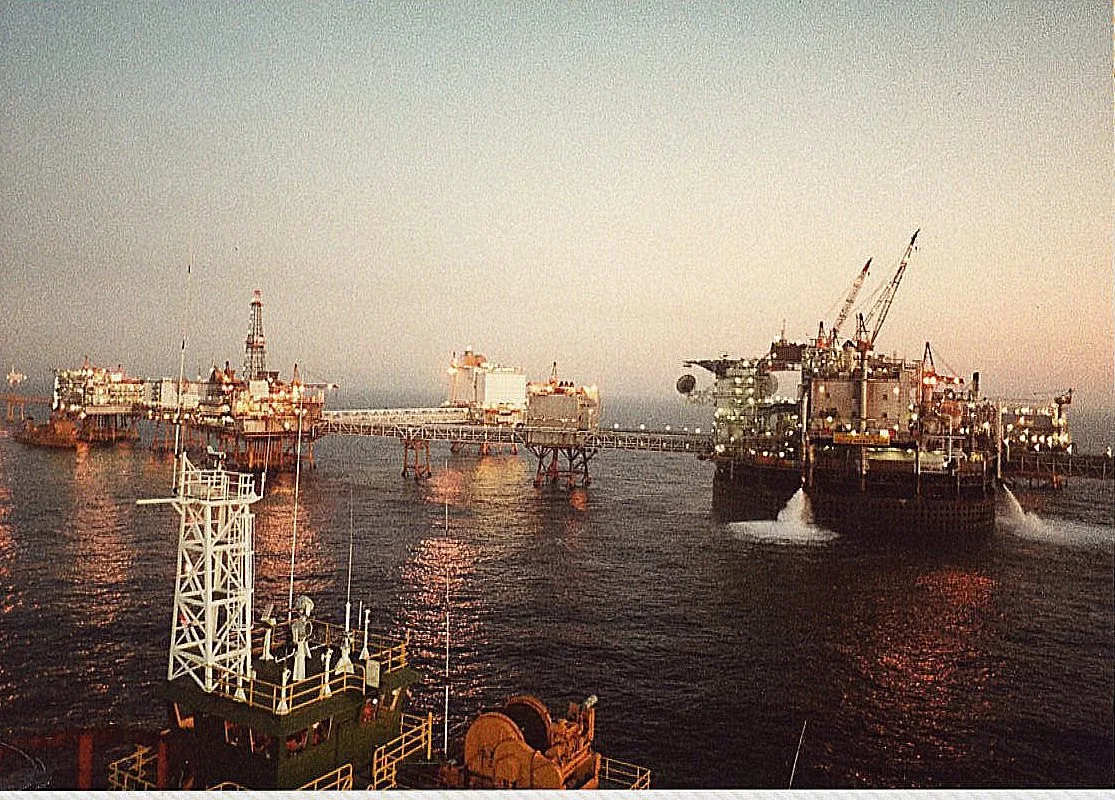

The Statpipe system is designed to feed northern North Sea natural gas directly into Norway’s primary export artery, the Norpipe. This integration is achieved through a specific topological arrangement centered on the Ekofisk field complex. The system does not rely on a single continuous subsea line from the northern fields to the Norwegian coast; instead, it utilizes a series of riser platforms and bypass lines to merge flows efficiently.
Draupner S and Line Convergence
A critical node in this integration is the Draupner S riser platform. This platform serves as a convergence point for gas lines originating from the Heimdal field and the Kårstø terminal area. By tying these lines together at Draupner S, the system consolidates the gas flow for transmission toward the Ekofisk complex. This configuration allows the Statpipe system to aggregate production from multiple northern sources—such as Statfjord, Gullfaks, Heimdal, Veslefrikk, Snorre, Brage, and Tordis—into a unified stream before entering the main export route.
The Ekofisk Bypass
Once the aggregated gas reaches the Ekofisk area, it does not necessarily pass through the entire Ekofisk processing infrastructure. Instead, the system utilizes a dedicated 15.8-kilometre bypass line. This bypass takes the Statpipe flow directly into the Norpipe trunk line. This engineering solution minimizes pressure drops and processing delays, allowing northern gas to merge with the Norpipe stream efficiently. The bypass ensures that the Statpipe system functions as a direct feeder to the Norwegian export network, maintaining the operational integrity of the broader natural gas export system.
Ownership and Operational Structure
The Statpipe natural gas transmission system operates under a distinct corporate and operational framework designed to coordinate the flow of resources from the northern North Sea fields to the broader Norwegian export network. The infrastructure is owned by Gassled, a joint-stock company established to manage the trunkline assets. This ownership structure allows for shared investment and risk distribution among the various producing fields connected to the pipeline, including Statfjord, Gullfaks, Heimdal, Veslefrikk, Snorre, Brage, and Tordis.
Operational control of the Statpipe system is vested in Gassco, which serves as the primary operator. Gassco is responsible for the day-to-day management, maintenance, and strategic coordination of the gas transport services. As the operator, Gassco ensures that the pipeline meets the capacity requirements of the linked fields and maintains the integrity of the system to facilitate efficient export to Norway’s gas export infrastructure. The operational status of the pipeline remains active, continuing to serve as a critical artery for natural gas distribution in the region since its commissioning in 1985.
Supporting the operational activities of Gassco is Statoil, which functions as the technical service provider. In this role, Statoil contributes specialized engineering expertise, technical oversight, and service delivery to maintain the pipeline’s performance standards. The collaboration between Gassled as the owner, Gassco as the operator, and Statoil as the technical service provider creates a layered management structure. This arrangement separates asset ownership from operational execution and technical support, allowing each entity to focus on its core competencies within the natural gas supply chain.
The integration of these three entities ensures that the Statpipe system can effectively handle the volume and variability of gas produced from the multiple northern North Sea fields. Gassled’s ownership provides the financial and structural backbone, while Gassco’s operational management ensures consistent service delivery. Meanwhile, Statoil’s technical services offer the specialized knowledge required to maintain the pipeline’s infrastructure over time. This tripartite structure is characteristic of Norway’s approach to managing its offshore energy infrastructure, balancing shared ownership with specialized operational and technical roles.
Why it matters
The Statpipe pipeline functions as a critical artery within the Norwegian natural gas infrastructure, serving as the primary link between the prolific northern North Sea gas fields and the broader Norwegian gas export system. By connecting major producing fields such as Statfjord, Gullfaks, Heimdal, Veslefrikk, Snorre, Brage, and Tordis to the main export infrastructure, Statpipe plays an indispensable role in channeling hydrocarbon resources from the production hubs to the European market. This connectivity ensures that gas from these distinct geological formations can be aggregated and efficiently transported, underpinning the reliability of Norway’s gas supply to continental Europe.
Integration with the Norwegian Export System
The significance of Statpipe lies in its strategic integration with the wider network, particularly its connection to the Norpipe, which is the main export artery for Norwegian natural gas. This linkage allows for the seamless flow of gas from the northern North Sea fields into the broader distribution grid, facilitating large-scale exports. The pipeline system was developed to handle the output from multiple major fields, optimizing the transport logistics for gas produced in the region. This integration is vital for maintaining the flexibility and resilience of the Norwegian gas export capacity, allowing for the balancing of supply from various fields to meet fluctuating European demand.
Operational Management and Infrastructure Development
Managed by Gassco, the Statpipe system represents a key component of the national gas infrastructure, originally developed by Statoil. The operational status of the pipeline, having been commissioned in 1985, highlights its long-standing role in the energy sector. The management by Gassco ensures that the pipeline continues to serve its purpose effectively, linking the production sites to the export terminals. This infrastructure development has been crucial for Norway’s position as a major gas exporter, enabling the country to leverage its northern North Sea resources to supply energy to European consumers. The pipeline’s role in connecting these specific fields underscores its importance in the overall energy landscape of the region.
What distinguishes Statpipe from other North Sea pipelines?
The Statpipe pipeline system is structurally distinct within the North Sea infrastructure landscape due to its integrated dual-pipe design and its strategic routing that bypasses the historic Ekofisk hub. Unlike many single-commodity export lines, Statpipe was engineered to transport two different qualities of natural gas simultaneously: a "rich" gas pipeline and a "dry" gas pipeline. This configuration allows for the efficient aggregation of feedstock from multiple fields with varying compositions before the gas reaches the main export corridor.
Dual-Pipe Configuration
The system links northern North Sea gas fields directly to Norway's gas export system. It transports gas from the Statfjord, Gullfaks, Heimdal, Veslefrikk, Snorre, Brage, and Tordis gas fields. The presence of both rich and dry pipelines enables the operator, Gassco, to manage pressure and composition differences without requiring extensive onshore processing at the point of entry into the main grid. This dual-line approach is a key feature of the system commissioned in 1985, facilitating the integration of diverse upstream sources into a unified export stream.
Strategic Tie-Points and Routing
A defining characteristic of Statpipe is its specific use of the Draupner S riser platform as a critical tie-point. This platform serves as a major junction for aggregating flow from the northern fields. Furthermore, the pipeline’s routing is notable for directly bypassing the Ekofisk complex. While Ekofisk has historically been the primary hub for North Sea gas, Statpipe connects directly to the Norpipe system. This direct linkage reduces dependency on the Ekofisk infrastructure for northern gas exports, enhancing the resilience and capacity of the overall Norwegian gas export network. The system remains operational, continuing to serve as a vital artery for natural gas from the specified fields to the broader European market via Norpipe.
