Overview
A spring-loaded camming device is a specialized piece of protection equipment utilized in rock climbing and mountaineering to secure a climber to the rock face. Commissioned in 1978, this concept represents a significant mechanical innovation in climbing safety, allowing for versatile placement in various rock formations. The device is currently operational and remains a standard component of technical climbing gear. Its primary function is to convert the linear pulling force of a climbing rope into outward radial pressure against the rock walls, thereby generating substantial friction that resists removal during a fall.
Mechanical Composition
The device consists of two, three, or four individual cams mounted on a common axle or two adjacent axles. These cams are the core functional elements, designed to expand and contract in unison. The assembly is attached to a sling and carabiner located at the end of a stem, which serves as the main structural backbone of the unit. The mechanical design relies on the precise interaction between the cams, the axle, and the stem to ensure reliable performance under load.
Operational Mechanics
Deployment of the device involves a specific sequence of actions. The climber pulls on a trigger mechanism, which causes the cams to retract together, reducing the overall width of the device. This compacted unit is then inserted into a crack or pocket in the rock. Upon releasing the trigger, the cams expand outward, pressing against the rock surfaces. The system is designed such that a pull on the rope, such as that generated by a climber falling, forces the cams to spread further apart. This action converts the pulling force along the stem into increased outward pressure on the rock, enhancing the frictional hold.
Placement Considerations
Due to the large forces exerted on the rock when a climber falls on a properly placed device, the integrity of the rock itself is critical. It is essential that these devices are only placed in solid, strong rock to prevent failure. The massive amounts of friction produced by the expanding cams can dislodge weaker rock fragments if the placement is not carefully selected. This requirement for solid rock ensures that the mechanical advantages of the spring-loaded camming device are fully realized without compromising the stability of the anchor point.
How does a spring-loaded camming device work?
Spring-loaded camming devices function through a precise mechanical sequence designed to convert linear tension into radial frictional force. To place the protection, the climber pulls on a trigger mechanism. This action retracts the cams, drawing them closer together to reduce the overall width of the unit. The climber then inserts the compacted device into a crack or pocket in the rock face. Upon releasing the trigger, the internal springs force the cams to expand outward, pressing the lobes firmly against the rock walls.
Mechanical Advantage and Force Conversion
The critical safety feature of the device lies in how it handles load. When a climber falls, the rope exerts a pulling force along the stem of the unit. This linear tension is mechanically converted into outward pressure on the rock surfaces. The geometry of the cams ensures that the pulling force generates massive amounts of friction between the cam lobes and the rock. This frictional lock prevents the unit from being pulled out of the crack, effectively arresting the fall. The efficiency of this conversion depends on the proper placement of the device within a suitably shaped void in the rock structure.
Geometric Design and Constant Intercept Angle
The cams are shaped as logarithmic spirals. This specific geometric profile is essential for maintaining a constant intercept angle between the cam lobe and the rock surface as the device expands. The constant angle ensures that the frictional force remains consistent and predictable regardless of the degree of expansion. This design allows the device to function effectively in cracks of varying widths. The stability provided by this geometric relationship is what enables the device to hold significant loads without slipping.
Placement Requirements and Rock Integrity
Because the device exerts large forces on the surrounding rock when loaded, the integrity of the rock is paramount. Placing a spring-loaded camming device in weak or fragmented rock can lead to failure, as the outward pressure may crush the rock or dislodge the cam. Therefore, proper placement requires solid, strong rock capable of withstanding the concentrated stress. Climbers must assess the quality of the rock face to ensure the frictional lock is maintained under load. The device relies entirely on the mechanical interaction between the expanding cams and the stability of the rock pocket to provide protection.
History of camming devices in climbing
The development of mechanical protection in rock climbing evolved significantly through the introduction of camming devices. Early innovations included the eccentric cams designed by Vitaly Abalakov, which laid the groundwork for expandable protection systems. These early designs influenced subsequent engineering efforts to create more reliable and versatile devices for various rock formations. A significant milestone occurred in 1973 when Greg Lowe patented the constant intercept camming device. This patent represented a crucial step in refining the mechanics of camming protection, aiming to provide consistent friction and stability within rock cracks. Lowe's work contributed to the broader understanding of how cam angles and spring tensions could be optimized for climbing safety. The modern spring-loaded camming device (SLCD) was invented by Ray Jardine and commissioned in 1978. This invention is widely recognized as the standard for mechanical protection in climbing. Jardine's design features a specific 13.75-degree angle for the cams, which is critical for the device's self-tightening property when loaded. The device operates by retracting the cams via a trigger, inserting the unit into a crack, and releasing the trigger to allow the cams to expand against the rock walls. The SLCD consists of two, three, or four cams mounted on a common axle or adjacent axles. Pulling on the axle forces the cams to spread apart, and the device is attached to a sling and carabiner at the end of the stem. When a climber falls, the pulling force on the rope converts into outward pressure on the rock, generating significant friction that prevents the unit from being removed. This mechanism requires the rock to be solid and strong to withstand the large forces exerted during a fall. The commercial success of the SLCD led to the emergence of prominent brands in the climbing industry. Ray Jardine's original devices were marketed as "Friends," a name that became synonymous with the technology. Other major manufacturers, such as Black Diamond and Wild Country, also produced and popularized SLCDs, contributing to the widespread adoption of the device among climbers and mountaineers. These brands have continued to refine the design and materials used in SLCDs, enhancing their performance and durability. The introduction of the SLCD revolutionized rock climbing by providing a more versatile and reliable form of protection compared to traditional nuts and hexes. The device's ability to fit into a variety of crack sizes and shapes made it an essential tool for climbers. The 13.75-degree angle remains a standard in the industry, reflecting the enduring influence of Jardine's original design. The SLCD continues to be a fundamental piece of equipment in both sport and traditional climbing, demonstrating its lasting impact on the sport.What are the different types and designs of SLCDs?
Spring-loaded camming devices (SLCDs) are categorized by the number of cam lobes and their axle configurations. Standard designs utilize two, three, or four cams mounted on a common axle or two adjacent axles. The lobe count determines the device's stability and the range of crack widths it can effectively engage.Lobe Count and Axle Configurations
Two-cam designs offer a compact profile suitable for tight cracks but may rotate more easily under load. Three-cam configurations are the most common, providing a balanced distribution of outward pressure and rotational stability. Four-cam designs maximize contact points with the rock face, offering superior stability in irregular or wide cracks. The axle system, whether a single common axle or two adjacent axles, dictates how the cams spread apart when the trigger is pulled.
| Lobe Count | Configuration | Typical Use Case |
|---|---|---|
| Two | Common axle | Tight, parallel-sided cracks |
| Three | Common or dual axle | General purpose, balanced stability |
| Four | Dual axle | Wide, irregular cracks |
Specialized Designs
Manufacturers have developed specialized SLCD designs to address specific climbing scenarios. Offset cams feature lobes positioned at different heights along the stem, allowing the device to sit more naturally in tapered or flared cracks. The Totem Cam utilizes independent lobe expansion, enabling each lobe to adjust its angle relative to the others, which is particularly useful in irregular rock pockets. The Link Cam by Omega Pacific represents another specialized design, utilizing a linked mechanism to enhance placement versatility. These innovations aim to optimize the conversion of pulling force into outward pressure, ensuring the cams generate sufficient friction to prevent removal during a fall.
Proper placement remains critical regardless of design. Due to the large forces exerted on the rock when an SLCD is loaded, devices must be placed in solid, strong rock to prevent failure. The choice between two, three, or four-cam designs, or specialized variants like the Totem or Link Cam, depends on the specific geometry of the crack and the quality of the rock.
Applications and placement in rock climbing

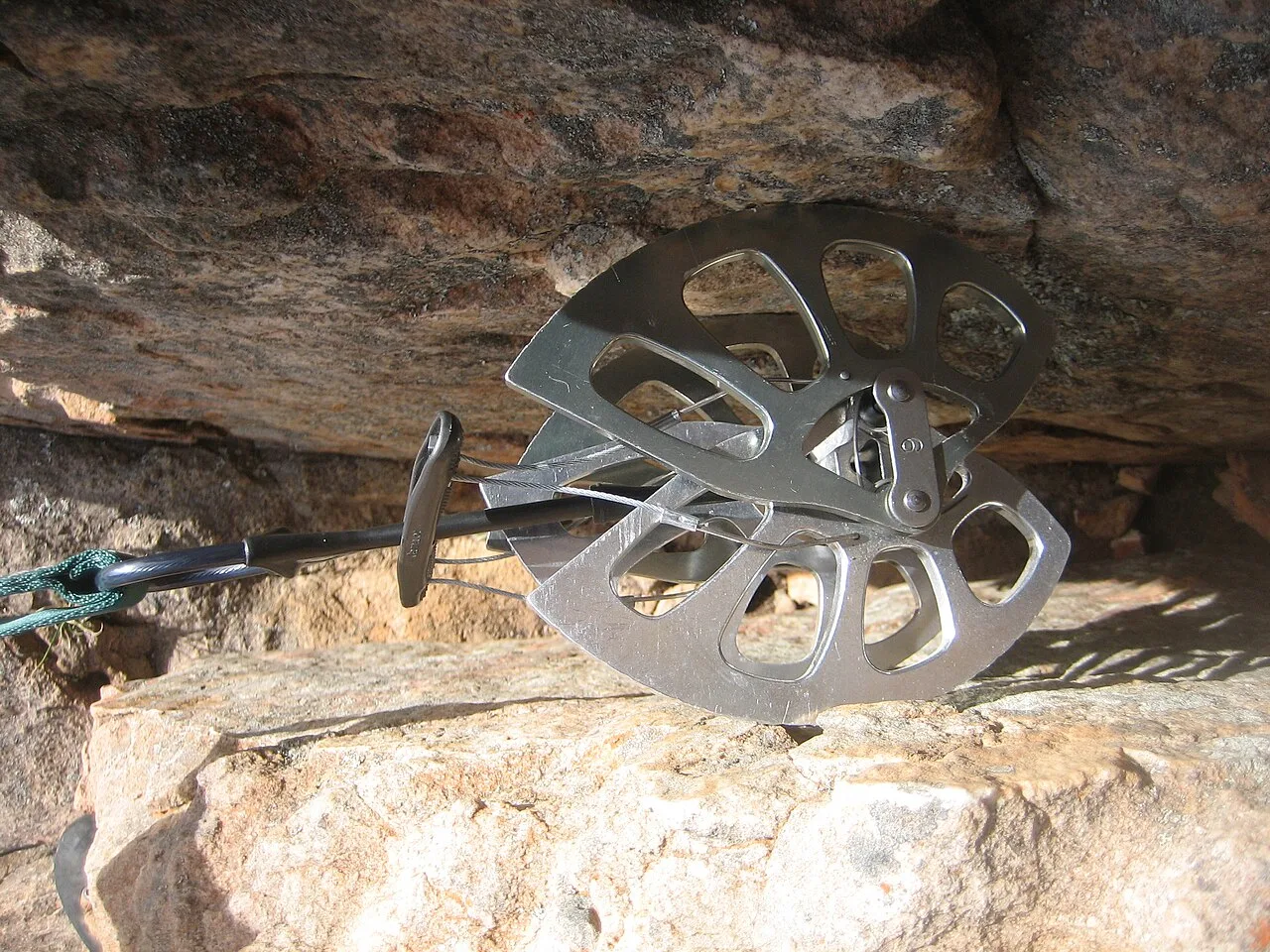

Spring-loaded camming devices serve as the primary mechanical protection in modern traditional rock climbing, offering a versatile alternative to fixed hardware. The system operates by converting the tensile force of a falling climber into outward radial pressure against the rock walls. This mechanism generates significant friction, securing the device within the crack. Proper placement is critical, as the device relies entirely on the integrity of the surrounding stone. Climbers must assess rock quality before insertion, ensuring the host material is solid and free of fractures that could fail under load.
Placement Techniques and Crack Geometry
Effective use of SLCDs requires matching the device to the specific geometry of the rock feature. These tools excel in parallel-sided cracks, where the expanding cams can achieve uniform contact with the rock faces. In flaring cracks, where the opening widens with depth, placement becomes more complex. Climbers often seek a section of the crack that narrows or remains parallel to ensure the cams bite effectively. The device is inserted by retracting the cams via the trigger, positioning the unit within the fissure, and releasing the trigger to allow the spring mechanism to expand the lobes against the rock. This creates a secure anchor point that resists downward pull.
Clean Climbing and Comparison to Pitons
The introduction of spring-loaded camming devices revolutionized the concept of "clean climbing." Prior to their widespread adoption, climbers relied heavily on pitons, which required hammering metal spikes into the rock. This method often caused permanent damage to the rock face, particularly in softer stone. SLCDs provide a less invasive solution, as they wedge into existing cracks without requiring drilling or hammering. This preservation of the natural rock surface is highly valued in the climbing community, allowing routes to remain relatively unchanged for future ascents. The ability to place and remove protection quickly also enhances the flow and efficiency of the climb.
Size Ranges and Traditional Strategies
SLCDs are manufactured in a wide range of sizes to accommodate various crack dimensions. These sizes typically span from approximately 6 mm to 300 mm in width, allowing climbers to protect everything from thin finger cracks to wide hand cracks. Traditional climbing strategies involve carrying a set of devices covering this spectrum to ensure adequate protection for diverse route features. Climbers must select the appropriate size for each placement, balancing the need for security with the weight and bulk of the gear. A well-chosen set allows for efficient protection of the route, minimizing the risk of the device being dislodged by the dynamic forces of a fall.
Specific Climbing Contexts
Certain climbing destinations are renowned for their suitability to spring-loaded camming devices. Indian Creek in Utah, USA, is a prime example, featuring extensive sandstone formations with consistent, parallel cracks. The quality of the rock in Indian Creek allows for secure placement of SLCDs, making it a premier destination for traditional climbing. The predictable nature of the cracks in such locations enables climbers to rely heavily on camming devices, often using them as the primary form of protection. This has influenced climbing styles and gear selection in these regions, with SLCDs becoming an indispensable tool for navigating the unique geological features.
Significance of SLCDs in mountaineering
The introduction of the spring-loaded camming device (SLCD) in 1978 marked a fundamental shift in rock climbing and mountaineering protection strategies. Prior to this innovation, climbers relied heavily on passive protection and pitons, which often required driving metal spikes directly into the rock face. The SLCD mechanism, consisting of two, three, or four cams mounted on a common axle, allowed for a dynamic interaction with the rock surface. By pulling on the trigger to retract the cams and inserting the unit into a crack or pocket, climbers could secure their position without permanently altering the rock structure.
This technology facilitated the era of 'clean climbing,' significantly reducing the physical damage inflicted on rock faces. Unlike pitons, which leave permanent holes and can fracture brittle rock, the SLCD converts pulling force along the stem into outward pressure on the rock, generating massive friction. This design allows the device to hold securely in solid, strong rock while minimizing the need for drilling or hammering. The ability to place and remove protection with minimal impact has preserved natural climbing routes and enhanced the aesthetic and structural integrity of popular climbing destinations.
The versatility of the SLCD has also enabled climbers to protect a wider variety of crack geometries. The adjustable nature of the cams, which spread further apart when pulled on the axle, allows for effective placement in both parallel and slightly tapered cracks. This adaptability has revolutionized route protection strategies, allowing climbers to tackle more complex and varied terrain with increased confidence. The reliability of the SLCD has become a cornerstone of modern climbing, influencing everything from sport climbing to big wall ascents.
Despite the advantages, the effectiveness of the SLCD depends on proper placement in solid rock. The large forces exerted on the rock when a climber falls can dislodge poorly placed devices, highlighting the importance of understanding the mechanics of the equipment. The integration of the SLCD into climbing gear has not only enhanced safety but also expanded the possibilities for route development and climbing styles, making it an essential tool for mountaineers and rock climbers alike.
Technical specifications and safety considerations
Operational Mechanics and Load Distribution
The spring-loaded camming device (SLCD) functions by converting axial pulling force into radial outward pressure. When a climber falls, the tension on the rope acts along the stem of the unit, forcing the cams to expand against the rock walls. This mechanism generates significant friction, which is the primary factor preventing the device from dislodging. The system relies on the cams being mounted on a common axle or adjacent axles, allowing them to spread further apart when the trigger is released. This design ensures that the device remains secure in a crack or pocket, provided the placement is correct. The conversion of force is critical; if the pull is not aligned with the stem, the camming action may be compromised, leading to potential failure. Therefore, the integrity of the hold depends entirely on the mechanical advantage provided by the cam geometry and the spring tension.
Material Evolution and Structural Integrity
The structural components of SLCDs have evolved to balance weight, strength, and cost. Early iterations and many modern standard models utilize machined alloy shafts. These shafts are cut from solid metal, providing high durability and resistance to bending under load. However, for specialized applications such as Technical Friends, manufacturers have adopted brazed stainless-steel cables. This alternative material choice reduces the overall weight of the device, which is crucial for technical climbing where every gram counts. The brazed cable construction maintains sufficient tensile strength while allowing for a more flexible profile. This evolution reflects a continuous effort to optimize the device for different climbing environments, from heavy traditional routes to delicate technical placements. The choice between machined alloy and brazed cable often depends on the specific demands of the climbing style and the expected forces exerted on the gear.
Size Limitations and Rock Quality
The effectiveness of an SLCD is heavily influenced by its size and the quality of the rock. Devices smaller than 10 mm and larger than 100 mm present distinct challenges. Small devices may lack the surface area to generate sufficient friction in wider cracks, while large devices can be cumbersome and may not fit into tighter constrictions. More critically, the large forces exerted on the rock during a fall necessitate placement in solid, strong rock. Placing an SLCD in fragile or flaky rock can lead to the camming lobes crushing the stone, resulting in a sudden and often catastrophic failure. Climbers must carefully assess the rock quality before committing to a placement. The importance of solid rock cannot be overstated; even a perfectly placed device will fail if the surrounding rock is not strong enough to withstand the outward pressure generated by the camming action. This consideration is vital for safety, as the margin for error can be slim in technical climbing scenarios.
