Solar cooker: Technology, design and global deployment

Overview

A solar cooker, also known as a solar oven, is a device which uses the energy of direct sunlight to heat, cook or pasteurize drink and other food materials. This technology represents a direct application of solar energy for thermal processing, eliminating the need for conventional fuel sources during operation. The fundamental principle involves capturing radiant energy from the sun and converting it into heat, which is then transferred to food or liquid contents. This process is particularly effective for pasteurization, a critical step in improving water and food safety in various environments.

Many solar ovens currently in use are relatively inexpensive, low-tech devices. These accessible models make solar cooking feasible for households with limited financial resources. However, the range of available technology is broad. Some solar cookers are as powerful or as expensive as traditional stoves. Advanced, large scale solar cookers can cook for hundreds of people, demonstrating the scalability of the concept from individual household use to community-level applications.

Because these cookers use no fuel and cost nothing to operate, they offer significant economic and environmental advantages. Many nonprofit organizations are promoting their use worldwide in order to help reduce fuel costs and air pollution. The elimination of fuel expenses provides direct financial relief to users. Additionally, the reduction in air pollution contributes to improved local air quality. Furthermore, the widespread adoption of solar cookers helps slow down deforestation and desertification. By reducing the demand for firewood and other biomass fuels, solar cooking mitigates pressure on local vegetation and soil stability. These combined benefits make solar cookers a valuable tool in global efforts to address energy access, environmental sustainability, and public health.

History of solar cooking

The concept of the solar cooker, also known as a solar oven, represents a direct application of solar energy for thermal processing. These devices utilize the energy of direct sunlight to heat, cook, or pasteurize drink and other food materials. The fundamental principle relies on capturing solar radiation and converting it into heat, allowing for cooking without traditional fuel sources. This technology spans a wide range of complexity. Many solar ovens currently in use are relatively inexpensive, low-tech devices. However, some are as powerful or as expensive as traditional stoves. Advanced, large scale solar cookers can cook for hundreds of people, demonstrating the scalability of the technology from household use to communal applications.

Early Development and the 1767 Commissioning

The formal history of solar cooking traces its commissioning to 1767. This date marks the introduction of the solar cooker as a distinct technological concept. The device was designed to harness solar energy for cooking purposes, establishing the foundational methodology for subsequent developments. The operational status of the solar cooker has remained consistent since its inception, with the technology continuing to be operational and relevant in various forms. The 1767 commissioning by Horace-Bénédict de Saussure is a pivotal moment in the history of solar thermal energy. This early experiment demonstrated the viability of using sunlight for heating food, laying the groundwork for future innovations in solar cooking technology.

19th Century Applications and the French Foreign Legion

The development of solar cooking continued into the 19th century, with notable applications in the French Foreign Legion in the 1870s. This period saw the practical deployment of solar cookers in specific operational contexts, highlighting the technology's utility in diverse environments. The use of solar cookers by the French Foreign Legion illustrates the adaptability of the technology for military and expeditionary purposes. These early applications helped to refine the design and efficiency of solar ovens, contributing to the broader evolution of solar thermal technology. The historical context of these developments underscores the long-standing interest in harnessing solar energy for practical cooking solutions.

Modern Promotion and Environmental Impact

In contemporary times, the promotion of solar cookers has gained momentum due to their environmental and economic benefits. Because these cookers use no fuel and cost nothing to operate, many nonprofit organizations are promoting their use worldwide. The primary goals of these initiatives are to help reduce fuel costs and air pollution. Additionally, the widespread adoption of solar cookers aims to help slow down deforestation and desertification. These environmental benefits are significant in regions where traditional cooking methods rely heavily on wood or biomass, leading to increased air pollution and land degradation. The global promotion of solar cookers reflects a growing recognition of their potential to contribute to sustainable energy solutions and environmental conservation.

How do solar cookers work?

Solar cookers operate by converting solar radiation into thermal energy through four primary physical mechanisms: reflection, concentration, absorption, and the greenhouse effect. The process begins with the capture of direct sunlight. In reflective designs, specular reflection is used to direct light onto a smaller area, increasing the intensity of the solar flux. This concentration allows the cooker to reach higher temperatures than flat-plate absorbers alone. The concentrated or direct light strikes an absorber surface, typically painted matte black to maximize the absorption coefficient, minimizing reflection and converting photons into heat.

Thermal Dynamics and Retention

Once absorbed, the heat is retained within the cooking chamber. Glazing, often made of glass or transparent plastic, plays a critical role in the greenhouse effect. Short-wave solar radiation passes through the glazing and is absorbed by the food or the blackened base. The food then re-radiates energy as longer-wave infrared radiation, which is partially trapped by the glazing, preventing immediate heat loss. Insulation materials surrounding the chamber further reduce conductive and convective heat losses, maintaining stable internal temperatures even as external conditions fluctuate. The efficiency of this system depends on the balance between solar input and thermal output, often described by the heat balance equation: Qin​=Qout​+Qstored​.

Cooking Stages and Temperature Ranges

Different cooking methods require specific temperature thresholds, which vary based on the cooker's design and solar intensity. The following table outlines typical temperature ranges for common cooking stages in solar thermal systems:

These temperatures are achieved without fuel combustion, relying solely on the continuous input of solar energy. The operational efficiency is influenced by factors such as the angle of incidence, cloud cover, and the thermal mass of the cooking vessel. Advanced systems may incorporate tracking mechanisms to maintain optimal alignment with the sun, further enhancing the concentration of light and thermal output.

What are the main types of solar cookers?

Solar cookers are categorized by their optical design and thermal retention mechanisms. The primary configurations include box, panel, parabolic, and trough systems, each optimizing the trade-off between cost, portability, and peak temperature.

Box Cookers

Box cookers are insulated enclosures with a transparent cover that traps solar radiation. They function primarily through the greenhouse effect, making them suitable for slow cooking and baking. These devices are typically low-tech and inexpensive, aligning with the widespread promotion by nonprofit organizations to reduce fuel costs and air pollution.

Panel Cookers

Panel cookers use reflective surfaces to concentrate sunlight onto an insulated box. They offer a balance between portability and temperature, often reaching higher heat than simple box designs without the complexity of tracking mechanisms.

Parabolic and Concentrating Systems

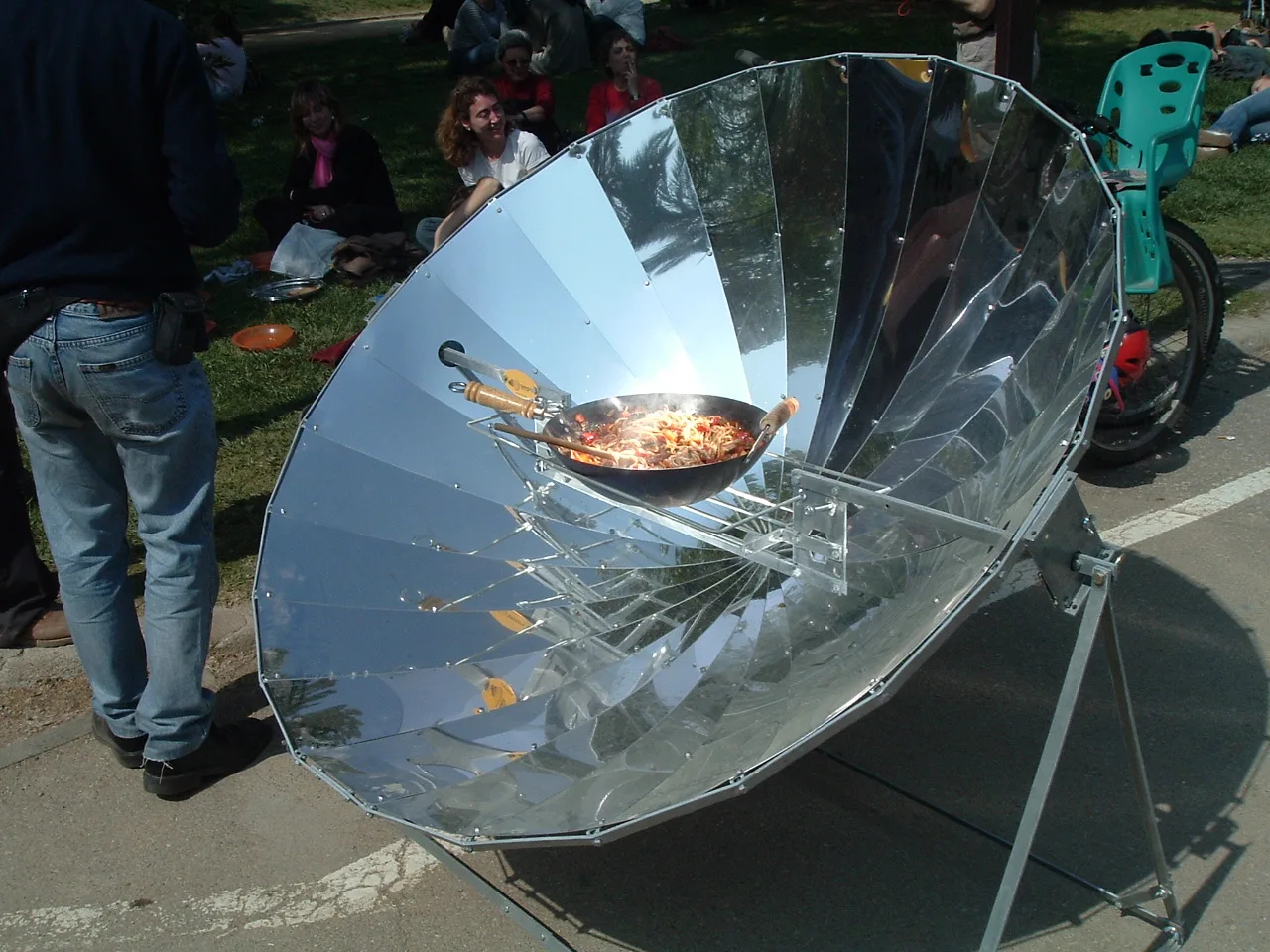

Parabolic reflectors, including paraboloidal dishes and Scheffler cookers, use curved mirrors to focus sunlight to a single point. This design achieves high temperatures suitable for frying and boiling. Parabolic troughs use linear concentration, often employed in large-scale applications where hundreds of people can be fed. Spherical reflectors and vacuum tube technologies further refine concentration efficiency, with vacuum tubes providing enhanced insulation to minimize heat loss.

The choice of cooker depends on the required thermal output and operational context. Advanced large-scale solar cookers can serve hundreds of people, demonstrating the scalability of solar thermal energy for food preparation.

Operation and cooking techniques

The operation of a solar cooker relies on the direct conversion of solar radiation into thermal energy to heat, cook, or pasteurize food materials. Because the device uses no fuel and costs nothing to operate, the primary operational task is positioning the cooker to maximize exposure to direct sunlight. Many solar ovens currently in use are relatively inexpensive, low-tech devices, meaning they often require manual adjustment to track the sun’s apparent motion across the sky. Proper placement is critical; the cooker must be oriented so that the aperture or reflective surface faces the sun directly, minimizing shadows and maximizing the intensity of the incident light.

Food preparation and thermal dynamics

Effective cooking techniques differ significantly from conventional stovetop or oven methods due to the nature of solar heat transfer. Food preparation typically involves cutting ingredients into smaller pieces to increase the surface area exposed to the heat source, thereby reducing the time required for thermal equilibrium. The cooking process is generally slower than conventional methods, relying on sustained, moderate temperatures rather than rapid, high-intensity heat. This difference in thermal profile affects the texture and flavor of the food; for example, proteins may become more tender due to the gradual breakdown of connective tissues, while vegetables may retain more moisture and nutrients because of the enclosed, humid environment often created within the cooker.

The efficiency of the cooking process can be influenced by the color and material of the cooking vessel. Dark-colored, matte-finished containers are often preferred because they absorb a higher percentage of the solar spectrum compared to reflective surfaces. The relationship between the incident solar energy and the absorbed heat can be conceptually represented by the equation Q=I×A×η, where Q is the heat energy, I is the solar irradiance, A is the effective aperture area, and η is the overall efficiency of the cooker. This efficiency factor accounts for optical losses, thermal conduction, and convection currents within the device.

Scale and operational context

While many users operate small, individual units, advanced, large scale solar cookers can cook for hundreds of people, requiring more sophisticated tracking mechanisms and larger reflective arrays. These larger systems are often deployed by nonprofit organizations promoting their use worldwide to help reduce fuel costs and air pollution. The operational goal in these contexts is not just culinary but also environmental, aiming to help slow down deforestation and desertification by reducing the reliance on wood or charcoal. Cooking times vary widely depending on the intensity of the sunlight, the ambient temperature, and the specific design of the oven, but the fundamental principle remains the consistent capture and retention of solar energy until the food reaches the desired temperature.

Advantages and disadvantages

Solar cookers offer significant economic and environmental advantages, primarily because they utilize direct sunlight, requiring no fuel and costing nothing to operate. This operational model allows nonprofit organizations to promote their use worldwide to help reduce fuel costs and air pollution, while also helping to slow down deforestation and desertification. The thermal efficiency of solar cookers can reach 65%, which is substantially higher than the 15% efficiency typical of a coal furnace. This efficiency can be represented as η=Qinput​Quseful​​, where the input energy is derived from solar irradiance.

Operational Disadvantages

Despite these benefits, solar cookers face distinct operational challenges. They exhibit a strong weather dependency, meaning performance fluctuates with cloud cover and seasonal changes. Cooking times are generally longer than traditional methods, and the devices can be sensitive to wind, which may affect temperature stability. Additionally, eye safety is a consideration when using reflective surfaces to concentrate sunlight.

Global deployment and projects

Solar cookers are deployed globally by nonprofit organizations to reduce fuel costs, mitigate air pollution, and slow deforestation and desertification. These devices, ranging from inexpensive low-tech models to advanced large-scale systems capable of cooking for hundreds of people, utilize direct sunlight to heat, cook, or pasteurize food and drink materials.

Regional Adoption and Carbon Credits

In China and India, solar cooker usage has been significant, with deployments supported by carbon credit mechanisms such as the Clean Development Mechanism (CDM) and the Gold Standard. These financial instruments help offset the operational costs and promote the adoption of solar thermal technology in regions with high solar irradiance and traditional fuel dependence.

Large-Scale and Humanitarian Projects

Advanced large-scale solar cookers demonstrate the scalability of the technology. The Auroville solar bowl is a notable example of a large-scale installation designed to serve communal dining needs. In humanitarian contexts, organizations such as Jewish World Watch, KoZon, and Solar Cookers International have implemented projects in refugee camps, including Iridimi and Touloum in Chad. These initiatives provide reliable cooking solutions for displaced populations, reducing reliance on firewood and improving food safety through pasteurization and consistent heating.
