Overview
The Shin-Takasegawa Pumped Storage Station (新高瀬川発電所) is a significant hydroelectric facility located in Ōmachi-shi, Nagano Prefecture, Japan. Operated by TEPCO Renewable Power, the station utilizes the Takase River to function as a pumped storage hydroelectric scheme. The facility is situated approximately 12 kilometres (7.5 mi) west of Ōmachi, with a portion of the system falling within the boundaries of Chūbu-Sangaku National Park. This strategic location allows the station to leverage the natural topography and water resources of the region to provide essential energy storage and generation capabilities.
Commissioned in 1980, the Shin-Takasegawa Pumped Storage Station has been a key component of the regional energy infrastructure for decades. With an installed capacity of 1280 MW, the station plays a crucial role in balancing the electrical grid, particularly for the Tokyo Electric Power Company (TEPCO) service area. Pumped storage facilities like Shin-Takasegawa are vital for managing peak demand and integrating variable renewable energy sources by storing excess energy during off-peak hours and releasing it during periods of high consumption.
The operation of the station involves pumping water to an upper reservoir during times of lower electricity demand and releasing it through turbines to generate power when demand peaks. This process enhances the efficiency and reliability of the regional power supply. The integration of the Shin-Takasegawa Pumped Storage Station into the Chūbu-Sangaku National Park also highlights the intersection of energy infrastructure and natural conservation, requiring careful management to minimize environmental impact while maximizing energy output.
Why it matters
The Shin-Takasegawa Pumped Storage Station holds significant engineering and operational importance within Japan’s energy infrastructure, primarily due to the scale of its civil works and its strategic location. The facility relies on the Takase River, situated approximately 12 kilometres west of Ōmachi in Nagano Prefecture. A substantial portion of the hydroelectric scheme lies within Chūbu-Sangaku National Park, integrating major energy infrastructure into a protected natural landscape. The station is operated by TEPCO Renewable Power and has been in operational status since its commissioning in 1980, contributing a capacity of 1280 MW to the regional grid.
Engineering Significance of the Takase Dam
The structural centerpiece of this significance is the Takase Dam, which serves as the upper reservoir for the pumped storage system. The Takase Dam is recognized as the tallest rock-fill dam in Japan. Furthermore, it ranks as the second tallest dam overall in the country. This distinction places it immediately behind the Kurobe Dam in terms of vertical height. The construction of such a massive rock-fill structure in the mountainous terrain of Nagano Prefecture represents a major feat of geotechnical engineering, allowing for the storage of significant volumes of water necessary for the 1280 MW generation capacity.
The comparison between the Takase Dam and the Kurobe Dam highlights the scale of Japanese dam engineering. While the Kurobe Dam holds the title for the tallest dam in Japan, the Takase Dam’s status as the tallest rock-fill dam underscores the specific material and structural choices made for the Shin-Takasegawa scheme. Both dams are critical components of their respective hydroelectric systems, managing water flow and potential energy in some of Japan’s most rugged topography.
| Dam Name | Type | Height Rank in Japan | Location Context |
|---|---|---|---|
| Kurobe Dam | Concrete Arch | 1st (Tallest) | Kurobe River, Toyama/Nagano |
| Takase Dam | Rock-Fill | 2nd (Tallest Rock-Fill) | Takase River, Nagano |
The operational history of the Shin-Takasegawa Pumped Storage Station, beginning in 1980, demonstrates the long-term viability of these large-scale civil engineering projects. The integration of the Takase Dam into the Chūbu-Sangaku National Park also reflects the balance between energy production and environmental preservation in Japan’s alpine regions. The facility continues to serve as a key asset for TEPCO Renewable Power, leveraging the natural elevation and water resources of the Takase River to provide flexible power generation.
How does pumped storage work at Shin-Takasegawa?
The Shin-Takasegawa Pumped Storage Station operates as a critical component of the regional energy grid, leveraging the topography of Nagano Prefecture to store and release electrical energy. The facility utilizes the Takase River as its primary water source, situated approximately 12 kilometres west of Ōmachi, with portions of the infrastructure located within Chūbu-Sangaku National Park. As a pumped storage hydroelectric scheme, the station functions essentially as a large-scale battery, balancing supply and demand by moving water between two reservoirs at different elevations.
Operational Cycle: Pumping and Generating
The operational cycle at Shin-Takasegawa is defined by two distinct phases: pumping and generating. During periods of low electrical demand, typically at night or on weekends, excess electricity from the grid is used to drive motors that pump water from the lower reservoir to the upper reservoir. This process converts electrical energy into gravitational potential energy. The water is held in the upper reservoir, ready for deployment when grid demand peaks. This flexibility allows the operator, TEPCO Renewable Power, to optimize the usage of base-load power sources, such as nuclear or thermal plants, by absorbing their steady output during off-peak hours.
Conversely, during periods of high electrical demand, such as weekday afternoons, the stored water is released from the upper reservoir back down to the lower reservoir. As the water flows downward, it passes through turbines, spinning them to generate electricity. This generated power is fed back into the grid, providing rapid response to meet peak load requirements. The cycle can be repeated multiple times per day, depending on the volume of water in the reservoirs and the fluctuating needs of the electrical network. The station, which has been operational since its commissioning in 1980, continues to serve this balancing role with a total installed capacity of 1280 MW.
Reversible Francis Turbine-Generators
The core technology enabling this dual functionality is the reversible Francis turbine-generator. Unlike conventional hydroelectric plants that may use separate units for pumping and generating, or different turbine types, the Shin-Takasegawa station employs Francis turbines that can operate in both directions. In generating mode, the water flows through the spiral casing and guide vanes, striking the runner blades and causing the shaft to rotate. This mechanical rotation drives the generator to produce electricity. The Francis turbine is particularly well-suited for medium-head applications, which aligns with the elevation difference between the upper and lower reservoirs in the Takase River system.
In pumping mode, the same turbine runner acts as a pump impeller. The generator operates as a motor, drawing electricity from the grid to rotate the shaft. This rotation forces water from the lower reservoir up through the draft tube and penstock, returning it to the upper reservoir. The efficiency of this reversible process is crucial for the economic viability of the pumped storage scheme. The design allows for quick transitions between pumping and generating modes, providing the grid operator with valuable inertia and frequency regulation services. The integration of these mechanical and electrical systems ensures that the Shin-Takasegawa station remains a reliable asset in the Japanese energy infrastructure.
History
The Shin-Takasegawa Pumped Storage Station represents a significant engineering project in the development of Japan's hydroelectric infrastructure, specifically within the Chūbu region. The project was developed by TEPCO Renewable Power, which currently operates the facility.
The chronological development of the Shin-Takasegawa scheme began in 1971. This inception date marks the formal start of the construction phase, initiating a multi-year effort to establish the pumped storage hydroelectric system. The construction period spanned several years, concluding in 1978. This timeline reflects the engineering complexity involved in integrating the station into the topography of the Takase River valley and the surrounding national park area.
Following the completion of construction in 1978, the station entered its final phases of preparation for service. The facility was commissioned in 1980, officially bringing the 1280 MW capacity plant into operational status. Some records indicate the service entry date as 1979 or 1980, reflecting the transition period between construction completion and full grid integration. The commissioning in 1980 established the Shin-Takasegawa Pumped Storage Station as a key component of the regional power grid, providing critical storage and generation capabilities. The station has remained operational since its commissioning, serving the energy needs of the area through its pumped storage technology.
What are the specifications of the Takase Dam?
The upper reservoir of the Shin-Takasegawa Pumped Storage Station is formed by the Takase Dam, a significant rock-fill embankment structure located within Chūbu-Sangaku National Park. This dam serves as the primary water retention facility for the pumped storage scheme, situated approximately 12 kilometres west of Ōmachi in Nagano Prefecture. The engineering design utilizes a rock-fill construction method, providing structural stability for the elevated water storage required for the station's 1280 MW capacity operations.
Dam Dimensions and Structural Composition
The Takase Dam features a total height of 176 metres and a crest length of 362 metres. The structural volume of the rock-fill embankment is recorded at 11,586,000 cubic metres. These dimensions reflect the substantial earthworks required to create the upper basin for the pumped storage cycle. The dam's construction integrates with the natural topography of the Takase River valley, leveraging the elevation difference essential for hydroelectric generation.
| Parameter | Value |
|---|---|
| Dam Type | Rock-fill embankment |
| Height | 176 m |
| Length | 362 m |
| Structural Volume | 11,586,000 m³ |
Reservoir Capacity and Siltation
The reservoir created by the Takase Dam has a total storage capacity of 76,200,000 cubic metres. However, operational efficiency is influenced by sediment accumulation. Only 16,200,000 cubic metres of this total volume is considered active capacity for the pumped storage cycle, with the remainder attributed to silt deposition. This distinction between total and active capacity is critical for understanding the hydraulic performance of the Shin-Takasegawa station, which has been operational since 1980 under TEPCO Renewable Power.
| Reservoir Metric | Volume (m³) |
|---|---|
| Total Capacity | 76,200,000 |
| Active Capacity | 16,200,000 |
What are the specifications of the Nanakura Dam?
The lower reservoir of the Shin-Takasegawa Pumped Storage Station is formed by the Nanakura Dam, a critical structural component of the hydroelectric scheme located in Nagano Prefecture. This dam serves as the primary water retention structure for the lower basin, enabling the pumped storage cycle that defines the station's operational capacity of 1280 MW. The engineering design of the Nanakura Dam reflects the specific geological and hydraulic requirements of the Takase River valley, situated approximately 12 kilometres west of Ōmachi and partially within Chūbu-Sangaku National Park.
Structural Dimensions and Composition
The Nanakura Dam is constructed as a rock-fill embankment, a design choice that leverages local geological materials to create a robust barrier against the hydrostatic pressure of the reservoir. The structure stands at a height of 125 metres, providing sufficient elevation to maintain the necessary head for the turbine-generators located in the power house. The crest of the dam extends for a length of 340 metres, spanning the width of the river valley to effectively isolate the lower reservoir from the surrounding terrain.
This substantial volume indicates the scale of earthworks and material placement required during the construction phase, which culminated in the station's commissioning in 1980. The use of rock-fill allows for flexibility in the dam's body, accommodating minor settlements and thermal expansions while maintaining overall stability. The embankment's composition is engineered to resist seepage and ensure long-term durability under the cyclic loading conditions typical of pumped storage operations.
Reservoir Capacity and Hydraulic Management
This volume is strategically sized to support the rapid inflow and outflow cycles characteristic of the Shin-Takasegawa scheme. The lower reservoir acts as a temporary storage basin, receiving water discharged from the upper reservoir during peak generation periods and storing it during pumping phases when electricity demand is lower. The capacity ensures that the system can maintain efficient operation over extended periods, minimizing the need for frequent drawdowns or spills.
A key engineering consideration for the Nanakura Dam is its protection against rapid draw-down. In pumped storage systems, the water level in the lower reservoir can fluctuate significantly over short timeframes as water is cycled between the upper and lower basins. Rapid draw-down can expose the upstream face of the dam to sudden changes in hydrostatic and seepage pressures, potentially leading to slope instability. The rock-fill design of the Nanakura Dam incorporates specific grading and drainage features to mitigate these risks, ensuring that the embankment remains stable even during aggressive operational cycles. This protection mechanism is essential for maintaining the structural integrity of the dam and the reliability of the 1280 MW power output provided by TEPCO Renewable Power.

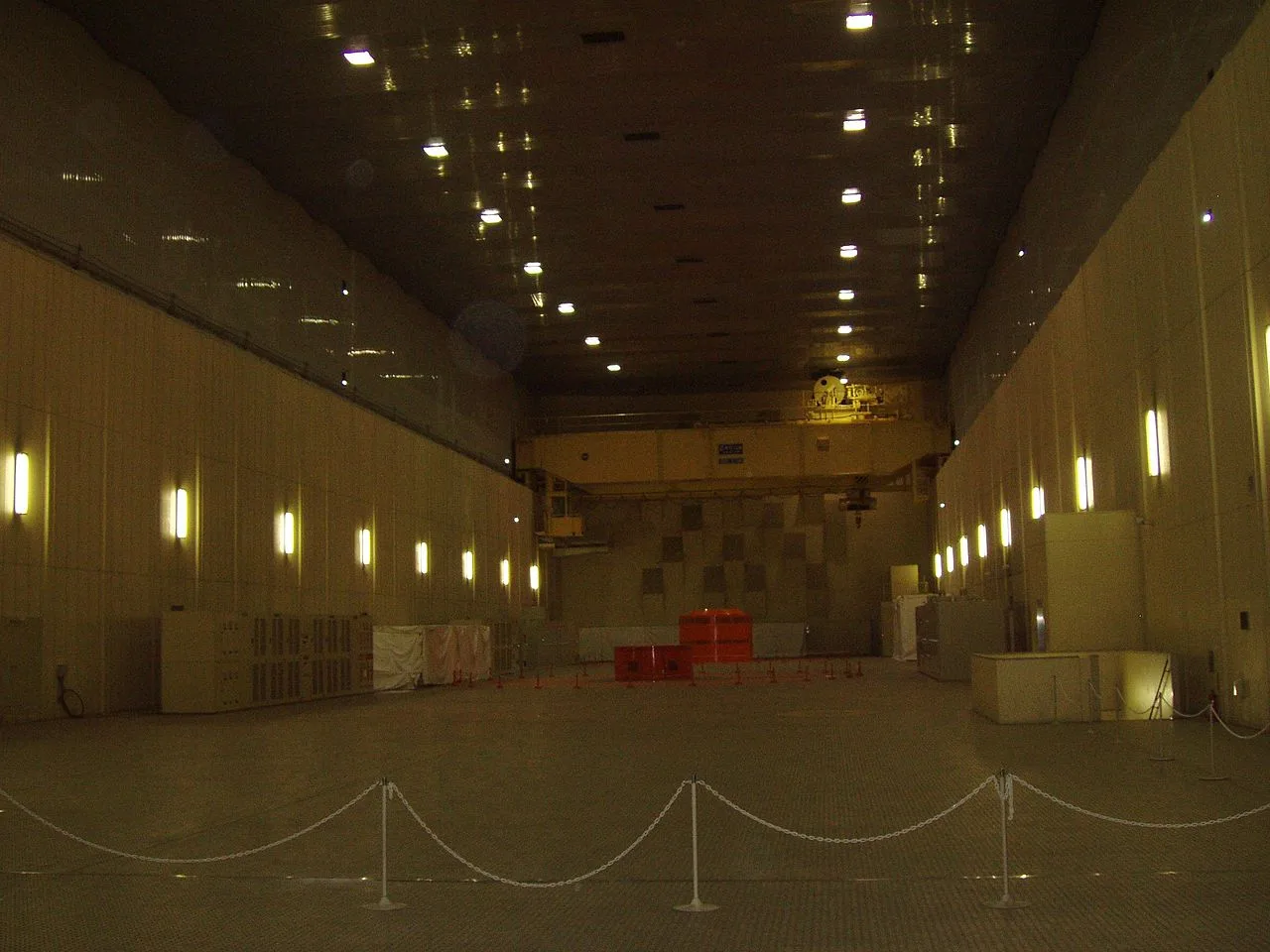

Hydraulic infrastructure and turbine details
The Shin-Takasegawa Pumped Storage Station relies on a robust hydraulic infrastructure designed to maximize energy storage efficiency along the Takase River. The system’s head-race tunnels are engineered with an 8 m diameter and extend for 2,600 m in length, channeling water from the upper reservoir to the power house. These tunnels feed into penstocks that are 330 m long, creating a significant hydraulic drop of 200 m to drive the turbine-generators. This configuration allows for precise control over water flow and pressure, essential for the rapid response times characteristic of pumped storage facilities.
Turbine-generators and capacity
The station houses four reversible Francis turbine-generators, each with a capacity of 320 MW. Together, these units provide the plant’s total installed capacity of 1280 MW. The Francis turbine design is particularly suited for the medium-head conditions of the Takase River scheme, offering high efficiency in both pumping and generating modes. The reversibility of the turbines enables the plant to switch between power generation and water pumping quickly, optimizing grid stability. TEPCO Renewable Power operates these units, leveraging their performance to manage peak demand and integrate variable renewable energy sources into the regional grid.
Nakanosawa Power Station integration
In addition to the main pumped storage units, the system includes the Nakanosawa Power Station, which features a 42 MW Francis turbine. This turbine operates under a head of 140.8 m, contributing to the overall energy output of the Takase River scheme. The Nakanosawa unit complements the larger pumped storage capacity by providing additional generating power, particularly during periods of high water flow. Its integration into the broader hydraulic network enhances the flexibility of the energy production system, allowing for more nuanced management of water resources and power output. The combination of the main station’s 1280 MW capacity and Nakanosawa’s 42 MW output underscores the comprehensive design of the Shin-Takasegawa facility.
