Overview

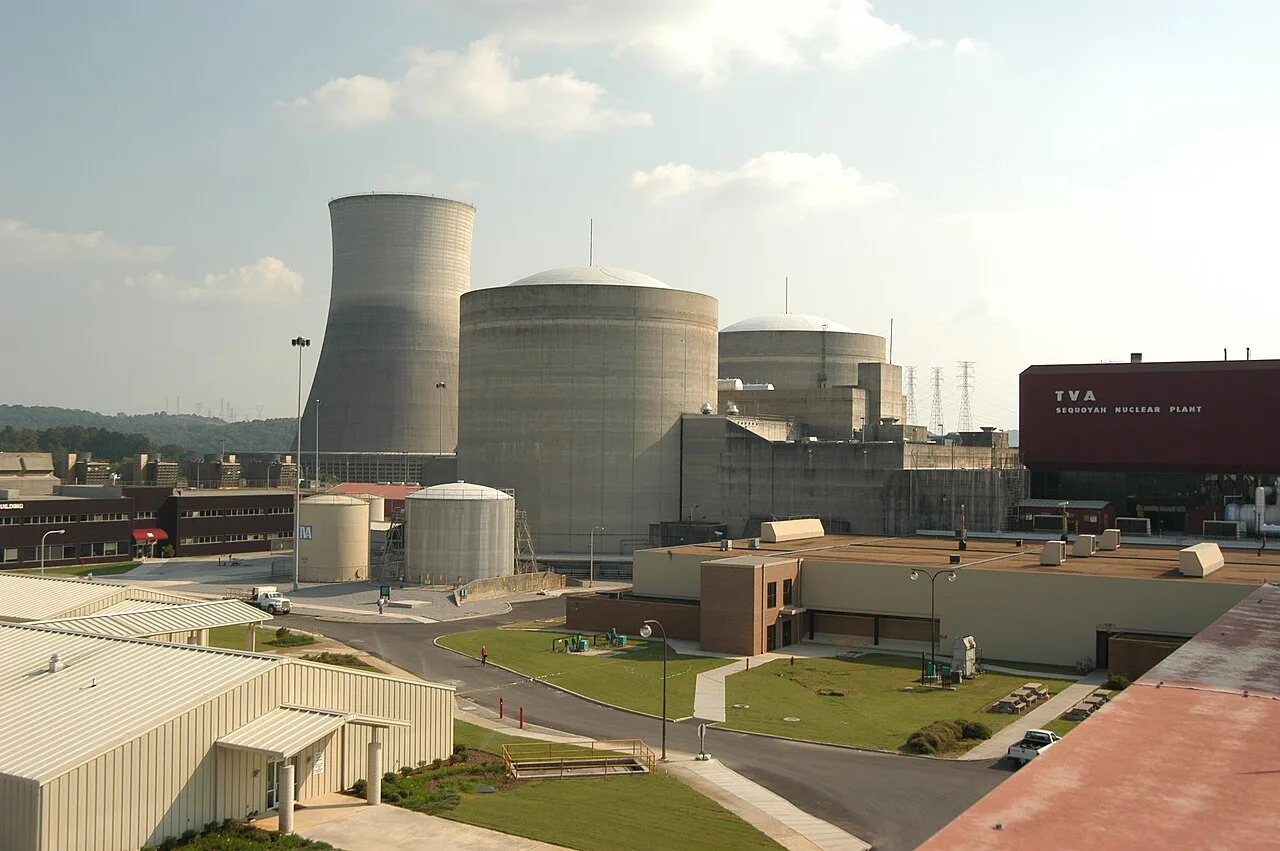

The Sequoyah Nuclear Plant is an operational nuclear power facility located in Hamilton County, Tennessee, United States. The plant is situated on a 525-acre (212 ha) site, positioned 7 miles (11 km) east of Soddy-Daisy and 20 miles (32 km) north of Chattanooga. It abuts Chickamauga Lake on the Tennessee River, utilizing the water body for cooling and operational needs. The facility is owned and operated by the Tennessee Valley Authority (TVA), a major public power provider in the southeastern United States. Sequoyah serves as a significant source of baseload electricity for the region, contributing to the broader Tennessee Valley grid infrastructure.

Technical Specifications

The plant features two Westinghouse Pressurized Water Reactor (PWR) units. The total installed capacity of the Sequoyah Nuclear Plant is 2440 MW. The facility was commissioned in 1981, marking the beginning of its operational history. The reactors utilize uranium as the primary fuel source. The design incorporates an ice condenser containment system, a specific engineering choice that distinguishes it from other containment types. This system uses a layer of ice pellets that melt upon containment pressure rise, condensing steam and reducing internal pressure to protect the reactor vessel.

The two units operate in parallel, providing a combined output that supports the TVA's diverse energy mix. The plant's location on the Tennessee River provides strategic advantages for water intake and discharge, essential for the thermodynamic cycle of the PWR technology. The facility remains a key asset in the regional energy landscape, maintaining operational status as of the current year.

How does the ice condenser containment system work?

The Sequoyah Nuclear Plant utilizes a unique ice condenser containment system, a design feature shared with the adjacent Watts Bar facility. This system was engineered to manage pressure during a loss-of-coolant accident (LOCA) by rapidly condensing steam, thereby reducing the volume and pressure within the containment structure. Unlike traditional dry or wetwell containments that rely on large volumes of water or air, the ice condenser uses a bed of borated ice cubes stored in a large cylindrical tank.

Mechanism of the Ice Condenser

In the event of a LOCA, high-pressure steam from the reactor vessel is directed into the containment building. The steam rises and comes into contact with the bed of ice located in the upper portion of the containment. The latent heat of the steam melts the ice, causing rapid condensation. This phase change significantly reduces the steam volume, lowering the internal pressure. The borated water resulting from the melted ice also helps to absorb neutrons, providing a secondary layer of criticality control.

The process can be described by the energy balance equation for condensation:

Q = m_steam * h_fg

Where Q is the heat absorbed, m_steam is the mass of the condensed steam, and h_fg is the latent heat of vaporization. The ice bed must be large enough to absorb the heat generated during the initial peak of the accident.

Comparison with Standard Containment Types

The following table compares the ice condenser system with other common containment types:

Feature Ice Condenser (Sequoyah/Watts Bar) Drywell (PWR) Wetwell (BWR)
Primary Pressure Relief Mechanism Steam condensation on ice bed Large air volume / Spray system Steam condensation on water pool
Key Component Ice storage tank Steel sphere or concrete dome Toroidal water pool
Neutron Absorption Borated ice/water Borated water (spray) Borated water (pool)
Complexity High (requires ice making system) Low Medium

The ice condenser system offers a compact design compared to the large wetwells of BWRs, but it requires a continuous ice-making process to maintain the ice bed, adding operational complexity. This unique engineering solution was a hallmark of the Sequoyah and Watts Bar units, distinguishing them from other PWRs in the US fleet.

History

The construction of the Sequoyah Nuclear Plant began in 1970, marking the start of a significant expansion in the Tennessee Valley Authority’s (TVA) nuclear portfolio. Located on 525 acres (212 ha) on Chickamauga Lake, the facility was developed to harness uranium as its primary fuel source. The project proceeded through the early 1970s, a period characterized by rapid nuclear growth in the United States. However, the broader industry context shifted dramatically following the Three Mile Island accident in 1979 and the shutdown of the Brown's Ferry Nuclear Plant. These events triggered intense regulatory scrutiny and safety documentation reviews across the nation’s nuclear fleet, directly impacting Sequoyah’s operational timeline.

Unit 1 was officially commissioned in 1981, bringing the plant’s total capacity to 2440 MW. Unit 2 followed shortly after, solidifying the facility's role in the regional grid. Despite successful commissioning, the plant faced immediate operational challenges. In 1985, both units were shut down due to concerns regarding safety documentation. This halt was part of a wider industry-wide pause as regulators demanded rigorous verification of safety protocols in the wake of recent nuclear incidents. The shutdown highlighted the heightened caution governing nuclear operations during the mid-1980s.

Following extensive reviews and documentation updates, the Sequoyah Nuclear Plant restarted operations in 1988. This restart marked a return to stability for the facility, which has remained operational since. The period between 1985 and 1988 underscores the critical importance of regulatory compliance and safety assurance in nuclear power generation. The plant’s ability to navigate these challenges allowed it to continue contributing to the Tennessee Valley Authority’s energy mix, maintaining its status as a key operational asset in the region.

Why it matters

The Sequoyah Nuclear Plant holds a distinct position in the history of United States nuclear energy, primarily because it was among the first new nuclear facilities licensed for construction following the 1979 Three Mile Island accident. The Three Mile Island event triggered a period of regulatory scrutiny and public hesitation that stalled numerous projects across the nation. Sequoyah’s progression through the licensing and construction phases during this climate demonstrated the resilience of the Tennessee Valley Authority’s (TVA) nuclear program and provided a critical data point for regulators and investors evaluating the viability of new builds in the post-accident era. Its successful commissioning in 1981 helped stabilize confidence in the nuclear sector during a period of significant uncertainty.

Role in the TVA Fleet

Within the Tennessee Valley Authority’s diverse generation portfolio, Sequoyah serves as a cornerstone of baseload power. With a total installed capacity of 2440 MW, it stands as the second most powerful plant in the TVA fleet. This substantial output is critical for meeting the energy demands of the Tennessee River basin, providing a stable, low-carbon energy source that complements the region’s hydroelectric and thermal assets. The plant’s location on 525 acres (212 ha) abutting Chickamauga Lake on the Tennessee River allows for efficient cooling and integration into the regional transmission grid, supporting power delivery to areas 7 miles (11 km) east of Soddy-Daisy and 20 miles (32 km) north of Chattanooga.

Political and Cultural Significance

The naming of the facility reflects a deliberate political and cultural strategy by the TVA. The plant was named after Sequoyah, the Cherokee scholar who created the Cherokee syllabary. This naming decision was made to compensate for the displacement of Cherokee communities and the flooding of historic Cherokee sites caused by the construction of the Tellico Dam, another major TVA project. By honoring Sequoyah, the TVA acknowledged the cultural impact of its infrastructure development on the indigenous populations of the region. This act of recognition served to mitigate local political opposition and integrate the nuclear plant into the broader narrative of Tennessee’s heritage, linking modern energy infrastructure with historical cultural preservation efforts.

Tritium production and future operations

In 2002, the Sequoyah Nuclear Plant underwent a significant operational modification to support national energy security. The facility was modified to utilize tritium-producing burnable absorber rods (TPBARs) for the U.S. Department of Energy. This technical adaptation allowed the plant to serve a dual purpose: generating electricity for the Tennessee Valley Authority grid while simultaneously producing tritium, a key isotope used in nuclear weapons and fusion research. The integration of TPBARs into the reactor core required specific licensing adjustments to account for the additional heat generation and neutron absorption characteristics of the rods.

By 2007, the tritium production role at Sequoyah was contextualized within the broader Tennessee Valley Authority nuclear fleet. While Sequoyah contributed to the U.S. Department of Energy's tritium supply, the Watts Bar Nuclear Plant also played a crucial role in this production effort. The coordination between Sequoyah and Watts Bar ensured a steady supply of tritium for the Department of Energy, leveraging the operational capabilities of both facilities. The specific allocation of production targets between the two plants depended on core configurations and maintenance schedules, but both were integral to the national tritium reserve strategy during that period.

In 2015, the Tennessee Valley Authority secured a major milestone for the Sequoyah Nuclear Plant with its license renewal. The plant was granted an additional 20 years of operational life, extending its service well into the mid-2030s. This renewal process involved rigorous safety reviews, environmental assessments, and technical evaluations to ensure the plant's continued reliability. The extension confirmed the plant's status as a key asset in the region's energy mix, providing stable baseload power. The license renewal also allowed for continued investment in modernization and efficiency improvements, ensuring that Sequoyah remains competitive and safe for future decades.
